Description

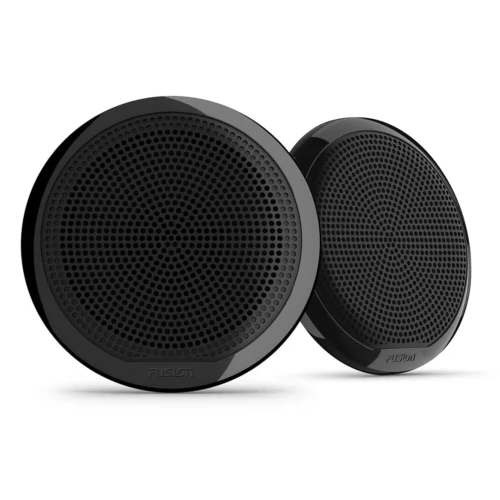

Enjoy quality audio and multicolor RGB LED lighting to enhance your boating experience with the EL Series speakers from Fusion.
DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
The EL Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the EL Series speakers are designed and built for superior quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The EL Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
INJECTION-MOLDED POLYPROPYLENE (IMPP) CONE
By using a water-resistant IMPP cone it improves the robustness of the speaker, allowing for clean, clear audio reproduction.
LIGHTWEIGHT VOICE COIL
The lightweight design allows for higher sensitivity, resulting in increased power and efficiency to deliver an enhanced audio experience.
OPEN BASKET CONSTRUCTION
The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.
General Specifications:
Physical dimensions (Diameter x Depth): 6.93” x 2.26” (176 x 57.5 mm)
Weight: 1.21 lbs
Water and dust rating: IP65
Peak power (Watts): 80 W
RMS power (Watts): 20 W
Sensitivity (1 W / 1 m): 88 dB
Frequency response: 45 Hz-16 kHz
Nominal impedance: 4 ohms
Recommended amplifier power (RMS): 20-40 W/Ch
LED lighting: yes, RGB (sports gray with RGB model only)
LED supply voltage: 10.8-16 VDC (sports gray with RGB model only)
LED load current @ 16 VDC: 150 mA (sports gray with RGB model only)
Operating temperature range: 32° to 122° F (0° to 50° C)
Voice coil diameter: 0.79"
Cone material: Polypropylene cone with cloth surround
Compass-safe distance: 100" (254 cm)
Mounting Dimensions
Mounting diameter clearance: 5.12" (130 mm)
Mounting depth clearance: 1.69" (43 mm)
