JVC KD-R690S CD Receiver featuring Front USB / AUX Input / Pandora / SiriusXM Ready / Variable Illumination

MSRP: $119.95
Now: $109.20
(You save $10.75 )
SKU:
KD-R690S
UPC:
046838076879
Condition:
New
Availability:
In stock and ready to ship!
Shipping:
This item qualifies for free 3-Day Shipping

JVC KD-R690S Single din Receiver

CD, USB, Aux, Android USB Playback, variable color illumination

Features

Android™ Music Playback via USB

Simply connect your Android smartphone or tablet to the receiver via USB and enjoy a totally “plug and play” music playback solution. The Android Open Accessory Protocol (AOA2) is supported so absolutely no preparation or set-up is necessary – just plug it in and it’s ready to play audio files stored on your Android device in what’s called “AUDIO MODE”. Or, by installing the free JVC Music Play app* available on Google Play, you’ll be able to access “AUTO MODE” for added functionality including Folder Up & Down, and Search Artist/Album/Song.

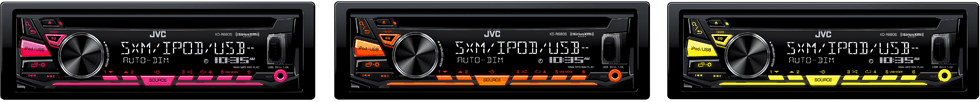

Variable-Color Illumination

You can choose illumination colors from one of 49 presets or customize your own color by adjusting the intensity of RGB (Red, Green, and Blue).


Pandora(Android/iPhone)

Listen to Pandora your smartphone with smooth control on the headunit via USB or Bluetooth connection for iPhone, and via Bluetooth for Android devices.


15-Preset EQ including “drvn EQ”

Preset EQ patterns are selectable from 15 types including ”drvn EQ” that is designed to maximize the performance of JVC drvn Series amplifiers and speakers, as well as producing dynamic sound for any speaker.

Technical Specifications

Display
Display Type
2-Line VA LCD Display
LCD Color
White
Key Color
Variable Color
Spanish Text Display Compatible
Yes
Auto Dimmer
Yes
Brightness Control
Yes
Media Playback
MP3 Compatible with Tag
CD / USB
WMA Compatible with Tag
CD / USB
WAV Compatible with Tag
USB
FLAC Compatible with Tag
USB
Android Control
Android Music Playback (AUDIO MODE and AUTO MODE)
Yes (AUDIO MODE & AUTO MODE)[1]
iPod/iPhone Control
iPod/iPhone Music Playback
Yes
Pandora Control (Available in countries that support this service.)
Yes (via USB)
iHeartRadio Control (Available in countries that support this service.)
Yes (via USB)
USB
Position
Front
USB Power Supply
Yes (1A)
Drive Change Mode for Mass Storage Class
Yes
Inputs and Outputs
AUX Input
1 (Front)
Line Output Terminals (Pair)
2 Pairs (Front + Rear/Subwoofer Selectable)
Pre-Output Level
2.5V
Subwoofer Output with Level/Frequency Control
Yes (Level -8 - +8)
Subwoofer Output Level
2.5V
Tuner
SiriusXM Ready
Yes
Radio Data Broadcast System (RBDS)
Yes
Digital Processing Tuner
Yes
Preset Stations
18FM + 6AM
Strong Station Memory (for FM)
Yes
Radio Timer
Yes (Once/Daily/Weekly)
Tuner Preset Memory (for power disconnection)
Yes
FM
Frequency Range
87.9 - 107.9MHz (200kHz)
AM
Frequency Range
530 - 1,700kHz (10kHz)
Audio
Maximum Power Output
50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
Full Bandwidth Power (at less than 1%THD)
22W x 4
MOS-FET Amplifier
Yes
Subwoofer Direct Connection (Mono Lch)
Yes
EQ
Yes (3-Band Parametric EQ)
Preset EQ
Yes (15-Preset)
Digital Track Expander
Yes
Bass Boost
Yes
Loudness Control
Yes (Off/Low/High)
High-Pass Filter/Low-Pass Filter
- /Yes
drvnEQ
Yes
General
Detachable Face Panel
Yes
Steering Remote Control Ready
Yes
Dimensions (W x H x D)
Installation Size
7-3/16" x 2-1/8" x 6-1/4" (182 x 53 x 159mm)
Weight
2.65 lbs. (1.2kg)
Unit weight in individual package
3.09 lbs. (1.4kg)
Size:
Single DIN
UPC:
046838076879
Bundle:
No
Feature 1:
CD Receiver featuring Front USB
Feature 2:
AUX Input
Feature 3:
Pandora
Feature 4:
iHeartRadio
Feature 5:
SiriusXM Ready
Condition:
NEW
Manufacturer SKU:
KD-R690S
Weight:
3.500 lbs
ASIN:
B0771BDVDB
