JL Audio C7 3-Way Active Component Set (6.5", 3.5" & Tweeter) With TwK-88 Digital Signal Processor
This bundle includes two C7-650cw 6.5" speakers, two C7-350cm 3.5" speakers, two C7-100ct 1" tweeters, and a TwK-88 Digital Signal Processor.
JL Audio C7-650cw
General Specifications
Continuous Power Handling (RMS) | 125 W |
Peak Music Power | 225 W |
Recommended Amplifier Power (RMS) | 50 - 175 W / Ch. |
Nominal Impedance | 4 Ī© |
Frequency Response | 50 Hz - 5 KHz Ā± 3 dB |
Parameters
Voice Coil Resistance (Re) | 3.114 Ī© |
Free Air Resonance (Fs) | 54.5 Hz |
Reference Efficiency (no) | 0.304% |
Efficiency | 87.0 dB @ 1W / 1m 93.0 dB @ 1W / 0.5m |
Sensitivity | 90.0 dB @ 2.83V / 1m |
Electrical āQā (Qes) | 0.669 |
Mechanical āQā (Qms) | 6.265 |
Total Speaker āQā (Qts) | 0.605 |
Equivalent Compliance (Vas) | 0.461 cu. ft. (13.05 liters) |
Moving Mass (Mms) | 17.679 g |
Mechanical Compliance (Cms) | 0.000482 m/N |
Magnetic Strength (BL) | 5.31 N/A |
Effective Piston Area (Sd) | 21.4 sq. in. (0.013807 sq. m) |
One Way Linear Excursion (Xmax) | 5 mm |
Physical Specifications
Frame Outer Diameter (A) | 6.50 in / 165 mm |
Bolt Hole Circle Diameter (B) | 6.12 in / 155 mm |
Mounting Hole Diameter (C) | 5.56 in / 141 mm |
Grille Tray Outer Diameter (D) | 7.20 in / 183 mm |
Frontal Grille Protrusion* (E) | 0.98 in / 25 mm |
Mounting Depth (F) | 2.77 in / 70 mm |
Motor Outer Diameter (G) | 3.94 in / 100 mm |
JL Audio C7-350cm
General Specifications
Continuous Power Handling (RMS) | 100 W |
Peak Music Power | 200 W |
Recommended Amplifier Power (RMS) | 50 - 150 W / Ch. |
Nominal Impedance | 4 Ī© |
Frequency Response | 300 Hz - 10 KHz Ā± 3 dB |
Parameters
Moving Mass (Mms) | 4.009 g |
Equivalent Compliance (Vas) | 0.015 cu. ft. (0.430 liters) |
Mechanical Compliance (Cms) | 0.000257 m/N |
Magnetic Strength (BL) | 4.66 N/A |
One Way Linear Excursion (Xmax) | 1 mm |
Effective Piston Area (Sd) | 5.31 sq. in. (0.003426 sq. m) |
Total Speaker āQā (Qts) | 0.541 |
Mechanical āQā (Qms) | 6.454 |
Reference Efficiency (no) | 0.27% |
Free Air Resonance (Fs) | 156.9 Hz |
Efficiency | 86.5 dB @ 1W / 1m 92.5 dB @ 1W / 0.5m |
Sensitivity | 89.5 dB @ 2.83V / 1m |
Electrical āQā (Qes) | 0.59 |
Voice Coil Resistance (Re) | 3.245 Ī© |
Physical Specifications

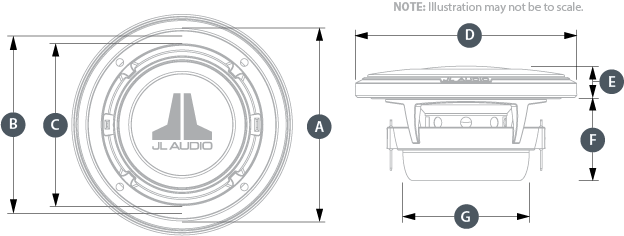

Frame Outer Diameter (A) | 3.45 in / 88 mm |
Bolt Hole Circle Diameter (B) | 3.15 in / 80 mm |
Mounting Hole Diameter (C) | 2.87 in / 73 mm |
Grille Tray Outer Diameter (D) | 3.95 in / 100 mm |
Frontal Grille Protrusion (E) | 0.58 in / 15 mm |
Mounting Depth (F) | 1.46 in / 37 mm |
Motor Outer Diameter (G) | 2.36 in / 60 mm |
JL Audio C7-100ct
General Specifications
Continuous Power Handling (RMS) | 100 W |
Peak Music Power | 200 W |
Recommended Amplifier Power (RMS) | 50 - 150 W / Ch. |
Nominal Impedance | 4 Ī© |
Frequency Response | 3 kHz - 30 KHz Ā± 3 dB |
Parameters
Voice Coil Resistance (Re) | 3.20 Ī© |
Free Air Resonance (Fs) | 1450 Hz |
Reference Efficiency (no) | 0.267% |
Efficiency | 86.5 dB @ 1W / 1m 92.5 dB @ 1W / 0.5m |
Sensitivity | 89.5 dB @ 2.83V / 1m |
Physical Specifications
Flush Mount Fixture Diameter (A1) | 2.13 in / 54 mm |
Surface Mount Fixture Diameter (A2) | 2.16 in / 55 mm |
Flush Mount Mounting Hole Diameter (B) | 1.88 in / 48 mm |
Flush Mount Mounting Depth (C) | 0.73 in / 19 mm |
Flush Mount Tweeter Frontal Protrusion (D1) | 0.33 in / 8 mm |
Surface Mount Tweeter Frontal Protrusion (D2) | 1.06 in / 27 mm |
JL Audio TwK-88
The TwKā¢ 88 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwKā¢ 88 includes flexible input/output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.
Control the TwKā¢ 88ās entire feature set by connecting it to your PC via USB, using the companion TĆ¼Nā¢ 2.0 Software interface.
- Flexible input design with 8 differential-balanced, line-level analog inputs (RCA), accepting line-level signals up to 7.1V (RMS)
- Separate optical (Toslink) and coaxial digital inputs for connection to digital S/PDIF sources.
- Flexible input mixer allows input channels to be combined with full control over each inputās level and polarity.
- 8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment
- Powerful crossover section with fully variable, high-pass and low-pass filters, crossover slopes are selectable from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
- Configurable polarity and delay settings, with separate entries for speaker distance plus offset control; fully linkable with other channels, in any combination, for adjustment
- Precise output level controls, adjustable in 0.5 or 0.1 dB increments, fully linkable with other channels, in any combination
- 8 analog, line-level RCA output jacks (4V RMS)
- Optical (Toslink) output jack provides a pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied.
- Remote turn-on output (+12VDC) for activating aftermarket audio equipment.
- JLidā¢ Port allows connection of the included DRC-200 Digital Remote Controller to add dual configurable level controls, preset selection and LED status reporting from the driver's seat.
General Specifications
Power Supply Type | Regulated DC-DC SMPS |
Input Operating Voltage | 10 - 16 VDC |
Standby Current Draw | <1.5 mA |
Operating Current Draw | 0.7 A |
Recommended Fuse Value | 1 A |
Input Channels | Eight |
Input Type | Line-level, Differential-Balanced |
Input Voltage Range | 250 mV - 7.1 V RMS |
Minimum Input Voltage | 10 mV RMS |
Input Level Setting | Eleven discrete selections from 250 mV - 7.1V RMS |
Output Channels |
Eight |
Analog Output | Unbalanced, stereo RCA jacks |
Digital Output | Optical (Toslink) output (S/PDIF) |
Output Impedance | 450 Ī© |
Latency | Analog - Analog: 5.425 mS
Analog - Optical: 5.470 mS Optical - Optical: 4.860 mS Optical - Analog: 4.805 mS |
S/N Ratio | 98 dB (A-Weighted, referred to 4V RMS Output) |
THD+N @ Rated Output | 0.02% (20 Hz - 20 kHz) |
Signal Processing
Audio Resolution | 24 bit / 48 kHz |
Number of EQ Bands | 10 x 8 Channels |
Remote Level Control | Included (DRC-200) |
Remote Level Functions | Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting |
Physical Specifications
Height (H) | 1.85 in / 47 mm |
Width (W) | 4.29 in / 109 mm |
Depth (D) | 6.14 in / 156 mm |
Net Weight | 2.58 lb / 1.17 kg |
