Description

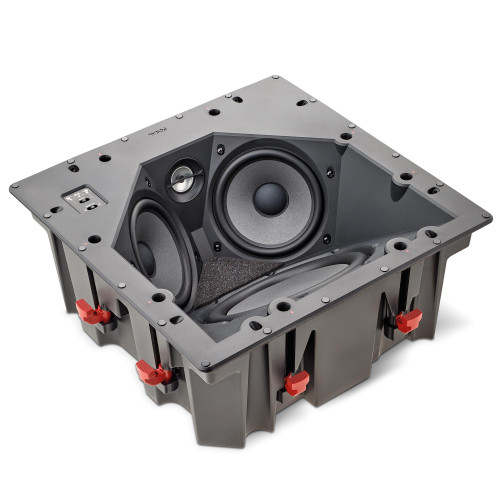

The 100ICLCR5 in-ceiling loudspeakers can be highlighted for their acoustics performances and compact design. Here is the masterpiece for your Home Cinema system (in dedicated rooms or living rooms), installed in the ceiling which reinforces classic Hi-Fi loudspeakers or in-wall loudspeakers. It is also ideal for very large rooms without any rear wall nearby. Five possible applications: front left, center or right channels, rear left and rear right channels.
This in-ceiling loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving the sound dispersion. Its two drive units are also equipped with a new Polyglass cone (5ā ā 13 cm). A new crossover improves the off-axis listening and avoids the āshower effectā. Its three position switch allows choosing the left, center or right channels to adjust the treble level.
This product can be installed everywhere thanks to a compact design with the speaker driverās basket and chassis being redesigned as one only piece, frameless square and circular front grilles.
Drivers: 2 x 5" (13cm) Polyglass woofers, 1" (25mm) inverted dome tweeter, 8" (21cm) Polyglass passive radiator
Sensitivity: (2.83V/1m) 92dB
Frequency response: (+/-3dB) 65Hz - 23kHz
Low frequency point: (-6dB) 55Hz
Nominal impedance: 8 Ī©
Minimal impedance: 4.6 Ī©
Recommended amplifier power: 25 - 120W
External dimensions (HxWxD): 13 15/16" x 13 15/16" x 5 5/16" (354 x 354 x 150mm)
Cut-Out diameter (HxW): 12 15/16" x 12 15/16" (328 x 328mm)
Depth from wal: 6" (152mm)
Net weight (with front grille): 11.6lbs (5.3kg)
Packing dimensions (WxDxH): 16 1/16" x 16 1/16" x 7 1/2" (408 x 408 x 190mm)
Total weight (with packaging): 15.8 lbs (7.2kg)
This in-ceiling loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving the sound dispersion. Its two drive units are also equipped with a new Polyglass cone (5ā ā 13 cm). A new crossover improves the off-axis listening and avoids the āshower effectā. Its three position switch allows choosing the left, center or right channels to adjust the treble level.
This product can be installed everywhere thanks to a compact design with the speaker driverās basket and chassis being redesigned as one only piece, frameless square and circular front grilles.
Drivers: 2 x 5" (13cm) Polyglass woofers, 1" (25mm) inverted dome tweeter, 8" (21cm) Polyglass passive radiator
Sensitivity: (2.83V/1m) 92dB
Frequency response: (+/-3dB) 65Hz - 23kHz
Low frequency point: (-6dB) 55Hz
Nominal impedance: 8 Ī©
Minimal impedance: 4.6 Ī©
Recommended amplifier power: 25 - 120W
External dimensions (HxWxD): 13 15/16" x 13 15/16" x 5 5/16" (354 x 354 x 150mm)
Cut-Out diameter (HxW): 12 15/16" x 12 15/16" (328 x 328mm)
Depth from wal: 6" (152mm)
Net weight (with front grille): 11.6lbs (5.3kg)
Packing dimensions (WxDxH): 16 1/16" x 16 1/16" x 7 1/2" (408 x 408 x 190mm)
Total weight (with packaging): 15.8 lbs (7.2kg)
