Description
Included in this kit
This bundle includes 2x JL Audio 13W3v3-4:13.5-inch (345 mm) Subwoofer Driver 4 Ohm, and a JL Audio VX1000/1i Class D Subwoofer Amplifier with integrated DSP, 1000 Watts @ 2 ohm / 600 Watts @ 4 ohm.

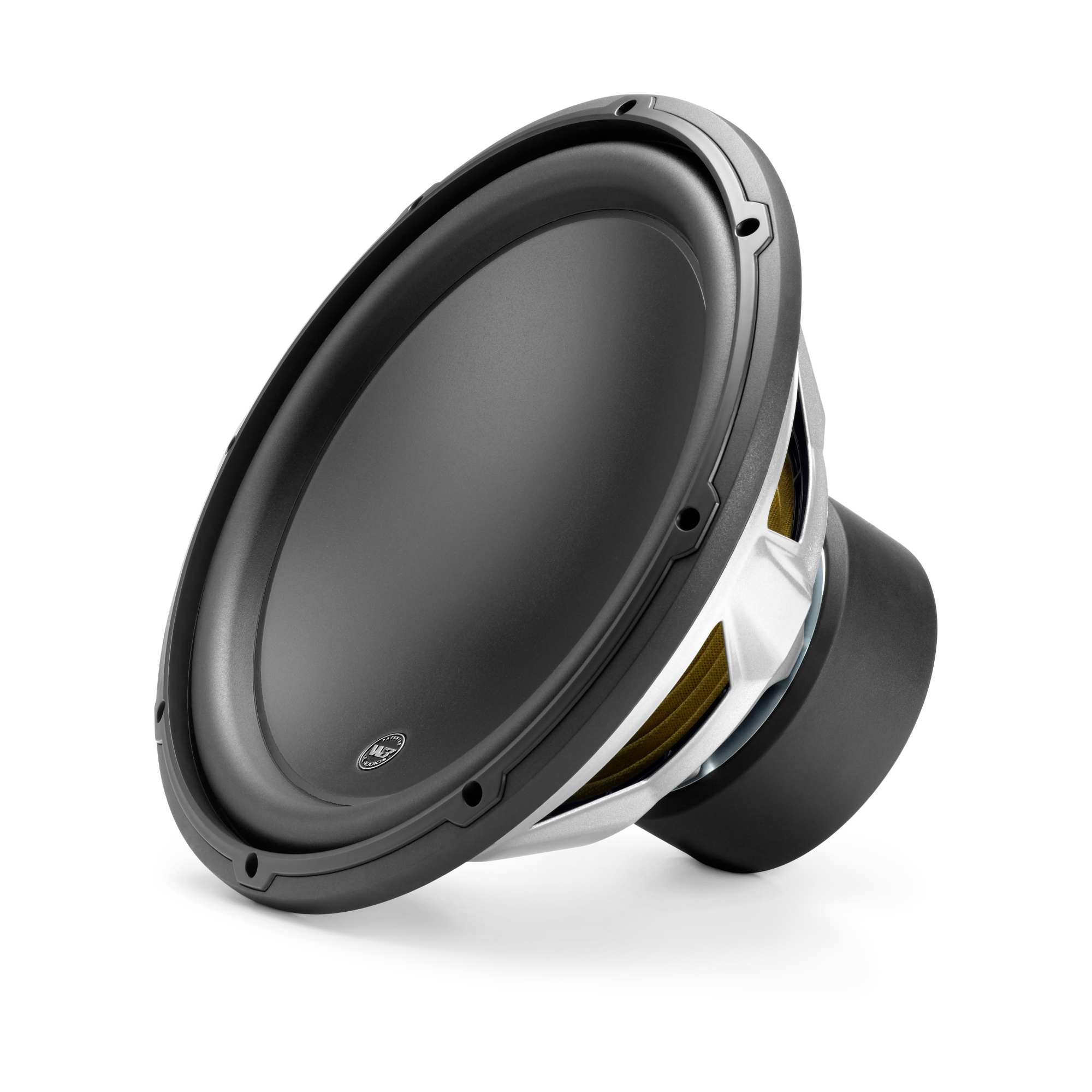

2x JL Audio 13W3v3-4:13.5-inch (345 mm) Subwoofer Driver 4 Ohm - (13W3v3-4)
JL Audio 13W3v3-4
W3v3 13.5-inch Subwoofer Driver (600 W, 4 Ω)
If you have the space, it makes a tremendous sense to maximize your subwoofer system's piston area to enhance efficiency (and output). It gets even better when the larger driver delivers additional power handling and excursion. For the preceding reasons, the 13W3v3 can be the best choice for those seeking high output with great sound quality at medium power levels.
As with the smaller W3v3's, several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 13W3v3 to enhance linearity and reliability.
The 13W3v3-4 is best used with amplifier power in the 150W - 600W range and is optimized to operate in a moderate size 1.5 cu. ft. (42.5 l) sealed enclosure, or a 2.25 cu. ft. (63.7 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
General Specifications
| Continuous Power Handling (RMS) | 600 W |
| Recommended Amplifier Power (RMS) | 150 - 600 W |
| Nominal Impedance (Znom) | 4 Ω |
Physical Specifications
| Nominal Diameter | 13.5 in / 345 mm |
| Overall Diameter (A) | 14.0 in / 356 mm |
| Mounting Hole Diameter (B) | 12.5625 in / 319 mm |
| Bolt Hole Circle Diameter (C) | 13.2 in / 335 mm |
| Motor Outer Diameter (D) | 5.79 in / 147 mm |
| Mounting Depth (E) | 7.63 in / 194 mm |
| Driver Displacement | 0.096 cu ft / 2.72 liters |
| Net Weight | 17.75 lb / 8.05 kg |
Parameters
| Free Air Resonance (Fs) | 23.66 Hz |
| Electrical “Q” (Qes) | 0.465 |
| Mechanical “Q” (Qms) | 6.774 |
| Total Speaker “Q” (Qts) | 0.435 |
| Equivalent Compliance (Vas) | 4.793 cu ft / 135.74 L |
| One-Way Linear Excursion (Xmax)* | 0.610 in / 15.5 mm |
| Reference Efficiency (no) | 0.37% |
| Efficiency (1 W / 1 m)** | 87.90 dB SPL |
| Effective Piston Area (Sd) | 103.850 sq in / 0.0670 sq m |
| DC Resistance (Re) | 3.569 Ω |
Sealed Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 1.500 cu ft / 42.5 L |
| External Width (W) | 16 in / 406 mm |
| External Height (H) | 16 in / 406 mm |
| External Depth (D) | 14.625 in / 371 mm |
| F3 | 40.4 Hz |
| Fc | 48.5 Hz |
| Qtc | 0.89 |
Ported Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 2.25 cu ft / 63.7 L |
| External Width (W) | 21.75 in / 552 mm |
| External Height (H) | 17 in / 432 mm |
| External Depth (D) | 18 in / 457 mm |
| Internal Slot Port Width (SW) | 1.5 in / 38 mm |
| Internal Slot Port Height (SH) | 15.5 in / 394 mm |
| Internal Slot Port Length (SL) | 34.375 in / 873 mm |
| Port Extension Length (EL) | 15.625 in / 397 mm |
| Tuning Frequency (Fb) | 27 Hz |
| F3 | 35 Hz |
1x JL Audio VX1000/1i Class D Subwoofer Amplifier with integrated DSP, 1000 Watts @ 2 ohm / 600 Watts @ 4 ohm - (VX1000/1i)
Monoblock Class D Subwoofer Amplifier with Integrated DSP, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω - 14.4V
Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
The VX1000/1i monoblock subwoofer amplifier outputs up to 600 watts into 4 ohms, or a jaw-dropping 1000 watts into 2 ohms. A specialized, low-frequency version of our NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable
Features
TüNTM Software Applications
Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices.
Unprecedented, Onboard DSP Tuning Power
- Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM®
- Hi-Res audio processing at 24 bit/96 kHz
- High-performance AKM® A/D and D/A converters
- 10 Bands of fully parametric EQ, per output channel, including pre-outs
- Shelving EQ option for Band 1 and Band 10
- High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes:
Linkwitz-Riley: 12, 24, 48 dB/octave
Butterworth: 6, 12, 18, 24, 36, 48 dB/octave - Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm)
- All-Pass Filter (Phase EQ), with variable "Q" and corner frequency
- Polarity Reversal (0 or 180 deg.)
- Output Level Trim in 0.1 dB steps
NexD2TM Switching Amplifier Technology
- Our latest generation of high-speed switching technology delivers superb low frequency power and efficiency.
- Specially optimized for subwoofer applications
Ultra-Versatile Analog and Digital Inputs
- High-performance, differential-balanced analog inputs for outstanding noise rejection
- Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems
- Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
- Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz)
- Automatic turn-on options via Signal-Sensing or DC-Offset sensing
Functional Compact Chassis Design
- Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding
- All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces.
- Configurable LED logo ring displays status and can display audio preset color code or user-defined color
- Logo badge can be oriented in 90 degree increments
- Corner caps engineered to conceal mounting holes and hardware
JLidTM System Command and Control with Networking Capabilities
JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLidTM accessories, including:
- DRC-100/DRC-200/DRC-205 Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat.
- VXi-BTC Bluetooth® Communicator: Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device.
- VXi-HUB Optical Network Hub: Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers.
Apple is a trademark of Apple Inc., registered in the U.S. and other countries.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
Google Play is a trademark of Google LLC.
Android is a trademark of Google LLC.
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 600 W RMS x 1 |
| @ 3 Ω | 800 W RMS x 1 |
| @ 2 Ω | 1000 W RMS x 1 |
| @ 1.5 Ω | N/A |
Rated Continuous (RMS) Power @ 12.5 V
| @ 4 Ω | 500 W RMS x 1 |
| @ 3 Ω | 650 W RMS x 1 |
| @ 2 Ω | 800 W RMS x 1 |
| @ 1.5 Ω | N/A |
General Specifications
| S/N Ratio, referred to highest rated power (Analog Inputs) | 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs) | 60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Digital Inputs) | 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Digital Inputs) | 56 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >400 / 50 Hz |
| Damping Factor @ 2 Ω | >300 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV - 16 V RMS |
| Min.Copper Power / Ground Wire Gauge | 2 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
Physical Specifications
| Height (H) | 2.12 in / 54 mm |
| Width (W) | 11.32 in / 287 mm |
| Depth (D) | 6.62 in / 168 mm |
| Net Weight | 6.55 lb / 2.95 kg |
