Description
Included in this kit

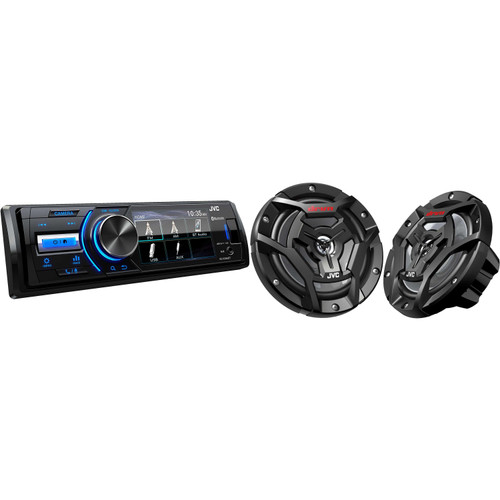

This bundle includes a JVC KD-X560BT 1-DIN Digital Media Receiver With Bluetooth, USB, 3" Display, & Coated PCB, and a JVC Marine Speakers 6.5" 2-way Black (Pair).
1x JVC KD-X560BT 1-DIN Digital Media Receiver With Bluetooth, USB, 3" Display, & Coated PCB - (KD-X560BT)
JVC KD-X560BT 1-DIN Digital Media Receiver With Bluetooth, USB, 3" Display, & Coated PCB
Conformal Coating - A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants.
Rear View Camera Input - Linked with a back gear, the display automatically switches to the view from the rear camera.
9-Preset EQ and 13-Band Graphic EQ - With 9-Preset EQ patterns to choose from, it's easy to create the sound you like, based on musical genre or your personal preference.
Shallow Chassis - The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Monitor
• Screen Size - 3.0" 16:9 QVGA
• Key Illumination Color - Blue
• Dimmer - Yes (1/2/Off)
• Multilingual Display - Yes[2]
Bluetooth Control
• Built-in Bluetooth - Yes (Wired-Mic included)
• Hands Free Call - Yes (HFP1.5 Wideband Speech)
• Audio Streaming & Control (A2DP, AVRCP) - Yes
• Android Control
• iPod/iPhone Control
USB
• USB Port - x 1 (High speed)
Radio Tuner
• Radio Broadcast Data System (RBDS) - Yes
• Preset Stations - 30 (FM:15,:AM:15)
Audio
• Maximum Power Output (Front & Rear) - 45W x 4
• Full Bandwidth Power (Front & Rear) - 16W x 4
• EQ - Yes (13-Band Graphic EQ)
• Preset EQ - Yes (9-Preset)
• Bass Boost - Yes
• High-Pass Filter/Low-Pass Filter - Yes/Yes
Inputs and Outputs
• Front AUX Input - Yes
• Rear view camera Input - Yes
• Line Output Terminals - 3 Pairs (Front + Rear + Subwoofer)
• Pre-output Level/Impedance - 2.0V / 10k ohms
General
• Wireless Remote Control - Ready (RM-RK258 required)
• Steering Remote Control Ready - Yes
• ISO Connector - Yes
Dimensions (W x H x D)
• Installation Size - 7-3/16" x 2-1/16" x 4-5/8" (182 x 52 x 117 mm)
• Weight - 1.65 lbs. (0.75kg)
• Unit weight in individual package - 2.45 lbs. (1.11kg)
1x JVC Marine Speakers 6.5" 2-way Black (Pair) - (CS-DR6200M)
JVC Marine Speakers 6.5" 2-way Black
Sensitivity: 86 dB RMS Power Range : 50 Watts Peak Power Handling: 150 Watts Frequency response: 60-20k Hz Diameter: 6.5 Inch Color: Black
