Description
Included in this kit
This bundle includes a Rockford Fosgate TM1000X5AD 5 Channel Marine Amplifier 100x4 + 400x1 @ 4-Ohm,- 100x4 + 600x1 @ 2-Ohm, Na + 600x1 @ 1-Ohm, 2x Rockford Fosgate M1-65 6.5” Color Optix Marine 2-Way System- 75 Watts Rms, 300 Watts Peak, White Grilles Included, and a Rockford Fosgate M2D4-10S 10" Color Optix Sealed Marine Subwoofer, DVC (4-Ohm)- 400 Watts Rms, 1600 Watts Peak, White & Stainless Grilles Included.
1x Rockford Fosgate TM1000X5AD 5 Channel Marine Amplifier 100x4 + 400x1 @ 4-Ohm,- 100x4 + 600x1 @ 2-Ohm, Na + 600x1 @ 1-Ohm - (TM1000X5AD)
Rockford Fosgate Power Marine 1,000 Watt Class-ad 5-Channel Amplifier
The Power Marine TM1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs
The TM1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel. Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit.
Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs. Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. Other features include a conformal coated circuit board for protection against element exposure and compatibility with our PLC2 level remote control for the sub channel.
- Rockford Fosgate proprietary Class AD technology
- Class-BD Technology
- Differential inputs with high level auto turn-on feature
- AP remote out feature when using high level inputs
- 4/2 Ohm Multi-Impedance Constant Power
- 2013 PLC2 remote ready
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Top mounted controls
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks
- All other Rockford protection schemes
- CEA-2006 and CE Compliant
- Discrete surface mount technology
- Marine grade two part epoxy coating on circuit boards
- 2-Year Warranty
General Specifications
CEA-2006 Power Rating100W x 4 + 400W x 1 @ 4Ω
≤1.0% THD+N
(Sum of Rated Power)
(RMS Continuous Power)
100 Watts x 4 + 600 Watts x 1 @ 2Ω
N/A + 600 Watts x 1 @ 1Ω
200 Watts x 2 @ 4Ω Bridged + N/A
(PVC/PowerCube®)
118 Watts x 4 + 748 Watts x 1 @ 2Ω
N/A + 663 Watts x 1 @ 1Ω
225 Watts x 2 @ 4Ω Bridged + N/A
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
Rear High/Low Input: 4-Pin harness
Input Switch: 2CH/4CH
(2CH: sub signal derived from Front Left input)
Front/Rear Bass: 0 to +18 dB @ 45Hz (LP mode)
Sub: 0 to +18 dB @ 45Hz
Low-Pass: 50Hz - 250Hz @ 12dB/Octave
Subwoofer: 50Hz - 250Hz @ 12dB/Octave
Infrasonic: 28Hz @ 12dB/Octave
Butterworth Alignment on all filters
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Sub: 10 AWG
Rear: 4-Pin Harness
Sub: Detachable Compression Terminal
(not included)
4.1 x 10.8 x 30.5 (cm)
2x Rockford Fosgate M1-65 6.5” Color Optix Marine 2-Way System- 75 Watts Rms, 300 Watts Peak, White Grilles Included - (M1-65)
Rockford Fosgate M1 6.5” Color Optix™ Marine 2-Way Speakers - White
The M1-65 Color Optix™ 2-way 6.5” speakers deliver loud, clear, accurate sound, and light the way for your journey! The speakers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.
The M1 series of Element Ready™ speakers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the speaker. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To complete your sound experience, the M1 speakers are complimented by 8-inch, 10-inch and 12-inch subwoofers, also controlled through the Color Optix™ lighting system.
- Optically clear UV stable RGB Lighting Encapsulation
- Multiplexed RGB Input
- Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
- Grill Integrated 1" (25 mm) LCP Balanced Dome Tweeter
- 1" (25mm) High Temp Kapton™ Woofer Voice Coil Former
- Sealed motor design
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Zinc Nickel-plated Marine grade brass connection terminals
- Proprietary Dual Function Input Terminals
- Integrated Deutsch RGB and Speaker receptacles
- Linear Synthetic Fiber Blend Spiders
- Santoprene VAST Surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Co-molded surround and mineral filled polypropylene cone body
- 6dB/Octave crossover network
- Fully sealed integrated concealed crossover (ICC) network
- 2-Year Warranty
Specifications
300 Watts Peak
1x Rockford Fosgate M2D4-10S 10" Color Optix Sealed Marine Subwoofer, DVC (4-Ohm)- 400 Watts Rms, 1600 Watts Peak, White & Stainless Grilles Included - (M2D4-10S)

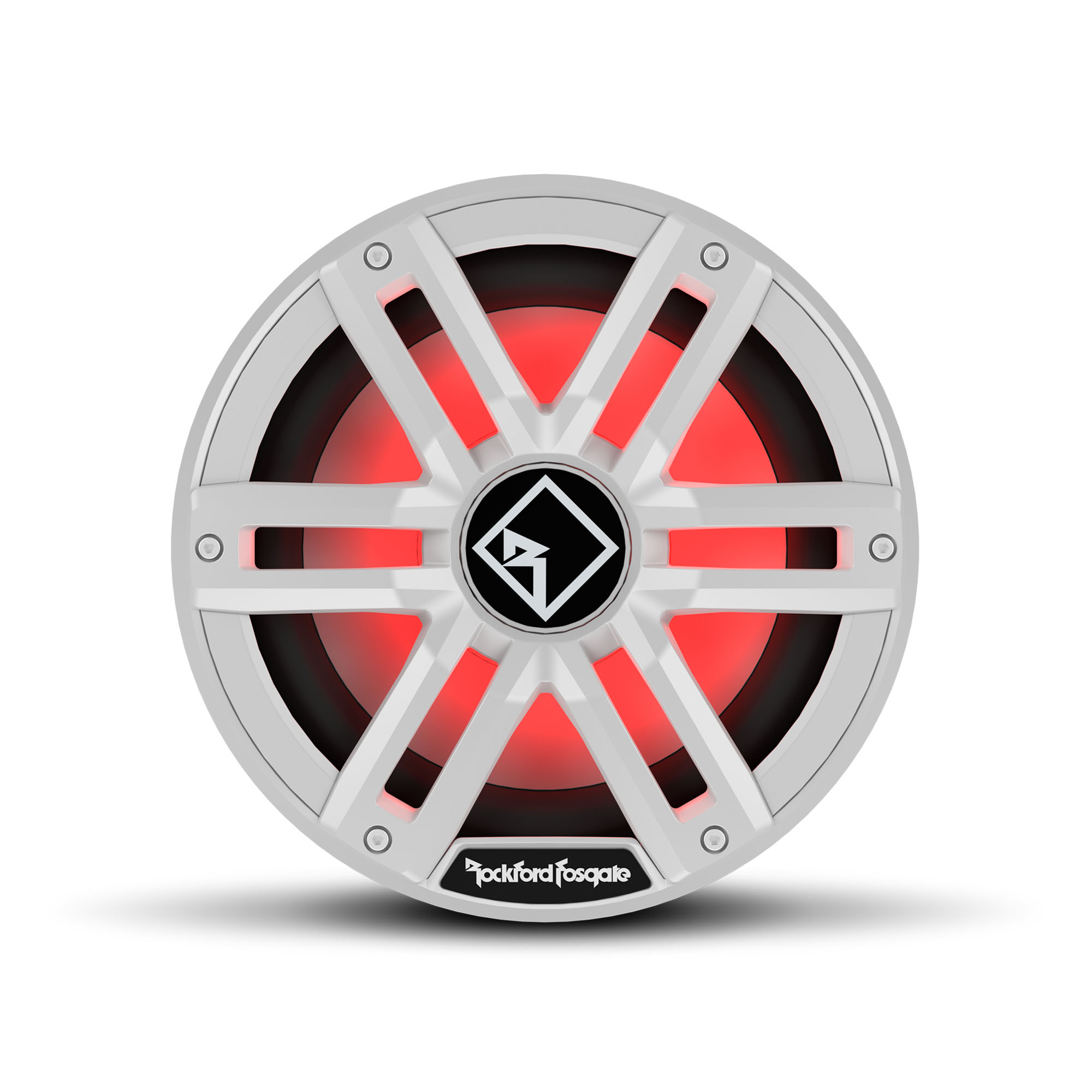

Rockford Fosgate M2 10" DVC 4Ω Color Optix™ Sealed Enclosure Marine Subwoofer
The M2D4-10S is a 10” DVC 4-Ohm Color Optix™ subwoofer that connects with our Rockford Fosgate Color Optix™ controller and RF Connect™ App, allowing you to customize your own color patterns. Connectivity is handled through integrated Deutsch™/Amphenol™ connectors that make wiring simple and error proof. Wiring with the Versa Switch™ allows you to quickly configure the voice coil in series or parallel with flip of switch. This “S” model is optimized for small sealed enclosures where space is at a premium. Includes 2-piece grille with interchangeable colored plastic and stainless-steel insert.
The M2 series of Element Ready™ subwoofers are IP67 certified, making them truly purpose-built for marine and motorsport applications where protection from damaging UV rays and water spray is essential. They are designed to pair with the Rockford Fosgate Color Optix™ controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. Matching the theme of your boat can be further customized by using the included color insert or stainless-steel grille for that sport look.
- Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Optimized for small sealed enclosures when there is very little space for an enclosure
- Element Ready™ design protects against outdoor exposure
- IPX6 Marine Grade for prevention of water intrusion
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Deutsch™ connector front/rear silicone seal protects against water ingress
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- Klippel Verified certification program delivers the best possible speakers
- 2-Year Warranty
Specifications
