Rockford Fosgate PMX-1 Media Receiver with IPX6 2.3” Display, 7-Band + Peq Eq, Bluetooth, Aux And Usb Inputs with Radio Dash Kit Compatible with 17-21 Maverick X3

Shop All: Rockford Fosgate

No reviews yet Write a Review
SKU:
RFBDL250502-02
Condition:
New
Shipping: Free 2-Day Shipping!
Want it shipped today? Order in the next and get it shipped today and delivered by Tuesday.
$459.98
$459.98

Description

Included in this kit


This bundle includes a SSV Works X3-DMR4 Multi Radio Dash Kit Compatible with 2017-2021 X3, and a Rockford Fosgate PMX-1 Media Receiver with IPX6 2.3” Display, 7-Band + Peq Eq, Bluetooth, Aux And Usb Inputs, Am/Fm/Wb, 4x50W Amp.

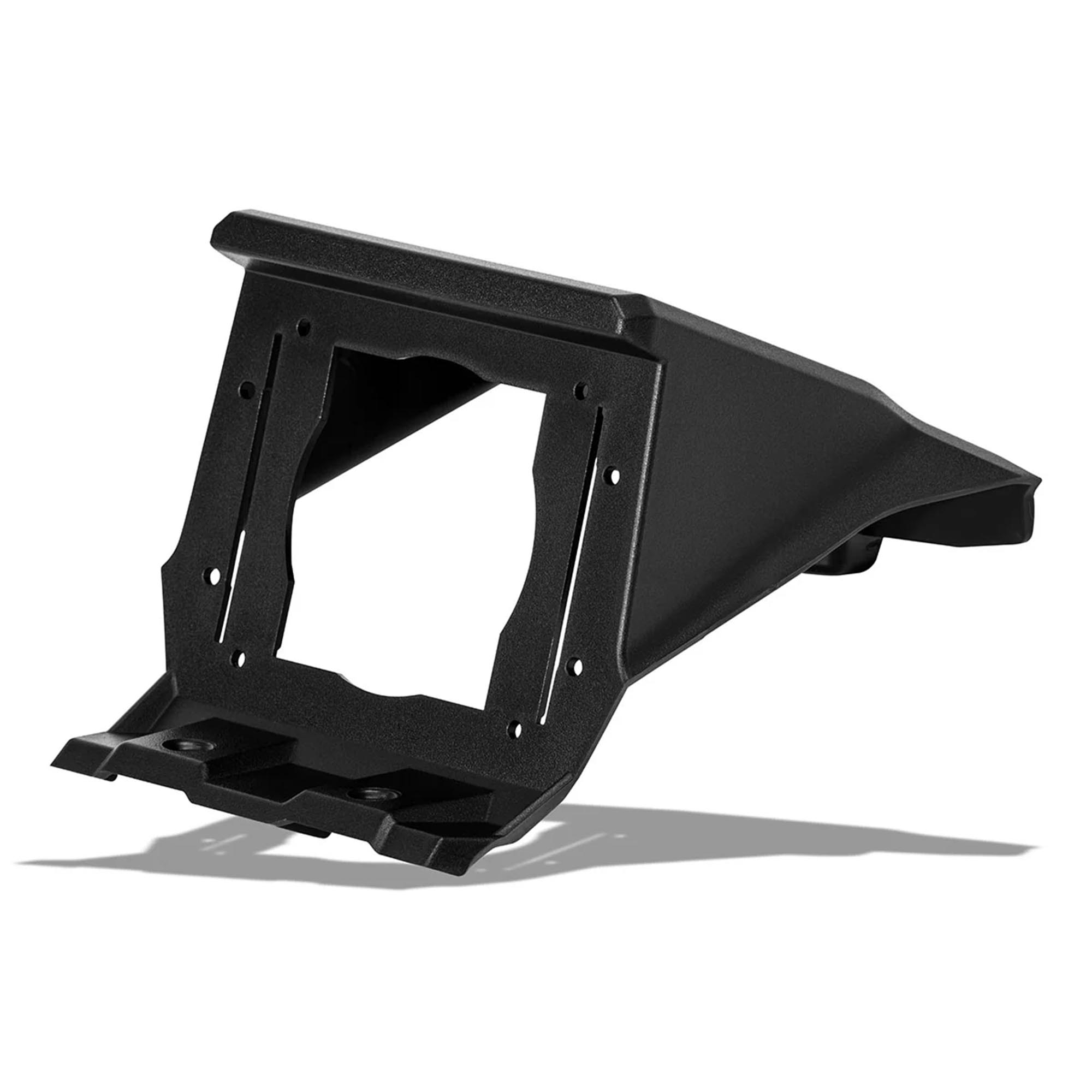

1x SSV Works X3-DMR4 Multi Radio Dash Kit Compatible with 2017-2021 X3 - (X3-DMR4)


2017-2021 X3 Multi Radio Dash Kit compatible with 2017-2021 Can-Am Maverick X3 vehicles

1x Rockford Fosgate PMX-1 Media Receiver with IPX6 2.3” Display, 7-Band + Peq Eq, Bluetooth, Aux And Usb Inputs, Am/Fm/Wb, 4x50W Amp - (PMX-1)


Rockford Fosgate Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display

The PMX-1 features a scratch resistant wet bonded display, superior Bluetooth® audio, AUX and USB inputs. The Element Ready™ design also provides protection against water, dust, and UV rays.

The PMX-1 features a 9H tempered glass screen optically bonded which allows for optimized viewing of the dot matrix display under all lighting and viewing conditions. The superior Bluetooth® audio features A2DP and AVRCP for better range, easier device pairing and glitch free wireless audio streaming. The flexible AUX and USB inputs enable convenient access to various audio playback formats and charging of your mobile devices.

  • Wet bonded 2.3" Full Dot Matrix LCD Display
  • 9H Tempered Glass Screen
  • A2DP and AVRCP Bluetooth® Wireless Streaming
  • AUX and USB Inputs with USB Charging
  • Compatible with PMX-BTUR Steering Wheel Remote
  • Independent Subwoofer Level Control
  • 7-Band Graphic EQ + PEQ
  • Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
  • Voltage gauge with Low voltage Warning
  • AM / FM / WB Tuner
  • Multi Region Radio Frequencies
  • IP6 Marine Grade Front Panel
  • FCC, CE and EN60945 Certified
  • 2-Year Warranty

Specifications

Bluetooth®
(Yes/No)
Yes
3.0+EDR, A2DP 1.3
Speaker Outputs
(Yes/No)
Yes
Device Type
Digital-Media Receiver
Multi-Zone/Multi-Source
(Yes/No)
No
Pandora® Internet Radio
(Yes/No)
No
SiriusXM-Ready®
(Yes/No)
No
AUX Input
(Yes/No)
Yes (1 RCA pair)
USB Charging
(Yes/No)
Yes
Clock
(Yes/No)
No
Steering Wheel Control Ready
(Yes/No)
No
TUNER
Number Of Presets
18 FM / 12 AM / 6 WB
AM Tuner
Range: 530 - 1710 kHz
Sensitivity: 40 dB
Frequency Response: 45 to 2.4 KHz
FM Tuner
Range: 87.9 - 107.9 MHz
Sensitivity: 8 dB
Frequency Response. 20 - 15 KHz
Power Output (max)
CEA-2006 Power Rating
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω MAX
≤1.0% THD+N
Frequency Response
RCA: 20 Hz - 20 kHz
High-Level: 20 Hz - 20 kHz
MIn. Speaker Impedance
Output Impedance
<500 Ω
Max Output Voltage
RCA Front: 2 V
RCA Rear/Sub: 2 V
Media Formats
MP3
WMA
Signal to Noise Ratio
RCA 2V: >85 dB
High-Level CEA-2006: >75 dB
High-Level Max Watts: >85 dB
Channel Separation
RCA: >70 dB
High-Level: >50 dB
Compatible Remotes
N/A
Max THD+N
High-Level: <1.0 @ 4-Ohm
USB Output Current
1 A
Operating Voltage
9 - 16 VDC
USB Version
2.0
Idle Current
<2 A
Fuse Rating
20 A
Dimensions
Width: 4.5" (11.5 cm)
Face Depth: 1.5" (3.8 cm)
Mount Depth: 2.9" (7.4 cm)
Height: 4.2 (10.6 cm)
Shipping Weight
1.22 Lbs. (0.55 Kg)
Back Panel Cutout
3" (77 mm)


Extra Information

Brand:
Rockford Fosgate
Weight:
2.67 LBS
UPC:
840425885550
Bundle:
Yes
Feature 1:
This bundle includes a X3-DMR4 Multi Radio Dash Kit compatible with 2017-2021 X3 vehicles for seamless audio integration.
Feature 2:
Rockford Fosgate PMX-1 Media Receiver with 2.3" Dot Matrix Display for crisp visuals and 4x50W powerful sound output.
Feature 3:
Scratch-resistant wet bonded display and Element Ready™ design offer protection against water, dust, and UV rays.
Feature 4:
Bluetooth® connectivity, AUX and USB inputs, 7-Band Graphic Equalizer, and voltage gauge provide versatile audio options.
Feature 5:
Featuring a 2-year warranty, this bundle offers optimal functionality and durability for your audio needs.
Condition:
NEW
Weight:
2.6700 lbs
Shipping:
Free 2-Day Shipping!
