Description
Included in this kit

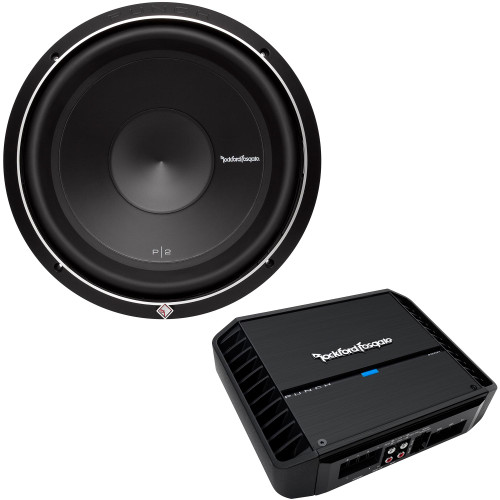

Rockford Fosgate P2D4-12 12" Subwoofer - DVC (dual 4-Ohm), and a P300X1 Mono Amplifier - 200x1 @ 4-Ohm, 300x1 @ 2-Ohm - This bundle includes a Rockford Fosgate P2D4-12 12” Subwoofer - DVC (dual 4-Ohm), 400 Watts Rms, 800 Watts Peak, a Rockford Fosgate P300X1 Mono Amplifier - 200x1 @ 4-Ohm, 300x1 @ 2-Ohm, a pry kit, and a Creative Audio coozy.
Rockford Fosgate P2D4-12 12” Subwoofer - DVC (dual 4-Ohm), 400 Watts Rms, 800 Watts Peak
Specifications
Size: 12"
Power Handling (Watts RMS): 400 Watts RMS, 800 Watts Max
Speaker Connector: Dual 10 AWG compression
Shipping Weight: 15.6 Lbs. (7.07 kg)
Qes: 0.59
Qms: 6.30
Cutout Diameter: 11.22 in. (285 mm)
Re (Ohms): 6.40
Nominal Impedance: Dual 4-Ohm
Voice Coil Diameter: 2.25" (57.15 mm)
Mounting Depth: 6.40 in. (162 mm)
SPL (dB @ 1w/1m): 86
Fs (Hz): 27.2
Qts: 0.54
Vas (Liters): 81.5
Xmax (mm): 13.3
Woofer Displacement: 0.085 cu. ft. (2.4 Liters)
Le (mH): 5.5
Magnet Weight (oz): 72.8 oz. (2.06 kg.)
Sd (cm2): 570
Subwoofer Type: Standard
Voice Coil Type: Dual Voice Coil
Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
Rockford Fosgate P300X1 Mono Amplifier - 200x1 @ 4-Ohm, 300x1 @ 2-Ohm
Specifications
Number of Channels: 1
Total Power (Sum of Rated Power): 300 Watts
Rated Power (RMS Continuous Power): 200 Watts x 1 @ 4-Ohm, 300 Watts x 1 @ 2-Ohm
Dynamic Power (PVC/PowerCube®): 260 Watts x 1 @ 4-Ohms 0° Res, 444 Watts x 1 @ 2-Ohms 0° Res
Bridgeable: No
Frequency Response: 20Hz to 20kHz +/- 1.0dB
Input Sensitivity: 150 mV - 12 V
Circuit Topology Class: Class A/B
Efficiency (average): 74% @ 4-Ohm
Total Harmonic Distortion (THD+Noise): 4-Ohm: <1.0%, 2-Ohm: <1.0%
Signal Input: Hi/Low level: 1 RCA pair
Signal Output: Low Level: 1 RCA Pair
All-Pass: Yes
