Description
Included in this kit

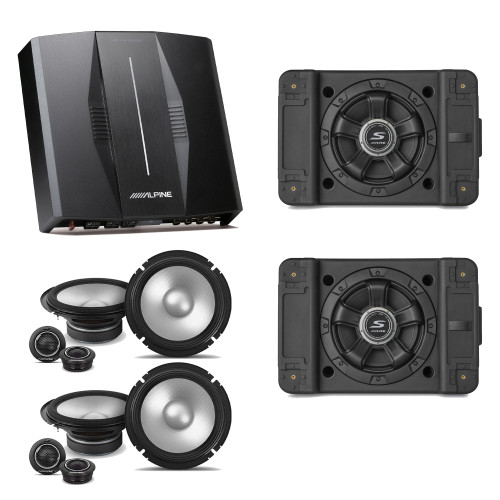

This bundle includes an Alpine PXE-C80-88 OPTIM8 8-Channel Hi-Res Digital Sound Processor Amplifier - 50W x 6 @ 2Ω + 300W x 2 @ 2Ω, 2x Alpine SS-SB10 Single 10” S-Series Shallow Preloaded Subwoofer Enclosure, and 2x Alpine S2-S65C - Next-Generation S-Series 6.5" Component Speaker Set.
1x Alpine PXE-C80-88 OPTIM8 8-Channel Hi-Res Digital Sound Processor Amplifier - 50W x 6 @ 2Ω + 300W x 2 @ 2Ω - (PXE-C80-88)
All-in-one Solution – With a built-in internal 8-channel amplifier and High Resolution processing (96kHz/24Bit), the Alpine Optim8™ is the all-in-one solution to amplify and sound tune a factory or aftermarket head unit.
Real-Time Sound Tuning – The Alpine Optim8™ features automatic sound tuning through PC App or IOS App for the iPhone that guides users through quick and simple measurements of their factory or aftermarket sound system. Guided motions on the app instruct the user where to place the external microphone (KTX-CSP1 Tuning Microphone for PC, sold separately) or built-in mic on the iPhone in the front cabin of the vehicle for accurate measurements.
Hi-Res Sound – The Optim8™ uses a Variable-Resolution Impulse Response (VIR) that features a wide bandwidth for High-Resolution audio (10Hz – 48kHz @ 96kHz), making it the ideal product for High-Resolution systems. VIR filters also use lower MIPS (millions of instructions per second) for increased speed and accuracy in tuning.
MAIN FEATURES & SPECS
• Hi-Res Audio Playback (96kHz/32Bit)
• Built-in 8-Channel Amplifier (50W x 6 @ 4Ω + 150W x 2 @4Ω or 50W x 6 @2Ω + 300W x 2@ 2Ω)
• Intuitive Realtime Sound Set-Up with 5 Minute Self-Tuning
• Manual & Automatic Sound Tuning with PC App Control
• Automatic Sound Tuning with iPhone App
• Anti-EQ for OEM System (Eliminates Factory EQ Curve)
• Auto-EQ with APVD Collection (Creates a Flat Vehicle Response)
• 31-Band Parametric and Graphic EQ
• Outputs: 8-Channel 4V RCA
• Digital Inputs: Coax, USB (DAC)
• Speaker Input: Up to 30V
• Optional Microphone and AUX Cable (KTX-CSP1) for PC Tuning (Sold Seperately)
2x Alpine SS-SB10 Single 10” S-Series Shallow Preloaded Subwoofer Enclosure - (SS-SB10)
With an ultra-shallow enclosure design and powerful sound output, the 10” S-Series Shallow Preloaded Subwoofer Enclosures give you the best of both worlds in size and sound
DESIGNED FOR TIGHT SPACES
Now you don’t have to choose between bass and space! Alpine’s 10” S-Series Shallow Preloaded Subwoofer Enclosure measures at a minimal 4.5” deep to deliver clean and reliable bass performance in most vehicle applications.
POWERFUL PERFORMANCE
The SS-SB10 features a 2” voice coil inside of a lightweight yet powerful neodymium magnet for up to 300W RMS of power handling. This combined with a front-mounted magnet motor allows the enclosure to have an extremely shallow footprint while maintaining powerful bass performance.
ADJUSTABLE MOUNTING OPTIONS
Four adjustable, foam-padded steel mounting brackets allow for flexible installation in many areas and vehicle types, while the foam reduces vibration during play for optimized performance
PRECISE BASS CONTROL
Alpine’s Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in 22mm of peak-to-peak linear excursion for maximized output.
FEATURES
• Preloaded 10” Shallow Subwoofer
• Optimal Sealed Cabinet Quality
• Neodymium Magnet
• Front-Mounted Neodymium Magnet
• Alpine Gen2 DD Linear Magnetic Circuit
• Rugged Polymer Enclosure Cabinet
• Adjustable, foam-padded mounting brackets for flexible installation and reduced vibration
What's in the Box:
Sealed Cabinet with (1) 10” S-Series Shallow Subwoofer
(x4) Mounting Brackets
Owner’s Manual
Warranty Information
Online product registration information
TECH SPECS
• Dimensions: 18.5” (W) x 4.5” (H) x 12.5” (D)
• Power Handling: 300W RMS
• X-Max: 11mm 1-Way Linear
• Nominal Impedance: 2Ω
• Frequency Response: 35Hz - 200Hz
• Copper Voice Coil: 2”
• Single 2 Ohm Voice Coil for a 2 Ohm load (compatible with S2-A55V, KTA-200M, or KTA-30MW Amplifiers)
2x Alpine S2-S65C - Next-Generation S-Series 6.5" Component Speaker Set - (S2-S65C)
Alpine S2-S65C - Next-Generation S-Series 6.5" Component Speaker Set
Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S65C 6.5” Component Speakers offer a new standard in entry-level sound performance.
Hi-Res Certified – Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status system, the Next-Generation Alpine S-Series Speakers are now Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This new benchmark in sound quality elevates the Next-Gen S-Series Speakers resulting in a more accurate and natural sound at an entry-level price point.
Reliable Performance – Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S65C is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.
HAMR Surround - Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology is integrated into the speaker design which allows for maximum cone movement, delivering powerful and accurate bass notes.
Protect Your Speaker - The S-Series S2-S65C is compatible with the KTE-S65G Speaker Grille (sold separately). This sleek and stylish grille will not only add a visual upgrade to your speakers but also provide protection against any damage.
• Woofer Size: 6.5”
• Tweeter Size: 1” (Component)
• Maximum Peak Power: 240W
• Maximum RMS Power: 80W
• Frequency Response: 70Hz - 40kHz (Hi-Res)
• Hi-Res Audio Certified
• Poly Propylene, Glass Fiber, and Mica Cone Material
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Included 1” Tweeters with Threaded Removable Housing
• OEM Fitment with In-Line Crossovers
• Compatible with KTE-S65G Speaker Grille (sold separately)
