Description
Included in this kit
This bundle includes an Alpine PXE-C80-88 OPTIM8 8-Channel Hi-Res Digital Sound Processor Amplifier - 50W x 6 @ 2Ω + 300W x 2 @ 2Ω, an Alpine BRV-S65 6.5" BassRev™ Speaker Set, and an Alpine BRV-S40 4" BassRev™ Speaker Set.
1x Alpine PXE-C80-88 OPTIM8 8-Channel Hi-Res Digital Sound Processor Amplifier - 50W x 6 @ 2Ω + 300W x 2 @ 2Ω - (PXE-C80-88)
All-in-one Solution – With a built-in internal 8-channel amplifier and High Resolution processing (96kHz/24Bit), the Alpine Optim8™ is the all-in-one solution to amplify and sound tune a factory or aftermarket head unit.
Real-Time Sound Tuning – The Alpine Optim8™ features automatic sound tuning through PC App or IOS App for the iPhone that guides users through quick and simple measurements of their factory or aftermarket sound system. Guided motions on the app instruct the user where to place the external microphone (KTX-CSP1 Tuning Microphone for PC, sold separately) or built-in mic on the iPhone in the front cabin of the vehicle for accurate measurements.
Hi-Res Sound – The Optim8™ uses a Variable-Resolution Impulse Response (VIR) that features a wide bandwidth for High-Resolution audio (10Hz – 48kHz @ 96kHz), making it the ideal product for High-Resolution systems. VIR filters also use lower MIPS (millions of instructions per second) for increased speed and accuracy in tuning.
MAIN FEATURES & SPECS
• Hi-Res Audio Playback (96kHz/32Bit)
• Built-in 8-Channel Amplifier (50W x 6 @ 4Ω + 150W x 2 @4Ω or 50W x 6 @2Ω + 300W x 2@ 2Ω)
• Intuitive Realtime Sound Set-Up with 5 Minute Self-Tuning
• Manual & Automatic Sound Tuning with PC App Control
• Automatic Sound Tuning with iPhone App
• Anti-EQ for OEM System (Eliminates Factory EQ Curve)
• Auto-EQ with APVD Collection (Creates a Flat Vehicle Response)
• 31-Band Parametric and Graphic EQ
• Outputs: 8-Channel 4V RCA
• Digital Inputs: Coax, USB (DAC)
• Speaker Input: Up to 30V
• Optional Microphone and AUX Cable (KTX-CSP1) for PC Tuning (Sold Seperately)

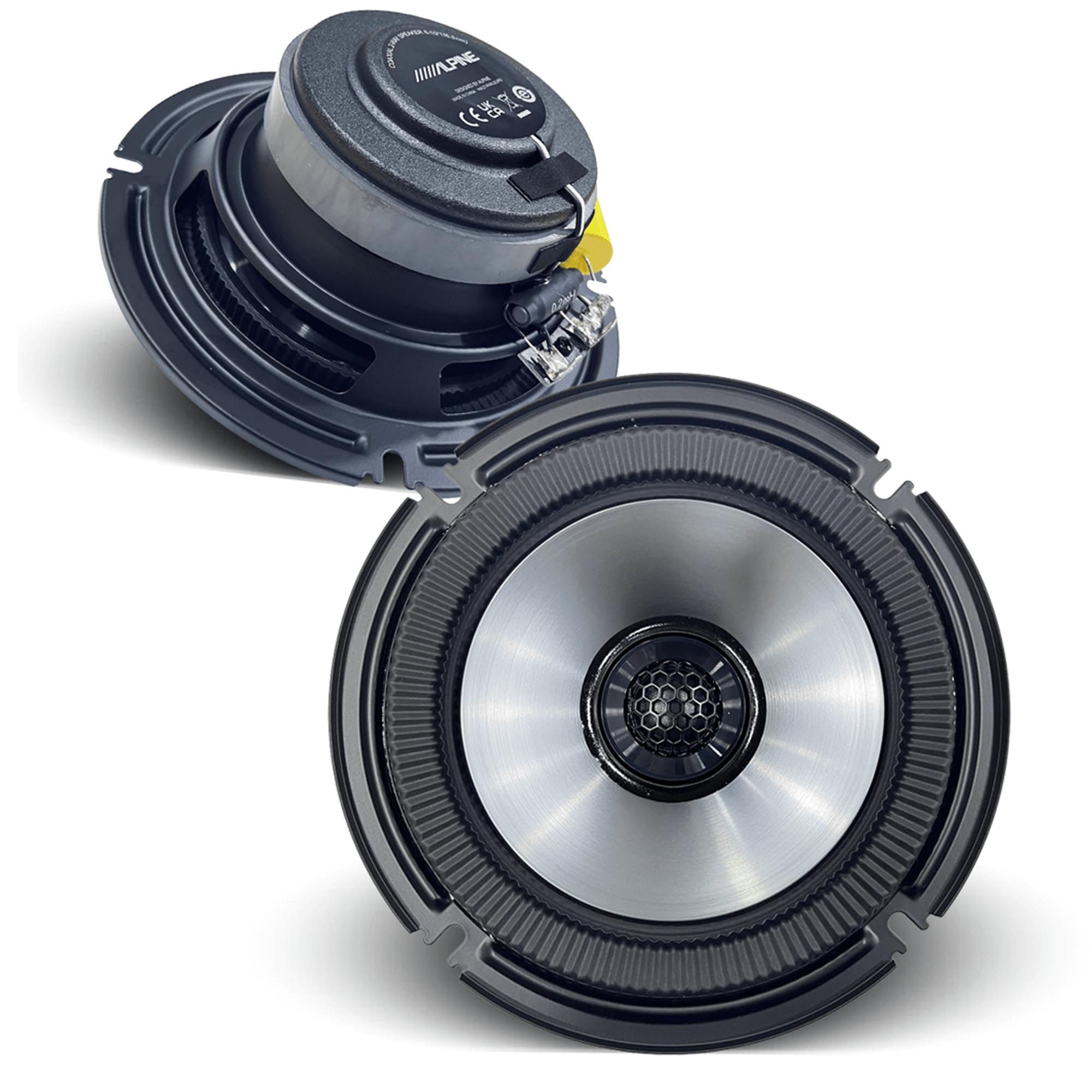

1x Alpine BRV-S65 6.5" BassRev™ Speaker Set - (BRV-S65)
Upgrade your ride’s sound system with the Alpine BRV-S65 6.5" BassRev™ Speaker Set — engineered for bold, balanced audio with serious bass. Delivering 150 watts of peak power and 50 watts RMS, these speakers pack a punch without compromising clarity. With a 4-ohm impedance (DCR 3.7 ohms), they provide efficient power handling for smooth, distortion-free performance. Designed to fit seamlessly into most standard installations, the BRV-S65 features a 5-5/16″ cutout diameter and a slim 2-3/8″ mounting depth, making them the perfect upgrade for any vehicle. Experience the Alpine difference — deeper lows, cleaner highs, and pure listening pleasure.
OPTIM™ Sync Technology
Using a dynamic bass boost algorithm, proprietary to Alpine, we are able to extend the bass frequency on each speaker while staying within the safe operating limits. Each speaker features a pre-EQ to enhance the tonal balance during playback.
H.E.D.G.E Surround
The symmetrical shape, coupled with the High Excursion Design Gathered Edge, allows the speaker to operate in a more symmetrical and linear manner for increased output and extended low frequency.
Material and Design
The combination of polypropylene and mica material, finished with a gun metal chemical topcoat, creates more rigidity and enhances performance and aesthetic in vehicle.
Unique Lapel Cone The unique lapeled cone shape allows us to achieve high cone excursion for more motion and height when compared a traditional speaker.
Phase Sync’d Coax
By having the coax tweeter inlaid without a tradition coax stem, the acoustic phase of the signal transmission between the cone and the tweeter diaphragm create a aligned output that creates less of a point source feeling and more of a unified and wide dispersion of sound without compromise of cancellations.
Power: 150Watts Peak / 50 Watts RMS
Impedance: 4 Ohms (DCR 3.7 ohms)
Cutout Diameter: 5-5/16″ (13.5cm) circle
Mounting depth: 2-3/8″ (60mm)

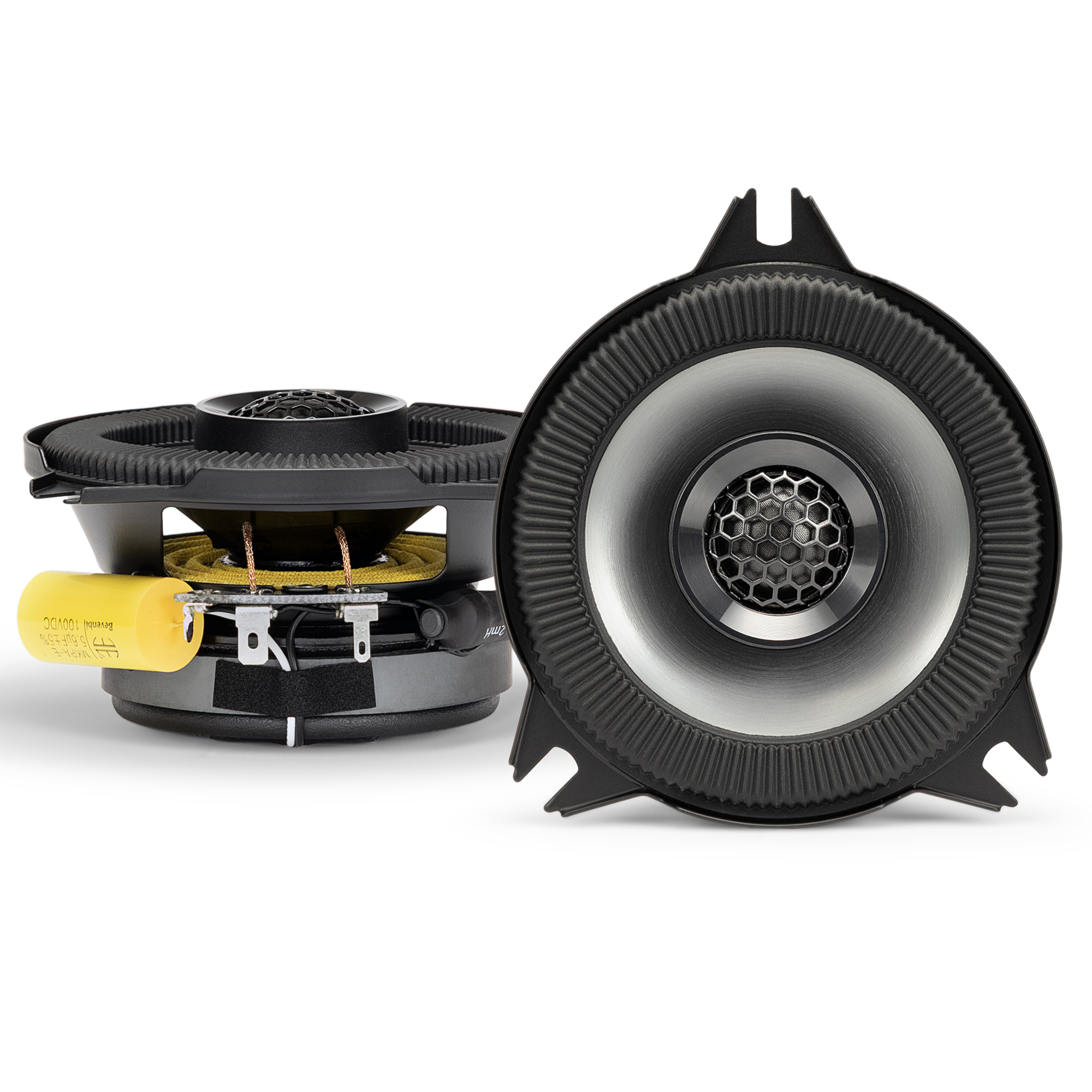

1x Alpine BRV-S40 4" BassRev™ Speaker Set - (BRV-S40)
PRODUCT OVERVIEW
Using proprietary software technology and a powerful digital sound processor, we pushed the envelope of what’s possible in a sound system, redefining how you experience your music on the road.
PRODUCT FEATURES
H.E.D.G.E. Surround – The symmetrical shape, coupled with the High Excursion Design Gathered Edge, allows the speaker to operate more symmetrically and linearly for increased output and extended low frequency.
Unique Design – The unique lapeled cone shape allows us to achieve high cone excursion for more motion and height when compared to a traditional speaker.
OPTIM Sync Technology – Using a proprietary dynamic bass boost algorithm, we can extend the bass frequency on each speaker while staying within the safe operating limits. Each speaker features a pre-EQ to enhance the tonal balance during playback.
OVERVIEW FEATURES
• High Excursion Design Gathered Edge (H.E.D.G.E.) rubber surround increases output and low frequency extension
• Unique lapel cone shape for high excursion
• OPTIM Sync Technology pre - EQ selection specific to each driver (requires 3.0 or newer update on PXE -C80-88)
• Polypropylene and Mica Cone Material for increased rigidity
• Ferrite magnet
• Gun metal chemical topcoat for premium aesthetic
SYSTEM TECH SPECS
• Woofer Size: 4”
• Tweeter Size: 0.75”
• Maximum Peak Power: 120W
• Maximum RMS Power: 40W
• Frequency Response: Without BassRev 75 Hz – 20k Hz, With BassRev 67 Hz – 20k Hz
• Impedance: 4Ω
• Sensitivity: 84dB
• 30% SPL increase for increased loudness
• 25% X-Max increase for increased cone movement
• Mounting Depth: 45mm (1.77”)
SYSTEM COMPONENTS
• 4” Component Speaker Set
• 0.75” Tweeter Set
