Description
Included in this kit
This bundle includes an Arc Audio RS 6.0 6” Speakers, an Arc Audio RS 4.0 4” Speakers, and an Arc Audio RS 1.0 Matched Soft Dome Tweeters, Pair.
1x Arc Audio RS 6.0 6” Speakers (RS-6.0)
Arc Audio RS 6.0 6” Speakers
All RS Series Speakers Are Sold In Matched Raw Pairs Only
Audiophile Design Specifically For The Car Audio Environment
Hard Pressed Composite Papyrus Filled Paper Cone
Shallow Vented Neodymium Motor System
Light Weight CCAW Voice Coil
Low Damping Rubber Surround For Optimum Transient Response
Flexible Long Life Lead Wires On Voice Coil.
CNC Precision Cut Extended Copper Capped Pole Piece Assembly Minimizes Modulation Distortion And Varying Voice Coil Induction Significantly Increasing Bandwidth, Speaker Transparency and Transient Response.
Geometrically Reinforced And Acoustically Optimized Dust Cap
Precision Wound Voice Coils And A Multi-Stage Adhesive Tempering Process Allows For Improved Power Handling Even Over Ultra-High Demand Periods.
All RS Speaker Voice Coils Undergo A Progressive Temperature Testing Tempering Process Increasing The Coils Thermal Rating.
Specifications -
Speaker Size - 6.5"
Speaker Type - Midrange -Raw Driver
Power Handling (Peak) - 200 Watts
Power Handling (RMS) - 80 Watts
Frequency Response - 50Hz - 9.5kHz
Sensitivity - 91.5dB
Impedance - 4 ohms
Basket Material - Cast Aluminum
Cone Material - Composite Papyrus filled Paper
Surround Material - Low Shore Rubber
Spider Material - Synthetic Progressive Nomex
Motor Structure - Multi-Step CNC Precision cut
Copper Shorting Ring - Yes
Voice Coil - CCAW
Mounting Depth - 2.75"
Cutout Diameter - 5.812"
Maximum Outer Diameter - 6.654"
Mounting Flange Thickness - .184"
Grills Included - No
1x Arc Audio RS 4.0 4” Speakers (RS-4.0)

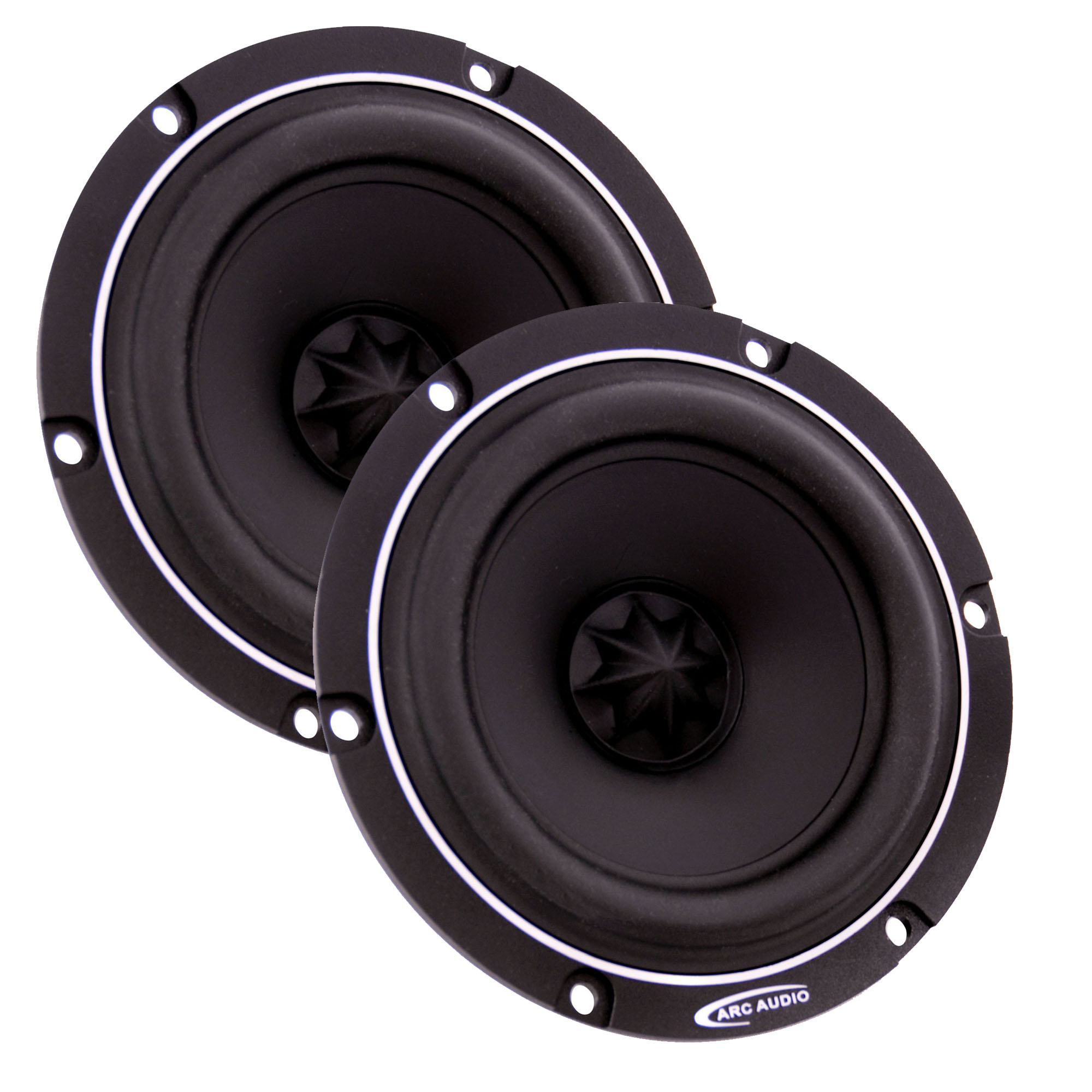

Arc Audio RS 4.0 4” Speakers
All RS Series Speakers Are Sold In Matched Raw Pairs Only
Audiophile Design Specifically For The Car Audio Environment
Hard Pressed Composite Papyrus Filled Paper Cone
Shallow Vented Neodymium Motor System
Lightweight CCAW Voice Coil
Low Damping Rubber Surround For Optimum Transient Response
Flexible Long Life Lead Wires On Voice Coil
CNC Precision Cut Extended Copper Capped Pole Piece Assembly Minimizes Modulation Distortion And Varying Voice Coil Induction Significantly Increasing Bandwidth, Speaker Transparency and Transient Response
Geometrically Reinforced And Acoustically Optimized Dust Cap
Precision Wound Voice Coils And A Multi-Stage Adhesive Tempering Process Allows For Improved Power Handling Even During Ultra-High Demand Periods
All RS Speaker Voice Coils Undergo A Progressive Temperature Testing Tempering Process Increasing The Coils Thermal Rating.
Specifications -
Speaker Size - 4.0"
Speaker Type - Midrange -Raw Driver
Power Handling (Peak) - 150 Watts
Power Handling (RMS) - 75 Watts
Frequency Response - 90Hz - 11.5kHz
Sensitivity - 91dB
Impedance - 4 ohms
Basket Material - Cast Aluminum
Cone Material - Composite Papyrus filled Paper
Surround Material - Low Shore Rubber
Spider Material - Synthetic Progressive Nomex
Motor Structure - Multi-Step CNC Precision cut
Copper Shorting Ring - Yes
Voice Coil - CCAW
Mounting Depth - 1.94"
Cutout Diameter - 4.039"
Maximum Outer Diameter - 4.763"
Mounting Flange Thickness - .190"
Grills Included - No
1x Arc Audio RS 1.0 Matched Soft Dome Tweeters, Pair (RS-1.0)
Arc Audio RS 1.0 Tweeter
All RS Series Speakers Are Sold In Matched Raw Pairs Only
Audiophile Design Specifically For The Car Audio Environment
Fine Weave Soft Fabric Dome For Smooth High-Frequency Response
Vented Compact Neodymium Motor System For Improved Dynamics
Low Shore TLS Injected Rubber Surround
Flexible Long Life Lead Wires On Voice Coil
Cast Aluminum Chamber For Optimized Cooling (Non-Resonant Structure)
CNC Precision Cut Extended Copper Capped Pole Piece Assembly Minimizes Modulation Distortion And Varying Voice Coil Induction Significantly Increasing Bandwidth, Speaker Transparency and Transient Response
Precision Wound Voice Coils And A Multi-Stage Adhesive Tempering Process Allows For Improved Power Handling Even Over Ultra-High Demand Periods
All RS Speaker Voice Coils Undergo A Progressive Temperature Testing Tempering Process Increasing The Coils Thermal Rating
