Description
Included in this kit
This bundle includes an Arc Audio X2 650.1 Mono-Block Amplifier (Single-Channel), and 2x Arc Audio X2 12D4 12” 4 Ohm Subwoofer.

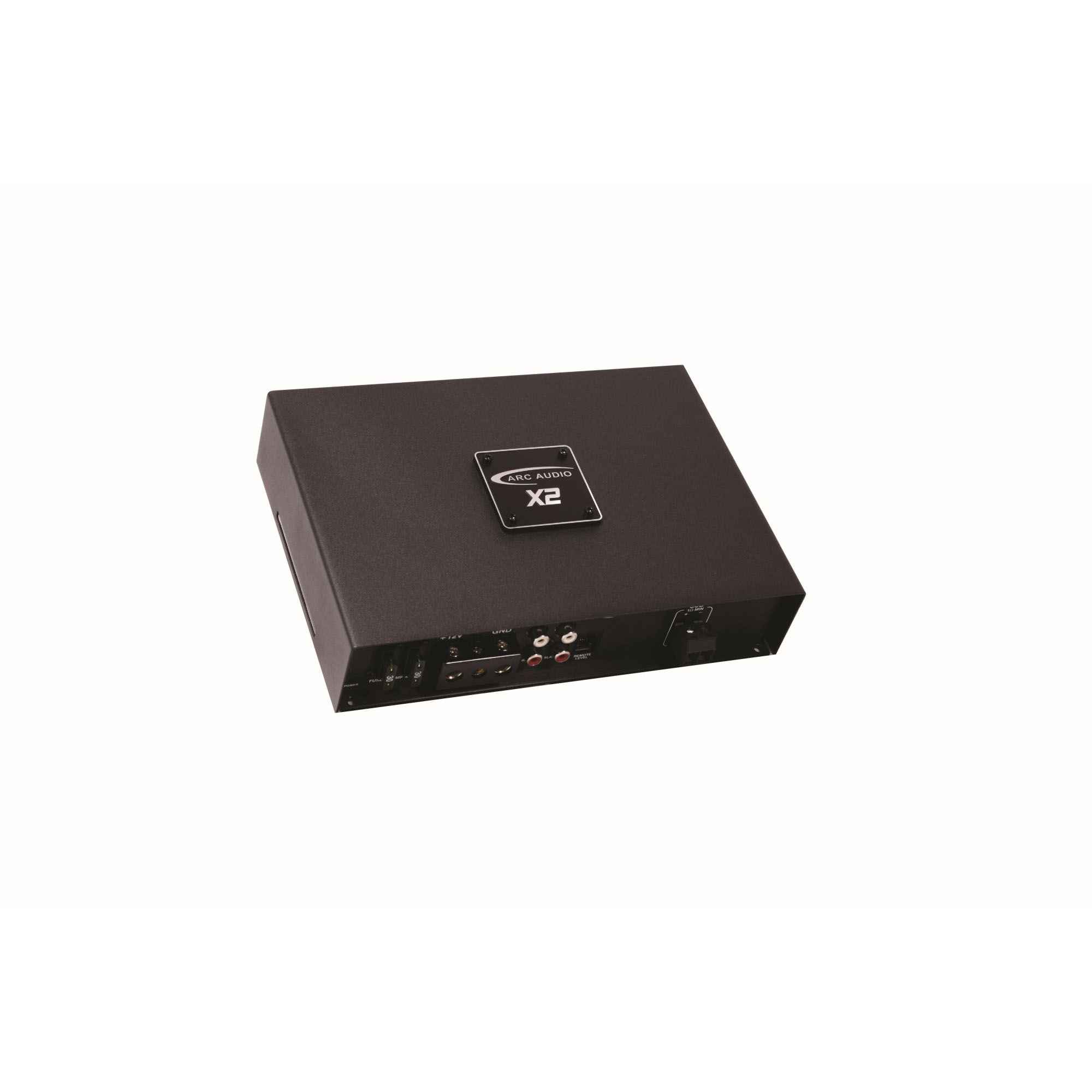

1x Arc Audio X2 650.1 Mono-Block Amplifier (Single-Channel) (X2-650.1)
Arc Audio X2 650.1 Mono-Block Amplifier (Single-Channel)
Mono-Block Amplifier (Single-Channel)
Microprocessor Class-D Design
Designed And Engineered By Robert Zeff
High-Frequency Power Supply Design For Improved Signal Transparency And Overall Sound Quality )
Level 1 X2 Cosmetics Package - Texture Coated Stamped Steel Cosmetic Cover With Aluminum Logo Badge. (Changable to Level-2 XDi Cosmetics)
Single Side Connection Design.
Nickel Plated RCA Terminals.
Quick Disconnect Speaker Terminal Plugs.
Audiophile Class-D Output Filter Networks.
Detailed Micro Processor Controlled Protection.
Large, High-Frequency Switching Power Supplies.
RCA Inputs Are Compatible With Speaker Level Inputs.
Fault Codes Storage Of The Last Protection Code Detected.
High Signal To Noise Ratio Without Compromising Power Output.
Fully Balanced Input Stage Significantly Increases Flexibility.
Ultra-Low ESR, High-capacity Power Supply Storage Capacitors.
Flexible Mounting Orientation For Vertical Or Horizontal Installations.
Next Generation High-Speed Class-D Technology Powering All XDi Amplifiers.
Bridged Mode Auto Detect Turn-On Works With Most Chip Based OEM Head Units
Precision Filtering Isolates The Power Supply Reducing Unwanted Interference In Radio Reception.
Block Type Terminal Connections
Specifications -
1- Channel @ 4 Ohms - 185 Watts
1-Channel @ 2 Ohms - 350 Watts
1-Channel @ 1 Ohms - 650 Watts
Frequency Response - 20Hz - 230Hz
Crossover Range - 30Hz - 230Hz / 24dB
Bass Boost - Variable 0-12 dB @ 30-155Hz
Remote Level Control Included - Yes
Input Sensitivity (Low) - 200mV - 3.5V
Fuse - 2 x 30 Amp
Dimensions - 9.020"(L) x 6.268"(W) x 2.162"(H)

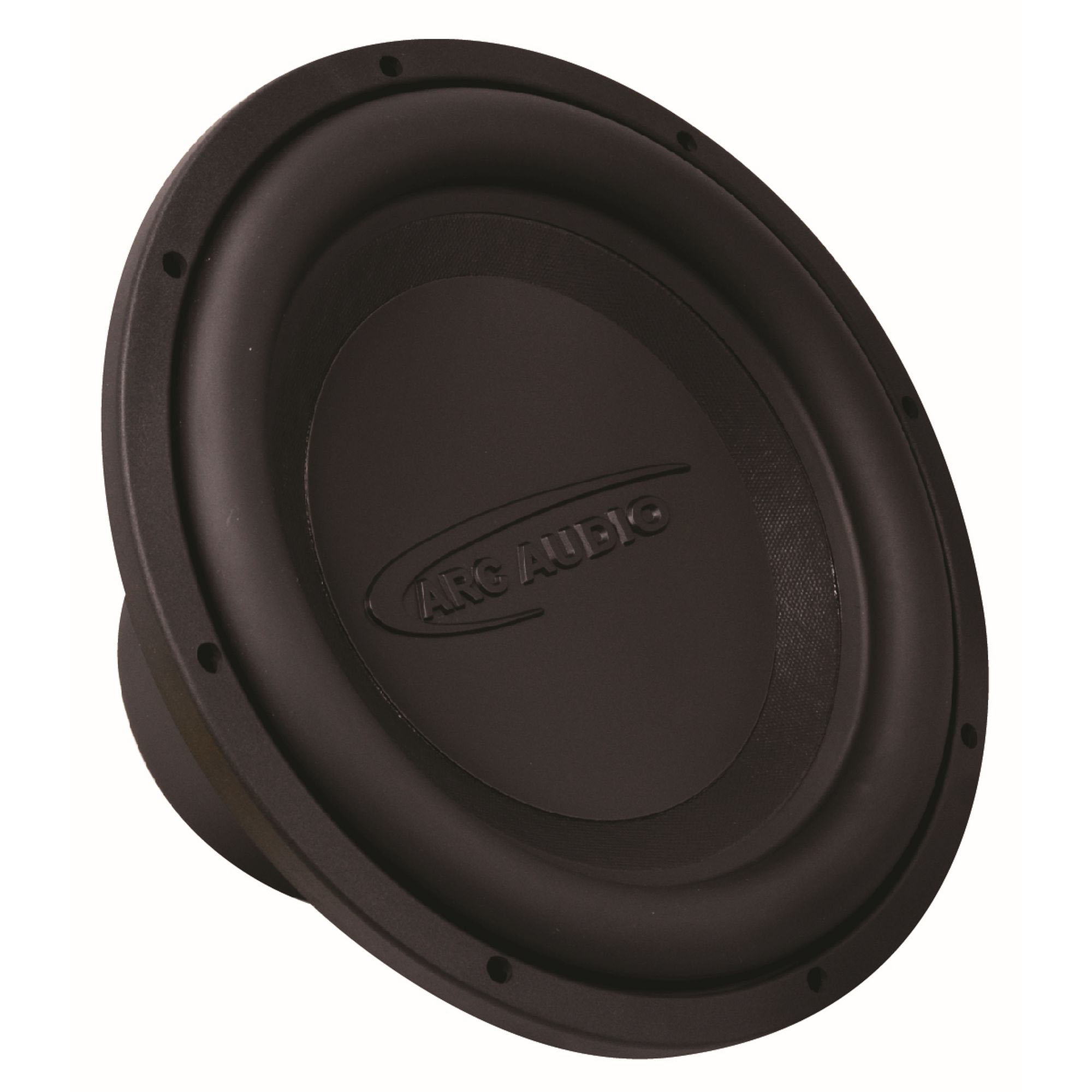

2x Arc Audio X2 12D4 12” 4 Ohm Subwoofer (X2-12D4)
Arc Audio X2 12D4 12” 4 Ohm Subwoofer
Knowing that consumers are hard on products that offer exceptional value, ARC Audio has put a great deal of effort has into ensuring thermal power handling is reference-class at these price points. The thermally conductive voice coil formers and advanced cooling technologies allow the X2 10 subwoofers to handle 200 watts and the X2 12 to handle 250 watts of continuous power for more than 10 hours. ARC Audio’s new power testing process involves doubling-down the test power levels after each successful round to ensure we know where the weakest links are and have addressed them to the best of our abilities.
If you are looking for a subwoofer that sounds great, offers excellent low-frequency output and is fun to listen to, then introduce them to the new X2 Series from ARC Audio.
Designed And Engineered In The USA
High-Temperature Black Anodized Copper Coated Aluminum Voice Coil
Linear Design For Improved Dynamics And SPL At Low And High Volumes
Cellulose Fiber Composite Cone
Stamp Steel Basket
Available In Dual 2 Or 4-Ohm Configurations
Flat Profile, Linear High-Roll Conex Spider With Post-Process Woven Integrated Tinsel Leads
Designed For Small To Moderate Sized Sealed And Ported Enclosures
Mounting Depth 6 3/16"
Cutout Diameter 11-1/8"
Minimum Sealed Enclosure - 0.9 cu ft
Optimum Sealed Enclosure - 1.15 cu ft
Maximum Sealed Enclosure - 1.55 cu ft
Specifications -
Power Handing (Peak) - 500 Watts
Power Handling (RMS) - 250 Watts
Impedance - Dual 4 Ohm
Minimum Sealed Enclosure - 0.75 cu ft
Optimum Sealed Enclosure - 1.15 cu ft
Maximum Sealed Enclosure - 1.6 cu ft
Cutout Diameter - 11-1/8"
Mounting Depth - 6 3/16"
