Description
Included in this kit
This bundle includes a Cicada Audio HDFLXPro4K - 4-Channel FLX Wiring Harness Kit with 4 AWG PWR Wire, a Nav-TV NTV-KIT1021 ZEN-H | Harley-Davidson A2B Audio Interface, a Cicada Audio FLX1400.4 - 4 x 350 @ 2 Ohm Amplifier, a Cicada Audio 24CHDLID 2024+ H-D® Saddlebag Lid 6×9-inch Cut-in Mounting Kit, a Cicada Audio CHX65.4 - Pro Coaxial Horn Loaded Speakers 6.5-inch - 4 Ohm, Pair, a Cicada Audio CHX69.2 - Pro Coaxial Horn Loaded Speakers 6x9-inch - 2 Ohm, Pair, and a Cicada Audio 24CHDRGG - H-D 2024 + RG Kidney Grill - PR.
1x Cicada Audio HDFLXPro4K - 4-Channel FLX Wiring Harness Kit with 4 AWG PWR Wire - (HDFLXPro4K)
HDFIM Front input harness with 47-ohm resistors – Molex
HDRIM Rear input harness with 47-ohm resistors – Molex
HDBDAFO Front output harness – Ferrules
HDBDARO Rear output harness w/ 8 FT extension – Ferrules
HDPG4K 4-Gauge Power/Ground Kit
1x Nav-TV NTV-KIT1021 ZEN-H | Harley-Davidson A2B Audio Interface - (NTV-KIT1021)
NAV-TV’s ZEN-H processor seamlessly allows aftermarket amplifiers to be added to the factory Harley-Davidson headunit via its low level (8 channel) analog RCAs @5V RMS. This plug & play kit integrates with various OEM data networks to retain chimes, volume control, fader/balance, and EQ Presets (for true OEM integration).
Tech Specs:
- 24 Bit 48khz Output
- 8 x 5v RMS RCA outputs
- 113db SNR
- Burr Brown DAC
- 7 - 20v input voltage range
- <250mA idle current draw
Model
2024-2025 Harley Davidson/CVO
2024-2025 Harley Davidson/Road Glide
2024-2025 Harley Davidson/Street Glide
ZEN-H Technical Specifications
Hardware & Software
Current HW version: --1r1--
Current SW version: ZEN-H-1.2.8.ntv
Compatible SW (update) OS: Windows, macOS
INPUT
Digital Input A2B
OUTPUT
Digital Outputs: None
Digital Outputs supported: 24bit/48kHz
Frequency Response (digital): 18Hz – 24kHz
Analog Outputs: 8 channels (RCA)
Output Voltage Peak: 13.8v
Output Voltage RMS: 5v
Analog Output Type: Single-Ended
S/N Ratio (analog): 113dB
Frequency Response (analog): 18Hz – 24kHz
THD+N @ -1dBFS -94dB
DAC 192kHz 24bit
DSP 32bit Fixed Point
Power Supply
Current Consumption Stand-by <1 mA
Current Consumption Operational 250 mA MAX
Operational Voltage 7V – 20V DC
Amp Turn-On Output Automatic
Amp Turn-On Voltage V-batt
Amp Turn-On Current Limitation 500mA
Other
Dimensions: 4”x4”x1 1/2”
Weight: 5 oz'
1x Cicada Audio FLX1400.4 - 4 x 350 @ 2 Ohm Amplifier - (FLX1400.4)
4 CHANNEL POWER AMPLIFIER
Requires 4 AWG Power Wire – HDPG4K
4 X 200 WRMS into 4 ohms @ 12.5 Vdc
4 X 225 WRMS into 4 ohms @ 14.4 Vdc
4 X 300 WRMS into 2 ohms @ 12.5 Vdc
4 X 350 WRMS into 2 ohms @ 14.4 Vdc
BRIDGED MONO – 2 CHANNEL
2 X 600 WRMS into 4 ohms @ 12.5 Vdc
2 X 700 WRMS into 4 ohms @ 14.4 Vdc Frequency response – 20-20,000 +/- 3dB THD < 0.5%
Operating Voltage: 8 V – 16 V
Current Draw (Music): 50 A
Current Draw (Max): 220 A
Recommended Fuse (Music): 120 A
Total Efficiency: 79%
Damping Factor: 200
SNR: 91 dB
Crossover LPF/FULL/HPF: 30 TO 300Hz
Slope:12dB per octave
Gain: 0.2V – 12 Vac
Turn-On Configuration: REM/DC
THD + N (10% Rated Power): 0.1%
Product Dimensions (Inches / Millimeters): 7.6 x 4.9 x 2.0 in / 193 x 124 x 51 mm
1x Cicada Audio 24CHDLID 2024+ H-D® Saddlebag Lid 6×9-inch Cut-in Mounting Kit - (24CHDLID)
Designed for 2023.5+ Harley-Davidson® updated saddlebag design
Unique Top Load Speaker Baffle Design
3 Part Assembly:
- Speaker Grill
- Speaker Baffle
- Secure Clamping ring with waterproof gasket
Compatible with:
- CICADA 6×9 speakers, even with full size cast frames and oversized surrounds
- CICADA Hard Divider, Tweeter Bridge Accessories
- CICADA 24RING10, 24PORT3 and all CICADA 8” or 10” Midbass drivers.
Baffle Angle that perfectly positions the speaker towards the rider for optimal projection
Increased durability for heavier full size, full depth 6×9 speakers
Better Waterproofing with the fully gasketed baffle clamp
High-strength ASA plastic for durability and performance
UV Resistant materials for long lasting appearance
Engineered for perfect fit and easy installation
Grille Mesh formed with heavy duty powder-coated steel
Edgeless trim design and rugged speaker protection
Compatible with saddlebags featuring electric locks
Included Accessories:
ABS molded Cutout Templates
Heavy duty updated Lid Gasket Seals
Rainproof Lid Covers
CICADA Tethers with Crossover pouch
Die cut speaker gasketing

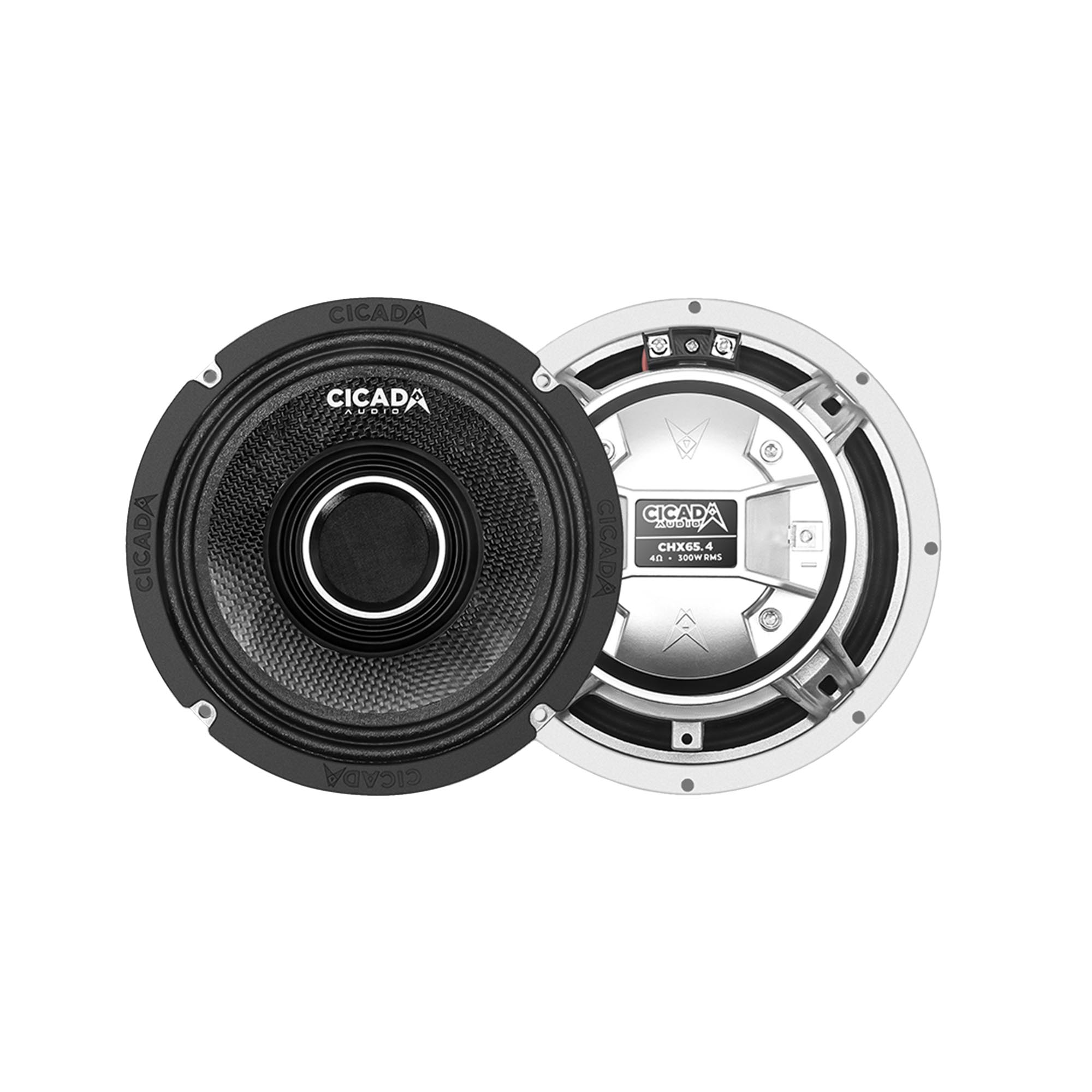

1x Cicada Audio CHX65.4 - Pro Coaxial Horn Loaded Speakers 6.5-inch - 4 Ohm, Pair - (CHX65.4)
FEATURES:
Designed for 2014+ H-D® factory designed locations
Nanofram™ Horn Cover
Exclusive Cicada All-Weather Design for protection from rain
N35SHSH Neo magnet
Water proofing, UV protected
External 12dB crossover with optional -3/-6 tweeter resistor pack
Available in 4- or 2-Ω versions
Aluminum tweeter diaphragm material
Brighter sound
More efficient
Carbon Matrix Composite™ (CMC™) cone
Lightweight / rigid / high temp
Maximized efficiency / super strong
Die cast Aluminum custom tooled basket
5” Grills & Hardware are included
Warranty: 2 years
Specifications
6.5” PRO coaxial horn driver
Power handling: 300W RMS/600W MAX
Voice Coils: 2.0”/51mm mid-bass & 1.75”/44mm Tweeter
High temperature Design
Cone: Carbon Matrix Composite™
Tweeter Dome: Aluminum
Crossover: 12dB external custom tooled, vented, encased crossover
Tweeter Attenuation: -3/-6 dB heat sink encased resistor pack
Magnet: Neodymium
Sensitivity: 92dB
response 70hz-20Khz +/- 4dB
Mounting Depth: 2.64”/67mm
Mounting Diameter: 5.67”/144mm
1x Cicada Audio CHX69.2 - Pro Coaxial Horn Loaded Speakers 6x9-inch - 2 Ohm, Pair - (CHX69.2)
FEATURES:
Nanofram™ Horn Cover
Exclusive Cicada All-Weather Design for protection from rain
Rain or Shine™ all weather performance design
Available in 4 or 2Ω versions
Aluminum tweeter diaphragm material
Brighter sound
More efficient
1.75″ OFC copper wire tweeter voice coils offer great sound while generating less heat
External 12dB crossover with optional -3/-6 tweeter resistor attenuator
Carbon Matrix Composite™ (CMC™) cone
Lightweight / rigid / high temp
Maximized efficiency / super strong
Black Coat™ 2.5-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
N35SH Neodymium magnet
Die cast Aluminum custom tooled basket with Vortex Flow Venting™
Warranty: 2 years
SPECIFICATIONS:
2Ω – 6X9-inch PRO coaxial horn driver
Power handling: 400W RMS/800W MAX
Voice Coil: 2.5-inch/64mm Mid-bass & 1.75-inch/44mm Tweeter
High temperature design
Tweeter Dome: Aluminum
Crossover: 12dB external custom tooled, vented, encased crossover
Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
Cone: Carbon Matrix Composite™
Magnet: Neodymium
Sensitivity: 92dB, 1W / 1M
Frequency Response: 46Hz – 20kHz +/- 3dB
Mounting Depth: 3.75-inch/96mm
Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm
1x Cicada Audio 24CHDRGG - H-D 2024 + RG Kidney Grill - PR - (24CHDRGG)
Crafted from high-quality aluminum, these custom-built grilles are designed specifically to fit 2024 and newer Harley-Davidson Road Glide models. Each grille includes a Cicada Audio® Branded Emblems, ensuring a precise fit and clean installation. Built for durability and performance, these grilles offer a sleek, factory-style appearance while optimizing audio performance—all proudly featuring the Cicada Audio® brand.
