Fusion Apollo MS-RA800 Marine Stereo, MS-AP41200 4ch Amp & AP-DA214 Mono Amp Bundle

Included in this kit

---

This bundle includes a Fusion Apollo MS-RA800 Marine Stereo, a Fusion MS-AP41200 150w per channel RMS @4ohm Apollo 4 Channel Marine Amplifier, and a Fusion Apollo Series AP-DA214 2 Channel 140-watt Marine Zone Amplifier.

1x Fusion Apollo MS-RA800 Marine Stereo - (MS-RA800)

It’s the most powerful and technologically advanced Fusion® marine stereo ever. With audiophile-level components and a built-in amplifier providing twice the power of the predecessor RA770, this system delivers lossless audio performance of unmatched clarity. Plus, its Wi-Fi® connectivity supports seamless AirPlay® audio streaming on your boat.

General
Control Surface Dust/Water Rating (when properly installed): IPX6 and IPX7
Rear Dust/Water Rating (when properly installed): IPX3
Operating temperature rang: -20 to 70° C
Current draw (max): 25 A at 14.4 V; 15A at 28.8 V

Networking
NMEA 2000® LEN: 2 (65 mA)
BLUETOOTH® wireless range: up to 30 ft
ANT® wireless range: Up to 10 ft
Wireless frequencies/protocols: WiFi 2.4Ghz: +12dBm nominal MIMO 2 x 2, BLUETOOTH®: 2.4 GHz @ +10 dBm nominal, ANT®: 2.4GHz 0dBm nominal

Stereo Features
Display size: 4.3" (109 mm)
Display type: capacitive touchscreen color LCD
Display resolution: 800 x 480
Optically bonded display: Yes
Built-in amplifier: Class D (4 Ω)
Built-in Wi-Fi®: Yes
Built-in Digital Signal Processing (DSP): yes (with custom DSP profile setup using Fusion-Link™ app)
Stereo networking: yes (wired or wireless)
Fusion-Link™ control: yes (MFD, smart device and Garmin watch)
Multi-Zone™ technology: 4 zones
BLUETOOTH® wireless technology: Yes
ANT® wireless technology: Yes
Multi-language interface: Yes
Software updates: Over-the-air updates via Fusion-Link™ app (when connected to wireless network router)/USB

Connections
Auxiliary inputs (RCA): 2
HDMI ARC Ports: 1
Ethernet ports: 1
NMEA 2000® ports: 1
USB 2.0 ports: 1 (USB-C)
AM/FM ports (Motorola antenna connector): 1
Speaker connections: 4 (2 zone amplified)
RCA pre-out (left, right and subwoofer - requires external amplification): 4 zones
Line out (requires external amplification): 4 (L + R per zone)
Subwoofer out (requires external amplification): 4 (1 mono output per zone)

1x Fusion MS-AP41200 150w per channel RMS @4ohm Apollo 4 Channel Marine Amplifier - (MS-AP41200)

Amplify the moment with an Apollo™ marine amplifier – designed specifically for use with your Fusion® DSP-enabled marine stereo and Fusion speakers. This powerful and efficient 4 channel amplifier is the difference between hearing the music and feeling it. With an impressive 150-watt RMS per channel (at 4 ohm), this amplifier can power up to four pairs of speakers or two pairs of speakers and one subwoofer. The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link™ app on a compatible smartphone).

NOTE:Fusion DSP-enabled marine stereo (Apollo RA770, Apollo RA670, Apollo WB670, MS-RA210) required. When paired with an Apollo stereo, unmatched tuning and fidelity can be achieved. This amplifier is not compatible with any other marine stereos.

Features -
• Impressive Power: 150-watt RMS per channel (at 4 ohm), capable of powering up to four pairs of speakers or two pairs of speakers and one subwoofer.
• Efficient Class-D Design: Uses less power, so you can listen to music for longer at higher volumes, with less drain on the battery.
• Easy Tune Feature: Automatically adjusts audio settings for the best possible sound quality with no manual adjustments required (Requires setup using the Fusion-Link app on a compatible smartphone).
• LED Indicator: Show issues with electrical currents and shorts as well as temperature.
• Less Total Harmonic Distortion: The amplifier is designed with minimal distortion and noise, allowing for better quality audio.
• Ignition Protected: Intelligent electronic fuse prevents damage from over/under current, temperature, output short and other faults.
• Conformal Coated PCBs: The amplifier circuit board has been specially coated to provide enhanced protection from the marine elements.
• Powder Coated Aluminum Finish: Salt fog, temperature, vibration and UV tested with a modern aesthetic design to add style to your boat.
• Easy Installation: Proprietary cable connectors and a mounting bracket is included in the box. The cable connectors allow you to pre-wire your speakers/subwoofers, while the mounting bracket allow you to simply clip the amplifier in place for a clean finish.
• High Power Mode: High-power mode adapters are included in the box, designed to simplify the way you bridge two channels in high power mode, increasing the output power.
• True-Marine™ Design: Designed to withstand the harshest marine environments season after season and comes with a 3-year warranty.

Specifications -
• Physical dimensions without bracket (LxWxH): 9.25" x 7.06" x 1.75" (235 x 180 x 45 mm)
• Physical dimensions with bracket (LxWxH): 9.25" x 7.06" x 2.13" (235 x 180 x 50 mm)
• CEA-2006 power rating: 4 Channel: 150 watt RMS x 4 @ 14.4 V input - 4 ohm < 1% THD
• Total rated power output - 2 ohm (watts): 4 Channel: 290 watt RMS x 4 @ 14.4 V input - 2 ohm < 1% THD
• Total rated power output - 4 ohm Bridged (watts): 4 Channel: 580 watt RMS x 2 @ 14.4 V input - 4 ohm Bridged < 1% THD
• Peak power (watts): 4 Channel: 1200 watts
• Input Impedance: 22k ohm
• Operating Voltage: 10.8 V - 16 V DC
• Current Consumption: (StandBy) < 5 mA @ 14.4 V input
• Current Consumption: (Idle) < 1.15 A @ 14.4 V input
• Current Consumption: (Max) 53 A
• Fuse Rating: 85 A electronic fuse (no replacement necessary)
• Ignition Safety Protected: (SAE J1171) Yes
• Protection Circuits: Reverse voltage, input under/over voltage, over temperature, output short circuit
• Operating Temperature Range: 32° to 122° F (0° to 50° C)

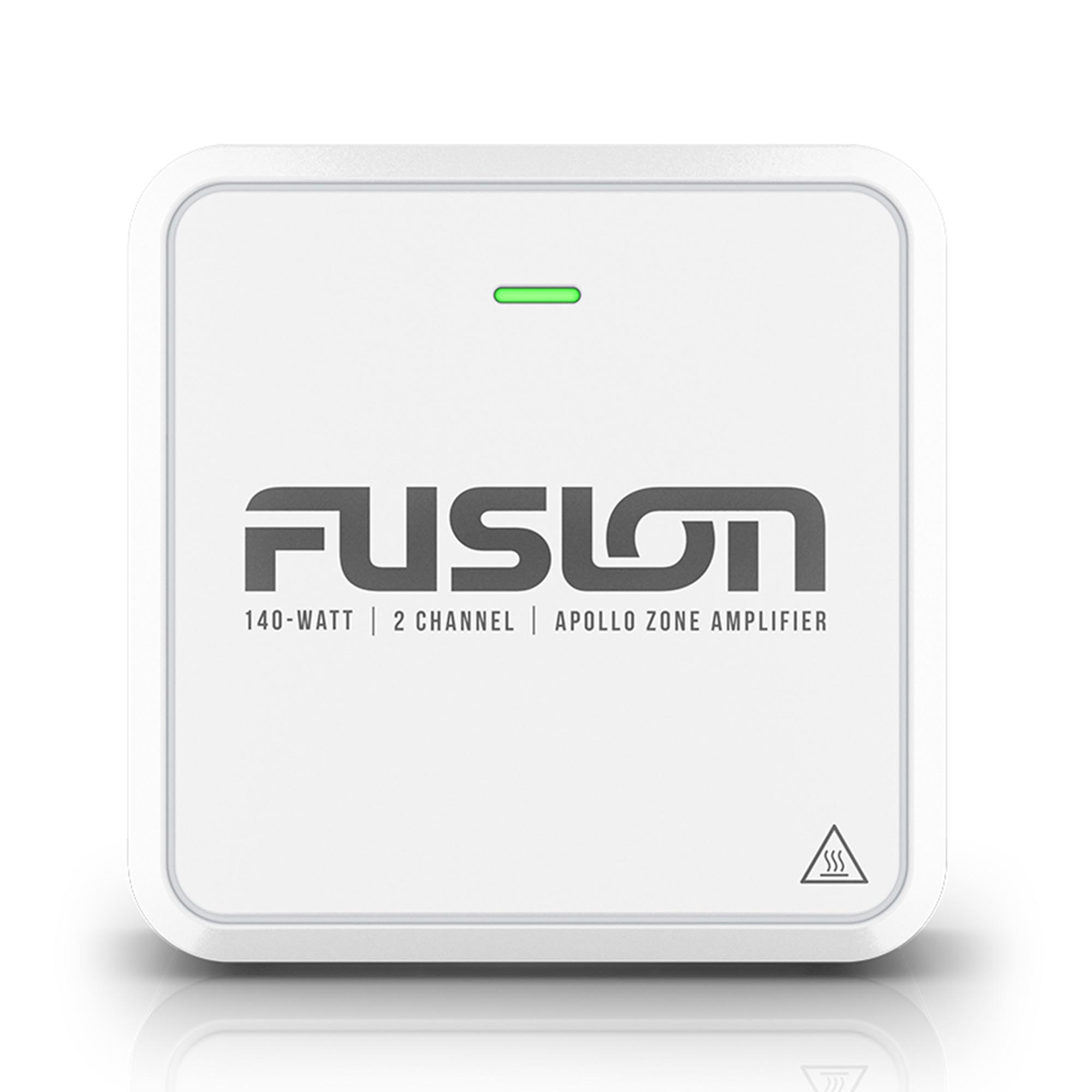

1x Fusion Apollo Series AP-DA214 2 Channel 140-watt Marine Zone Amplifier - (AP-DA214)

Amplify the moment with an Apollo™ marine amplifier – designed specifically for use with your Fusion® DSP-enabled marine stereo and Fusion speakers.

This efficient zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. With 20-watt RMS per channel (at 4 ohm), this 2 channel amplifier allows you to add an extra pair of speakers on board. The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link™ app on a compatible smartphone).

NOTE:Fusion DSP-enabled marine stereo (Apollo RA770, Apollo RA670, Apollo WB670, MS-RA210) required. When paired with an Apollo stereo, unmatched tuning and fidelity can be achieved. This amplifier is not compatible with any other marine stereos.

Features:
• RMS Power: 20-watt RMS per channel (at 4 ohm), allowing you to add an extra pair of speakers on board.
• Easy Tune Feature: Automatically adjusts audio settings for the best possible sound quality with no manual adjustments required (Requires setup using the Fusion-Link app on a compatible smartphone).
• Compact Design: The compact size of the zone amplifier makes it a versatile option for mounting on board.
• LED Indicator: Show issues with electrical currents and shorts as well as temperature.
• Ignition Protected: Intelligent electronic fuse prevents damage from over/under current, temperature, output short and other faults.
• Powder Coated Aluminum Finish: Salt fog, temperature, vibration and UV tested with a modern aesthetic design to add style to your boat.
• True-Marine™ Design: Designed to withstand the harshest marine environments season after season, the zone amplifier is IPX7 rated and comes with a 3-year warranty.

Product Specifications
• Physical Dimensions Without Bracket (WxHxD): 3.94" x 3.94" x 1.57" (100 x 100 x 40 mm)
• Physical Dimensions With Bracket (WxHxD): 3.94" x 4.53" x 1.89" (100 x 115 x 48 mm)
• Weight: 1.01 lb (460 g)
• Water Rating: IPX7
• Amplifier Class: Class-D
• CEA-2006 Power Rating: 20-watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD
• Total Rated Power Output - 2 ohm (watt): 30-watt RMS x 2 @ 14.4 V input - 2 ohm < 1% THD
• Peak Power (watt): 140-watt
• Input Impedance: 9k Ohm
• Operating Voltage: 10.8 V - 32 V DC
• Current Consumption (StandBy): < 1 mA @ 14.4 V input
• Current Consumption (Idle): < 0.04 A @ 14.4 V input
• Current Consumption (Max): 10 A
• Fuse Rating: 16 A electronic fuse (no replacement necessary)
• Ignition Safety Protected (SAE J1171): Yes
• Protection Circuits: Reverse voltage, input under/over voltage, over temperature, output short circuit
• Operating Temperature Range: 32° to 122° F (0° to 50° C)
• Warranty: 3 years
