Description
Included in this kit

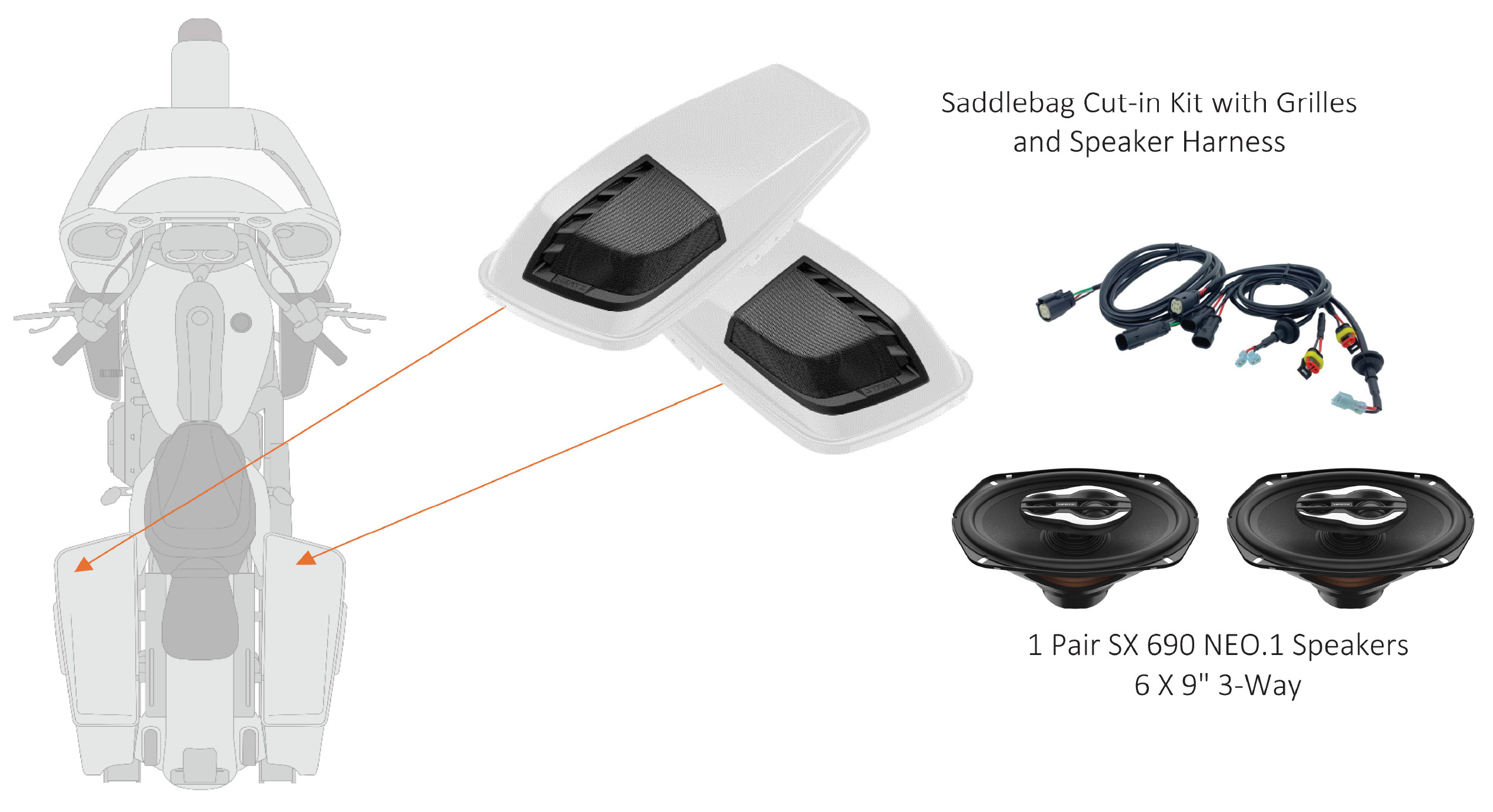

Hertz HD13H6x9 1998 - 2013 Saddle Bag Lid Kit with Speaker Harness and SX690 NEO.1 3-Way Speakers. - Includes: Hertz SPL Show Series SX-690-NEO 6x9" Three-Way SPL Coaxial Speakers with Neo Magnets and UV/Waterproofing and Hertz HD13DH Lid Kit with Speaker Harness (No Speakers) Compatible With 1998 - 2013 HD Motorcycles.
Hertz SPL Show Series SX-690-NEO 6x9" Three-Way SPL Coaxial Speakers with Neo Magnets and UV/Waterproofing
Features -
• Nature-proof high stiffness pressed-paper cone featuring innovative water/humidity resistant and anti-UV treatments.
• Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
• Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.
• Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome supertweeter with resettable solid-state tweeter protection circuit.
Specifications -
• Power Handling - Peak W: 260
• Power Handling - Continuous W: 130
• Impedance Ω: 4
• Frequency response Hz: 65 ÷ 24k
• Sensitivity dB SPL: 94
• Woofer size mm (in.): in. 6 x 9
• Midwoofer size mm (in.) -
• Tweeter size mm (in.): 29 (1.14)
• Supertweeter size mm (in.): 20 (0.8)
• Woofer Voice Coil Ø mm (in.): 38 (1.5)
• Tweeter voice coil Ø mm (in.): 25 (1)
Hertz HD13DH Lid Kit with Speaker Harness (No Speakers) Compatible With 1998 - 2013 HD Motorcycles
Key Features:
Quick and Simple Installation:
A precision cutout guide is included to ensure the perfect fit for your saddlebag lids. The plug & play wiring harness minimizes installation time and eliminates the need for complex wiring adjustments.
Important Fitment Note:
Not compatible with models equipped with electric locking saddlebags. Please verify compatibility with your specific motorcycle before purchase.
