Description
Included in this kit
This bundle includes a Hertz SP 1.900 D-Class Mono Amplifier 1000 WRMS x 1 at 2Ω, and a Hertz HRC BM2 Subwoofer remote volume controL for Venezia amplifier.

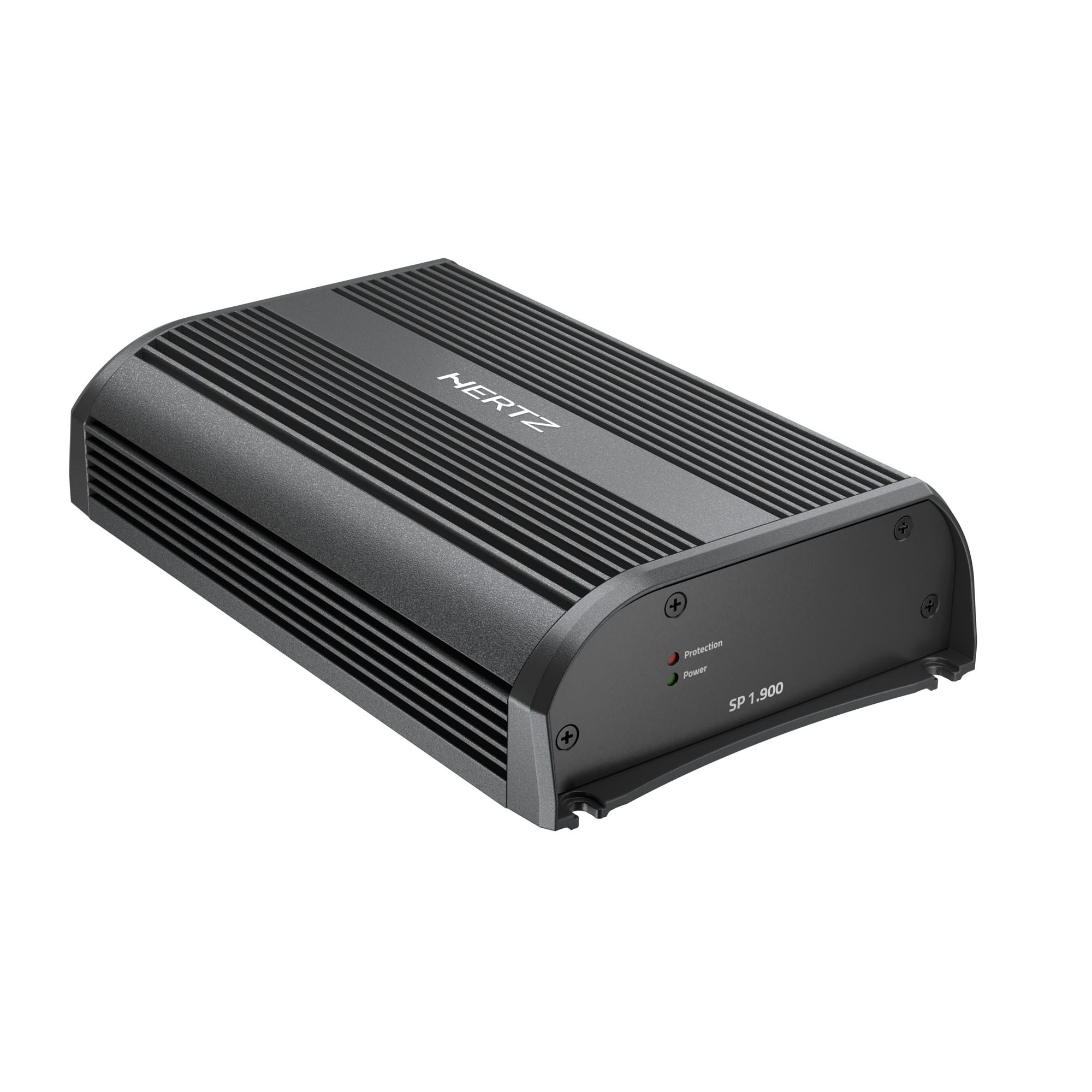

1x Hertz SP 1.900 D-Class Mono Amplifier 1000 WRMS x 1 at 2Ω - (SP-1.900)
SP 1.900 mono amplifier features Hertz ADC (Advanced D-Class) output stage, reaching up to 87% efficiency. The maximum power of 1000 W RMS is already available at 2Ω and remains stable even at 1Ω. Being ultra-compact (211.6 x 130 x 49 / 8.3 x 5.1 x 1.9) with impressive power, SP 1.900 is the ideal choice for Motorcycle applications under-seat in sports cars and behind-seat installations in trucks.
Specifications -
• Channels: 1 • Nominal power supply voltage: 11 ÷ 15 VDC • Pulse Operating voltage: 6 ÷ 16 VDC • Idling current: 1.1 A • Idling current when off: 0.03 mA • Consumption @ 14.4 VDC, MIN load impedance (Max Musical Power): 50 A • Remote IN 6 ÷ 15 VDC (9 mA) • DC-REM - Remote Turn on by SPK DC from OUTPUT BTL speakers: 3.5 ÷ 7 VDC • Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.1% • Damping factor @ 1 kHz, 4Ω, 2 VRMS: >300 • Bandwidth: @ -3 dB 5 Hz ÷ 500 Hz • S/N ratio (A weighted @ 1 V Input): 95 dBA • Pre-In sensitivity: 0.6 ÷ 6 VRMS • Speaker-In sensitivity: 2.2 ÷ 22 VRMS • Minimum load impedance: 1Ω • IP Rating: IP55 • Operating Temperature Range: 0°C (32°F) to 55°C (131°F)
1x Hertz HRC BM2 Subwoofer remote volume controL for Venezia amplifier - (HRC-BM2)
The optional HRC BM2 subwoofer volume control provides the ability to adapt the subwoofer level (-20 / + 6 dB) to any personal preference and favorite music genre. HRC BM2 features a bulletproof Molex connector.
