Description
Included in this kit
This bundle includes 4x Hertz HEX Series HEX-65-IC-W 6.5" 6-Ohm IN-CEILING Coax - White - Sold Individually, and a Hertz Capri H100 Marine 4.3" Color Display Media Receiver.

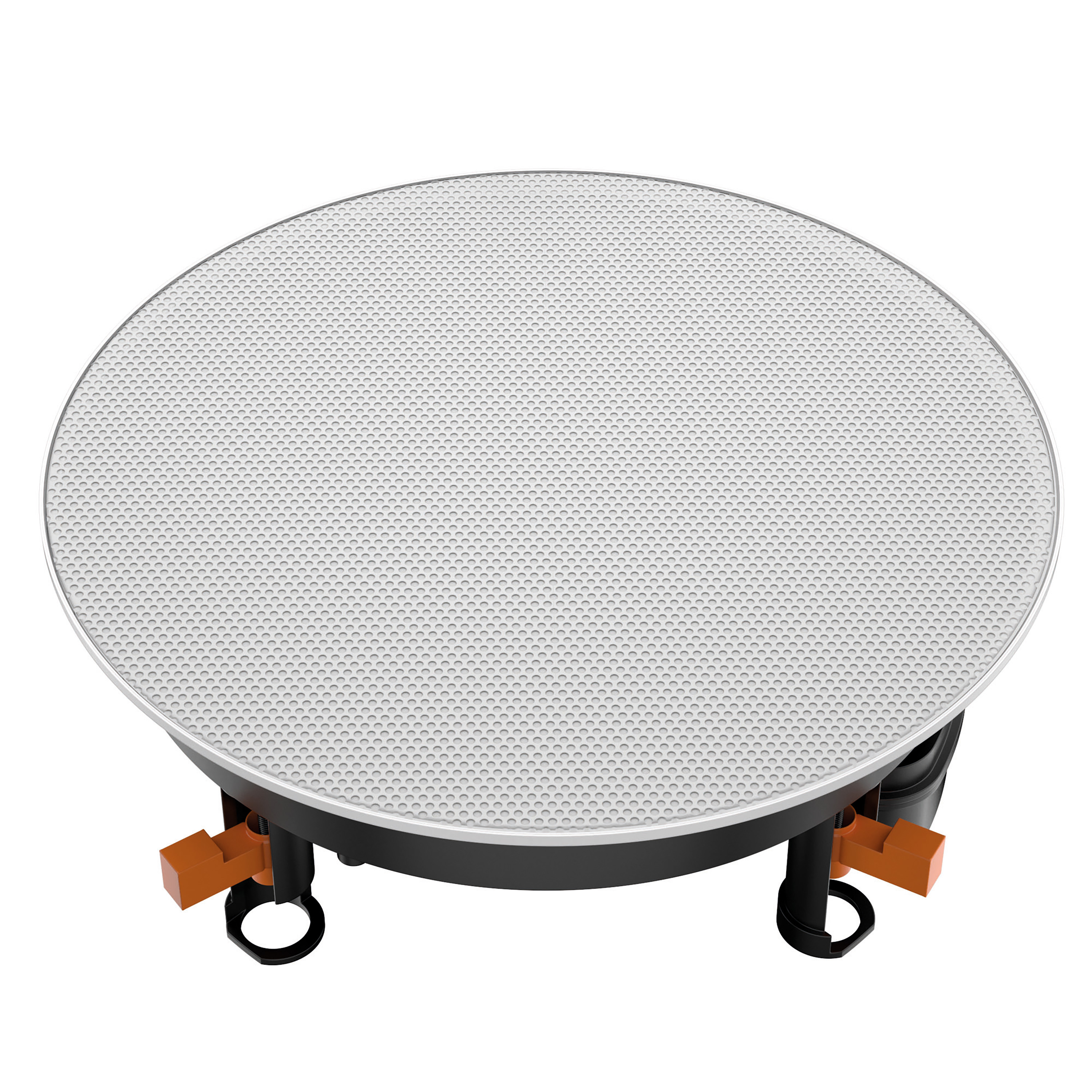

4x Hertz HEX Series HEX-65-IC-W 6.5" 6-Ohm IN-CEILING Coax - White - Sold Individually - (HEX-65-IC-W)
Hertz marine In-Ceiling speaker is designed to deliver thrilling sound with a near stealth installation. Engineered to be incredibly durable, they are fine-tuned for in-wall positioning providing top audio performance from very discreet designs. This includes an advanced crossover built with marine conformal coated PCB encapsulated in a sealed enclosure to prevent corrosion.
Features -
• Hertz Pure Marine Certified Product Stamp Featuring IP65 Protection Grade, ASTM-D4329 Standards for UV Resistance and ASTM-B117 for Salt Fog Operability.
• Totally Sealed Design Including Coated Crossover Filter Made by Marine-Grade PCB to Prevent Corrosion Against Salt Fog.
• Edgeless Mesh Grille with Magnetic Locking System Providing Near Stealth In-Wall/In-Ceiling Installation.
• Crossover Fine-Tuned to Optimize Sound Emission for In-Wall/In-Ceiling Applications.
• Marine Certified 24mm Diaphragm Soft Dome Tweeter Designed with FEM Simulation to Maximize Sound Projection for in In-Wall and In-Ceiling Installation.
Specifications -
• Power Handling: 100W Peak
• Impedance: 6 Ohms
• Frequency Response: 50-22kHz
• Woofer Magnet: Ferrite
• Tweeter Magnet: Neodymium
• Cone: Polypropylene with UV Inhibtors
• Dome: Tetolon
1x Hertz Capri H100 Marine 4.3" Color Display Media Receiver - (Capri-H100)
Introducing “Capri,” the epitome of elegance and sophistication in hi-end audio sources. Inspired by the breathtaking beauty and luxurious atmosphere of the namesake island, the Capri Hi-End Source is a true masterpiece that transcends ordinary audio experiences. With meticulous attention to detail and uncompromising craftsmanship, the Capri Hi-End Source by Hertz represents the pinnacle of audio engineering. Engineered to deliver superior sound quality and withstand the harsh marine environment, this top-of-the-line audio source is designed to elevate your boating experience to new heights. With a focus on high-resolution audio, CAPRI ensures that every note, every detail, and every nuance of your favorite music is reproduced with stunning clarity and fidelity, allowing you to immerse yourself in a true audiophile-grade experience on the water.
Specification
DISPLAY: 4.3” COLOR TFT IPS
PEAK POWER @ 4 Ω: CLASS-D: 4 x 70 W
FRONT PANEL IP RATING: IP67
MULTI-ZONE: 4
LINE OUT (RCA): 4x L+R (one per zone) - HPF: ALL, 60, 80, 100 Hz
SUBWOOFER OUT (RCA): 4x (LPF: ALL, 60, 80, 100 Hz)
AUX INPUT (RCA): 1x L+R
S/PDIF DIGITAL IN: Toslink (24 bit/96 kHz)
S/PDIF DIGITAL OUT: Coaxial (24 bit/96 kHz)
EQUALIZER: CUSTOM 8 BANDS for each zone
EQ. PRESET: 8
CAMERA IN: Yes
BATTERY VOLTAGE GAUGE: Yes
Size & Mounting
Unit Size mm (in.): W 146 (5.748) x H 105 (4.134) x D 121 (4.763)
Mounting Hole size mm (in.): W 122 (4.8) x H 52 (2.05)
Mounting Depth mm (in.): 99 (3.89
Mounting Method: Panel mount (4 screws)
Sources
TUNER: AM/FM (RDS) (EU/US) Weather band USB: Yes (2A)
IPOD/IPHONE: Yes
DAB+: Ready
XM READY: Yes
BLUETOOTH: 5.1 Audio streaming with ID3 Tag Display LDAC – AAC – APTX HD
REMOTE CONTROL: HMC HD1 (up to 4 zones) HMC U1 (up to 2 zones)
