Description
Included in this kit
This bundle includes a Hertz Marine CAPRI HBB Hidden Marine Source with Hi-Res Audio, NMEA 2000 compatible & multi-zone control, a Hertz HMD8 DSP - 8 Channel Marine Amplifier with DSP - 85 WRMS X 8 at 4-Ohm, and 4x Hertz HEX Series HEX-65-S-LD-G 6.5" 4-Ohm Marine Coax Set with RGB LEDs.

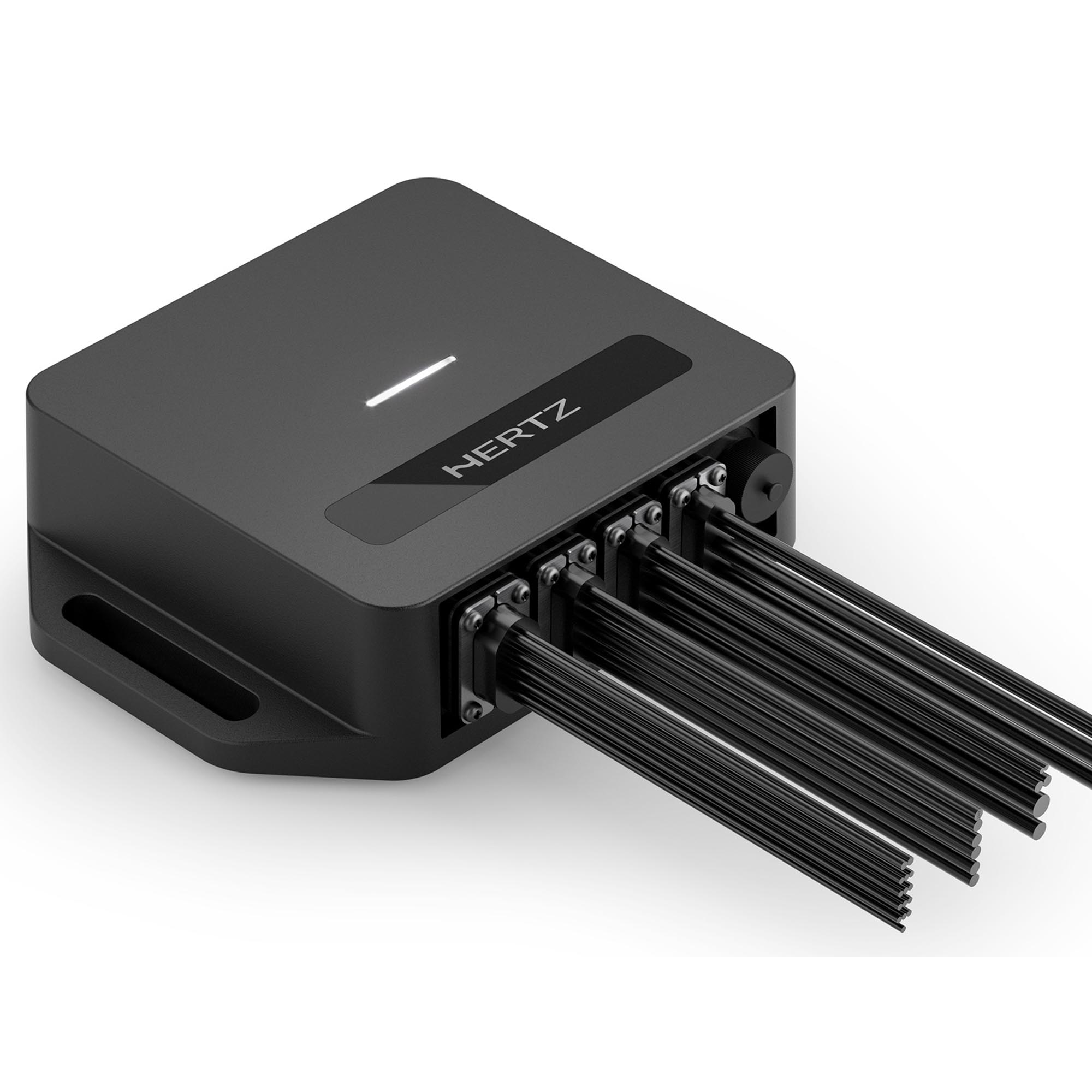

1x Hertz Marine CAPRI HBB Hidden Marine Source with Hi-Res Audio, NMEA 2000 compatible & multi-zone control - (CAPRI-HBB)
The CAPRI HBB is the black box version of the renowned Hertz CAPRI marine source, delivering the same high-resolution audio performance and advanced features without an integrated display. Designed for seamless control via remote units, Bluetooth® app, or NMEA 2000®, it ensures full management of four independent zones with dedicated subwoofer outputs. Engineered to withstand harsh marine environments, the CAPRI HBB offers superior connectivity, including Bluetooth® 5.1, USB, digital inputs/outputs, and DAB+ readiness, for an audiophile-grade marine experience.
Specification
PEAK POWER @ 4 Ω: CLASS-D: 4 x 70 W
FRONT PANEL IP RATING: IP66
MULTI-ZONE: 4
LINE OUT (RCA): 4x L+R (one per zone) - HPF: ALL, 60, 80, 100 Hz
SUBWOOFER OUT (RCA): 4x (LPF: ALL, 60, 80, 100 Hz)
AUX INPUT (RCA): 2x L+R
S/PDIF DIGITAL IN: Toslink (24 bit/96 kHz)
A2B® DIGITAL BUS: UTP cable (24 bit/96 kHz)
S/PDIF DIGITAL OUT: Coaxial (24 bit/96 kHz)
EQUALIZER: CUSTOM 8 BANDS for each zone
EQ. PRESET: 8
CAMERA IN: Yes
BATTERY VOLTAGE GAUGE: Yes
Sources
TUNER: AM/FM (RDS) (EU/US) Weather band
USB: Yes (2A)
IPOD/IPHONE: Yes
DAB+: Ready
XM READY: Yes
BLUETOOTH: 5.1, Audio streaming with ID3 Tag Display, LDAC – AAC – APTX HD
REMOTE CONTROL: HMC HD1 (up to 4 zones) HMC U1 (up to 2 zones)
Size & Mounting
Unit Size mm (in.): W 146 (5.748) x H 105 (4.134) x D 121 (4.763)
Mounting Hole size mm (in.): W 122 (4.8) x H 52 (2.05)
Mounting Depth mm (in.): 99 (3.89)
Mounting Method: Panel mount (4 screws)
1x Hertz HMD8 DSP - 8 Channel Marine Amplifier with DSP - 85 WRMS X 8 at 4-Ohm - (HMD8-DSP)
The HMD8 DSP, powered by Hertz Marine DSP technology, rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze, exploiting every single pills of performance from the installed speaker system. The amazing power of 8 * 85 W or 4 * 260 W (RMS@ 4Ω) gives the HMD 8DSP the capability to drive with authority the complete speaker system generating tons of crystal clear SPL up to 3 different zone of the vessel. “Power for the Waves” design philosophy features a sturdy enclosure made of extruded aluminum with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.
Specifications -
• Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.06 %
• Damping factor @ 1 kHz, 4Ω, 2 VRMS: > 110
• Bandwidth @ -1.5 dB: 10Hz ÷ 22 kHz
• S/N ratio (A weighted @ 1 V Input) Master Input: 100 dBA
• S/N ratio (A weighted @ 1 V Input) Optical Input: 105 dBA
• Input sensitivity Pre-In: 0.6 ÷ 6 VRMS
• Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS
Inputs/Outputs -
• Pre-In Inputs: Ch1 ÷ Ch6 customizable
• Speaker-In Inputs: Ch1 ÷ Ch6 customizable
• Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit
• Sub Out (RCA Pre Out): 4 VRMS Max
Digital Signal Processor -
• Crossover frequency: 20 ÷ 20k Hz
• Phase control: 0° / 180°
• Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
• Time Alignment Delay: 0 ÷ 15 ms
• Time Alignment Step: 1 cm
• Time Alignment Fine SET: 1 sample
4x Hertz HEX Series HEX-65-S-LD-G 6.5" 4-Ohm Marine Coax Set with RGB LEDs - (HEX-65-S-LD-G)
SPORT option grille HEX coaxial with RGB LEDs lighting option always provide the perfect style for your boat, giving you years of pure fun while cruising, being over engineered and tested for Marine applications. The compact 6.5” speaker, with a depth of only 2.36 in. delivers a detailed and dynamic sound, making every outing memorable. HEX sport grille can be easily removed to be painted with a custom color perfect for your boat.
Features -
• Hertz Pure Marine Certified Product Stamp Featuring the IP65 Protection Grade, ASTM-D4329 Standards for UV Resistance and ASTM-B117 for Salt Fog Operability.
• High Efficiency Tweeter Designed with FEM Simulation to Maximize Off-Axis Emission, Typical of In-Boat Installation.
• Sound Transparent Mesh Grille with Twist and Lock Locking System, Providing and Elegant Style and a Rock-Solid Protection.
• Woofer with 25mm (1") Voice Coil Fine-Tuned for Infinite Baffel Application Featuring Silicone Insulated Lead-Wire for Durability.
Specification -
• Power Handling: 100W Peak
• Impedance: 4 Ohms
• Frequency Response: 50-23kHz
• Magnet: Ferrite
• Tweeter: Neodymium
• Cone: Polypropylene with UV Inhibitors
• Dome: PEI
Electro-Acoustic Parameters -
• D: 125mm
• Xmax: 3,4mm
• Re: 3,3 Ohms
• Fs: 78Hz
• Le: 0,109mH
• Vas: 6,52L
• Mms: 13,5g
