Description
9" Weather-Resistant Digital Media Receiver with Hi-Res Audio & Wireless Smartphone Integration

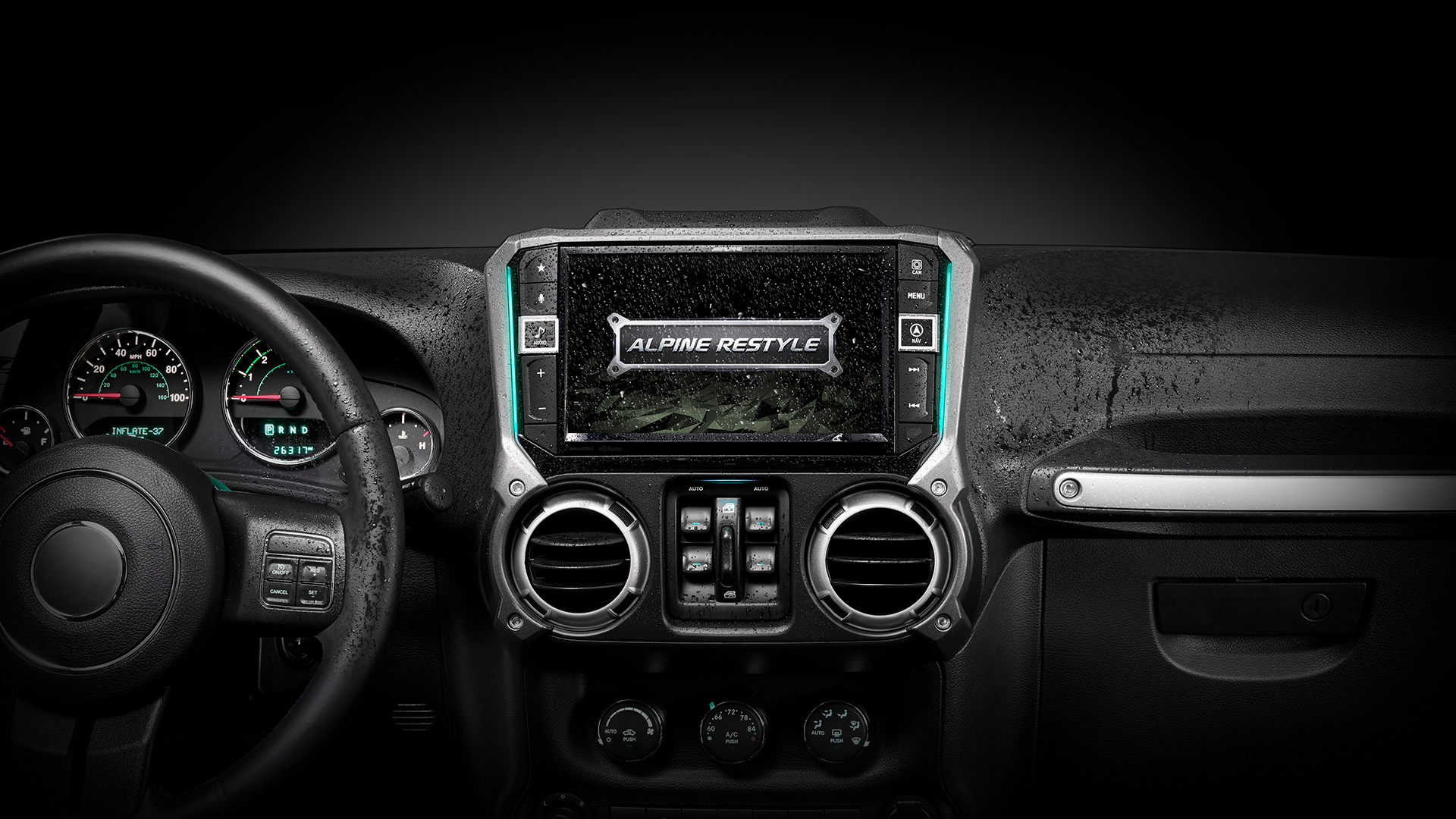

Restyle your 2011–2018 Jeep® Wrangler JK with a purpose-built, weather-resistant 9-inch HD media receiver that looks factory, adds Hi-Res Audio playback, and unlocks wireless Apple CarPlay® and Android Auto™. The Alpine i509-WRA-JK is engineered specifically for Jeep, from the trim bezel and harness to the Jeep-tuned audio and off-road-ready feature set.
Quick Highlights
Made for the Music-Loving Outdoor Weekender
Go beyond stock with a receiver that’s built to handle mud, dust, and sun while giving you modern smartphone integration and serious audio tools. From wireless CarPlay® / Android Auto™ to Hi-Res Audio and multi-camera support, the i509-WRA-JK is tuned for life on and off the road.
- 9" WXGA HD anti-glare display with Jeep®-specific trim bezel and harness.
- Weather-resistant front panel rated IP53 for open-air and top-off driving.
- Hi-Res Audio playback at 96 kHz / 24-bit via USB or compatible Bluetooth® (LDAC).
- Wireless or wired Apple CarPlay® and Android Auto™ with voice control.
- Built-in HD Radio®, Bluetooth® hands-free, and SiriusXM-Ready® with 360L support.
What It Does Best
Key Features

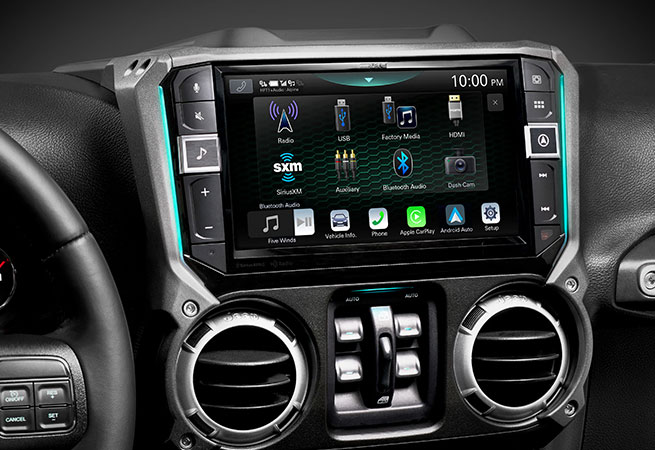

Vehicle-Specific Fit
Designed for 2011–2018 Jeep® Wrangler JK
The i509-WRA-JK replaces the factory radio with a large 9" screen that looks native in the Jeep® dash. The Jeep-specific trim bezel follows the factory lines, while the included harness eliminates guesswork for a plug-and-play style installation.
A Jeep®-specific opening screen and matching LED color scheme keep the interior cohesive, and the weather-resistant front panel (IP53) is built to handle dust, light rain, and open-air driving with the top off.
- Jeep® Wrangler JK-specific trim bezel included.
- Model-specific harness reduces splicing and speeds up installation.
- Jeep®-themed splash screen and LED color presets for OEM-like integration.
Hi-Res Audio
Studio-Grade Sound On the Trail
Experience high-precision music reproduction with Hi-Res Audio Playback. The i509-WRA-JK supports playback at 96 kHz / 24-bit, revealing more detail, depth, and texture in every track.
Access Hi-Res content from services like Apple Music, TIDAL, Amazon Music HD, and more when tethered to a smartphone hotspot, or load Hi-Res files from platforms like HDtracks onto a USB drive and plug in directly.
- Hi-Res Audio playback at 96 kHz / 24-bit via wired USB.
- Wireless Hi-Res Audio via LDAC-compatible Bluetooth® devices.
- Supports Hi-Res streaming from compatible services over hotspot.

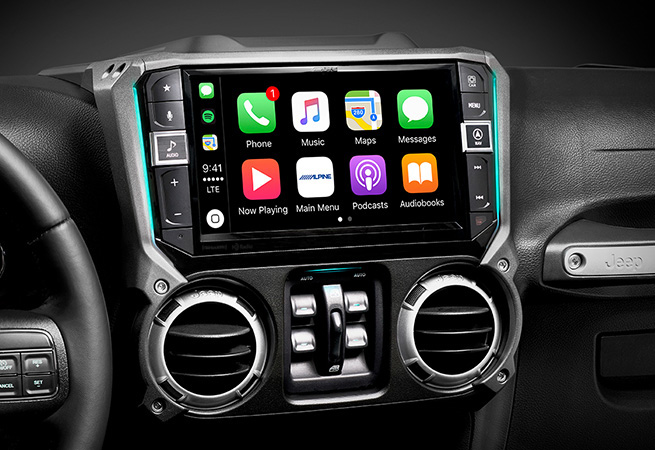

Smartphone Integration
Wireless Apple CarPlay® & Android Auto™
Apple CarPlay® (Wired & Wireless)
The i509-WRA-JK works with Apple CarPlay® so iPhone users can make and receive calls, access text messages, play music, and get directions while keeping their focus on the road. CarPlay® is accessed through the capacitive touchscreen or the mic button to activate Siri, and is compatible with iPhone 5 and newer.

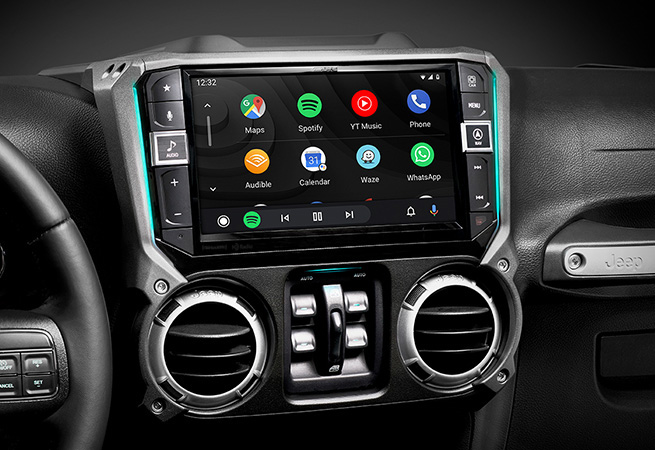

Android Auto™ (Wired & Wireless)
Android Auto™ and the Google Assistant let you play music, get turn-by-turn directions, control compatible smart-home devices, and reply to text messages using voice. Android Auto™ requires an Android phone running 5.0 (Lollipop) or higher with both USB and Bluetooth® connections.

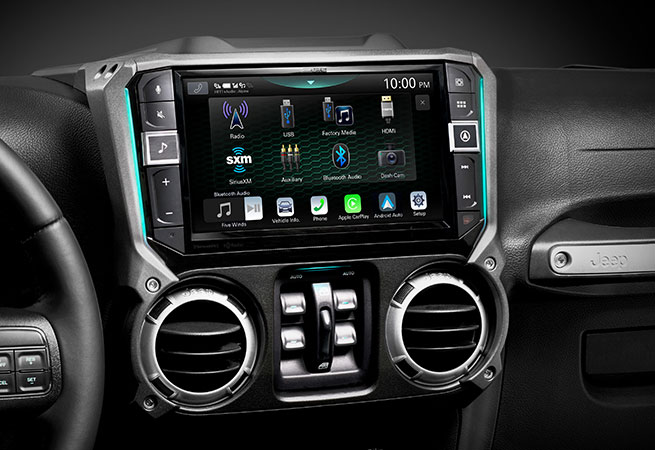

Next-Gen Dash Technology
Modern Apps & Sources in One Screen
Enhance your Jeep® experience with a high-resolution interface that brings together Apple CarPlay®, Android Auto™, and Bluetooth® hands-free calling. Connect via USB or wirelessly for access to music, messages, calls, and navigation on a single 9" display.
Built-in HD Radio®, Pandora Internet Radio (via connected smartphone), and SiriusXM® with 360L (SXV300 tuner and subscription required) give you a huge range of content wherever your Wrangler goes.

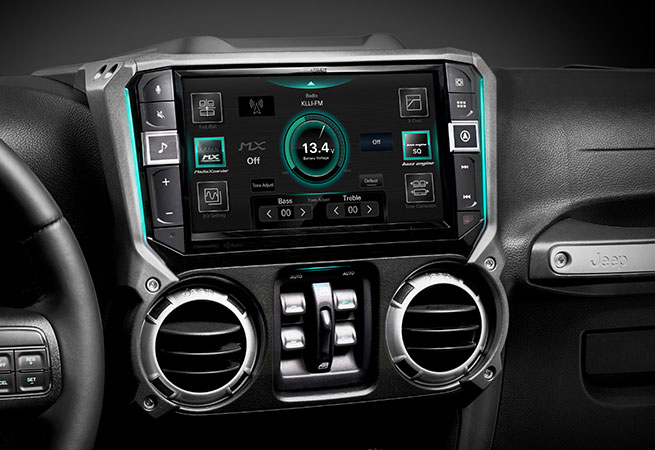

Onboard Audio Tuning
Control the Stage Inside Your Wrangler
The i509-WRA-JK includes an advanced 13-band parametric EQ on each channel for precise frequency shaping, plus 6-channel time correction to center the soundstage in front of the driver.
Three sets of true 4V preamp outputs (front / rear / subwoofer) make it easy to add amplifiers and build a full system while maintaining clean signal and independent level control.

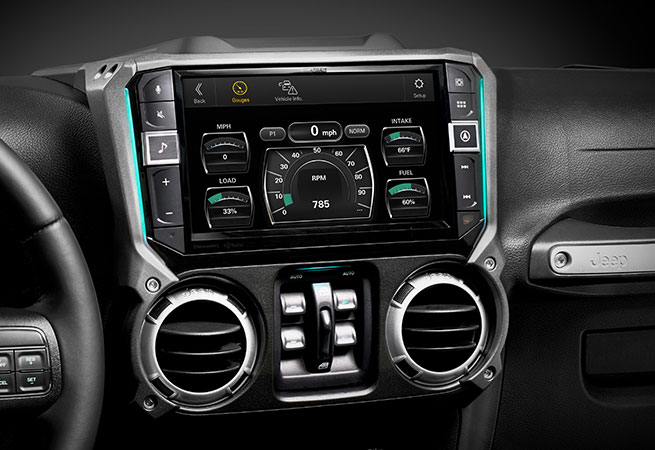

Factory Integration
Keep Select Factory Controls & Vehicle Data
The included iDatalink® Maestro module retains select factory Wrangler JK features like voice-activated media, Bluetooth® technology, and steering wheel controls.
When connected to the Jeep® diagnostic port, the Maestro can display vehicle information such as tire pressure, battery voltage, door status, engine codes, and user-configurable gauges directly on the Alpine screen.

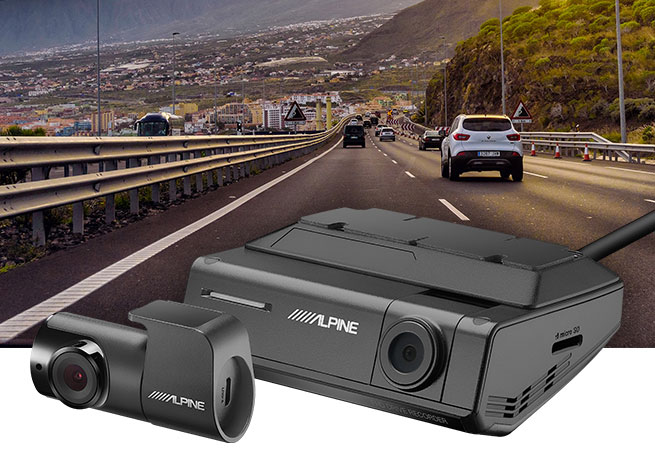

Camera & Dash Cam Support
Add Front, Rear & Dash Cameras
Two dedicated camera inputs let you add a rear camera plus a front or side camera (sold separately) to reduce blind spots on and off road. The rear camera view includes on-screen distance guidelines to make reversing and parking easier.
Add the Alpine DVR-C320R Premium 1080p front and rear dash camera (sold separately) to view live and recorded footage on the i509-WRA-JK and unlock drive-assist features that help you stay aware.
| Model | Alpine i509-WRA-JK – 9" Jeep® Wrangler JK Digital Media Receiver |
| Screen Size | 9" WXGA HD anti-glare display |
| Screen Resolution | 1280 x 720 pixels (720p HD) |
| Weather Resistance | Weather-resistant front panel (IP53 rated) |
| Vehicle Compatibility | 2011–2018 Jeep® Wrangler JK (Jeep-specific trim bezel and harness included) |
| Smartphone Integration | Apple CarPlay® (wired & wireless), Android Auto™ (wired & wireless) |
| Voice Assistants | Siri via Apple CarPlay®, Google Assistant via Android Auto™ |
| Bluetooth® | Bluetooth® hands-free calling and audio streaming |
| Hi-Res Audio | Hi-Res Audio Playback at 96 kHz / 24-bit (USB & LDAC-compatible wireless devices) |
| Streaming Services | Hi-Res streaming support for TIDAL and other compatible apps (hotspot & subscription required) |
| Tuner | Built-in HD Radio® |
| SiriusXM® | SiriusXM-Ready® with 360L (SXV300 tuner and subscription required; some features require Wi-Fi with internet) |
| AUX Input | 1 |
| HDMI | 1 HDMI input, 1 HDMI output |
| USB Inputs | 2 (1 data port & 1 charge-only port) |
| Camera Inputs | 2 direct camera inputs (1 rear, 1 configurable as front/side/other) |
| Dash Cam Input | 1 dedicated dash cam input (optimized for Alpine DVR-C320R, sold separately) |
| Preamp Outputs | 3 sets of 4V pre-outs (front / rear / subwoofer) |
| Built-in Amplifier | 18 W RMS x 4 (internal power) |
| EQ | 13-band parametric EQ per channel |
| Time Alignment | 6-channel time correction |
| DAC | 24-bit digital-to-analog converter |
| Crossover | High-pass / low-pass crossovers with adjustable settings |
| Audio Playback | AAC, APE, FLAC, MP3, WMA, WAV |
| Video Playback | AVC, FLV, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, MOV |
| Navigation Module Support | Compatible with KTX-NS01 GPS Navigation Module via USB (firmware update required; cannot be used with CarPlay/Android Auto simultaneously) |
Estimated installation time is approximately 3 hours. Professional installation is recommended, and some cutting of the factory dash panel is required to fit the 9" display and trim bezel.
Downloads
Documentation & Updates
- Download the i509-WRA-JK Tech Sheet (PDF)
- Download the latest firmware update from Alpine’s support site for feature and compatibility improvements.
