Included in this kit

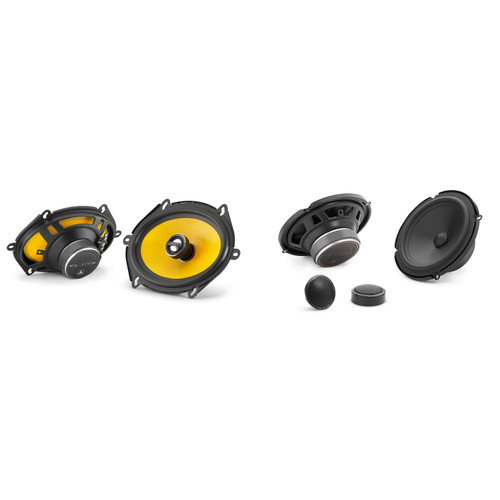

This bundle includes a JL Audio C1-650se 6.5" C1 2-Way Component System, Silk Edition, and a JL Audio C1-570x 5 x 7 / 6 x 8-inch (125 x 180mm) Coaxial with 0.75-inch (19mm) aluminum dome tweeter.
1x JL Audio C1-650se 6.5" C1 2-Way Component System, Silk Edition - (C1-650se)
2-Way Component System: 6.5-inch (165 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter
The C1-650se component system is engineered to deliver remarkable fidelity and outstanding value in a format that easily fits in factory locations.Outfitted with pure, silk dome tweeters, the C1-650se component system stands above others in its category with silky smooth, high-frequency clarity and definition. The 1-inch tweeter’s edge-driven design delivers excellent off-axis response and treble extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. Outboard, 3rd order, high-pass in-line filters, with Advanced Tweeter Protection Circuitry, are also included to guard against high-distortion damage and improve power handling. For maximum installation versatility, surface and flush tweeter mounts are also included.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly while maintaining a smooth, dynamic, low-distortion sound. At the core of the C1-650 woofer is a proprietary, stamped, steel 6.5-inch (165 mm) frame and DMA-optimized motor system. A mineral-filled, injection-molded, polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to each spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
To maximize fit, multi-application adaptor rings are included for the woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well.
When it comes to value, C1-650se is a real deal!
Sold as a pair. Grilles not available.
General Specifications
Continuous Power Handling (RMS): 50 WRecommended Amplifier Power (RMS): 10 - 75 W / Ch.
System Efficiency: 91.0 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 48 Hz - 21 KHz ± 3 dB
Woofer Physical Specifications
Frame Outer Diameter* (A): 6.25 in / 159 mmGrille Tray Outer Diameter (B): 6.84 in / 174 mm
Motor Outer Diameter (C): 3.15 in / 80 mm
Frontal Coaxial Tweeter Protrusion (D): N/A
Frontal Grille Protrusion** (E): N/A
Mounting Hole Diameter (F): 5.02 in / 128 mm
Mounting Depth (G): 2.07 in / 53 mm
*Does not take into account mounting tabs **Frontal grille protrusion measured from m
ounting surface
Tweeter Physical Specifications
Flush Mount Fixture Diameter (A1): 1.97 in / 50 mmSurface Mount Fixture Diameter (A2): 2.01 in / 51 mm
Flush Mount Mounting Hole Diameter (B): 1.75 in / 45 mm
Flush Mount Mounting Depth (C): 0.40 in / 10 mm
Flush Mount Tweeter Frontal Protrusion (D1): 0.32 in / 8 mm
Surface Mount Tweeter Frontal Protrusion (D2): 0.87 in / 22 mm
1x JL Audio C1-570x 5 x 7 / 6 x 8-inch (125 x 180mm) Coaxial with 0.75-inch (19mm) aluminum dome tweeter - (C1-570x)
JL Audio C1-570x
Coaxial Speaker System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 0.75-inch (19 mm) Aluminum Dome Tweeter
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles. To facilitate fit, spacer/adaptor rings are included, allowing the C1-570x to be installed in bottom-mount applications. The speaker baskets are also equipped with slotted mounting holes to fit into 6 x 8-inch factory speaker locations.
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-570x is a proprietary, stamped, steel 5 x 7-inch (125 x 180 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true, 2nd order high-pass filter is employed to further enhance smoothness and improve power handling.
Sold as a pair. Grilles not included.
General Specifications
| Continuous Power Handling (RMS) | 50 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 10 - 75 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 40 Hz - 24 KHz ± 3 dB |
Physical Specifications
| Frame Outer Diameter* (A) | 5.50 x 7.63 in / 140 x 194 mm |
| Grille Tray Outer Diameter (B) | N/A |
| Motor Outer Diameter (C) | 2.76 in / 70 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | 0.46 in / 12 mm |
| Frontal Grille Protrusion (E) | N/A |
| Mounting Hole Diameter (F) | N/A |
| Mounting Depth (G) | 2.46 in / 63 mm |
