Description
Included in this kit
This bundle includes a JL Audio RD800/6 6-channel full-range amplifier 800 watts, and a JL Audio® C6 Car System 6.5" Three-way Component System (C6-653).

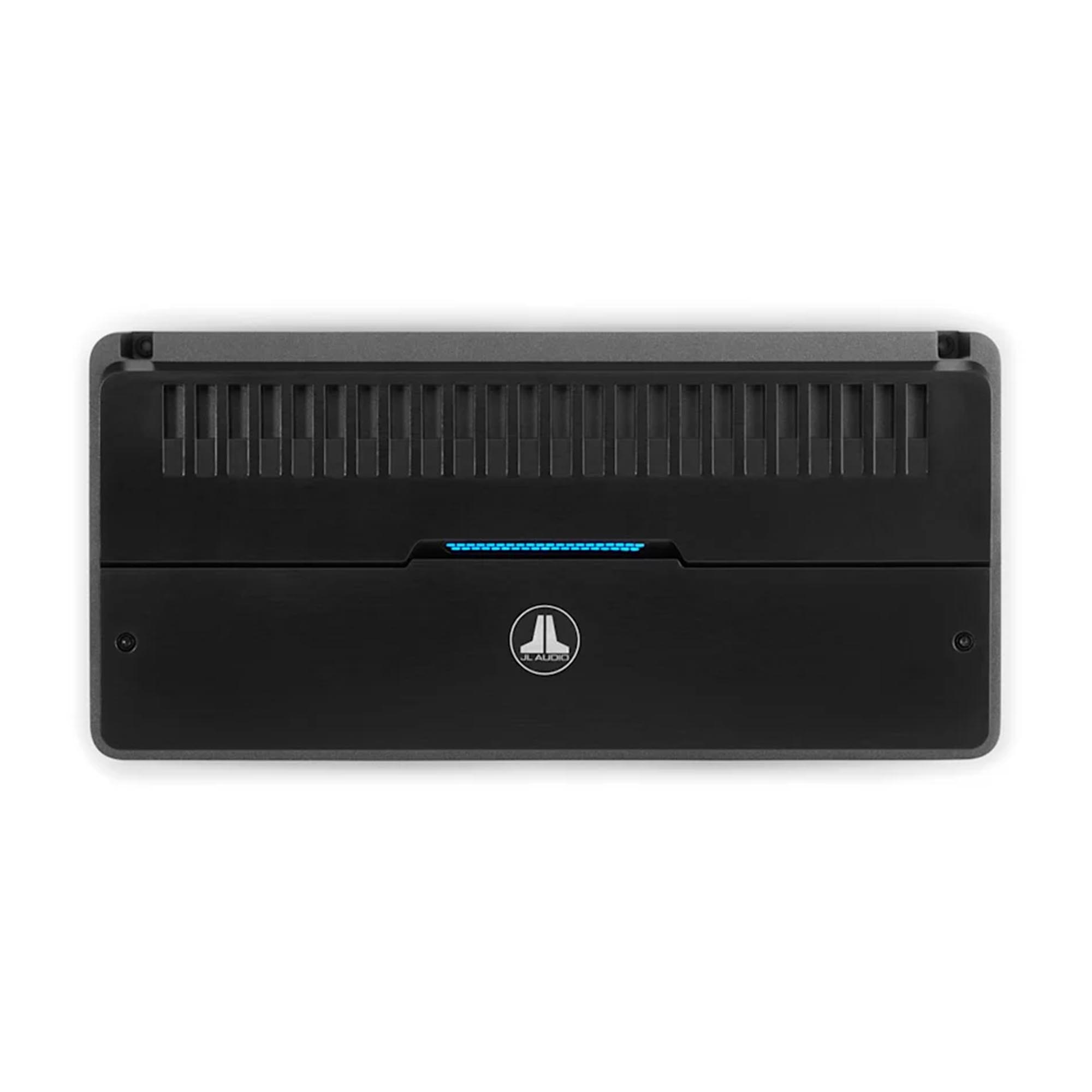

1x JL Audio RD800/6 6-channel full-range amplifier 800 watts - (RD800/6)
SLEEK, POWERFUL, PACKED WITH VALUE
The look is amazing, and the performance backs it up. These ultracompact full-range RD series amplifiers from JL Audio are engineered to generate loads of power with exceptional efficiency and low distortion. The result: premium audio quality with significantly reduced current draw and heat.
General
Channels: 6
Physical dimensions (Height): 2.13" (54 mm)
Physical dimensions (Width): 14.66" (372 mm)
Physical dimensions (Depth): 6.96" (177 mm)
Weight: 7.15 lbs (3.6 kg)
Operating voltage: 10-15 VDC
Operating temperature range: –4º to 149º F (–20º to 65º C)
Warranty: 2 years
Audio
Amplifier class: Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD): 75 W x 4/150 x 2 200 W x 2/400 W x 1 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD): 100 W x 4/200 x 2
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs >104 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs >84 dB
Damping factor @ 4 Ω: >150/50 Hz
Damping factor @ 2 Ω: >75/50 Hz
THD+N @ Rated Power: <1% @ 4 Ω
Frequency response (+0, -1dB): 12 Hz-22 kHz
Input voltage range @ RCA inputs: Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Signal Processing
Filter mode(s): Channels 1 & 2: High-pass only (Off, x1, x10)
Filter Slope(s): Channels 1 & 2 12 dB/octave
Filter frequency range: Channels 1 & 2: 50 Hz-500 Hz (x10: 500 Hz-5 kHz)
Filter mode(s): Channels 3 & 4: Off, High-pass or Bandpass
Filter Slope(s): Channels 3 & 4 12 dB/octave
Filter frequency range: Channels 3 & 4 50 Hz-500 Hz
Filter mode(s): Channels 5 & 6: Off, High-pass or Bandpass
Filter Slope(s): Channels 5 & 6: 12 dB/octave
Filter frequency range: Channels 5 & 6: 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers: Yes
Channel input mode switch: yes (2/4/6 Channels)
Pass-through preamp output: Buffered

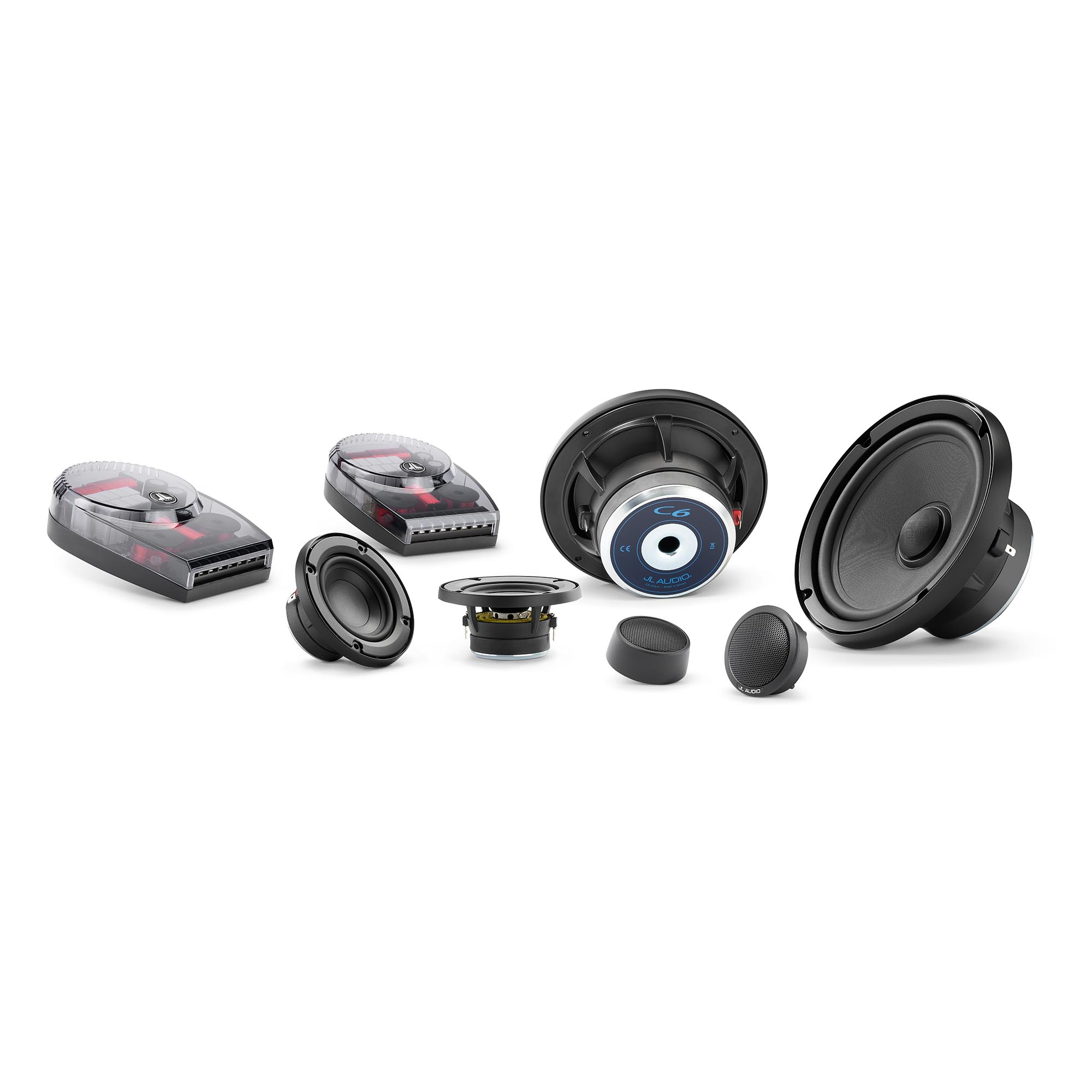

1x JL Audio® C6 Car System 6.5" Three-way Component System (C6-653) - (C6-653)
General
Size: 6.5"
RMS power handling: 100 W
Sensitivity (SPL @ 1 W/1 m): 2.75": 83.50 dB, 6.5": 87.37 dB
Sensitivity (SPL @ 1 W/0.5 m): 1": 96 dB
Sensitivity (SPL @ 2.83 V/1 m): 2.75": 86.50 dB, 6.5": 90.33 dB
Frequency response (+/- 3 dB): 53 Hz-21 KHz
Nominal impedance: 4 Ω
Recommended amplifier power (RMS): 25-150 W/Channel
Voice coil diameter: 2.75": 0.8" (20.5 mm), 6.5": 1.27" (32 mm)
Cone material: Vacuum-formed, mineral-filled polypropylene
Tweeter type: Silk Dome
Tweeter size: 1" (25 mm)
Grille(s) included
Connections
Speaker connections Spade connectors
Mounting Dimensions
Frame outer diameter: 2.75": 2.52" (77 mm), 6.5": 6.5" (165 mm)
Mounting depth clearance: 2.75": 1.42" (36 mm), 6.5": 2.60" (66 mm)
Frontal grille protrusion: 2.75": 0.47" (12 mm), 6.5": 1" (25 mm)
Mounting hole: 2.75": 2.52" (64 mm), 6.5": 5.46" (139 mm)
Grille tray outer diameter: 2.75": 3.58" (91 mm), 6.5": 6.76" (172 mm)
Bolt hole circle: 2.75": 3.03" (77 mm), 6.5": 6.12" (156 mm)
Motor outer diameter: 2.75": 2.75" (69 mm), 6.5": 3.54" (90 mm)
Parameters
Free Air Resonance (FS): 1": 1500 Hz, 2.75": 185 Hz, 6.5": 52.8Hz
Electrical “Q” (Qes): 2.75": 0.769, 6.5": 0.647
Mechanical “Q” (Qms): 2.75": 7.848, 6.5": 5.076
Total “Q” (Qts): 2.75": 0.700, 6.5": 0.574
Equivalent Compliance (Vas): 2.75": 0.0353 cu ft (0.125 L), 6.5": 0.532 cu ft (15.069 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied): 2.75": 0.059" (1.50 mm), 6.5": 0.148" (3.75 mm)
Reference Efficiency (NO): 2.75": 0.1414%, 6.5": 0.344%
Moving mass (Mms): 2.75": 4.65 g, 6.5": 16.42 g
Mechanical compliance (Cms): 2.75": 0.00031 m/N, 6.5": 0.000581 m/N
Magnetic strength (BL): 2.75": 5.03 N/A, 6.5": 5.186 N/A
Effective piston area (SD): 2.75": 3.66 in² (0.00236 m²), 6.5": 21.4 in² (0.013807 m²)
DC resistance (RE): 1"/6.5": 3.20 Ω, 2.75": 3.58 Ω
