Description
Included in this kit
This bundle includes a JL Audio CF-690-RTG Custom-fit 6x9" two-way Component System for Ram/Toyota/GM, and a JL Audio C2-650x:6.5-inch (165 mm) Coaxial Speaker System (Pair).

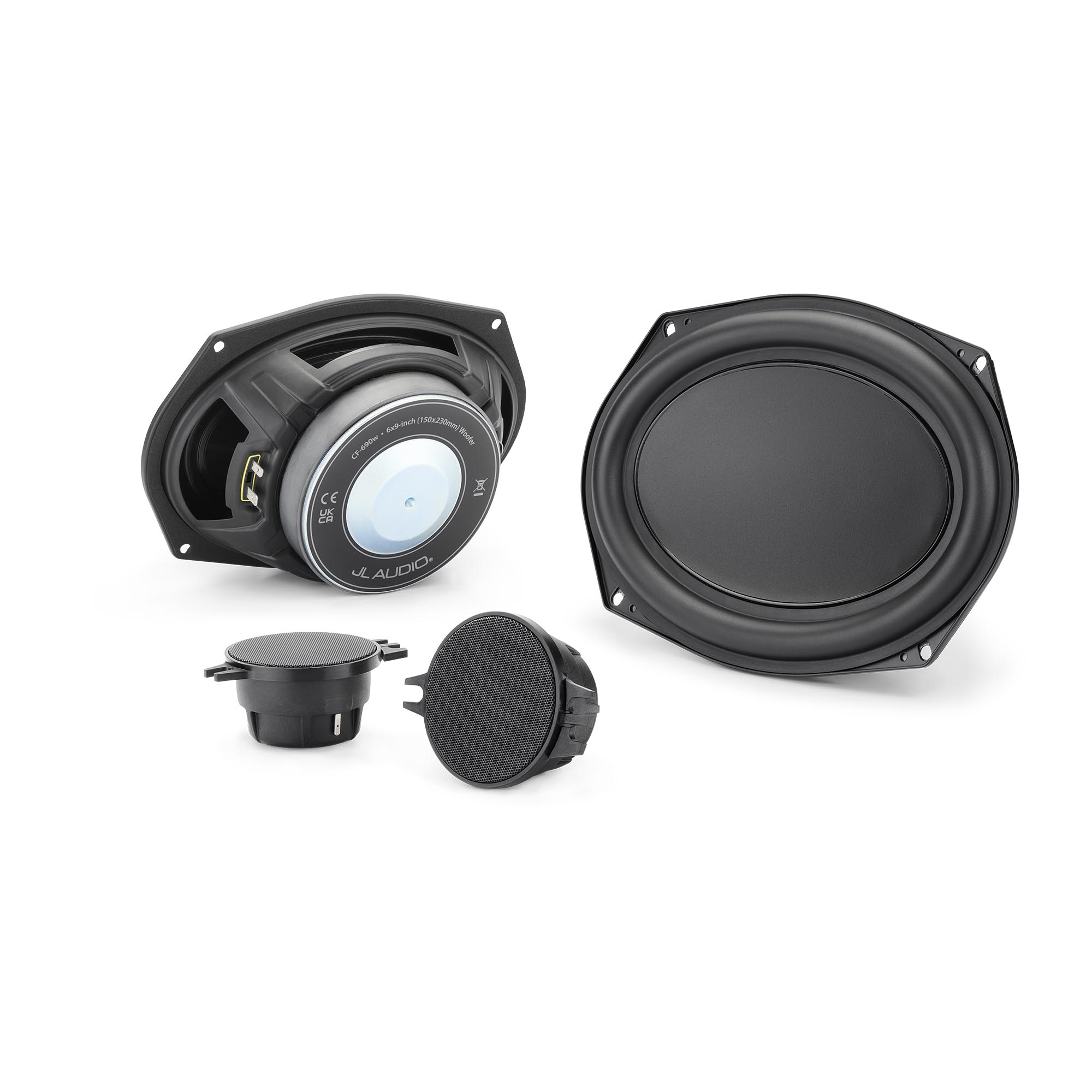

1x JL Audio CF-690-RTG Custom-fit 6x9" two-way Component System for Ram/Toyota/GM - (CF-690-RTG)
GREAT SOUND AND A PERFECT FIT
Custom-fit (CF) speaker systems from JL Audio are engineered to deliver incredible audio output with easy installation in some of the most popular vehicles, including RAM, Toyota, Chevrolet and GMC. The unique frame designs offer seamless, drop-in installation in existing factory speaker locations.
DIRECT FIT IN POPULAR VEHICLES
TWO-WAY COMPONENT SYSTEM
UNIQUE FRAMES AND ADAPTER PLATES OFFER AN EASY FIT
TWO-WAY CROSSOVER WITH INLINE HIGH-PASS AND BUILT-IN LOW-PASS FILTERS
2-YEAR WARRANTY
ENGINEERED FOR PERFORMANCE
To deliver the best efficiency and extended high-frequency response, each driver in the CF series features a unique cone and surround material combination.
DMA-OPTIMIZED SPEAKERS
Proprietary motor, suspension and cone modeling systems are used to achieve outstanding linearity, low distortion and stellar sound quality. A flat, linear profile spider promotes linear compliance, while a robust motor structure delivers superior power handling and better overall fidelity at high levels.
ADVANCED FRAME DESIGN
Benefiting from years of design experience, all CF midtweeters feature glass-filled, high-temperature polymer frames outfitted with insert-molded terminals and unique frame designs for easy, drop-in installation.
TRUE TWO-WAY CROSSOVER
Get simple integration into factory audio system wiring with onboard woofer low-pass filters and in-line midtweeter high-pass filters. Both can be bypassed for active systems.
MADE TO FIT
JL Audio CF component systems include a 6-by-9-inch woofer and a 2.75-inch midtweeter to provide easy, direct installation in a variety of Ram, Toyota and GM vehicles.
READY FOR REAL POWER
CF speaker systems deliver superb sound when powered by an amplifier in the 50–150 watts-per-channel range.
Specifications:
General
Sizes: 6 x 9"
Continuous power handling (RMS): 150 W
Sensitivity (SPL @ 1 W/1 m): 86 dB
Frequency response (+/- 3 dB): 36 Hz-19 kHz
Nominal impedance: 4 Ω
Recommended amplifier power (RMS): 50-150 W/Channel
Cone material: Mineral-filled polypropylene
Grille(s) included: 2.75": yes
Warranty: 1 year
Connections
Speaker connections Spade connectors
Mounting Dimensions
Frame outer diameter: 2.75": 2.85" (72 mm), 6 x 9": 6.38 x 9.13" (162 x 232 mm)
Mounting depth clearance: 2.75": 1.45" (37 mm), 6 x 9": 2.85" (72 mm)
Frontal grille protrusion: 2.75": 0.28" (7 mm)
Motor outer diameter: 6 x 9": 4.72" (120 mm)
Crossover Specifications
Width: 2.53" (64 mm)
Height: 1.93" (49 mm)
Depth: 1.09" (28 mm)
In the Box:
Two woofers
Two mid-tweeters
Four OEM woofer adapter rings
Two OEM mid-tweeter adapter rings
Two crossovers
Twenty 1" mounting screws
Four 5/8” mounting screws
Two 0.250” female crimpable connectors
Four 0.187” female crimpable connectors
Two 0.110" female crimpable connectors
Two woofer foam gaskets
Four splice connectors
1x JL Audio C2-650x:6.5-inch (165 mm) Coaxial Speaker System (Pair) - (C2-650x)
JL Audio C2-650x
Coaxial Speaker System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-650x system features 6.5-inch (165 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 60 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 15 - 100 W / Ch. |
| System Efficiency | 91 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 59 Hz - 22 KHz ± 3 dB |
Coaxial Physical Specifications
| Frame Outer Diameter* (A) | 6.5 in / 165 mm |
| Grille Tray Outer Diameter (B) | 6.84 in / 174 mm |
| Motor Outer Diameter (C) | 3.15 in / 80 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | 0.45 in / 12 mm |
| Frontal Grille Protrusion*** (E) | 0.85 in / 22 mm |
| Mounting Hole Diameter (F) | 5.56 in / 141 mm |
| Mounting Depth (G) | 2.44 in / 62 mm |
