Description
Included in this kit
This bundle includes 3x JL Audio M3-650X-S-Gw-i - M3 6.5" Marine Coaxial Speakers (pair) - LED Gloss White Sport Grilles, and a Modus MX23 3-Zone Marine Receiver with Full Color Screen Bluetooth 5.2 Audio Streaming and NMEA 2000 Compatible.
3x JL Audio M3-650X-S-Gw-i - M3 6.5" Marine Coaxial Speakers (pair) - LED Gloss White Sport Grilles (M3-650X-S-Gw-i)
JL Audio M3-650X-S-Gw-i - M3 6.5" Marine Coaxial Speakers (pair) - LED Gloss White Sport Grilles
6.5-inch coaxial system with 0.75-inch (19 mm) marine silk dome tweeters, 60W, 4 ohms
M3 Marine Coaxial Speakers - High-performance sound, engineered for real marine duty
Truly Engineered for Marine Duty
To ensure long-term performance, all models are designed and built to exceed industry standards for salt-fog and UV exposure. These are saltwater-rated products that you can use with confidence.
Outstanding Sound Quality
• Acoustically engineered to produce powerful, smooth sound in real-world, open-air, marine environments.
• Long-excursion, high-efficiency woofers and treated silk dome tweeters deliver superior output capability with clear, high frequency detail.
• Integrated 2nd order, high-pass filter on tweeters, with solid-state protection circuit to minimize the possibility of tweeter failure.
Versatile Power Requirements
• Suitable for use with standard marine head-unit power.
• Designed to benefit with quality amplification, such as the JL Audio marine amplifiers.
Choose Your Look
• Available in two grille styles: “Classic” or “Sport”, both in Gloss White. Sport models are also available in a sleek, all Gunmetal finish.
• Allows you to match the look of the speakers to the theme of the boat interior.
Built-In RGB LED Lighting
Included on this Sport grille model, multi-color LEDs are embedded within each speaker grille to produce vibrant accent lighting.
Choose from seven fixed-wiring lighting colors or connect a lighting controller accessory (sold separately) for adjustable control. (Separate 12V wiring is required to power the illumination.)
For optimal performance, we recommend using the JL Audio MLC-RW (Marine Lighting Controller).
General Specifications
| Continuous Power Handling (RMS) | 60 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 20 - 125 W / Ch. |
| System Efficiency | 89.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 55 Hz - 25 KHz ± 3 dB |
Coaxial Physical Specifications
| Frame Outer Diameter (A) | 6.90 in / 175 mm |
| Bolt Hole Circle Diameter (B) | 6.125 in / 155.5 mm |
| Motor Outer Diameter (C) | 3.85 in / 98 mm |
| Frontal Grille Protrusion* (D) | 0.973 in / 25 mm |
| Mounting Hole Diameter (E) | 5.00 - 5.25 in / 127 - 133 mm |
| Mounting Depth (F) | 2.74 in / 69.5 m |

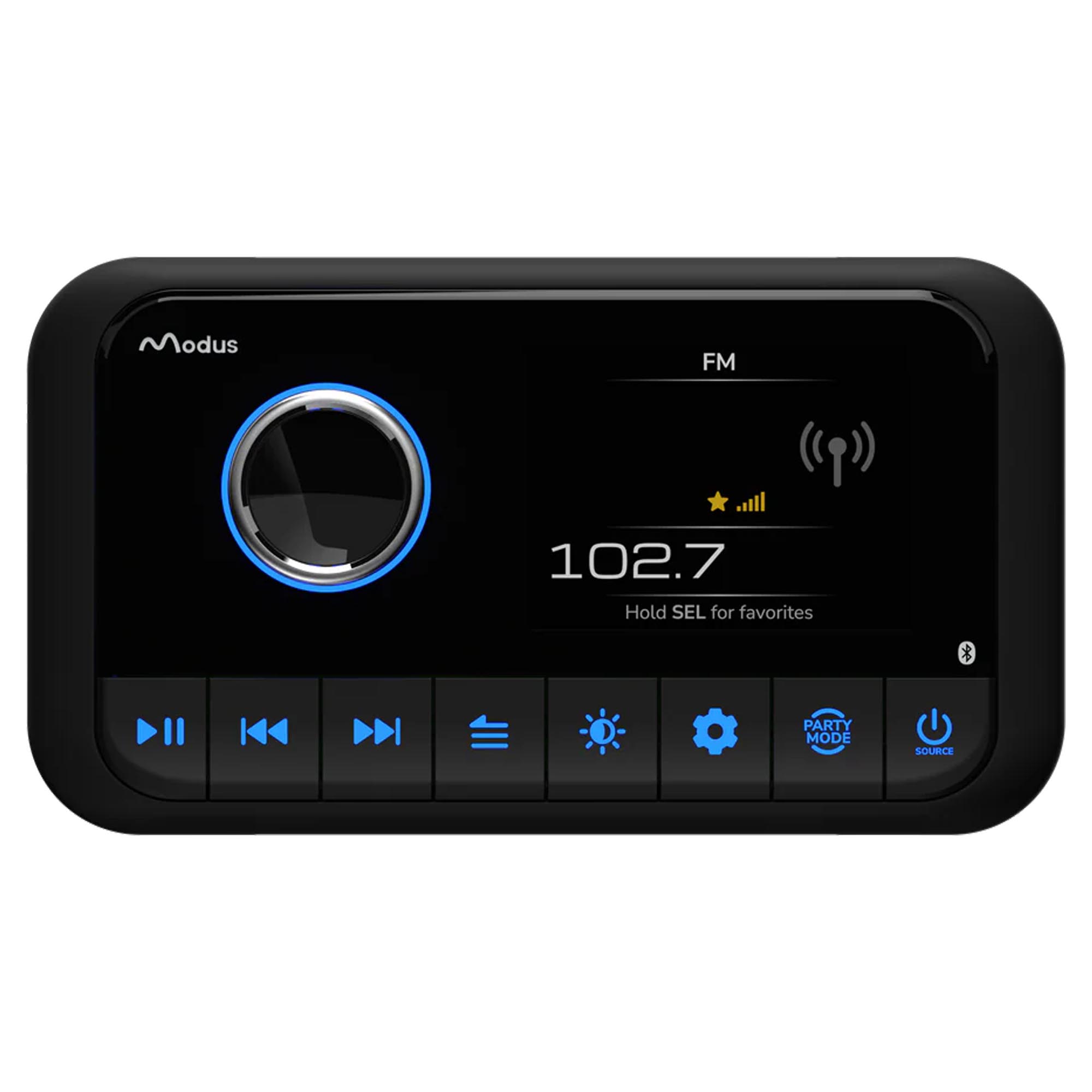

1x Modus MX23 3-Zone Marine Receiver with Full Color Screen Bluetooth 5.2 Audio Streaming and NMEA 2000 Compatible (MX23)
This marine receiver is built for advanced onboard audio control, combining modern connectivity, multi-zone flexibility, and rugged marine durability in a compact head unit. Featuring a 2.8" optically bonded full-color LCD display, it delivers improved visibility in bright outdoor conditions while maintaining a clean, intuitive interface for easy control on the water.
With 25W RMS x 6-channel output, the system provides strong, balanced power across multiple speakers, while 3 independent audio zones allow users to tailor sound distribution throughout different areas of the vessel. A dedicated 4V RCA subwoofer pre-out plus full 6-channel output support expanded system configurations for custom marine audio builds.
Connectivity is fully modernized with Bluetooth 5.2 audio streaming, ensuring stable wireless performance and fast device pairing. The unit is also transom remote ready for extended onboard control and includes MFi compatibility for supported devices. NMEA 2000 certification enables seamless integration into marine network systems, making it suitable for advanced helm setups.
Party Mode adds the ability to synchronize audio playback across compatible systems, creating a shared listening experience on the water. Additional features include AM/FM radio with Weather Band support, low voltage alert protection, and non-volatile memory (NVM) that retains settings, presets, and stations even after power loss.
Engineered for marine environments, the receiver includes UV and salt/fog resistance along with a conformal-coated PCB for long-term durability. Dual-color illumination and a display dimmer enhance visibility across day and night conditions.
SPECIFICATIONS
Screen Size: 2.8"
Total Channels: 6
Power Output: 25W RMS x 6
Audio Zones: 3
Mounting Type: Custom
Length: 5.89"
Width: 6.22"
NMEA 2000: Yes
Bluetooth: 5.2 Audio Streaming
Sub Output: 4V RCA Pre-Out
