Description
Included in this kit
This bundle includes a Kicker 49DL7TDF122 Dual Down Firing L7 Thin 12" Enclosure, and a Kicker LX1300.7 7-Channel Amplifier - 4-Channels Full Range 125 Watt, 2-Channels 65 Watt & 700 Watt Subwoofer Channel (51LX13007).

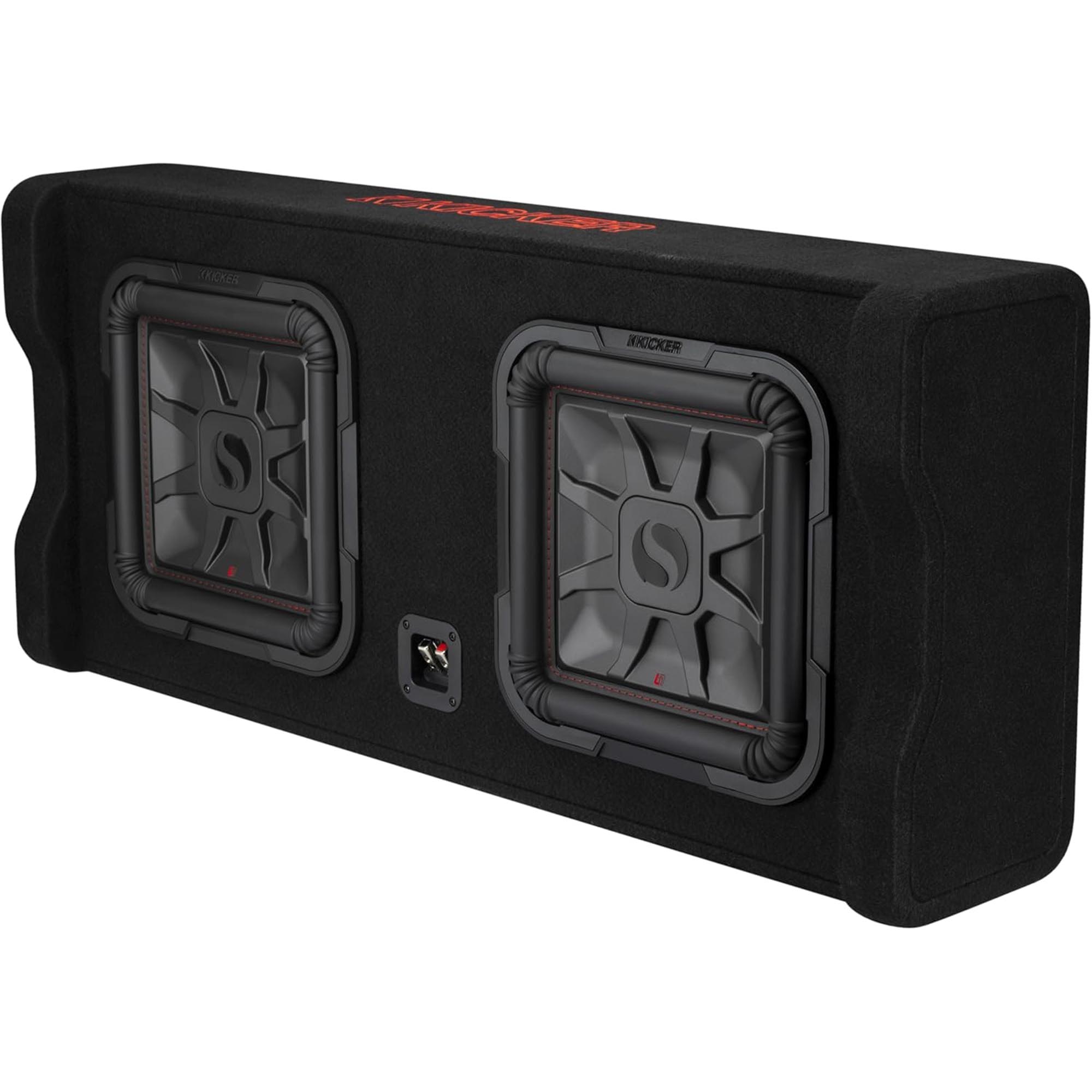

1x Kicker 49DL7TDF122 Dual Down Firing L7 Thin 12" Enclosure - (49DL7TDF122)
Dual L7T Down-Firing Loaded Enclosures are ultra-thin, square subwoofers loaded in a custom-tuned box, made to pound out the low notes without taking up the cargo space you need.
Deep bass in a small space Fitment under many truck seats Down-firing design and tough enclosure resists stacking weight Square L7T sub design is louder than round subs Forced-Air Cooling for high power handling and reliability
Specifications
TYPE: downfire
WOOFER SIZE (in, cm): 12, 30
IMPEDANCE (Ohms): 2
Recommended Amplifier Power (watts RMS) 1200
SENSITIVITY (dB 1w/1m): 89.6
BOX DIMENSIONS (in,cm): 17-1/8 x 38-3/16 x 8-1/4, 43.5 x 97 x 21
1x Kicker LX1300.7 7-Channel Amplifier - 4-Channels Full Range 125 Watt, 2-Channels 65 Watt & 700 Watt Subwoofer Channel (51LX13007) - (51LX13007)
KICKER LX1300.7 7-Channel Amplifier
The KICKER LX-Series delivers premium performance, combining SQL design with high-powered output to provide maximum flexibility and control. The LX1300.7 is engineered to power an entire system with precision, offering seven channels of clean, efficient Class-D power. Designed for performance and built to last, this amplifier is ideal for those who demand exceptional audio quality and complete customization.
Key Features:
- Precision system control with the included LX Control Center (LXCC) for real-time monitoring of battery voltage, amp temperature, protection status, and LED output clipping indication
- Enhanced bass management with the LX Remote Control (LXRC), featuring SHOCwave2.0ā¢ digital bass restoration and fingertip bass level adjustment
- Class-D design for high efficiency, lower current draw, longer playtimes, and reduced heat output for consistent performance
- Gain-match LEDs for precise gain settings, fully adjustable electronic crossovers, selectable crossover slopes, and variable subsonic filtering for complete tuning flexibility
- FIT+ā¢ technology ensures crystal-clear signal processing, accepting low- and high-level signals up to 40V while eliminating unwanted noise
- Customizable appearance with a reversible center panel and 11 RGB LED accent colors to match your systemās style
Specifications:
- RMS Power @ 14.4V: 150W x 4 @ 2Ī©, 125W x 4 @ 4Ī©, 250W x 2 @ 4Ī© bridged, 65W x 2 @ 2Ī©, 65W x 2 @ 4Ī©, 130W x 1 @ 4Ī© bridged, 700W @ 1Ī© (Sub), 550W @ 2Ī© (Sub), 300W @ 4Ī© (Sub)
- Dynamic Power: 1500W
- Frequency Response: 20Hz - 20kHz (Stereo Channels), 10Hz - 160Hz (Sub Channel) (+0/-1dB)
- Signal-to-Noise Ratio: >95dB (rated power), >75dB (1W output)
- Variable Electronic Crossover: Off/HP/LP/BP, HP 20Hz - 5kHz, LP 40Hz - 5kHz (Stereo Channels), LP 40Hz - 160Hz, 24dB/octave Linkwitz-Riley, selectable 12, 18, or 24dB/oct Butterworth, 12 or 24dB/oct Linkwitz-Riley (Sub Channel)
- Variable Subsonic Filter: 24dB/octave Linkwitz-Riley, adjustable 10Hz - 80Hz (Sub Channel only)
- KickEQ+ā¢ (Sub Channel): 0 - 6dB, variable center 20Hz - 80Hz, variable bandwidth 1 - 5
- Input Sensitivity: High level 1V - 40V, Low level 125mV - 5V
- Dimensions: Height 2-3/8", Width 8-7/16", Length 12-5/8"
The KICKER LX1300.7 7-Channel Amplifier is the perfect solution for those seeking high-efficiency performance, total system control, and premium customization. Whether powering a full-range setup or dedicated subwoofers, this amplifier provides the clarity, power, and precision needed for an exceptional listening experience.
