Description
Included in this kit

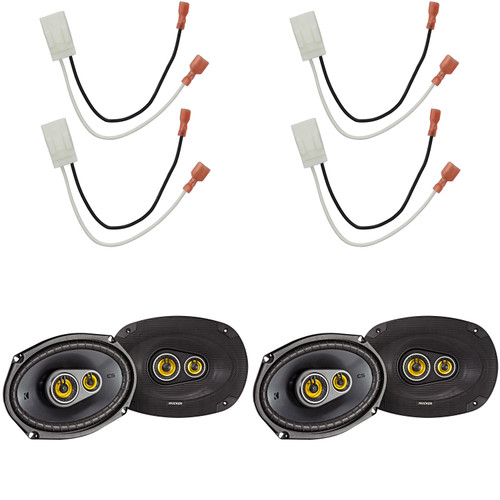

This bundle includes 2x Metra 72-6514 Chrysler/Dodge 1990-Up Speaker Harness - Pair, and 2x Kicker 46CSC6934 CS-Series CSC693 6x9-Inch (160x230mm) 3-Way Speakers, 4-Ohm (Pair).
2x Metra 72-6514 Chrysler/Dodge 1990-Up Speaker Harness - Pair - (72-6514)
Metra speaker harness compatible with 1990 and later Chrysler/Dodge vehicles. Sold in pairs.
2x Kicker 46CSC6934 CS-Series CSC693 6x9-Inch (160x230mm) 3-Way Speakers, 4-Ohm (Pair) - (46CSC6934)
Kicker 46CSC6934 CS-Series 6x9-inch 3-Way Speakers are the perfect way to upgrade your factory system.
These coaxial speakers are a significant upgrade in your sound. A stamped-steel framework supports a rigid polypropylene cone and UV-treated foam surrounds that stand up to heat and direct sunlight, for years of outstanding audio quality.
These CS speakers work best with 150 watts of recommended power.
Fits nearly every car made
Zero-protrusion tweeters to fit nearly any factory depth
Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
UV-treated poly-foam surround resists heat or direct sunlight
Large woofer magnet in a heavy-duty motor for ultra-clean bass
PEI-tweeter construction provides superb clarity
Neodymium tweeter magnets allow for increased volume in high frequencies
Specifications -
• Speaker Design - 3 - way
• Woofer Size | in [mm] - 6x9 [160x230]
• Mid Size | in [mm] - 2 [50]
• Tweeter Size | in [mm] - 1/2 [13]
• DC Resistance | ohm - 3.5
• Peak Power | Watts - 450
• Continuous Power | Watts, RMS - 150
• Sensitivity [SPLo] | dB @ 1W, 1m - 92
• Effective Frequency Range | Hz - 30-20k
• Mounting Hole Diameter | in [mm] - 5 5/8 x 8 7/16 [143x215]
• Top Mount Depth | in [mm] - 7/16 [12]
• Bottom Mount Depth | in [mm] - 3 3/16 [81]
• Tweeter Protrusion | in [mm] - 1/16 [1]
• Grilles - Yes
• Tweeter Magnet Material - Electric Crystal Motor
• Tweeter Dome Material - PEI [polyether imide
• Tweeter Design - Balanced dome
• Woofer Cone Material - Polypropylene
• Woofer Surround Material - Polyester foam
• The CS-Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure with EVC™ (Extended Voice Coil) for even deeper lows. Polypropylene cones and ribbed, UV-treated surrounds work together for excellent reliability and precise acoustic control.
