Description
Included in this kit
This bundle includes a Memphis 76PRXL12FTV Special Edition Power Reference 12" 1/2/4 Ohm RGB LED Selectable Impedance Subwoofer, a Memphis Audio 4GKIT 4-Gauge Amp Install Kit With ANL Fuse Holder With One 200A Fuse, And A Pair Of ETP-17 17-Foot RCAs, a Memphis Audio MXRGBBTC - Phone Controlled Bluetooth RGB LED Controller, a Memphis Audio 76PRX500.4V2 Special Edition 4 Channel 500 Watt Amplifier - 125 Watts RMS x 4 at 2-Ohm, and a Memphis Audio PRX602 Power Reference Series 6.5" 2-Way Coaxial Speakers With Swivel Tweeters - Pair.
1x Memphis 76PRXL12FTV Special Edition Power Reference 12" 1/2/4 Ohm RGB LED Selectable Impedance Subwoofer (76PRXL12FTV)

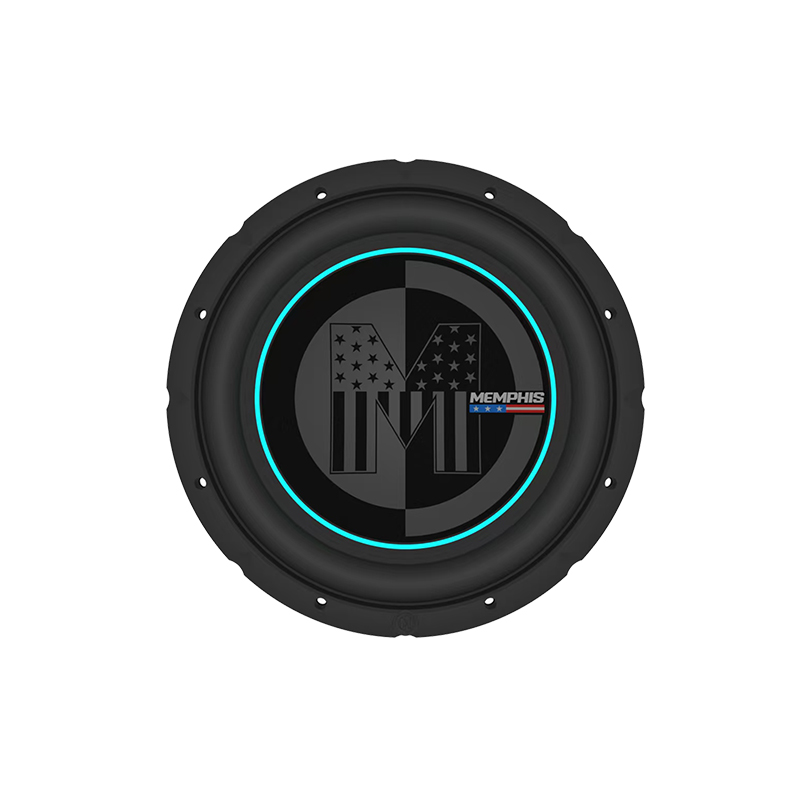

Memphis Audio 76PRXL12FTV – 12" RGB LED Power Reference 250th Anniversary Subwoofer
The Memphis Audio 76PRXL12FTV is a 250th Anniversary Commemorative Edition Power Reference subwoofer built for deep, clean bass output with a compact footprint and standout visuals. It delivers 500W RMS / 1000W peak power handling and features an RGB LED illuminated cone for a custom look.
Switch between 1-Ohm, 2-Ohm, and 4-Ohm impedances with a simple jumper plug.
Overview
Compact Size. Serious Bass. Custom Look.
Designed for performance and durability, the 76PRXL12FTV combines high-power capability with thermal management and reinforced moving components for controlled, hard-hitting bass.
- 12" subwoofer with 500W RMS / 1000W peak power handling.
- RGB LED illuminated cone accent for a standout install.
- FLEX Triple Voice Coil selectable impedance (1Ω / 2Ω / 4Ω) via jumper plug.
Engineering
Cooling + Materials Built for Extended Play
- DVVC (Direct Voice Coil Cooling) technology for maximum thermal efficiency.
- Black-on-black polypropylene cone for durability and sleek aesthetics.
- Stitched butyl rubber surround for enhanced longevity and performance.
- Reinforced spider and improved suspension for precise bass control.
- Woven tinsel leads for superior signal transfer.
Fitment Notes
Install Measurements
- Mounting Depth: 5.5 in
- Cut Out Diameter: 11 in
- Magnet Size: 63 oz
- Voice Coil Diameter: 2 in
| Model | Memphis Audio 76PRXL12FTV |
| Edition | 250th Anniversary Commemorative Edition |
| Size | 12" |
| Voice Coil / Impedance | FLEX Triple Selectable Impedance: 1-Ohm / 2-Ohm / 4-Ohm (jumper plug) |
| Power Handling (RMS / Peak) | 500W / 1000W |
| Sensitivity (dB) | 1-Ohm: 85.6 • 2-Ohm: 85.5 • 4-Ohm: 86 |
| Magnet Size | 63 oz |
| Mounting Depth | 5.5 in |
| Cut Out Diameter | 11 in |
| Voice Coil Diameter | 2 in |
| Visual Accent | RGB LED illuminated cone |
| Cooling | DVVC (Direct Voice Coil Cooling) |
| Cone / Surround | Black-on-black polypropylene cone; stitched butyl rubber surround |
| Suspension | Reinforced spider; improved suspension |
| Leads | Woven tinsel leads |
1x Memphis Audio 4GKIT 4-Gauge Amp Install Kit With ANL Fuse Holder With One 200A Fuse, And A Pair Of ETP-17 17-Foot RCAs (4GKIT)
Memphis Audio 4GKIT – 4 Gauge Amplifier Installation Kit
Memphis Audio amplifier installation kits are built using true standard AWG wire made from 100% pure oxygen-free copper to ensure maximum power transfer and reliable performance. The 4GKIT includes everything required to properly install your amplifier, including high-quality RCA interconnects, making it one of the highest performance 4-gauge amp kits available.
Overview
Proper Power for Maximum Amplifier Performance
Your amplifier’s performance is directly affected by the quality of the wiring and connections used. The Memphis Audio 4GKIT is engineered using true oxygen-free copper wiring and high-quality termination components to ensure consistent voltage delivery and clean signal transfer. Trusted by installers nationwide, this kit provides the foundation for dependable amplifier performance.
- True standard AWG wire for accurate current capacity
- Oxygen-free copper for improved conductivity
- Complete kit for a clean, professional installation
Included Components
Everything You Need in One Kit
- 17' 4-AWG frosted orange power wire
- 3' 4-AWG frosted black ground wire
- 17' 18-AWG blue remote turn-on wire
- (2) 17' 2-channel parallel RCA interconnects
- ANL fuse block with satin chrome plated brass
- Nickel plated 200A ANL fuse
- (4) 4-AWG nickel plated ring terminals
- (2) 4-AWG snap bushings
- (2) 22–18 AWG butt splices
- (6) 6" black cable ties
Application
Installer-Grade Reliability
Designed for performance-focused installations, the 4GKIT is ideal for powering a wide range of amplifiers where consistent current delivery and dependable connections are critical. This kit eliminates guesswork by providing matched, high-quality components trusted by professional installers.
| Model | 4GKIT |
| Power Wire Gauge | 4 AWG |
| Fuse Holder Type | ANL |
| Interconnects | (2) ETP-17 |
1x Memphis Audio MXRGBBTC - Phone Controlled Bluetooth RGB LED Controller (MXRGBBTC)
MXRGBBTC RGB LED Light Controller
Take control of your lighting system with the Memphis Aura RGB LED Light Controller. Using the Memphis AURA iOS/Android app interface, the MXRGBBTC gives you access to color selection, lighting effects, and brightness adjustment for a customized display across multiple Memphis LED speakers.
Overview
App-Controlled RGB Lighting Management
The Memphis MXRGBBTC is designed to manage Aura RGB LED lighting through the Memphis AURA app interface on iOS and Android devices. It provides centralized lighting control for compatible Memphis LED speakers and allows users to build a coordinated lighting display across multiple zones.
With support for up to 8 Memphis LED speakers per controller, the MXRGBBTC is suited for larger lighting setups in vehicles and recreational applications where synchronized color and effect control is important.
Control Features
Expanded Lighting Customization
- Select from up to 30 light colors through the app interface.
- Adjust flash and fade lighting effects directly from the app.
- Control brightness and additional lighting functions for a tailored display.
- Optional app interface available via QR code on the product box.
System Expansion
Multi-Controller Sync Capability
The Memphis AURA app is capable of pairing up to 5 individual MXRGBBTC devices, making it possible to synchronize multiple lighting displays to a single app interface. This allows broader control in multi-zone installations where a single controller is not enough.
- Pairs up to 5 MXRGBBTC controllers in the Memphis AURA app.
- Supports synchronized control of multiple lighting displays from one app.
- Designed for scalable installations across larger systems.
Application
Built for Multiple Environments
The MXRGBBTC is built for use in a wide range of installations, including car, boat, motorcycle, and powersports applications. Its IPX7 water-resistant construction helps it handle environments where moisture resistance is important.
IPX7 water-resistant construction supports use in marine, motorcycle, powersports, and automotive lighting applications.
| Model | MXRGBBTC |
| Product Type | RGB LED light controller |
| App Compatibility | iOS / Android via Memphis AURA app |
| Speaker Control Capacity | Up to 8 Memphis LED speakers |
| Controller Pairing Capacity | Up to 5 individual MXRGBBTC devices |
| Lighting Control Functions | Up to 30 light colors, flash, fade, brightness, and more |
| Water Resistance | IPX7 |
| Application Use | Car, boat, motorcycle, and powersports |
1x Memphis Audio 76PRX500.4V2 Special Edition 4 Channel 500 Watt Amplifier - 125 Watts RMS x 4 at 2-Ohm (76PRX500.4V2)
Memphis Audio 76PRX500.4V2 Special Edition – 4-Channel Amplifier (125W RMS x 4 @ 2Ω)
The 76PRX500.4V2 Special Edition celebrates America’s 250th anniversary (1776–2026) with a pride-forward, commemorative presentation while retaining the space-saving performance focus of Power Reference amplifiers. A sleek LED-accented acrylic top panel conceals top-mounted controls for quick adjustment in tight installs, and undermount LED accent lighting adds a custom, high-end appearance.
RED top LED ground lighting • WHITE LED top cover • Blue bottom LED ground lighting
Overview
Commemorative Look, Power Reference Performance
Power Reference amplifiers offer a blend of space-saving design and robust performance, redesigned with a smaller footprint compared to their predecessors while maintaining the power ratings you expect. The objective behind Power Reference was to preserve exceptional performance while enhancing versatility by reducing overall footprint by up to 43% on specific models.
- LED-accented acrylic top panel with top-mounted controls hidden under the panel.
- Undermount LED accent lighting for a personalized, high-end custom appearance.
- Selectable amp turn on for flexible integration.
Tuning & Flexibility
Full-Range Control for Multi-Speaker Systems
- 12 dB/octave Butterworth crossovers with variable crossover adjustment.
- Variable EQ boost from 0–12dB.
- Bridgeable configuration: 250W x 2 @ 4Ω.
Construction
Compact Chassis with Premium Visual Accents
- Compact space-saving design (8.6" x 5.7" x 2.16").
- Extruded aluminum heatsink.
- RED / WHITE / Blue LED accent package for Special Edition presentation.
| Model | Memphis Audio 76PRX500.4V2 Special Edition |
| Type | 4-channel amplifier |
| RMS Power @ 4Ω | 75W x 4 |
| RMS Power @ 2Ω | 125W x 4 |
| Bridged Mono @ 4Ω | 250W x 2 |
| THD | <1% |
| Frequency Response | 10Hz–27kHz |
| Crossovers | 12 dB/octave Butterworth; variable crossovers |
| EQ Boost | Variable 0–12dB |
| Amp Turn-On | Selectable amp turn on |
| Controls | Top mount controls hidden under panel |
| Heatsink | Extruded aluminum |
| LED Accents | RED top LED ground lighting; WHITE LED top cover; Blue bottom LED ground lighting |
| Dimensions (in) | 8.6 x 5.7 x 2.16 |
| Recommended Amp Kit | 8GKIT |
1x Memphis Audio PRX602 Power Reference Series 6.5" 2-Way Coaxial Speakers With Swivel Tweeters - Pair (PRX602)
Memphis Audio PRX602 Power Reference Series 6.5" 2-Way Coaxial Speakers With Swivel Tweeters - Pair
Our best selling line of speakers for over 20 years has continued to evolve and improve into one of the most reliable high performing speakers in the audio industry. This high performance durable design allows us to back PR speakers with one of the best warranties in the business when installed by an authorized dealer. When you need a serious audio upgrade for your factory system, Power Reference sets the standard.
Power Reference speakers represent excellent sound and quality in a full range of sizes to fit almost any factory speaker location. These features make Power Reference speakers the perfect solution for most vehicles looking for a solid audio upgrade. These speakers are extremely reliable, and when installed by an authorize dealer boast one of the best warranties in the business.
Features:
• Polyurethane surround
• PEI dome tweeter
• Multi-direction pivot tweeter system
• Stealthy black-on-black M-Cone design
Specifications:
• Size (in) 6.5"
• RMS Power (w) 50
• Peak Power 100
• Sensitivity (dB) 88
• Mounting Depth (in) 2.25
• Magnet Size (oz) 10
• Warranty 1 year
• Grill included
