MTX Audio JH7005 Jackhammer 5 Ch. Amp, (2) TERMINATOR 6x9" Seperates & 6.5" Coaxial w/ TNE212D Dual 12" Loaded Enclosure Bundle

Included in this kit

---

This bundle includes a MTX Audio TNE212D Terminator Series Dual 12" 400W RMS 2-Ohm Sealed Loaded Enclosure, a MTX Audio JH7005 Jackhammer Series 90W x 4 & 450W x 1 @ 2-Ohm Full Range Class D 5-Channel Amplifier, a MTX Audio TERMINATOR6 Terminator Series 6.5", 2-Way, 45W RMS 4-Ohm Coaxial Speaker Pair, and a MTX TERMINATOR69S 6" x 9" 2-Way 60-Watt RMS 4Ω Component Speaker Pair.

1x MTX Audio TNE212D Terminator Series Dual 12" 400W RMS 2-Ohm Sealed Loaded Enclosure - (TNE212D)

MTX TNE212D
DUAL 12" 400-WATT RMS SEALED SUBWOOFER ENCLOSURE

The MTX TNE212D dual 12" subwoofer enclosure is the ideal solution for anyone looking for the easiest way to add bass to their vehicle without breaking their bank or going over the top. The TNE212D is the perfect combination of performance and value ensuring that enthusiasts of all types can enjoy the hard hitting bass that MTX has built its reputation on for over 40 years.

Perfect Starter System
The MTX TNE212D is an ideal solution for anyone looking to add bass to their vehicle's system without breaking their bank or going over the top. The TNE212D is the perfect combination of performance and value ensuring that enthusiasts of all types can enjoy the bass that MTX has built its reputation on for 40 years.

Unbeatable Bass and Unmatched Performance
The TNE212D combines great subwoofer design with perfect enclosure design to deliver bass that far exceeds expectations. Each subwoofer can handle 200-watts RMS power, 400-watts RMS for the entire enclosure.

High-Quality Construction
The enclosure itself is made using extra-strength 5/8" MDF (medium density fiberboard), which is the preferred material for subwoofer enclosures, ensuring the enclosure can contain the massive low frequency sound waves generated by the subwoofers without problem.

SPECIFICATIONS
• RMS Power (Watts) 400
• Frequency Response 10Hz - 150Hz
• Impedance 2Ω
• Subwoofer Dual 12"
• Height 14"
• Width 29.63"
• Bottom Depth 13.5"
• Top Depth 11.13"
• Weight 56 lbs.
• Subwoofer Mounting Depth NA

1x MTX Audio JH7005 Jackhammer Series 90W x 4 & 450W x 1 @ 2-Ohm Full Range Class D 5-Channel Amplifier - (JH7005)

MTX JH7005
Jackhammer Series 700 Watt Five Channel Full System Amplifier

Easy Access Controls
The JH7005 is fully loaded and ready to drive an entire system. The top panel includes controls for both full range speakers, gain, crossover and frequency adjustment, as well as controls for the subwoofer output including fully adjustable gain, low pass filter, subsonic filter and bass boost.

Only What You Need
The JH7005 has the functionality to power a complete system including full range speakers and subwoofer(s). The input section features high quality RCAs (front, rear, sub) for easy connection to after market head units or processors. The Input Level selection is either Pre or Spk In so it can also be used with factory radios that don't have RCA outputs. The unit can also be used in either 5-channel, 4-channel or 2-channel modes depending on the Input Mode selection.

High Quality Power and Speaker Connections
The JH7005 can accept up to a standard 1/0-gauge power and ground wire for optimal performance. The speaker terminals can accept up to 12-gauge speaker. Both sets of connectors use set screw style fittings that ensure proper connection and continual signal transfer.

FEATURES • All-In-One System Design
• Top Mount Controls
• Variable Crossovers
• Selectable Turn On Input
• Selectable Input Signal
• Variable Subsonic Filter
• Remote Bass Knob
SPECIFICATIONS • Description: 5-Channel
• Topology: Class AB + D
• 4Ω RMS Power Output: 60W X 4 Channel, 275W x 1 Channel
• 4Ω Bridged: 180W x 2 Channel
• 2Ω RMS Power Output: 90W x 4 Channel, 450W x 1 Channel
• THD: Less Than 1%
• Signal to Noise Ratio: 60dB
• Frequency Response: 20Hz to 20kHz (4 channels), 20Hz - 250Hz (subwoofer)
• Crossover: 40Hz to 250Hz, 12dB/Oct
• High Pass Filter: 40Hz to 250Hz, 12dB/Oct
• Subsonic Filter: 20Hz to 50Hz, 12dB/Oct
• Bass Boost: 0 - 12dB @ 45Hz
• Maximum Input Signal: 10V
• Height: 2.57" (65.2mm)
• Width: 7.61" (193.4mm)
• Depth: 15.47" (393mm)

1x MTX Audio TERMINATOR6 Terminator Series 6.5", 2-Way, 45W RMS 4-Ohm Coaxial Speaker Pair - (TERMINATOR6)

MTX TERMINATOR6
6.5" 2-Way 45-Watt RMS 4Ω Coaxial Speaker Pair

Upgrading your factory speakers is one of the easiest ways to get better sound in your car. Aftermarket speakers are able to handle more power and use better materials to deliver a better listening experience. The TERMINATOR Series speakers are designed to improve factory sound and work even better with an aftermarket radio and external amplifier.

The TERMINATOR6 is a 6.5" coaxial speaker that is capable of handling up to 45W RMS power and has a 4Ω impedance. The unit includes a durable steel basket, polypropylene cone, and silk dome tweeter.

Point Source Technology
The TERMINATOR5 utilizes a point source tweeter design that recesses the tweeter flush with the woofer cone. This design increases sonic accuracy as the sound waves from the tweeter and woofer do not intermix causing distortion. The point source tweeter also enables the speaker to have a shallower mounting depth making it usable in more applications.

Aggressive Style
The TERMINATOR6 features a red cone that looks great in any interior. The removable grille incorporates a trim ring that makes all mounting screw heads invisible once installed.

Terminating Bad Sound
Whether you are upgrading blown factory speakers, using them with source-unit amplification, or even putting them on a small aftermarket amplifier, the TERMINATOR series speakers are going to bring your music to life. The latest generation TERMINATOR speakers deliver exceptional sound quality at an unbeatable price.

SPECIFICATIONS:
• RMS Power (Watts): 45
• Impedance: 4Ω
• Sensitivity: 86.8dB (2.83V/1m)
• Frequency Response: 62Hz - 20kHz
• Cone Material: Polypropylene
• Grille Included: Yes
• Woofer Mounting Depth: 1.63" (4.15 cm)
• Crossover: NA

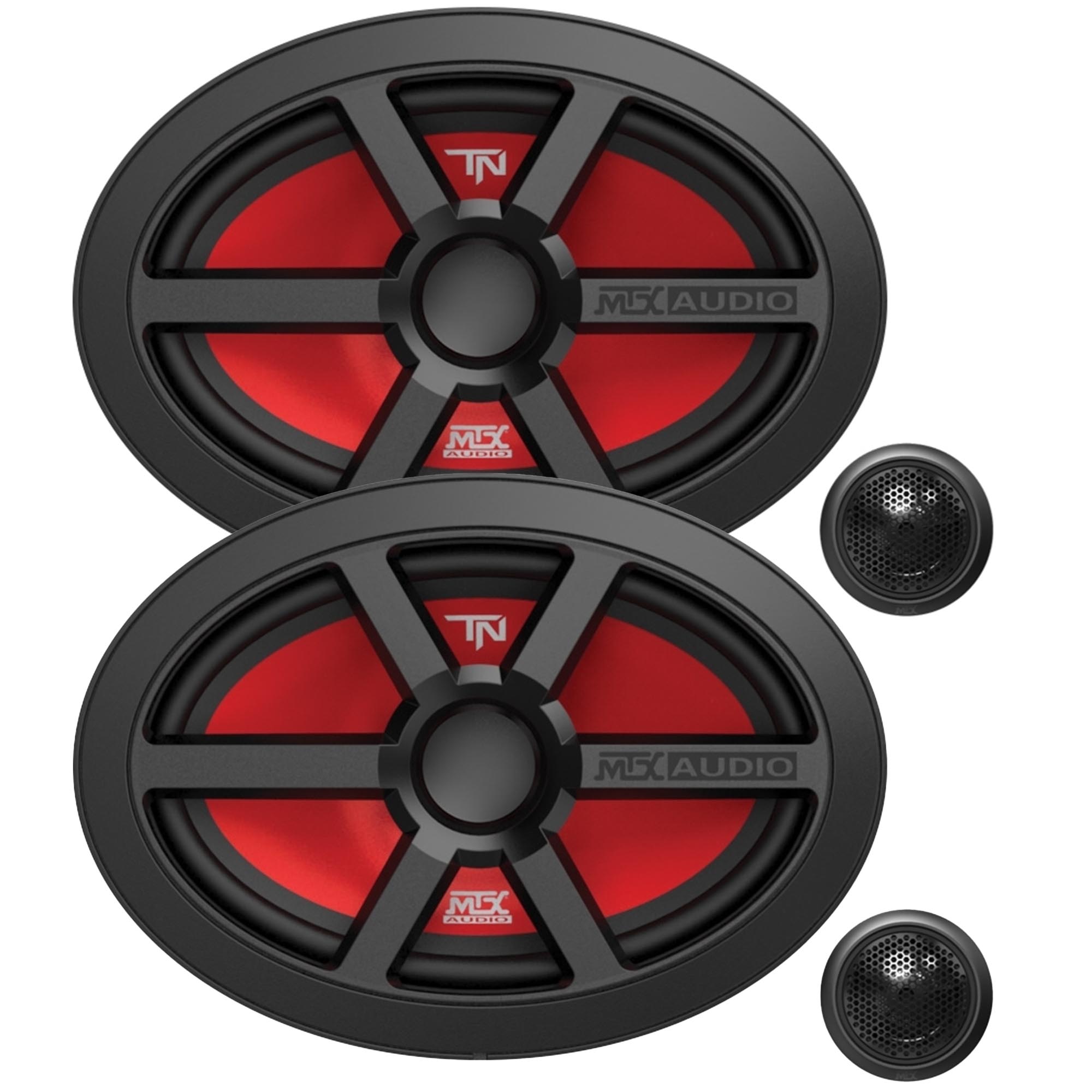

1x MTX TERMINATOR69S 6" x 9" 2-Way 60-Watt RMS 4Ω Component Speaker Pair - (TERMINATOR69S)

Perfect Factory Upgrade
Designed with a shallow 2.75-inch mounting depth, the TERMINATOR69S fits seamlessly into most vehicle doors, making installation a breeze. Its 4Ω impedance ensures compatibility with both factory and aftermarket systems, so you can upgrade your sound without worrying about complex wiring or modifications. The TERMINATOR69S features a dedicated 1-inch silk dome tweeter, delivering crisp, detailed highs while the polypropylene woofer produces deep, punchy bass. With the tweeter separated from the woofer, these component speakers create a more accurate soundstage for a balanced, immersive listening experience.

Aggressive Style
With a bold red woofer cone and a sleek, removable grille, the TERMINATOR69S doesn’t just sound great—it looks great, too. The included trim ring conceals mounting screws for a clean, professional finish that complements any interior.

Terminating Bad Sound
Blown factory speakers? Weak, muddy audio? The TERMINATOR69S is here to put an end to all of that. Engineered for superior sound quality at an unbeatable price, these component speakers deliver crisp highs, deep lows, and a balanced midrange that brings your music to life—no matter what you listen to.

Features
6 x 9-inch 4Ω 2-Way Component Speaker Pair
60-Watt RMS / 120-Watt Peak Power
Polypropylene Woofer
1-inch Silk Dome Tweeter
Shallow 2.75-inch Mounting Depth
Durable Steel Basket
Spider Plateau Venting
Removable Grille for Custom Look

SPECIFICATIONS
Impedance: 4Ω
RMS Power (Watts): 60
Sensitivity: 90.0dB (2.83V/1m)
Frequency Response: 49Hz - 20kHz
Cone Material: Polypropylene
Grille Included: Yes
Crossover: N/A
Mounting Depth: 2.75" (70mm)

Dimensions
Long Side Length: 9 1⁄4" (234.87mm)
Short Side Width: 6 1⁄32" (162.66mm)
Long Side Mounting Length: 8 15⁄32" (214.94mm)
Short Side Mounting Width: 5 5⁄16" (142.94mm)
Total Depth: 3 1⁄16" (77.54mm)
Mounting Depth: 2 3⁄4" (69.84mm)
