Description
Included in this kit

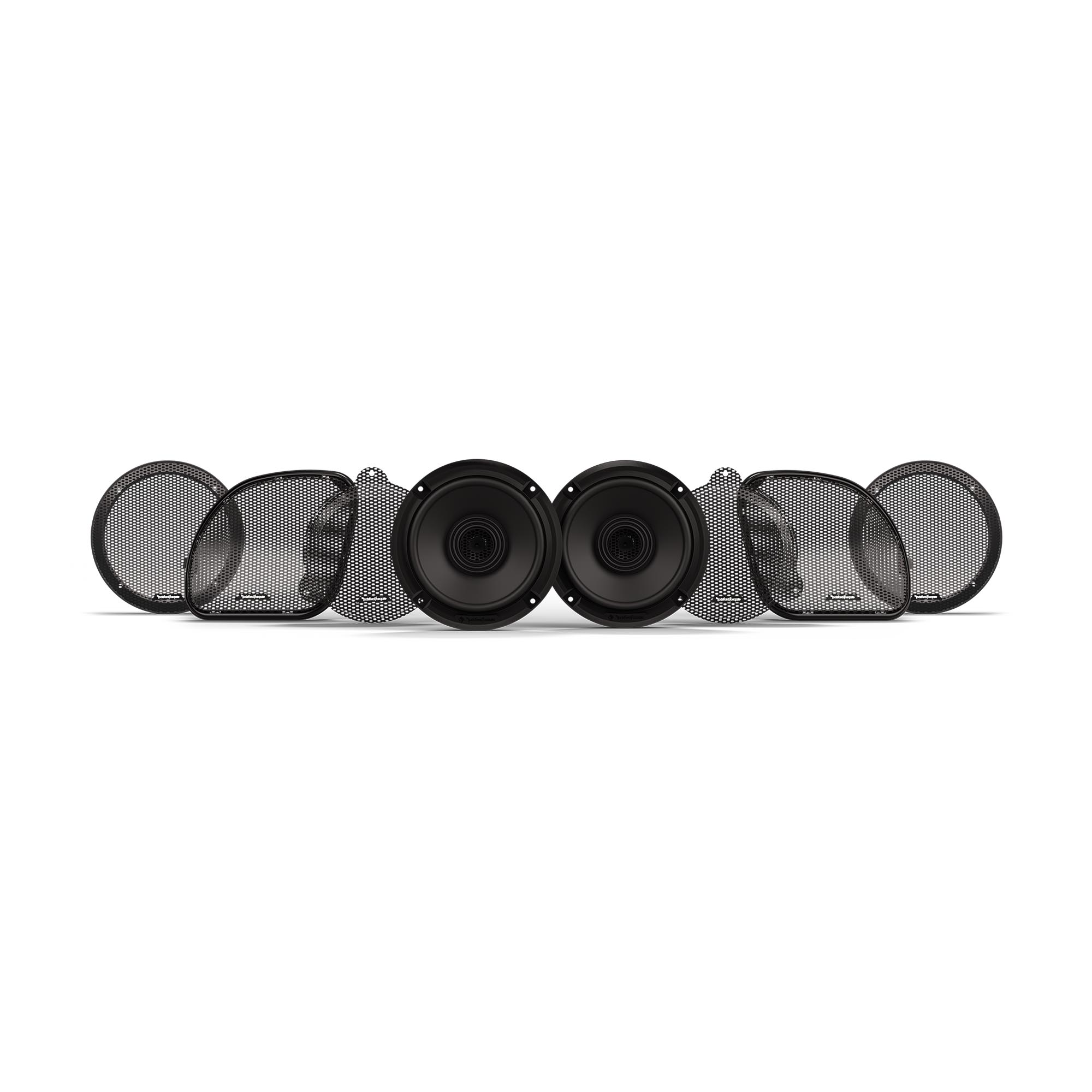

This bundle includes 3x Rockford Fosgate TMS14-65 6.5” 2-Way Speakers for 2014-2023 Harley-Davidson, a Rockford Fosgate M5-800X4 4 Channel Element Ready Amplifier - 125x4 @ 4-Ohm, 200x4 @ 2-Ohm, 400x2 @ 4-Ohm Bridged, a Rockford Fosgate RFK-HD14M5 Complete Amp Install Kit Compatible with Select 2014+ Road Glide, Street Glide, Ultra & CVO Motorcycles, and a Rockford Fosgate TMS69BL14 6x9” Full Range Coaxial With Bag Lid Adapters For 2014+ Models, 100 Watts Rms, 200 Watts Peak, Grilles Included.
3x Rockford Fosgate TMS14-65 6.5” 2-Way Speakers for 2014-2023 Harley-Davidson - (TMS14-65)
Precision-Tuned: Featuring long-throw woofers for high output and deep, extended low-end response, these speakers deliver powerful yet balanced sound. The large voice coil and extended frequency range enhance bass output, ensuring louder, more dynamic, and long-lasting performance.
Performance Engineered: Each element of these speakers is meticulously engineered for peak performance. Now handling up to 150 watts each — twice the power of before — these speakers feature a heat-resistant motor structure and radiator ring to efficiently dissipate heat, ensuring consistent, powerful sound even under the most demanding conditions.
Direct Fitment: Designed for a seamless upgrade, these speakers offer a direct drop-in fit for factory mounting locations. With model-specific grilles for Road Glide and Street Glide, installation is effortless and perfectly integrated.
Element Ready™: Purpose-built for the harsh motorcycle environment. The speakers are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio will stand the test of time.
Specifications:
Midrange Size (Nominal Diameter): 6.5"
Tweeter Size (Nominal Diameter): 1” (24.5 mm)
Speaker Type: 2-Way
Frequency Response (Hz): 50 Hz – 20 kHz
Nominal Impedance (Ohms): 4Ω
Power Handling (RMS): 150 Watts
Power Handling (MAX): 300 Watts
Sensitivity (dB @ 1W/1M): 90.6 dB
Voice Coil Diameter (in/mm): 1.5” (38.6 mm)
Crossover: 3.5 kHz @ 12dB/Octave
Mounting Hardware: Yes
Grille/Trim Ring Included: Yes
In The Box:
(1 pr) TMS14-65 Speaker
(1 ea) 2014+ Road Glide Grille – clutch
(1 ea) 2014+ Road Glide Grille – brake
(2 ea) Street Glide Grille
(2 ea) Tour-Pak Grille
1130-75985-01 AP Pack
(8) #10 T25 Screws, 5/8” long, button head
1x Rockford Fosgate M5-800X4 4 Channel Element Ready Amplifier - 125x4 @ 4-Ohm, 200x4 @ 2-Ohm, 400x2 @ 4-Ohm Bridged - (M5-800X4)
Rockford Fosgate 800 Watt 4-Channel Element Ready™ Amplifier
The M5-800X4 amplifier features the next level of Element Ready™ design from Rockford Fosgate that’s built as rugged as the outdoor environment it’s used in. The IPX6 rating is provided by splash guards on both ends and heavy-duty molded harnesses with integral sealing gaskets. A new PRESET switch - for use with Rockford Fosgate UTV audio kits - eliminates the need to set-up and tune the amp for the best experience possible. Built on the popular TM series, M5 amplifiers feature the same great technologies like Constant Power, Class-AD and C.L.E.A.N., all engineered, developed, and validated in Tempe, Arizona.
Rockford Fosgate amplifiers are known world-wide for producing more power than their ratings suggest. The M5 amplifiers are the first series based on new industry standard Dynamic Power ratings, bringing their conservative ratings to the forefront. Engineered from the ground up and purpose-built to deliver more output where you actually hear it, this is real dynamic power that performs not only on paper, but performance heard through the musical experience. You’ll see two amplifier power ratings, the traditional Continuous Power output, and the new Dynamic Power output, both tested in accordance with the CTA-2006 specification. Consider Continuous Power as wattage developed on the test bench for comparison against other amplifiers in the same class, and Dynamic Power as real-world wattage when connected to a speaker load, listening to music. Either way you look at it, Rockford Fosgate is proving – once again – these amplifiers are powerful enough to drive any speaker or subwoofer you throw at them.
- Element Ready™ design with integrated harness & panel seals
- PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
- Play all day, easy to integrate, and keep music playing for extended lengths of time
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Constant Power provides instantaneous delivery of output over varying impedance loads
- Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
- Top mounted control panel with Element Ready™ smoked lens cover
- OEM and aftermarket radio integration inputs
- Low Impedance Stability
- Proprietary testing using RATS (Rockford Automated Testing System)
- Proprietary Class-AD technology allows amplifier to produce more power with less current draw
- Discrete Surface Mount technology utilizes 1% tight-tolerances for high efficiency and reduced cross-talk
- MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
- Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
- Balanced Differential Inputs eliminates noise picked up by signal cables
- Remote-Out feature when using high level inputs
- 2-Year Warranty
General Specifications
CEA-2006 Compliant
Yes
Cta-2006 Compliant
Number of Channels
4
Total Power
(Sum of Rated Power)
(Sum of Rated Power)
800 Watts
Rated Power
(RMS Continuous Power)
(RMS Continuous Power)
CTA-2006 Continuous Power Rating100 Watts x 4 @ 4Ω
100 Watts x 4 @ 2Ω
200 Watts x 2 @ 4Ω Bridged/Mono
≤1.0% THD+N
Dynamic Power
(PVC/PowerCube®)
(PVC/PowerCube®)
CTA-2006 Dynamic Power Rating125 Watts x 4 @ 4Ω
200 Watts x 4 @ 2Ω
400 Watts x 2 @ 4Ω Bridged/Mono
Bridgeable
Yes
Frequency Response
10 Hz - 50 kHz
Input Sensitivity
150mVrms - 12Vrms
Circuit Topology Class
Class-AD
Efficiency (average)
>75%
Total Harmonic Distortion (THD+Noise)
<0.25% THD+N @ 1 Watt
Signal Input
Low-Level: 4 RCA
High-Level: (2) 4-Pin Molex
High-Level: (2) 4-Pin Molex
Signal Output
—
Tone Controls
Front/Rear: 0-14dB @ 12.5kHz
Front/Rear: 0-18dB @ 45Hz
Front/Rear: 0-18dB @ 45Hz
Crossover Controls
High-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
All-Pass: Yes
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote Controls
No
Visual Indicators
Power: Blue
Protect: Red
Input Clip: Red
Output Clip: Blue/Red
Protect: Red
Input Clip: Red
Output Clip: Blue/Red
Power Wire Gauge
8 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
16 AWG
Speaker Output Connector
4-Pin Molex
Cooling
Convection
Heatsink
Extruded Aluminum
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
(not included)
—
Average Current Draw (13.8V Music)
—
Max. Current Draw (13.8V Sinewave)
55 A @ 4Ω
85 A @ 2Ω
90 A @ 4Ω Bridged
85 A @ 2Ω
90 A @ 4Ω Bridged
Suggested Alternator
Dimensional Diagram
Dimensions (H x W x D)
1.7" x 4.25" x 8.41"
(42.8 mm x 108 mm x 213 mm)
Does not include harnesses
(42.8 mm x 108 mm x 213 mm)
Does not include harnesses
Shipping Weight
TBA
1x Rockford Fosgate RFK-HD14M5 Complete Amp Install Kit Compatible with Select 2014+ Road Glide, Street Glide, Ultra & CVO Motorcycles - (RFK-HD14M5)
Rockford Fosgate RFK-HD14M5
Complete Amp Install Kit for Select 2014+ Harley Davidson® Motorcycles
This complete kit includes a heatsink, bracket, hardware and wiring harness needed to install the M5-800X4 amplifier on select 2014 and newer Harley-Davidson® motorcycles. T-Harness allows for complete electrical integration without cutting or modifying factory wiring. Includes Boom!™ Audio bypass plugs for factory Harman Kardon® amplified systems and a Digital Signal Processor loop-thru for adding a DSR1 signal processor.
You must flash your factory radio to use this kit. Ready to flash? Here’s a list of dealers that can flash your radio. Refer to our COMPATIBILITY chart to verify fitment before purchasing.
Harley-Davidson® , Road Glide®, Street Glide®, Electra Glide® and Boom!® Audio are registered trademarks of Harley-Davidson Motor Company. CVO™ is a trademark of Harley-Davidson Motor Company. Harom Kardon is a registered trademark of Harman/Kardon International Industries, Inc.
The next step in motorcycle performance, featuring simple plug-and-play installation creates the best in class on-bike audio experience.
Features/Benefits:
Plug-and-Play Design: Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Element Ready™: Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Compatibility Chart: Please review below tab for fitment before purchasing.
Key Features
You must flash your factory radio to use this kit. Ready to flash? Here’s a list of dealers that can flash your radio. Refer to our COMPATIBILITY chart to verify fitment before purchasing.
Harley-Davidson® , Road Glide®, Street Glide®, Electra Glide® and Boom!® Audio are registered trademarks of Harley-Davidson Motor Company. CVO™ is a trademark of Harley-Davidson Motor Company. Harom Kardon is a registered trademark of Harman/Kardon International Industries, Inc.
The next step in motorcycle performance, featuring simple plug-and-play installation creates the best in class on-bike audio experience.
Features/Benefits:
Plug-and-Play Design: Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Element Ready™: Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Compatibility Chart: Please review below tab for fitment before purchasing.
Key Features
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Plug and Play design for easy installation
- Designed for use with 2014-Current Harley-Davidson® Motorcycles
- 90-degree harness included with amp install kit for Road Glide® installations
- Y-adaptors included in amp install kit supports expansion of lower fairing, saddlebag, or Tour-Pak® speakers
- Designed for use with M5-800X4 amplifier
- Designed for use with TM400X4ad amplifier
- T-harness integration supports front/rear fader control (requires "Rockford Fosgate 2014+ All Bikes" flash)
- Includes mounting brackets for Bat Wing and Shark Nose fairings
- Includes Boom!™ Audio bypass plugs for factory Harmon/Kardon® amplified systems
- Factory Harley-Davidson® radio must be flashed to use this kit
- Battery PWR/GND Gauge: 8 AWG
- Fuse Type: MAXI
- Fuse Size: 60 Amp
- Amplifier PWR/GND Gauge: 8 AWG
- Speaker Wire Gauge: 16 AWG
- Dual Amp Installation Kit: No
This amplifier installation kit is designed to interface only with the below aftermarket amplifier and Harley-Davidson® motorcycle. If your existing amplifier and motorcycle are not listed below, it is not compatible.
Kit requires factory Harley-Davidson® radio to be flashed.
Required Amplifier
 AMPLIFIER MODEL |
DESCRIPTION |
|---|---|
| M5-800X4 | Element Ready™ IPX6 800 Watt 4-Channel Amplifier |
| TM400X4ad | Power Marine 400 Watt Class-ad 4-Channel Amplifier |
Compatible Harley-Davidson® Motorcycles
| YEAR | MAKE | MODEL | CHASSIS | FAIRING |
|---|---|---|---|---|
| 2014-current | Harley-Davidson® | Street Glide® 1 | FLHX | Bat Wing |
| 2014-current | Harley-Davidson® | Street Glide® Special1 | FLHXS | Bat Wing |
| 2014–current | Harley-Davidson® | Electra Glide® Ultra Classic®1 | FLHTCU | Bat Wing |
| 2014–current | Harley-Davidson® | Electra Glide® Ultra Limited1 | FLHTK | Bat Wing |
| 2017–current | Harley-Davidson® | Electra Glide® Ultra Limited Low 1 | FLHTKL | Bat Wing |
| 2015–current | Harley-Davidson® | Tri Glide® Ultra Classic®1 | FLHTCUTG | Bat Wing |
| 2015–2020 | Harley-Davidson® | CVO Street Glide® (4-speaker)1 | FLHXSE | Bat Wing |
| 2018–2020 | Harley-Davidson® | CVO Street Glide® (6-speaker)1 | FLHXSE | Bat Wing |
| 2014–current | Harley-Davidson® | CVO™ Limited1 | FLHTKSE | Bat Wing |
| 2016–current | Harley-Davidson® | CVO™ Ultra Limited1 | FLHTKSE | Bat Wing |
| 2014–current | Harley-Davidson® | CVO™ Ultra Limited Electra Glide1 | FLHTKSE | Bat Wing |
| 2015-current | Harley-Davidson® | Road Glide® 1 | FLTRX | Shark Nose |
| 2015-current | Harley-Davidson® | Road Glide® Special 1 | FLTRXS | Shark Nose |
| 2015–current | Harley-Davidson® | Road Glide® Ultra1 | FLTRU | Shark Nose |
| 2018–2020 | Harley-Davidson® | CVO Road Glide® (4-speaker)1 | FLTRXSE | Shark Nose |
| 2015–current | Harley-Davidson® | CVO™ Road Glide® Ultra1 | FLTRUSE | Shark Nose |
1 Requires factory Harley-Davidson® radio to be flashed.
1x Rockford Fosgate TMS69BL14 6x9” Full Range Coaxial With Bag Lid Adapters For 2014+ Models, 100 Watts Rms, 200 Watts Peak, Grilles Included - (TMS69BL14)
Rockford Fosgate 4 Speaker & Amp Kit Compatible With 2014+ Harley-Davidson® Road Glide® CVO & Street Glide® CVO
Retrofit kit allows addition of rear speakers on your existing factory bag lids and plug directly into a Rockford Fosgate front audio kit that utilizes the Power TM400X4ad 4-channel amplifier. Eliminates need to paint and color match. See Specifications tab for compatible motorcycles. You will need to have a local Rockford dealer flash your factory radio to use this kit.
If you need more than just two speakers and want to really feel your music while riding then check out our add-on bag lid audio solution. Centered around our TMS69 6x9" speaker this kit is designed to work with your existing factory bag lids. This means no extra parts to purchase or custom paint schemes to match. Easy to install using our included cutting template and two-piece mounting system you can quickly add on to an existing or new fairing audio kit using with the included plug and play harness. This system is designed to plug directly into the Rockford Fosgate Power T400X4ad or TM400X4ad 4-channel amplifier. Not designed for factory amplifiers.
Harley-Davidson®, Road Glide, and Street Glide® are registered trademarks of Harley-Davidson Motor Company
- Designed for use with 2014+ Factory Harley-Davidson® Hardshell Bag Lids
- Designed for use with existing 2014+ Rockford Fosgate Stage kits
- Ultra‐High Temperature Glass Reinforced Polymer Frame
- Direct Connect Wiring Harness to Rockford Fosgate Amplifiers
- Painted Stamped Steel Grill with ASA Plastic Frame for UV Protection
- Sandwich Clamping Gasket Design for Environmental Seal
- Includes Custom Cut Out Guide
- TMS69 Power Element Ready 6x9” full range speakers
- Includes all Installation Hardware and Accessories
- NOTE: Your factory radio will need to be flashed.
- Leave 2" minimum clearance under speaker magnet when packing bags
Fitment
| YEAR | MAKE | MODEL | AMPLIFIER |
|---|---|---|---|
| 2014-current | Harley Davidson® | Street Glide® 1,2,3,4 | T400X4ad or TM400X4ad |
| 2015-current | Harley Davidson® | Road Glide® 1,2,3,4 | T400X4ad or TM400X4ad |
1 Compatible only with ABS plastic lids. Not compatible with Fiberglass lids.
2 Requires factory Harley-Davidson® radio to be flashed.
3 Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
4 May not be compatible with H-D® Power Lock Kit
5 Tour-Pak® speakers not 100% plug-n-play compatible (contact support on work-around)
Specifications
Shipping Weight
8.65 Lbs. (3.92 Kg)
Included In The Box
(2) TMS69 Speakers
(2) Speaker Grilles
(2) 6"x9" Basket Protectors
(2) Mounting Rings
(2) Cutting Templates
(16) Mounting Screws
(1) Main Harness
(2) Saddlebag Harnesses
Plastic Wire Tie Wraps
Plastic Cable Tie Mounts
(2) Speaker Grilles
(2) 6"x9" Basket Protectors
(2) Mounting Rings
(2) Cutting Templates
(16) Mounting Screws
(1) Main Harness
(2) Saddlebag Harnesses
Plastic Wire Tie Wraps
Plastic Cable Tie Mounts
Mounting Hardware
Yes
Grille/Trim Ring Included
Yes
Extra Information
Brand:
Rockford Fosgate
Weight:
57.84 LBS
UPC:
199730004010
Bundle:
Yes
Feature 1:
This bundle includes 3x Rockford Fosgate TMS14-65 6.5” 2-Way Speakers, a Rockford Fosgate M5-800X4 4 Channel Amplifier, a Rockford Fosgate RFK-HD14M5 Amp Install Kit, and a Rockford Fosgate TMS69BL14 6x9” Coaxial Speakers with Bag Lid Adapters.
Feature 2:
Precision-Tuned Speakers: Long-throw woofers and large voice coils deliver powerful, balanced sound with extended low-end response for dynamic performance.
Feature 3:
Performance Engineered Amplifier: 800 watts of power, Element Ready™ design for durability under harsh conditions, and C.L.E.A.N. input/output clip detection for optimal performance.
Feature 4:
Complete Amp Install Kit: Includes all necessary hardware and wiring harness for seamless integration in select Harley-Davidson® motorcycles. No cutting or modification required.
Feature 5:
Full Range Coaxial Speakers: Designed for 2014+ models with bag lid adapters, these speakers feature ultra-high temperature frames and pure copper wiring for top-notch audio performance.
Condition:
NEW
Weight:
57.8400 lbs
Shipping:
Free 2-Day Shipping!
