Description
Included in this kit
This bundle includes 2x Rockford Fosgate P1V2-69 Punch P1 6"x8” 3-Way Coaxial Speaker.

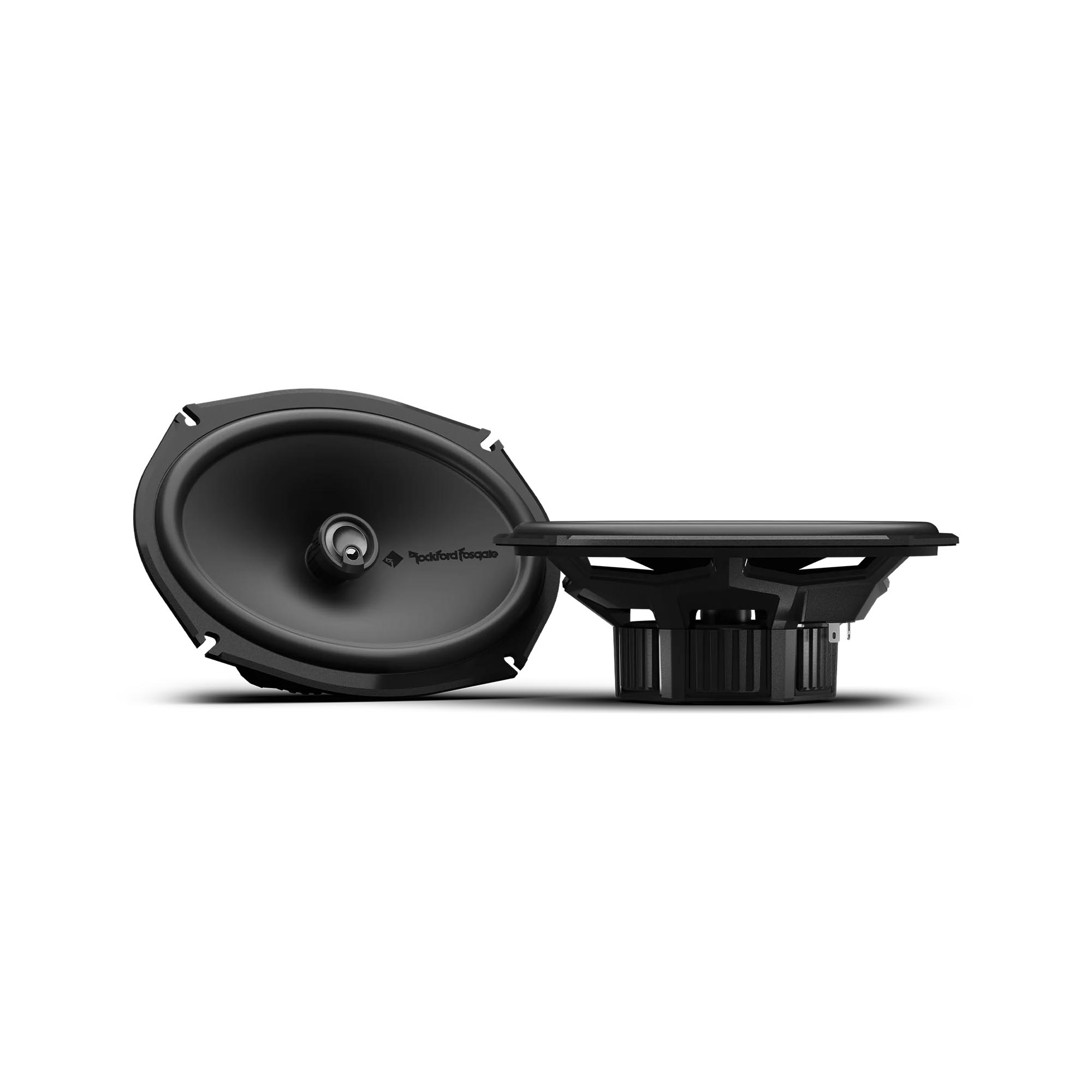

2x Rockford Fosgate P1V2-69 Punch P1 6"x8” 3-Way Coaxial Speaker - (P1V2-69)
Engineered to Fit. Built to Perform.
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don’t have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and “punch”.
Kit Includes:
• (2) 6"x9" Speakers
• Installation Hardware
Specifications:
Speaker Type: Coaxial
Midrange Size (Nominal Diameter): 6"x9"
Tweeter Size (Nominal Diameter): 3/4” (19 mm) Inverted Dome
Piezo Size (Nominal Diameter): 3/8” (9 mm) Co-Witnessed Convex
Nominal Impedance (Ohms): 4Ω
Frequency Response (Hz): 45Hz - 25kHz
Voice Coil Diameter (in/mm): 1" (25.4 mm)
CrossoverTweeter High-Pass: 9kHz @ 6 dB/Octave
Power Handling (Watts RMS): 75 Watts RMS 150 Watts Peak
Fs: 60 Hz
Sensitivity (dB @ 1W/1M): 89 dB
Sensitivity (2.83V/1M): 92 dB
Cutout Diameter: 8.4" x 5.71" (213.5 mm x 145 mm)
Mounting Depth (Standard Flange): 3.13" (79.4 mm)
Min. Mounting Depth (No Motor Cover): 3.13" (70 mm)
Front Side Clearance: 0.42" (10.6 mm)
Removable Motor Cover: Yes
Grille/Trim Ring Included: No
Included in the Box:
(2) 6”x9” 4Ω 3-Way Coaxial Speakers
(1) 6”x9” Speaker Cutout Template
(8) Self-Tapping Phillips #8x32mm (Speaker)
(2) 18 AWG Red/Black Speaker Wire, 205 mm
(3) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(3) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(4) 18 AWG Crimp Butt Connectors
Mounting Hardware: Yes
