Description
Included in this kit

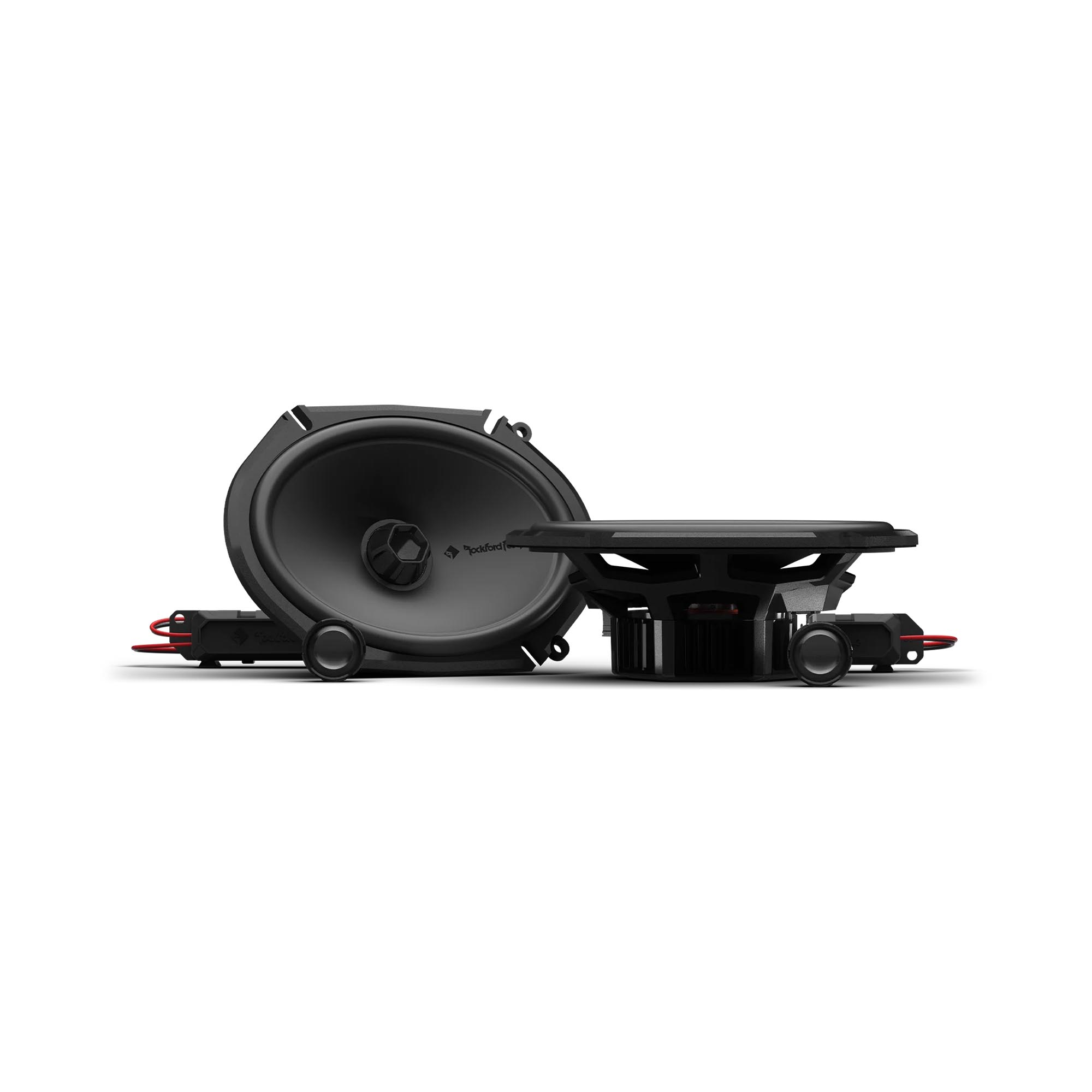

This bundle includes 2x Rockford Fosgate P2V2-68HO - 6x8" 2-way convertible with internal/external crossover, 75 watts RMS, 150 watts peak, 2ohm.
2x Rockford Fosgate P2V2-68HO - 6x8" 2-way convertible with internal/external crossover, 75 watts RMS, 150 watts peak, 2ohm - (P2V2-68HO)
The P2 PUNCH speakers are flexible upgrades for OEM systems with optional tweeters or for custom upgrades. The P2 convertibles offer true versatility by using them as a coaxial on vehicles equipped with one speaker for a fast drop-in, or a 2-way component on vehicles equipped with a separate tweeter/midrange – like those found in an A-pillar or dash – for enhanced staging and imaging.
Kit Includes:
• (2) 6x8" Speakers
• (2) Crossovers
• (1) Tweete Removal Tool
• Installation Hardware
Speaker Type: Convertible
Midrange Size (Nominal Diameter): 6"x8"
Tweeter Size (Nominal Diameter): 3/4" (19mm)
Nominal Impedance (Ohms): 2Ω
Frequency Response (Hz): 45Hz - 25kHz
Voice Coil Diameter (in/mm): 1.25" (32.5 mm)
CrossoverTweeter High-Pass: 9kHz @ 6dB/octave (internal)
Tweeter High-Pass: 9kHz @ 12dB/octave (external)
Tweeter Attenuation: 0dB or -3dB (external)
Power Handling (Watts RMS): 75 Watts RMS / 150 Watts Peak
Fs (Hz): 60 Hz
Sensitivity (dB @ 1W/1M): 89 dB
Sensitivity (2.83V/1M): 92 dB
Cutout Diameter: 7.19" x 5.18" (182.5 mm x 131.5 mm)
Mounting Depth (Standard Flange): 2.61" (66.4 mm)
Min. Mounting Depth (No Motor Cover): 2.37" (60.3 mm)
Front Side Clearance: 0.43" (11 mm)
Removable Motor Cover: Yes
Grille/Trim Ring Included: No
Included in the Box
(2) 3/4" 2Ω Tweeters
(2) 6”x8” 2Ω Speakers
(1) 6”x8” Speaker Cut-Out Template
(4) Self-Tapping Phillips #4x16mm (Tweeter)
(8) Self-Tapping Phillips #8x32mm (Speaker)
(4) Self-Tapping Phillips #8x20mm (Crossover)
(2) Woofer Phase Plugs
(2) Flush-Mount Tweeter Cups
(2) Surface-Mounting Tweeter Cups
(1) Tweeter Removal Tool
(2) HO Passive Crossover Network (Tweeter)
(2) 18” Crossover Wiring Extensions
(2) 18 AWG Red/Black Speaker Wire, 205 mm
(3) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(3) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(4) 18 AWG Crimp Butt Connectors
(6) Zip Ties 4.8 mm x 350 mm
Mounting Hardware: Yes
