Description
Included in this kit

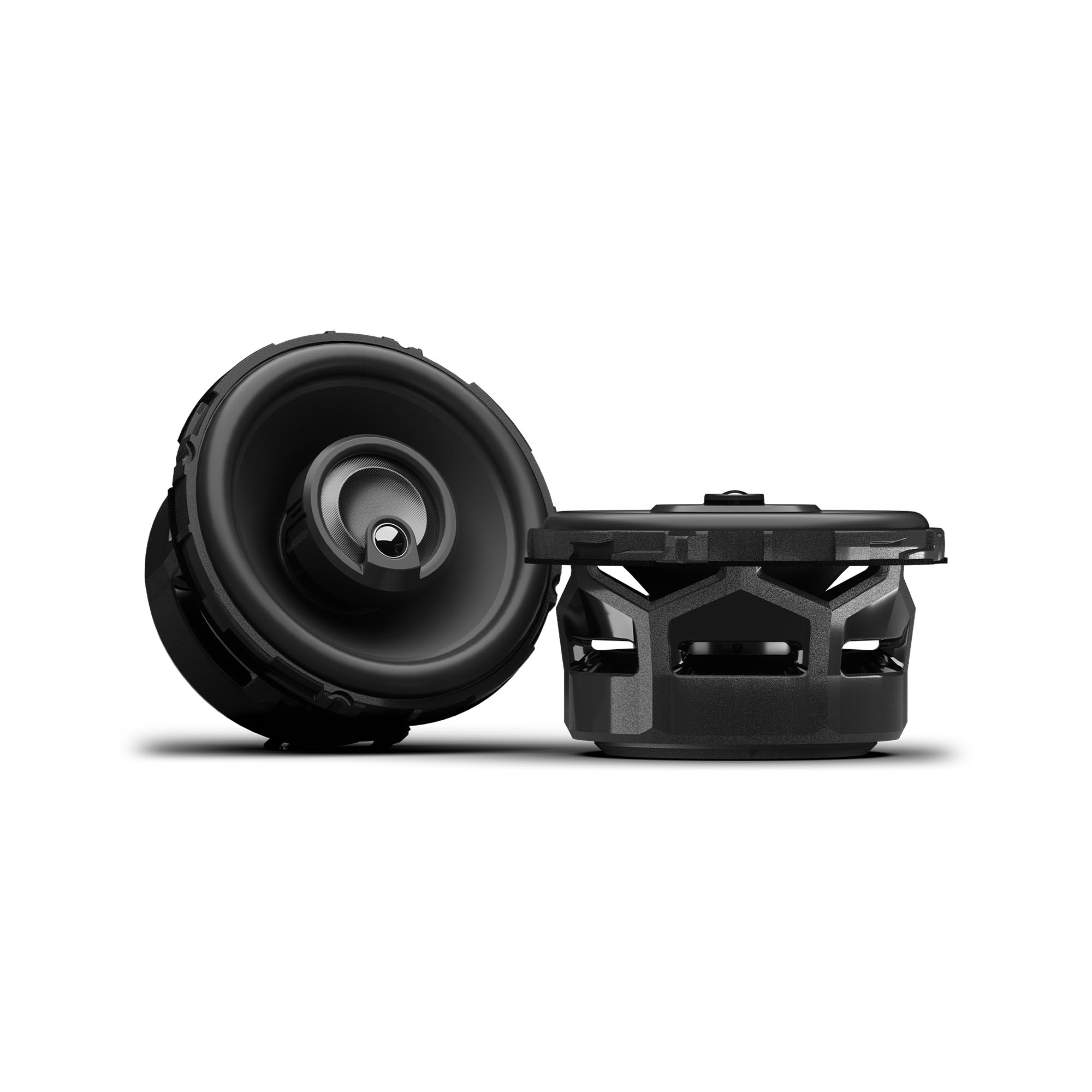

This bundle includes 2x Rockford Fosgate P1V2-3 Punch P1 3.5” 3-Way Coaxial Speaker.
2x Rockford Fosgate P1V2-3 Punch P1 3.5” 3-Way Coaxial Speaker - (P1V2-3)
Engineered to Fit. Built to Perform.
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don’t have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and “punch”.
Kit Includes:
• (2) 3.5" Speakers
• (4) OEM Adaptors
• Installation Hardware
Specifications:
Speaker Type: Coaxial
Midrange Size (Nominal Diameter): 3.5"
Tweeter Size (Nominal Diameter): 3/4” (19 mm) Inverted Dome
Piezo Size (Nominal Diameter): 3/8” (9 mm) Co-Witnessed Convex
Nominal Impedance (Ohms): 4Ω
Frequency Response (Hz): 98Hz - 25kHz
Voice Coil Diameter (in/mm): 1" (25.4 mm)
CrossoverTweeter High-Pass: 9kHz @ 6 dB/Octave
Midrange Bass Blocker: 1,200Hz @ 6 dB/Octave (33µF)
Power Handling (Watts RMS): 75 Watts RMS/ 150 Watts Peak
Fs (Hz): 130 Hz
Sensitivity (dB @ 1W/1M): 82 dB
Sensitivity (2.83V/1M): 85 dB
Cutout Diameter: 2.87" (73 mm)
Rear-Loading Depth (Twist-Lock Adaptor): 1.48" (37.7 mm)
Front-Loading Depth (Twist-Lock Adaptor): 1.7" (43.3 mm)
Front Side Clearance: 0.53" (13.4 mm)
Removable Motor Cover: No
Grille/Trim Ring Included: No
Included in the Box
(2) 3.5” 4Ω 3-Way Coaxial Speakers
(1) 3.5” Speaker Cutout Template
(2) 3.5” 2-Tab Twist-Lock Adaptors
(2) 3.5” 3-Tab Twist-Lock Adaptors
(2) 3.5” 3-Tab Wide Twist-Lock Adaptors
(2) 3.5” 2-Tab Wide Twist-Lock Adaptors
(2) 33µF Non-Polarized Cap (Bass-Blockers)
(6) Self-Tapping Phillips #8x32mm (Speaker)
(2) 18 AWG Red/Black Speaker Wire, 205 mm
(3) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(3) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(6) 18 AWG Crimp Butt Connectors
Mounting Hardware: Yes
