Description
Included in this kit
This bundle includes a Rockford Fosgate HD14-SBSUB 2014+ Harley-Davidson® Dual 10" Saddlebag Subwoofer Kit, and a Rockford Fosgate HD14-STG3 Stage-3 Amplified 4-Speaker M5 Audio Kit Compatible With Select 2014+ Road Glide And Street Glide Motorcycles.
1x Rockford Fosgate HD14-SBSUB 2014+ Harley-Davidson® Dual 10" Saddlebag Subwoofer Kit - (HD14-SBSUB)
When you want that next level audio performance on your 2014 or newer Harley-Davidson motorcycle, our all new 2014+ subwoofer kits … reinvent the ride. Designed and engineered for easy integration and superior flexibility, the 800 watt, dual 10-inch subwoofer kit is built for true motorcycle, on-road performance. The plug-and-play design paired with freeway speed output create the best in class on-bike, bass experience. This subwoofer system was designed to work with your Rockford Fosgate aftermarket audio system. This kit is designed to work with select 2014+ Electra Glide®, Road Glide®, Street Glide® models.
Specifications:
Woofer Qty: 2
Woofer Size: 10"
Woofer Series: M1D2-10B
Nominal Impedance: 4Ω (2Ω DVC wired to create 4Ω bridged amp load)
Power Handling: 300 Watts RMS, 1200 Watts Peak
Enclosure Type: Sealed
Enclosure Material: Rotomolded HDPE
Speaker Connector: 2-pin Deutsch™/Amphenol™
Frequency Response: 20 Hz – 750 Hz
Amplifier Type: Class-AD
Total Power: 800 Watts
Grille/Trim Ring Included: Yes
Mounting Hardware: Yes
Included In The Box:
(2) M1D2-10B subwoofers
(2) Subwoofer enclosures
(1) M5-800X4 amplifier
(1) Wiring kit
(2) Cutting templates
(1) Amp mounting plate
(1) 1315-75758-01 AP Pack (details below)
(12) Nylon zip ties 8 in
(8) Phillips screws M3 x 0.5 x 12 mm
(1) Hole saw OD 45 mm
(4) Washers OD 9 x ID 3.2 x T0.8
(4) Hex screws 3/16 in, 5/16-18 thread, 1.25 in
(4) Clip 5/16-18 thread
(2) Screw M3 x 0.5, 5 mm
(8) Screw thread cutting ST3.0, 6 mm
(2) Nylon plug ID 0.75 in
(2) Hex nut M3 x 0.5
(8) Phillips screw #8 x 0.75 in.
(1) Hex wrench 3/16 in
(2) Alcohol wipe

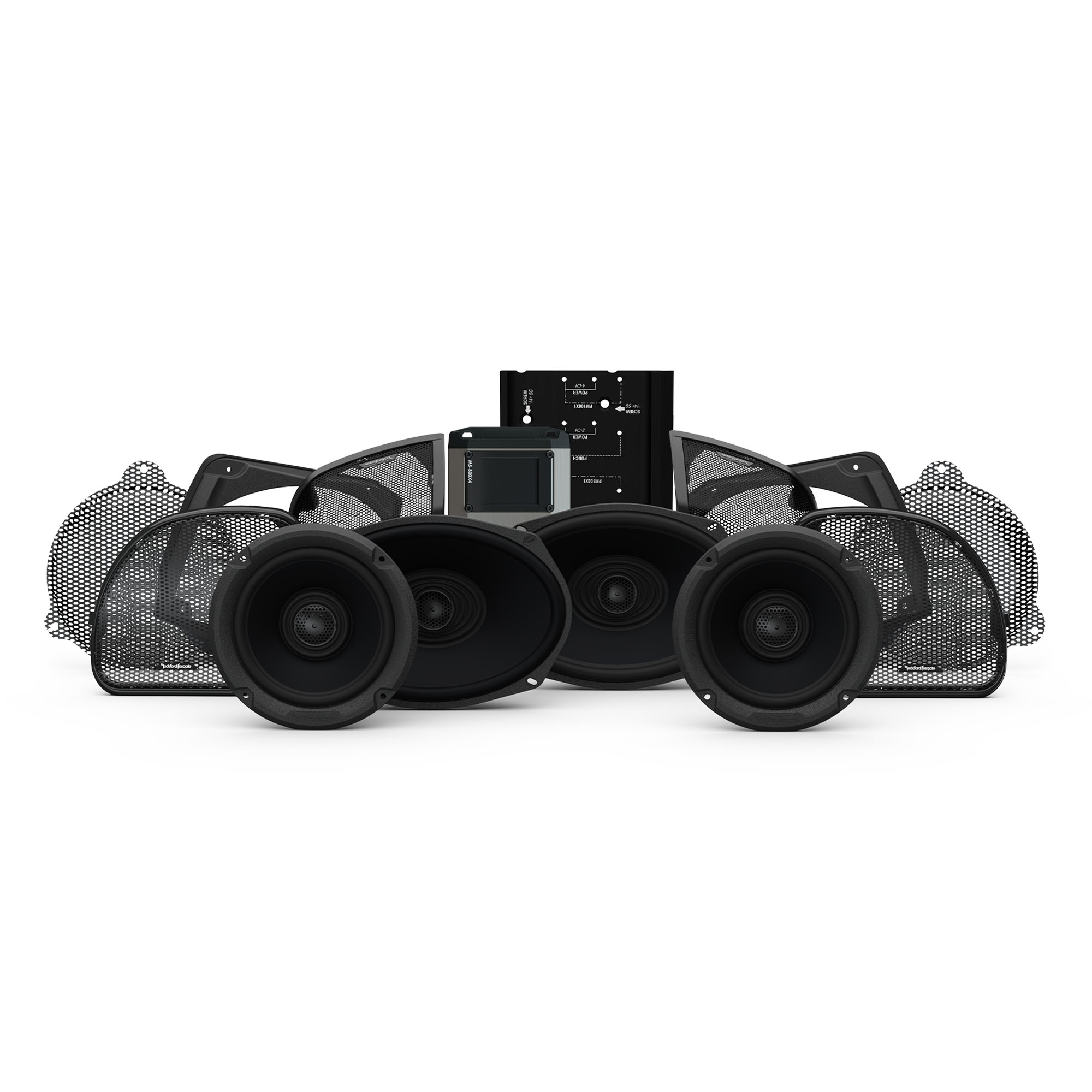

1x Rockford Fosgate HD14-STG3 Stage-3 Amplified 4-Speaker M5 Audio Kit Compatible With Select 2014+ Road Glide And Street Glide Motorcycles - (HD14-STG3)
Rockford Fosgate HD14-STG3
2014+ Road Glide/Street Glide Stage 3 Audio Kit
The next step in motorcycle performance, our M5 audio kits are the loudest and clearest audio systems we've created. Featuring simple plug-and-play installation and paired with freeway speed output all create the best in class on bike audio experience.
Plug-and-Play Design -
Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Full Throttle Output -
Audio engineered to perform on the open road. Speakers and amplifiers specifically tuned and designed to not only overcome wind, road, and exhaust noise, but to give you that second to none audio experience on your bike.
RF3 (Rocford Factory Fit and Finish) -
Designed and engineered to match and compliment the factory fit and finish of your bike. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Element Ready -
Purpose built for the harsh motorcycle environment. The speakers and amplifiers are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Key Features
Plug-and-Play Design -
Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Full Throttle Output -
Audio engineered to perform on the open road. Speakers and amplifiers specifically tuned and designed to not only overcome wind, road, and exhaust noise, but to give you that second to none audio experience on your bike.
RF3 (Rocford Factory Fit and Finish) -
Designed and engineered to match and compliment the factory fit and finish of your bike. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Element Ready -
Purpose built for the harsh motorcycle environment. The speakers and amplifiers are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Key Features
- Plug and Play design for easy installation
- Kits bolt to factory attachment points
- Direct connect wiring harnesses for Harley-Davidson® models
- Speakers are custom tuned so you can hear music over wind, road & exhaust noise at highway speed
- TMS65: 6.5" 2-way Element Ready™ speaker with integrated phase-aligned 25 mm tweeter
- TMS69BL14: 6x9” Element Ready™ speaker retrofit kit for factory H-D® hardshell bags (non fiberglass models)
- M5-800X4: 800-watt 4-channel IPX6 Element Ready™ amplifier
- RFK-HD14M5: Amp install kit for M5-800X4 on 2014+ Harley-Davidson® models
- Y-adaptors included in amp install kit supports expansion of lower fairing, saddlebag, or Tour-Pak® speakers
- T-harness integration supports front/rear fader control (requires "Rockford Fosgate 2014+ All Bikes" flash)
- Speaker Qty: 4
- Amplifier Type: External
- Total Power: 800 Watts
- Grille/Trim Ring Included: Yes
- Mounting Hardware: Yes
- Included In The Box:
- (1 pr) TMS65
- (1 ea) TMS69BL14
- (1 ea) M5-800X4
- (1 ea) RFK-HD14M5
The wiring harness included in this kit is designed to interface only with factory Harley-Davidson® radios. The factory Harley-Davidson® radio must be flashed or you will damage your speakers. Read advisory for more information.
This audio kit is only compatible with standard sized Harley-Davidson® ABS plastic saddlebags and lids. Stretched Harley-Davidson® ABS saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
REQUIREDBOOM!™ Box 4.3 |
REQUIREDBOOM!™ Box 6.5GT |
REQUIREDBOOM!™ Box GTS |
YESH-D® ABS Saddlebags |
COMPATIBLEH-D® Stretched Saddlebags |
NOH-D® Power Lock |
|---|
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 |
|---|---|---|---|---|---|---|---|---|---|---|
| Electra Glide® Revival | FLH | N/A | N/A | N/A | N/A | N/A | N/A | N/A | YES | N/A |
| Electra Glide® Standard | FLHT | N/A | N/A | N/A | N/A | N/A | NO | NO | NO | NO |
| Road Glide® | FLTRX | N/A | YES | YES | YES | YES | YES | YES | YES | YES |
| Road Glide® ST | FLTRXST | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | YES |
| Road Glide® Special | FLTRXS | N/A | YES | YES | YES | YES | YES | YES | YES | YES |
| Street Glide® | FLHX | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Street Glide® ST | FLHXST | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | YES |
| Street Glide® 115th Anniversary | FLHX | N/A | N/A | N/A | N/A | YES | N/A | N/A | N/A | N/A |
| Street Glide® Special | FLHXS | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Street Glide® Special 115th Anniversary | FLHXS | N/A | N/A | N/A | N/A | YES | N/A | N/A | N/A | N/A |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 |
|---|---|---|---|---|---|---|---|---|---|---|
| CVO Road King® | FLHRSE | NO | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| CVO Softail Deluxe | FLSTNSE | NO | NO | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Road King® | FLHR | N/A | NO | NO | NO | NO | NO | NO | NO | NO |
| Road King® Classic | FLHRC | NO | NO | NO | NO | NO | NO | N/A | N/A | N/A |
| Road King® Special | FLHRXS | N/A | N/A | N/A | NO | NO | NO | NO | NO | NO |
| CHASSIS |
2014 |
2015 |
2016 |
2017 |
2018 |
2019 |
2020 |
2021 |
2022 |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Road Glide® Limited | FLTRK | N/A | N/A | N/A | N/A | N/A | N/A | YES | YES | YES |
| Road Glide® Ultra | FLTRU | N/A | N/A | YES | YES | YES | YES | N/A | N/A | N/A |
| Electra Glide®/Ultra Classic® | FLHTCU | YES | YES | YES | YES | YES | YES | N/A | N/A | N/A |
| Electra Glide®/Ultra Classic® Twin-Cooled | FLHTCU | YES | YES | YES | N/A | N/A | N/A | N/A | N/A | N/A |
| Electra Glide®/Ultra Classic® Low | FLHTCUL | N/A | YES | YES | N/A | N/A | N/A | N/A | N/A | N/A |
| Electra Glide®/Ultra Classic® Low Twin-Cooled | FLHTCUL | N/A | YES | YES | N/A | N/A | N/A | N/A | N/A | N/A |
| Ultra Limited | FLHTK | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Ultra Limited 115th Anniversary | FLHTK | N/A | N/A | N/A | N/A | YES | N/A | N/A | N/A | N/A |
| Ultra Limited Low | FLHTKL | N/A | YES | YES | YES | YES | YES | N/A | N/A | N/A |
| Ultra Limited Shrine Edition | FLHTK | N/A | N/A | N/A | YES | YES | YES | YES | YES | YES |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 |
|---|---|---|---|---|---|---|---|---|---|---|
| CVO Ultra/Limited | FLHTKSE | NO | NO | NO | NO | NO | NO | NO | NO | N/A |
| CVO Limited 115th Anniversary | FLHTKSE | N/A | N/A | N/A | N/A | NO | N/A | N/A | N/A | N/A |
| CVO Pro Street Breakout | FXSE | N/A | N/A | NO | NO | N/A | N/A | N/A | N/A | N/A |
| CVO Road Glide® | FLTRXSE | N/A | N/A | N/A | N/A | NO | NO | NO | NO | NO |
| CVO Road Glide® Limited | FLTRKSE | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | NO |
| CVO Road Glide® Ultra | FLTRUSE | N/A | NO | NO | N/A | N/A | N/A | N/A | N/A | N/A |
| CVO Softail Breakout | FXSBSE | NO | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| CVO Street Glide® | FLHXSE | N/A | NO | NO | NO | NO | NO | NO | NO | NO |
| MODEL | CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 |
|---|---|---|---|---|---|---|---|---|---|---|
| Freewheeler® | FLRT | N/A | NO | NO | NO | NO | NO | NO | NO | NO |
| Tri Glide® Ultra/Classic® | FLHTCUTG | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Tri Glide® Ultra 115th Anniversary | FLHTCUTG | N/A | N/A | N/A | N/A | NO | N/A | N/A | N/A | N/A |
| CVO Tri Glide® | FLHTCUTGSE | N/A | N/A | N/A | N/A | N/A | N/A | NO | NO | NO |
