Description
Included in this kit

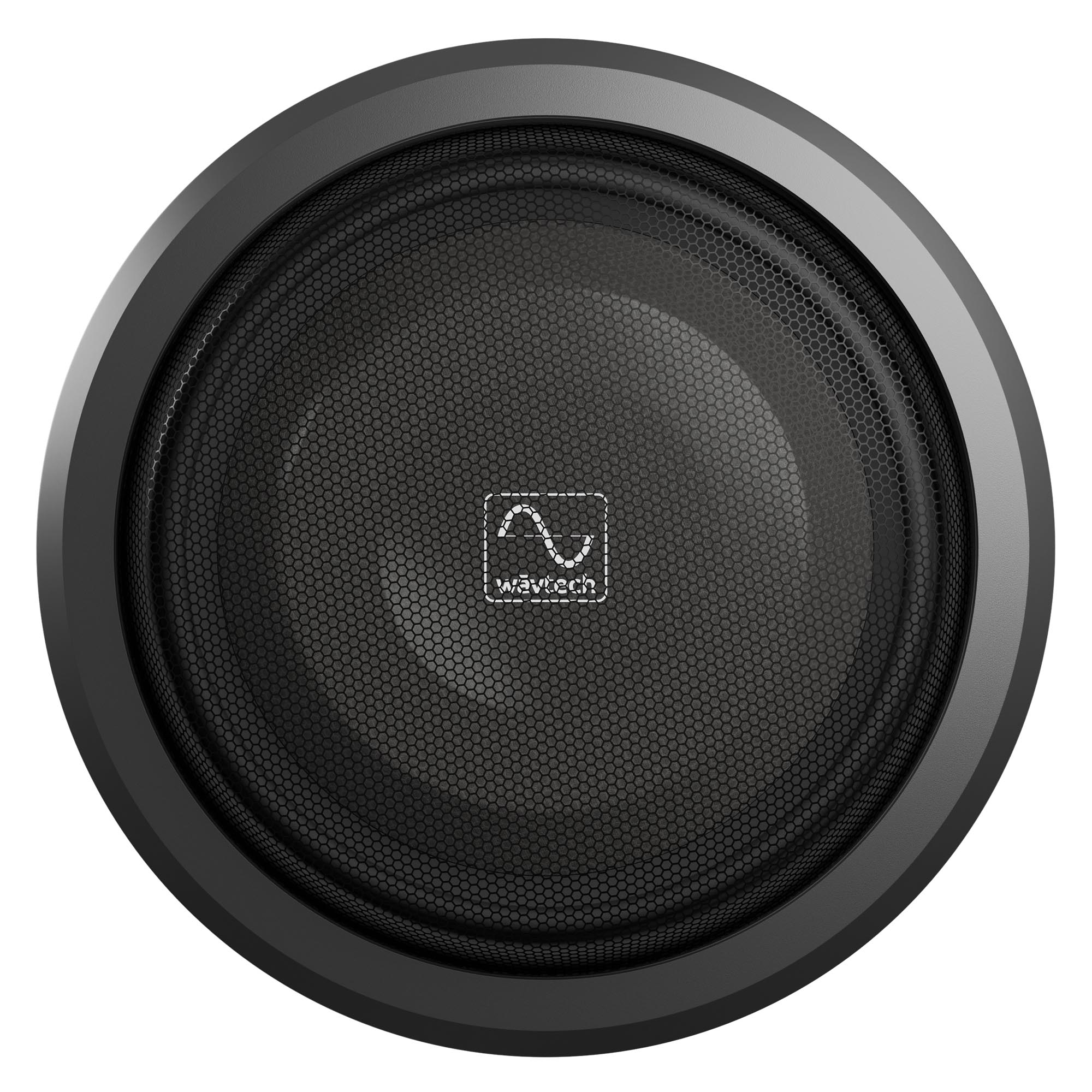

This bundle includes 2x Wavtech thinPRO12-4 600 Watt 12" Shallow Subwoofer 4 ohm.
2x Wavtech thinPRO12-4 600 Watt 12" Shallow Subwoofer 4 ohm - (thinPRO12-4)
The thinPRO12 has a mounting depth of just 3”, so it is really thin, but it does not perform like a shallow subwoofer. Our Patent Pending design allows for some big performance advantages. The dual mirrored NBR spiders and axial force transfer assembly acheive over 2-inches of peak to peak excursion.
The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex® and glass fiber, making it incredibly rigid and very lightweight. The 5” voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling.
thinPRO12 Features
750 Watts RMS Power Handling
3” Mounting Depth
5” Voice Coil
4-Layer Winding on Vented Polymide Composite Former
Protective Grille (TP12G Sold Separately)
Honeycomb Nomex® and Glass Fiber Cone
FEA Optimized Dual-Gap Motor Structure
Double-Roll NBR Surround
Mirrored Internal NBR Spiders
8AWG Push Terminals
Vented Cast Aluminum Frame
Dimensions: 11 1/8in (282mm) Standard 12” cutout
Specifications:
General
Nominal Size: 12"
Nominal Impedence: 4 Ohm
Power Handling: 750W RMS/ 2250W Peak
Recommended Power Range: 250W-750W
Frequency Response:
Electro-Mechnaical Parameters
Fs: 26Hz
Vas: 42L (1.48ft³)
Re: 3.3 Ohms
Le: 3.82mH
QMS: 4.16
Qes: 0.51
Qts: 0.46
SPL/Sensitivity (1W/1m): 84dB
Sd: 510.7 cm² (79.16in²)
Xmax: 20mm (0.79")
Xmechp-p: 54mm (2.13")
Physical Specifications:
Overall diameter with gasket: 13-1/16" (331.5mm)
Mounting depth: 3"
Mounting Hole Diameter: 11-1/8"
Mounting Screw Circle Diameter: 11-13/16"
Front Height trim ring only/w/grille: 15/16"/2-1/8"
Fropnt excursion clearance from cone/from baffle: 1-1/8", 2-1/16"
Rear Clearance from backplate (not required): >/= 1/16" recommended
Driver Displacement, normal mount: Negligible
Driver displacement, reverse mount: add +0.042ft³
