Description
Included in this kit
This bundle includes 2x Wavtech thinPRO12-4 750 Watt 12" Shallow Subwoofer 4 ohm, and 2x Wavtech TP12G Grille Compatible with thinPRO12 Shallow Subwoofers.
2x Wavtech thinPRO12-4 750 Watt 12" Shallow Subwoofer 4 ohm - (thinPRO12-4)
The thinPRO12 has a mounting depth of just 3 inches, so it is really thin, but it does not perform like a shallow subwoofer. Our Patent Pending design allows for some big performance advantages. The dual mirrored NBR spiders and axial force transfer assembly achieve over 2-inches of peak to peak excursion.
The FEA optimized dual gap motor structure features a massive motor with double stacked strontium magnets. This maximizes flux density and control for an impressive 20mm of linear xmax. The honeycomb cone is made of a composite Nomex and glass fiber, making it incredibly rigid and very lightweight. The 5 Inch voice coil, available in 2 or 4 ohm, provides a powerful moving force with 750W RMS power handling.
thinPRO12 Features
750 Watts RMS Power Handling
3 Inch Mounting Depth
5 Inch Voice Coil
4-Layer Winding on Vented Polymide Composite Former
Protective Grille (TP12G Sold Separately)
Honeycomb Nomex and Glass Fiber Cone
FEA Optimized Dual-Gap Motor Structure
Double-Roll NBR Surround
Mirrored Internal NBR Spiders
8AWG Push Terminals
Vented Cast Aluminum Frame
Dimensions: 11 1/8in (282mm) Standard 12 Inch cutout
Specifications:
General
Nominal Size: 12 Inch
Nominal Impedence: 4 Ohm
Power Handling: 750W RMS/ 2250W Peak
Recommended Power Range: 250W-750W
Frequency Response: Fs - 300Hz
Voice Coil Diameter: 127mm (5 Inch)
Electro-Mechanical Parameters
Fs: 26Hz
Re: 3.3 Ohms
Le: 3.82mH
QMS: 4.16
Qes: 0.51
Qts: 0.46
SPL/Sensitivity (1W/1m): 84dB
Xmax: 20mm (0.79 Inch)
Xmechp-p: 54mm (2.13 Inch)

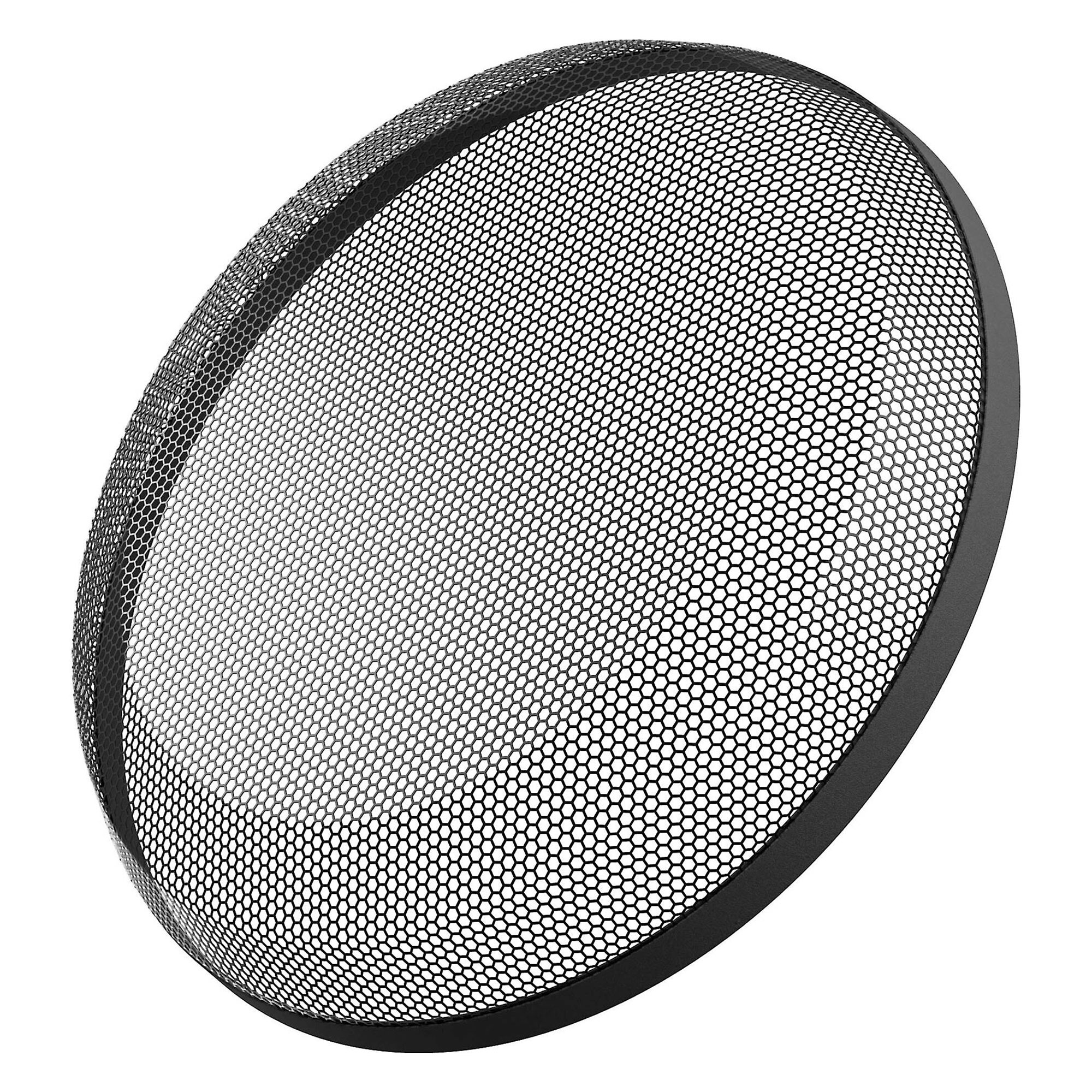

2x Wavtech TP12G Grille Compatible with thinPRO12 Shallow Subwoofers - (TP12G)
12" Grille compatible with WavTech thinPro12 Shallow Subwoofers
