Included in this kit
This bundle includes a Wavtech linkRC - Remote level control (RLC) for linkDQ, and a Wavtech Link1500.1plus 1500 Watt Mono Amplifier.
1x Wavtech linkRC - Remote level control (RLC) for linkDQ - (linkRC)
Remote level control (RLC) for linkDQ
Wired Remote Control -
• Using the LinkRC you can easily adjust the output level of select wavtech line output converters, line drivers, and signal processors.
Mounting Options -
• Standard Installation: The remote mounts using two screws, typically to the underside of the dash.
• Custom Installation: The remote's housing is disassembled and the knob is flush mounted through a custom hole in the dash or console.

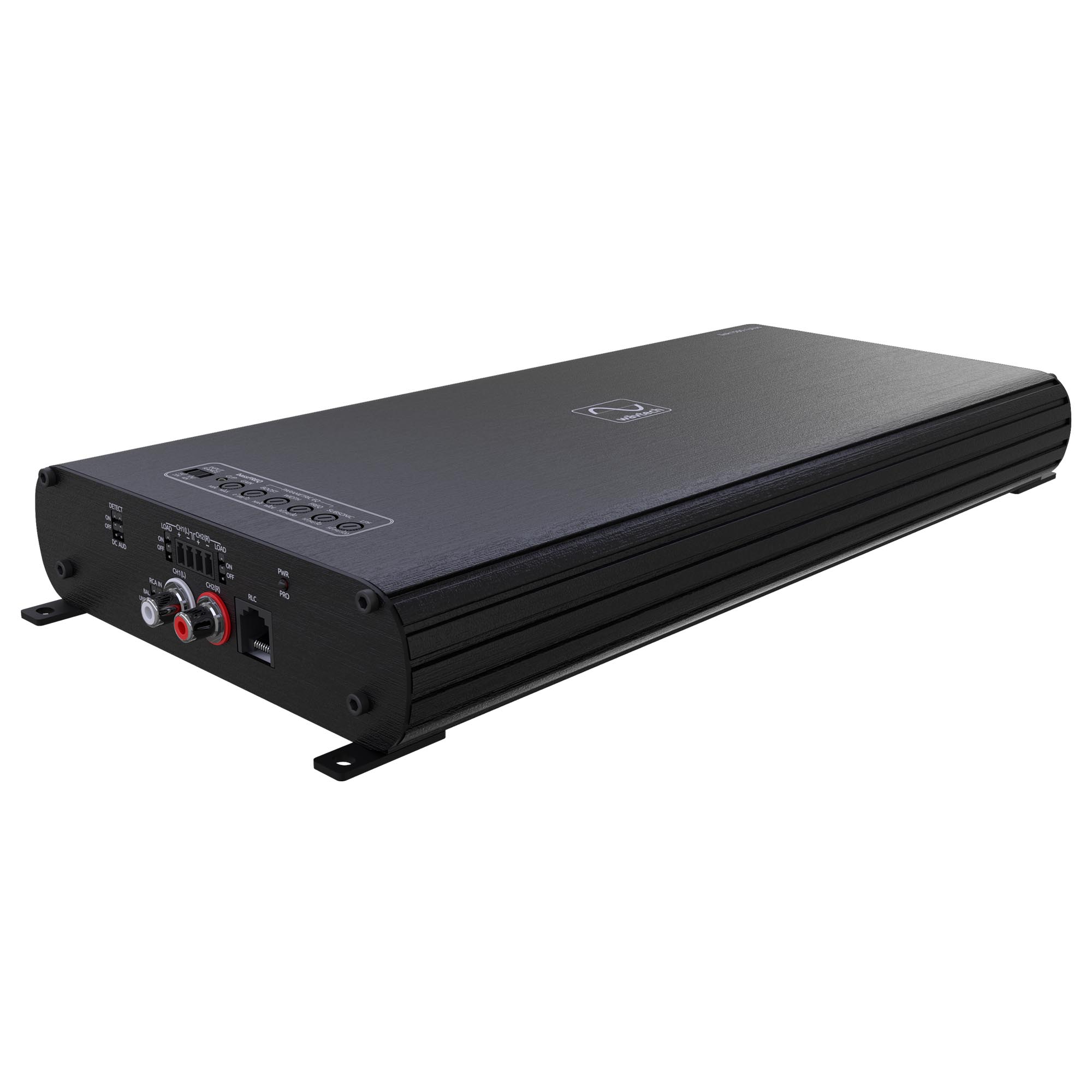

1x Wavtech Link1500.1plus 1500 Watt Mono Amplifier - (Link1500.1plus)
The link1500.1plus is the result of extensive engineering and development. The goal was an amplifier with the same power output at either 2 or 1 ohm. This amp makes 1500 watts RMS @ 2 or 1 ohm. This is achieved with our new dual rail voltage power supply. When setting up the amp, simply select the impedance of your subwoofer with the 4/2 or 1 ohm switch and the amp does the rest. At 13.11”x6.5”x1.65”, it is incredible small for a 1500 watt RMS amp.
The link1500.1plus features our bassFREQ preamp, with a 24dB per octave crossover, an adjustable parametric EQ and a 24dB per octave subsonic filter. Like all Wāvtech amplifiers, the speaker level inputs of the link1500.1plus can handle up to 40V and have our adaptive loading technology. The optional linkRC remote allows for control of the subwoofer system from the vehicles front seat. The link1500.1plus is also compatible with OEM start/stop systems.
link1500.1plus Features
1500 Watt Mono Amplifier
900 watts x 1 @ 4 ohms
1500 watts x 1 @ 2 ohms
1500 watts x 1 @ 1 ohm
Only 13.11”x6.5”x1.65”
Dual Rail Voltage Power Supply
Fully Adjustable Parametric EQ
Variable Low-Pass Crossover (-24dB/oct)
Variable Subsonic Filter (-24dB/oct)
Remote Level Control (RLC) w/Optional linkRC
bassFREQ Bass Processor w/Parametic EQ
Active Thermal Management
Start/Stop System Compatible
Adaptive OEM Load Technology
40V Input Capability
Differential Balanced Inputs
Variable Gain Adjustment w/Clip LED
Auto Turn-On via DC-Offset or Audio Signal Detect
Locking Detachable Hi-Level Speaker Terminals
0 Gauge Power/Ground Terminals
Professional Grade Panel Mount RCA’s
Compact Aluminum Chassis w/Detachable Mounting tabs
link1500.1plus Specifications
Input Sensitivity: SPK: 1-20Vrms, 2-40Vrms, RCA: 0.2V-5Vrms, 0.4V-10Vrms
Max Input Voltage (SPK): 40Vrms
Frequency Response: <10Hz to >500Hz (=0/-3dB)
THD+N: <1% at rated power
S/N: >77dBA (1W, 4Ω)
