Description
Included in this kit
This bundle includes a Cicada Audio FLX700.4 - 4 Channel x 175 Watts @ 2 Ohm Amplifier, a Cicada Audio 14HDAR-RG - CX/DSP/FLX Amplifier Mounting System H-D® Road Glide ®, a Cicada Audio 14HDAR-SG - CX/DSP/FLX Amplifier Mounting System H-D® Street Glide ®, a Cicada Audio CXX65.2 - Pro Coaxial Speakers 6.5-inch- 2 Ohm, Pair, a Cicada Audio CHDRGG - H-D 2014-2023 RG Kidney Grill - PR, a Cicada Audio CHDSGG - H-D 2014-2023 SG Round Grill, Pair, a Cicada Audio HDPG4K - 4 Gauge Power/Ground Kit, a Cicada Audio HDFiM - HD RADIO TO FRONT FAIRING AMPLIFIER INPUT w/ LOAD RESISTORS, and a Cicada Audio HDFLXFo - H-D FLX Output - FRONT.
1x Cicada Audio FLX700.4 - 4 Channel x 175 Watts @ 2 Ohm Amplifier - (FLX700.4)
4 CHANNEL POWER AMPLIFIER
4 X 110 WRMS into 4 ohms @ 12.5 Vdc
4 X 128 WRMS into 4 ohms @ 14.4 Vdc
4 X 140 WRMS into 2 ohms @ 12.5 Vdc
4 X 175 WRMS into 2 ohms @ 14.4 Vdc
BRIDGED MONO – 2 CHANNEL
2 X 261 WRMS into 4 ohms @ 12.5 Vdc
2 X 302 WRMS into 4 ohms @ 14.4 Vdc
Frequency response – 20-20,000 +/- 3 dB THD < 0.5%
Operating Voltage: 8 V – 16 V
Current Draw (Music): 60 A
Current Draw (Max): 116 A
Recommended Fuse (Music): 120 A
Total Efficiency: 79%
Damping Factor: 200
SNR: 91dB
Crossover LPF/FULL/HPF: 30 TO 300 Hz
Slope:12 dB per octave
Gain: 0.2 V – 12 Vac
Turn-On Configuration: REM/DC
THD + N (10% Rated Power): 0.1%
Product Dimensions (Inches / Millimeters): 4.5 x 4.9 x 2.0 in / 114 x 124 x 51 mm
1x Cicada Audio 14HDAR-RG - CX/DSP/FLX Amplifier Mounting System H-D® Road Glide ® - (14HDAR-RG)
Amplifier Mounting Rack for 2014-2023 H-D® Road Glide®
HASSLE-FREE INSTALLATION
Mount amp to stainless steel chassis and easily slide in under the fairing mounted radio.
NOTE: Place amplifier input side toward the driver, power and ground input toward the headlight!
Powder coated
Stainless steel construction
Mounting hardware included
Designed for CX/FLX/DSP600.4D style amplifiers only
1x Cicada Audio 14HDAR-SG - CX/DSP/FLX Amplifier Mounting System H-D® Street Glide ® - (14HDAR-SG)
Amplifier Mounting Rack for 2014-2023 H-D® Street Glide®
HASSLE-FREE INSTALLATION
Velcro® mount amp to stainless steel tray between the head unit and the headlight.
Powder coated
Stainless steel construction
Mounting hardware included
Designed for CX/FLX/DSP600.4D style amplifiers only
1x Cicada Audio CXX65.2 - Pro Coaxial Speakers 6.5-inch- 2 Ohm, Pair - (CXX65.2)
Features:
Designed for 2014 + H-D® factory designed locations
V8™ Dispersion Guide
Exclusive Cicada Design for 360o sound from tweeter
Rain or Shine™ all weather performance design
Built-In 6dB crossover
PEI tweeter dome for best sound dispersion
Moisture resistant
Brighter sound
More efficiency
Kevlar cone
Extremely lightweight and strong
Moisture resistant
Maximized efficiency
Copper wire voice coils offer great sound while generating less heat
N45H Neo Magnets
High temperature resistant Polycarbonate custom tooled basket
UV protection over all surfaces
5-inch Grills and Hardware are included
Two (2) year warranty
Specification:
2Ω / 6.5-inch high performance coaxial driver
Power handling: 100W RMS/200W MAX
Voice Coils: 1.4-inch/35mm mid-bass and 1-inch/25mm Tweeter
Cone: Kevlar
Tweeter Dome: PEI
Magnet: Neodymium
Sensitivity: 93dB
Frequency response 55 Hz – 20 kHz +/- 3dB
Mounting Depth: 2.26-inch/57mm
Mounting Diameter: 5.43-inch/138mm
1x Cicada Audio CHDRGG - H-D 2014-2023 RG Kidney Grill - PR - (CHDRGG)
Custom tooled Road Glide(R) replacement grill for increased height for CH/CM series speakers.
1x Cicada Audio CHDSGG - H-D 2014-2023 SG Round Grill, Pair - (CHDSGG)
Custom tooled Street Glide® replacement grills add additional depth required for aftermarket speaker upgrades.
1x Cicada Audio HDPG4K - 4 Gauge Power/Ground Kit - (HDPG4K)
4 AWG H-D® Amplifier Power Kit
6ft Power/Ground with black over braid, terminated w/ ring terminals at the battery side, Ferrules on the amp side
Remote trigger wire w/ H-D® plug for termination to remote trigger or plug into the H-D® harness
Waterproof Mini ANL Fuse Holder w/60- and 100-amp fuses
1x Cicada Audio HDFiM - HD RADIO TO FRONT FAIRING AMPLIFIER INPUT w/ LOAD RESISTORS - (HDFiM)
HDFiM HD radio to front fairing amplifier input w/ load resistors

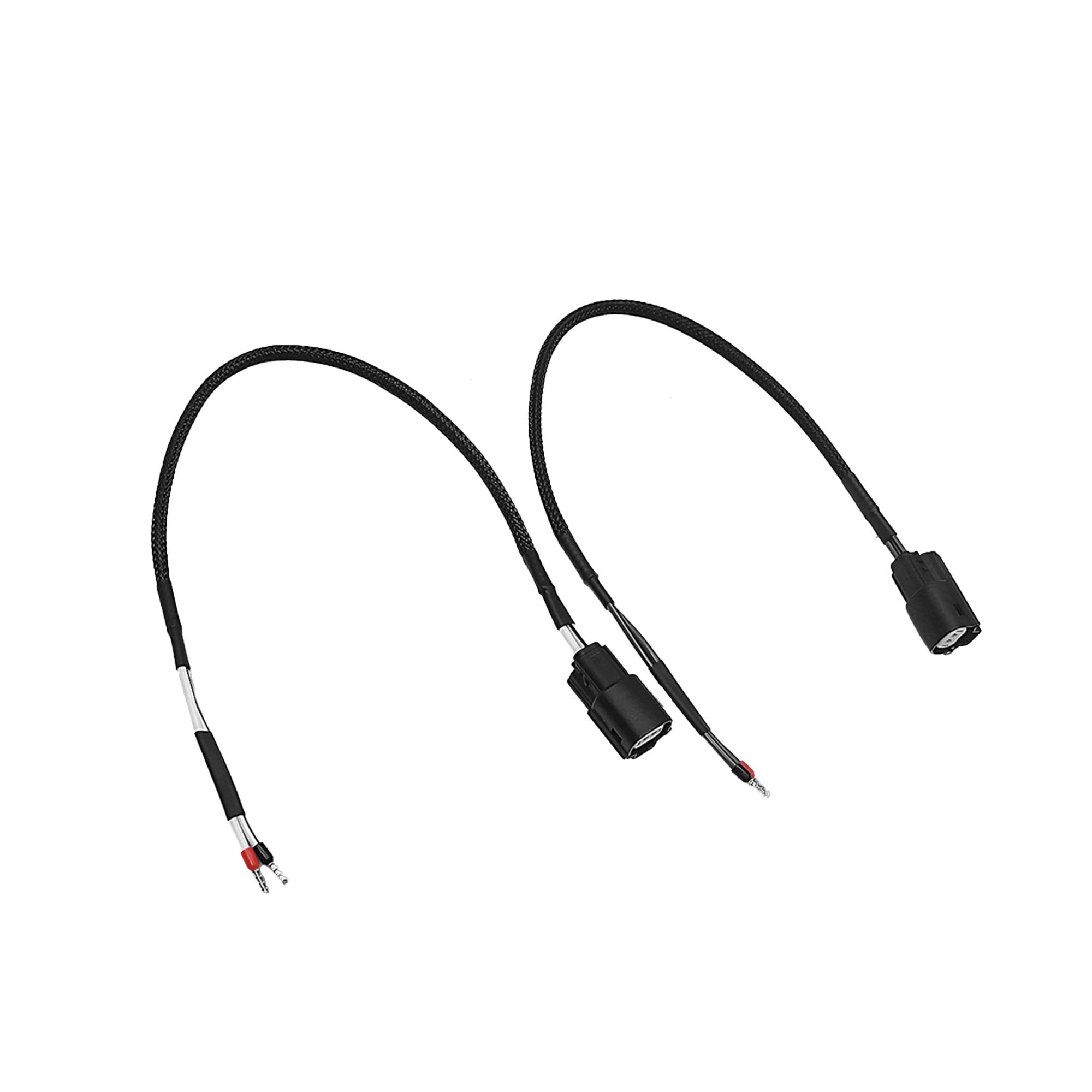

1x Cicada Audio HDFLXFo - H-D FLX Output - FRONT - (HDFLXFo)
H-D® SPEAKER TO CICADA AUDIO® FLX AMPLIFIER OUTPUT – FRONT
