Description
Included in this kit

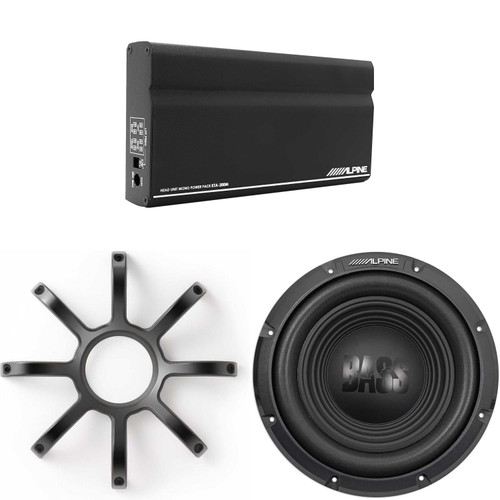

This bundle includes 1x Alpine KTA-200M Mono 400-Watt Power Pack Amplifier, 1x Alpine W10S4 10-inch Single 4 Ohm Subwoofer, and 1x Alpine KTE-10PG 10 Grill Compatible with SWA-10S4 Only.
1x Alpine KTA-200M Mono 400-Watt Power Pack Amplifier - (KTA-200M)
Alpine KTA-200M Mono 400-Watt Power Pack Amplifier
The KTA-200M fits in the open space behind Alpineās iLX-W650 7-inch mech-Less (no CD/ DVD) Audio/Video receiver to create Alpineās unique PowerStack application. The compact footprint of the amplifier (7-inch W x 1.5-inch H x 3.5-inch D) and the shallow chassis of the iLX-W650 (1.9-inch D) occupies the same depth as a traditional 2-DIN chassis, resulting in an easy, hideaway bass solution that adds more power to the sound system without taking up space.
The KTA-200M follows the same format as the KTA-450 4-Channel Power Pack Amplifier, in compact size, easy installation and overall power. Both amplifiers, while designed to āstackā behind the iLX-W650, or similar 2-DIN radio, can also be used as standalone solutions in vehicles that donāt have space for a traditional amplifier.
The ratio of power to price is unmatched in the industry, as the KTA-200M doubles its power from 200 to 400 watts with Alpineās DPP technology. During powerful, or ādynamic,ā passages of music, DPP will adapt to the needs of the music by adjusting the gain of the amplifier and delivering bursts of power that match the peak demands of the music.
New to the KTA-200M, a voltage adapting input circuit is included to maintain the maximum source signal level without clipping. This ensures that the KTA-200M can continue to produce powerful, clean bass even at higher volumes and dynamic musical passages.
ā¢ CTA-2006
ā¢ PowerStack capable with the Alpine iLX-W650
ā¢ Alpineās Class D Amplifier Circuit w/ Dynamic Peak Power (DPP)
ā¢ 200W x 1 RMS (4ā¦, 14.4V, ā¤1% THD+N)
ā¢ 200W x 1 RMS (2ā¦, 14.4V, ā¤1% THD+N)
ā¢ 400W x 1 DPP (2ā¦, 14.4V, ā¤1% THD+N)
ā¢ >85dB S/N (ref. 1W into 4ā¦)
ā¢ ā¤0.1% THD+N (ref. 10W into 2ā¦)
ā¢ Single-side 22-pin connector
ā¢ RCA inputs (selectable, Low range=0.2-4V)
ā¢ Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
1x Alpine W10S4 10-inch Single 4 Ohm Subwoofer - (W10S4)
Alpine W10S4 10-inch Single 4 Ohm Subwoofer
Overview:
10-inch single 4Ī© subwoofer
Polypropylene and mica cone with poly-foam surround
250W RMS
750W peak power handling
Frequency Response: 30Hz-200Hz
24Hz-200Hz frequency response
5-1/16-inch mounting depth
Recommended Sealed box volume: 0.83 cu. Ft.
Recommended Ported box volume: 1.51 cu. ft
Bass For All
The 2017 BASS subwoofers are engineered to be fun and loud in a budget friendly category by combining retro styling with enough efficiency to run on 250W RMS.
Performance: Efficiency & Tight Bass
An optimized magnet circuit allows more focused magnetism in the gap which results in improved efficiency. This means tighter bass control and more output!
1x Alpine KTE-10PG 10 Grill Compatible with SWA-10S4 Only - (KTE-10PG)
2-tone ABS construction
mounting hardware included
