Description
Included in this kit
This bundle includes an Alpine PWV-SB10 10" BassRev™ Powered Subwoofer Enclosure, and an Alpine RUX-KNOB.2 Remote Bass Knob.

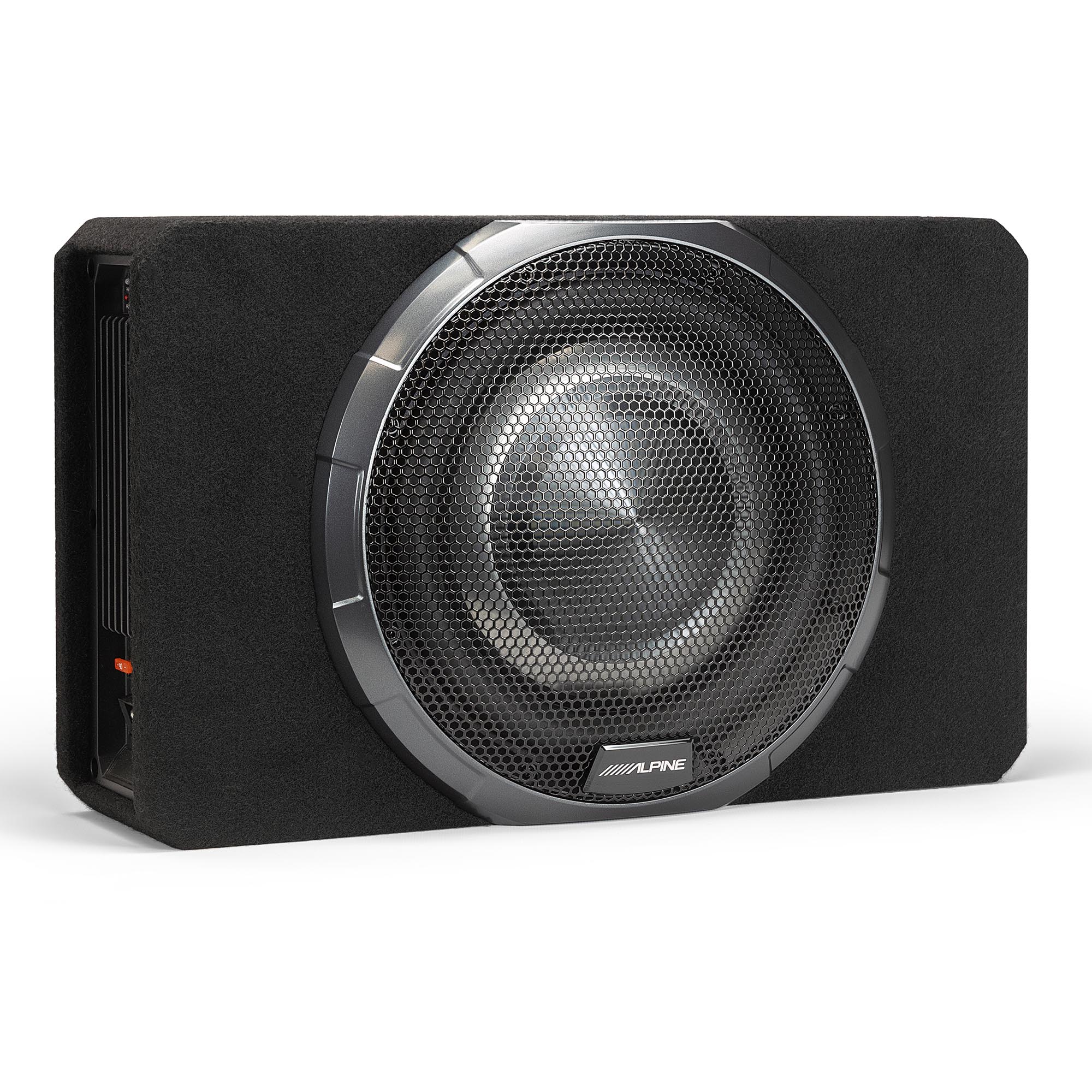

1x Alpine PWV-SB10 10" BassRev™ Powered Subwoofer Enclosure - (PWV-SB10)
Bring your music to life with the Alpine PWV-SB10, a high-performance 10" powered subwoofer built for deep, impactful bass. With a powerful built-in amplifier delivering 400W RMS (200W x 2) and a dual 4-ohm voice coil design, this subwoofer delivers strong, controlled low frequencies with impressive clarity.
Engineered with a sealed enclosure and a wide frequency response of 31–200 Hz, the PWV-SB10 ensures tight, distortion-free bass that enhances any genre of music. Fine-tune your sound with a variable low-pass filter (50–200 Hz), phase selector (0°/180°), and a remote level control for on-the-fly adjustments.
Whether you're upgrading a factory system or building a custom setup, the PWV-SB10 offers clean, powerful bass and flexible tuning in one sleek package—the perfect blend of Alpine quality and low-end performance.
Specifications:
Performance
Amplifier Power Output RMS Per Channel, Ref.: 4 ohm, 14.4V: 400 W (200 W x 2)
Speaker Diaphragm size nominal 10 inch (25 cm)
Speaker Impedance Dual Voice Coil 4 Ohm + 4 Ohm
Speaker Power Handling RMS/Peak: 200W + 200W/400W + 400W
Frequency Response +0/-3dB: 31-200 Hz
Enclosure Type: Sealed
Control
Input Impedance: >10 kOhms
Input Sensitivity RCA Input Ref.: Rated Power into 4 Ohms: Hi Level: 0.5 - 10V. Lo level: 0.2 - 2.0V
Phase Selector 2 position: 0°/180°
Crossover Variable LPF: 50 - 200 Hz (-24 dB/oct.)
Remote Level Linear Attenuation 0 to -20dB
General
Dimensions
Width: 470mm (18 1/2")
Height: 282 mm (11")
Depth without grille: 126 mm (5")
Depth including grille: 170 mm (6 3/4")
Weight: 9.7 kg (21 lb 6.4 oz)
1x Alpine RUX-KNOB.2 Remote Bass Knob - (RUX-KNOB.2)
The optional RUX-KNOB remote bass control knob plugs right in to the MRX-M50, MRX-M100, MRX-V60, PDX-M12 and PDX-M6 mono models for quick direct subwoofer control to make bass adjustments on the fly.
Compatible Models
The RUX-KNOB is specifically designed as the controller for use with any of the following PDX Amplifiers: MRX-M50, MRX-M100, MRX-V60, PDX-M12, and PDX-M6.
From the Inside
With the RUX-KNOB, get full control over your PDX-M6 or PDX-M12 amplifier, conveniently from inside the car. With the RUX-KNOB installed inside the vehicle cabin, easily adjust the bass gain of your amp while seated inside.
Multiple Amp Control
Yes, there is a way to control multiple amps from just one RUX-KNOB controller – with the use of simple telephone cord adapters (which are readily available at many retailers).
