Description
Included in this kit
This bundle includes an ATG Audio Moto/Marine Monoblock Subwoofer Amplifier 500W @ 2-Ohms - ATGM1, and an ATG Audio 12" Subwoofer 4-Ohm DVC 1500W - ATG12W1500.
1x ATG Audio Moto/Marine Monoblock Subwoofer Amplifier 500W @ 2-Ohms - ATGM1 - (ATGM1)
This powerful amplifier delivers clear, crisp sound even in the harshest marine environments. With its powerful 500W peak power and 2Ω mono load capability, this amplifier can easily drive even the most demanding subwoofers. The Class D circuitry ensures that the amplifier delivers clean, accurate sound, while the marine grade components help to keep the amplifier cool even under heavy loads. The 500W Class D Monoblock Mini Amplifier also features a variety of features that make it easy to use and customize, including a variable low pass crossover, bass boost, and sub-sonic filter.
Features -
• Powerful sound
• Reliable construction
• User-friendly features
Specifications -
• Output Power @ 14.4 VDC, 2-Ohms 1 x 500W
• Output Power @ 14.4 VDC, 4-Ohms 1 x 250W
• Power Supply Input Voltage 12.0VDC to 14.8VDC
• Mono Class D Technology
• 2-Ohms Mono load Capability
• Marine Grade Nickel Plated RCA connectors
• Variable 12db Low-pass crossover
• Selectable 12dB Bass Boost
• Variable Sub-sonic Filter
• Marine Grade Conformal Coated Double Sided PCB
• Compatible with any 4/2-Ohms Subwoofer
• THD (1KHz @ 4-Ohms): 0.04%
• Bandwidth (-3 dB): 18Hz - 22KHz
• Damping Factor (1KHz @ 4-Ohms): 100
• S/N ratio (as weighted @ 1 Volt): 99db
• Input Sensitivity: .0.2MV - 6V
• Minimum Load Impedance: 2-Ohms
• Low-Pass filter range: 50Hz - 150Hz
• Sub-Sonic Filter Range: 15Hz - 50Hz

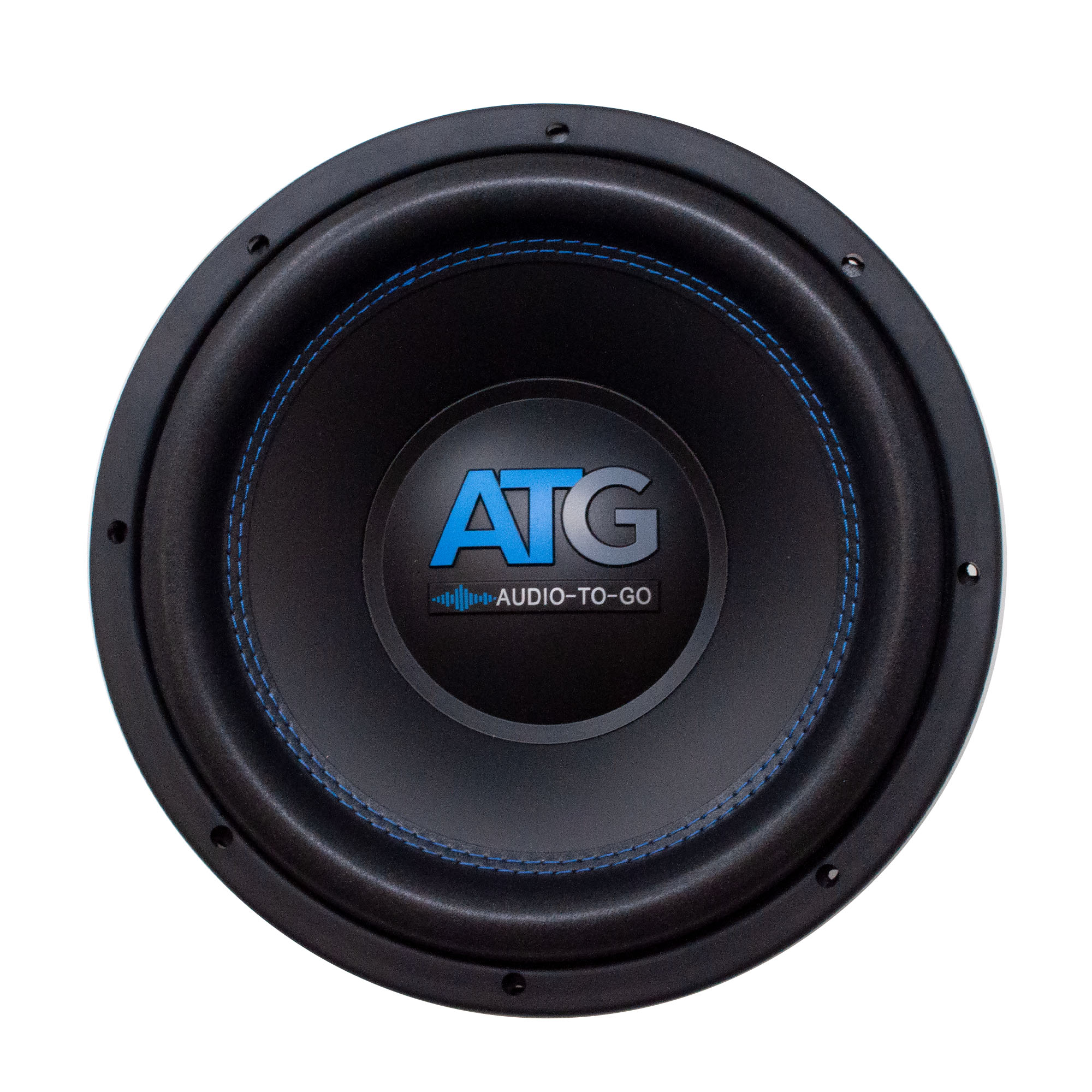

1x ATG Audio 12" Subwoofer 4-Ohm DVC 1500W - ATG12W1500 - (ATG12W1500)
Features -
• 12" 4 Ohm DVC Subwoofer
• Maximum Power - 1500 Watts
• Nominal Power - 750 Watts
• 2" 4 Layer Aluminum 4 Ohm DVC
• Heavy Gauge Stamped Steel Basket
• High Temperature Voice Coil
• QEMT Aluminum Voice Coil Former
• High-Excursion Foam Surround
• Poly Coated Paper Cone
• Injection Molded PP Dust Cap
• Proprietary Full Round PVC Gasket
• Heavy Gauge Spring Terminal
• Master Carton: 2
Specifications -
• Manufacturer: ATG Audio To Go
• Series: ATG Core
• Subwoofer Size: 12"
• Nominal Impedance: 4-Ohm
• Maximum Power: 1500 Watts
• 4 Layer Aluminum: 2” 4 Layer Aluminum 4 Ohm DVC
• Stamped Steel Basket: Heavy Gauge Stamped Steel Basket
• Voice Coil: QEMT Aluminum Voice Coil Former
