Description
Included in this kit
This bundle includes an Audison APK 130 Prima Series 5.25" 2-Way Component Speaker Set; AP 1 + AP 5 + Grilles, and a Stinger RKFR5 Roadkill Fast Rings 5" & 5.25".

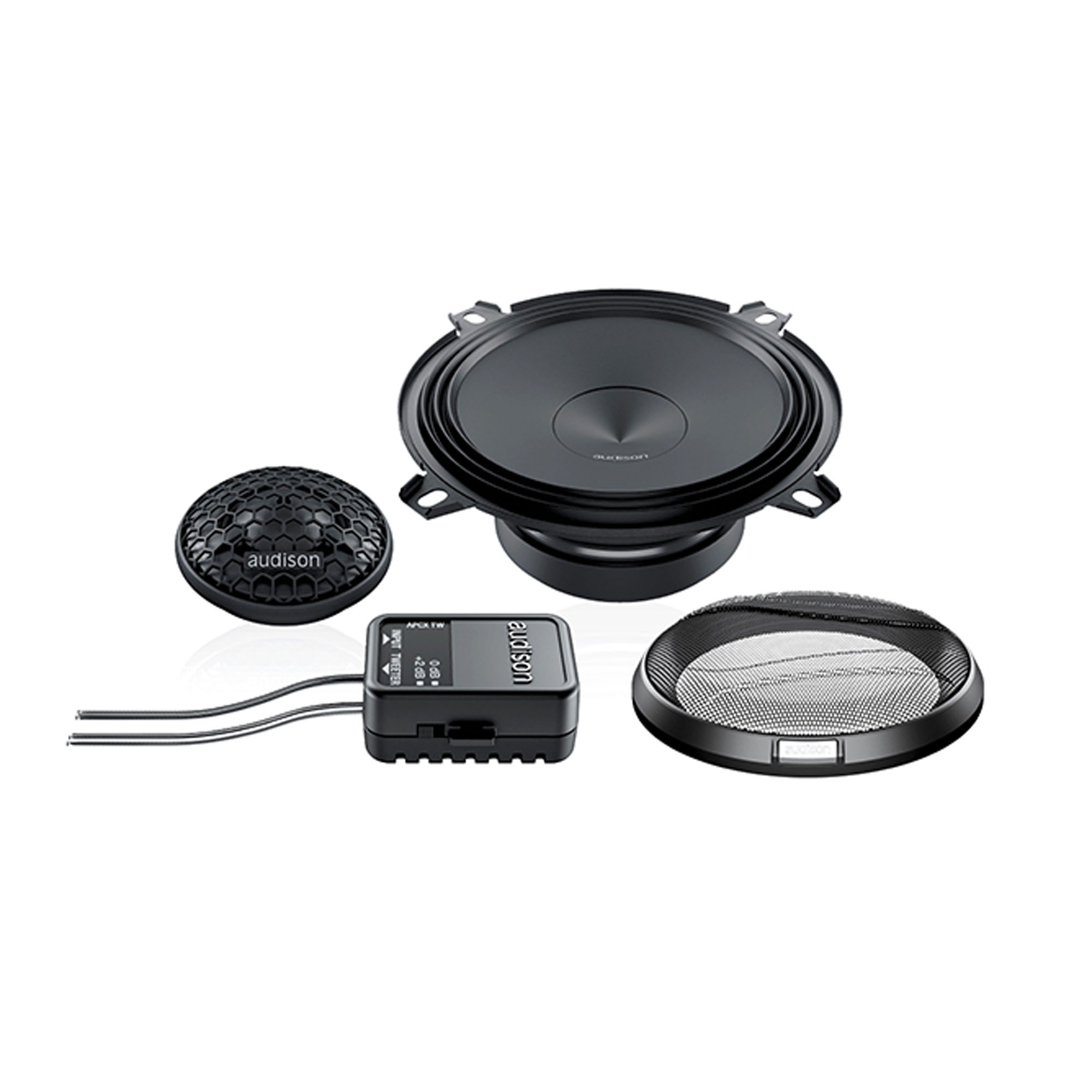

1x Audison APK 130 Prima Series 5.25" 2-Way Component Speaker Set; AP 1 + AP 5 + Grilles - (APK130)
APK 130 - KIT 2Way AP 1+AP 5+Grilles
Two way system features AP 1 tweeter and AP 5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener. To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.
Features -
• AP1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
• AP 1 tweeter with acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10kHz-13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
• APCX TW very compact tweeter passive crossover optimised for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
• Passive crossovers are supplied with “OEM Integration compliant” fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
• AP 5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
• AP 5 woofer with water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
• AP5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
• AP5 woofer with TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
1x Stinger RKFR5 Roadkill Fast Rings 5" & 5.25" - (RKFR5)
Our 3-piece foam ring speaker enhancement system solves the problem of acoustically coupling aftermarket speakers to factory speaker openings. The RoadKill Fast Rings kit increases speaker output, improves the projection of the audio into the car cabin and reduces unwanted rear reflections that can degrade the sound
3-piece Foam Ring System fits 5" & 5.25" Speaker
Reduce panel vibration
Increase mid-bass response
Enhanced audio output efficiency
Minimize destructive wave interference
Help prevent front and rear wave cancellation
Easy installation with peel & stick application
Maximize performance for speaker installations
Sold in pairs
Gasket for speaker mounting to the baffle plate surface
Middle ring to mount around the outer edge of the speaker
Circular foam pad goes behind the speaker to absorb unwanted reflections on hard surfaces, such as inside a car door
