Description
Included in this kit
This bundle includes 2x Audison AP BMW S8-4 Prima Series 8" (200mm) Subwoofer 4Ī© for BMW, an Audison AP BMW K4M KIT Prima Series 4 inch (100mm) 2-Way Component Speaker Set TW + MID + ACC SmallBasket, and an Audison AP BMW X4M Prima Series Small Basket 4 inch (100mm) 2-Way Coaxial Speakers (Pair).

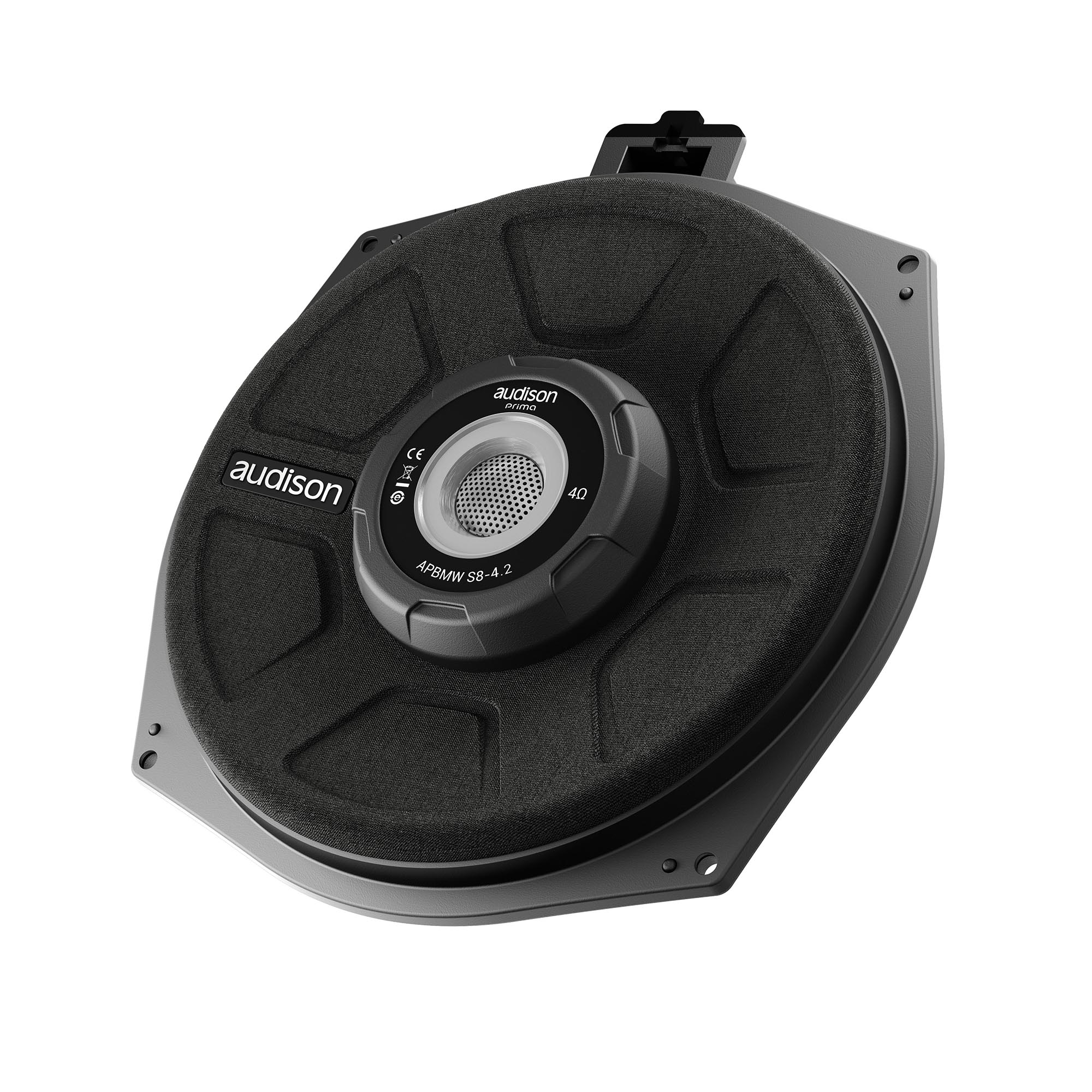

2x Audison AP BMW S8-4 Prima Series 8" (200mm) Subwoofer 4Ī© for BMW - (APBMW-S8-4.2)
The 200 mm (8 in.) APBMW S subwoofers allow a direct replacement of the OEM speakers underneath the front seats, making the most of the factory acoustic load and generating deep and crisp low frequencies. The Neodymium magnet allows for greater power and control than ferrite while maintaining the depth of installation unaltered.
Features
Developed with electroacoustic parameters customized for BMW-Mini to increase listening engagement, through powerful and crisp low frequencies, exploiting the acoustic load provided by the factory box.
Neodymium Magnetic group with an inverted acoustic structure featuring an internal cone, to maximize performance while minimizing bulk and weight.
38 mm voice coil wound on aluminum support for considerable power dissipation and stability even during high excursions.
Two 5 mm gaskets were provided for OEM placements.
2-ohm configuration for maximum output in combination with AP 8.9 bit in active multi-amplification.
Technical Specs
Nominal diameter: 200 mm (8 in)
Impedance: 4 Ohm
Power Handling - Peak: 300 W
Power Handling - Continuous: 150 W
Sensitivity: 88 dB
Frequency Response: 40-500 Hz
Voice Coil Ć: 50 mm
Chassis Material: PLASTIC
Magnet Material: NEODYMIUM
Magnet size D x d x h: 48x18x7 mm
Voice Coil Material: COPPER
Cone Material: PRESSED PAPER CONE
Surround Material: RUBBER
Xmax: 7 mm (0.28 in)
Xmech: 10 mm (0.39 in)
Driver Displacement Volume: 1.2 l (0.042 ft)
1x Audison AP BMW K4M KIT Prima Series 4 inch (100mm) 2-Way Component Speaker Set TW + MID + ACC SmallBasket - (APBMW-K4M-KIT)
APBMW K4M -KIT 2Way TW+MID+ACC for BMW SmallBasket
The two-way APBMW K4M kit creates a three-dimensional sound stage and give the musical message the essential timbre accuracy.
The 100 mm (4ā³) midrange is provided with a water-repellent pressed-paper cone, a material providing natural sound. It features a low resonance frequency that allows hi-pass cut-off in the 150-200 Hz range for an excellent mid-low reproduction.
The 25 mm coil and Tetolon dome tweeter features a great extension on both medium and high frequencies and is optimized for off-axis output, for an extended sound stage in the three dimensions, that amplifies the perception of reality in the car cabin.
Features -
ā¢ Neodymium Magnetic group - To maximize performance while minimizing bulk and weight.
ā¢ 25 mm (1") fiberglass woofer voice coil - For high power dissipation and stiffness.
ā¢ Waterproof pressed-paper cone - For medium natural frequencies free from any plastic resonance.
ā¢ Aluminium die-cast basket - With Plug & Play connectors.
ā¢ 30 cm extension provided - Featuring Plug & Play connectors, for high flexibility of installation.
ā¢ Damping removable motor cover - Specially developed for the upgrade of BMW-Mini featuring factory 2 way systems
ā¢ To create an extended sound stage in the three dimensions, amplifying the perception of reality in the car cabin.
ā¢ 25 mm Tetolon coil tweeter - With dispersion characteristics optimized with FEM simulations.
ā¢ Tweeter support supplied - For Plug&Play OEM placements.
ā¢ Crossover equipped with high quality components - With Plug&Play connections.
1x Audison AP BMW X4M Prima Series Small Basket 4 inch (100mm) 2-Way Coaxial Speakers (Pair) - (APBMW-X4M)
APBMW X4M -SET COAX 2Way 100mm for BMW SmallBasket
The APBMW X coaxials have been designed for BMW-MINI models that do not allow the installation of a two-way system on the front or the upgrade of the rear system. The 100 mm (4ā³) APBMW X4M, with basket and fixing screws dedicated to the specific car model, feature a water-repellent pressed-paper cone for natural and color-free mid-range frequencies. The 20 mm coil and Tetolon dome tweeter, a material boasting lightness and damping properties, offers optimized dispersion features for OEM placement, elevating the sound stage to a realistic level.
Features -
ā¢ 450 cm long - The cable is 450 cm long to reach the vehicle boot, where the Audison Prima AP bit amplifier is installed
ā¢ For BMW-Mini models with basic Sound System - Specially developed for BMW-Mini models that do not allow the installation of a two-way system on the front or for rear seat upgrade.
ā¢ Neodymium Magnetic group - To maximize performance while minimizing bulk and weight.
ā¢ 25 mm (1") fiberglass woofer voice coil - For high power dissipation and stiffness.
ā¢ Waterproof pressed-paper cone - For medium natural frequencies free from any plastic resonance.
ā¢ 20 mm (0.8") Tetolon coil tweeter - Dispersion optimized with FEM simulations.
ā¢ Aluminium die-cast basket - With Plug & Play connectors.
ā¢ 30 cm extension provided - Featuring Plug & Play connectors, for high flexibility of installation.
ā¢ Damping removable motor cover
