Audison BM-DSP-AF-06 DSP Amp with Replacement Front Speakers and Underseat Woofer and Plug-n-Play Integration Harnesses compatible with 14-18 BMW 3-Series F80 Base Audio system

Included in this kit

---

This bundle includes an Audison AP BMW K4E KIT Prima Series 4 inch (100mm) 2-Way Component Speaker Set For Select BMW-Mini LargeBasket, an Audison AF-C8.14-bit 8-Channel Amplifier with 14-Channels of DSP - 8 x 65W at 4Ω, an Audison AP T-H BMW01 Prima Series T-Harness Compatible With Select Bmw, an Audison AP 560P&P I/O Prima Series Iso Extention In/Out 560cm/220", an Audison AP BMW BIAMP 1 Prima Series Underseat T-H set 450CM/177" 2PCS (Pair), and 2x Audison AP BMW S8-4 Prima Series 8" (200mm) Subwoofer 4Ω for BMW.

1x Audison AP BMW K4E KIT Prima Series 4 inch (100mm) 2-Way Component Speaker Set For Select BMW-Mini LargeBasket - (APBMW-K4E-KIT)

APBMW K4E -KIT 2Way TW+MID+ACC for BMW LargeBasket

The two-way APBMW K4E kit creates a three-dimensional sound stage and give the musical message the essential timbre accuracy.
The 100 mm (4″) midrange is provided with a water-repellent pressed-paper cone, a material providing natural sound. It features a low resonance frequency that allows hi-pass cut-off in the 150-200 Hz range for an excellent mid-low reproduction.
The 25 mm coil and Tetolon dome tweeter features a great extension on both medium and high frequencies and is optimized for off-axis output, for an extended sound stage in the three dimensions, that amplifies the perception of reality in the car cabin.

Features -
• Specially developed for the upgrade of BMW-Mini featuring factory 2 way systems, to create an extended sound stage in the three dimensions, amplifying the perception of reality in the car cabin;
• Neodymium Magnetic group to maximize performance while minimizing bulk and weight;
• 25 mm (1") fiberglass woofer voice coil for high power dissipation and stiffness;
• Waterproof pressed-paper cone for medium natural frequencies free from any plastic resonance;
• BMW-Mini compatible aluminium die-cast basket with Plug & Play connectors;
• 25 mm Tetolon coil tweeter with dispersion characteristics optimized with FEM simulations;
• Tweeter support supplied for Plug&Play OEM placements;
• 30 cm extension provided featuring Plug & Play connectors, for high flexibility of installation; Damping removable motor cover; Crossover equipped with high quality components and Plug&Play connections.

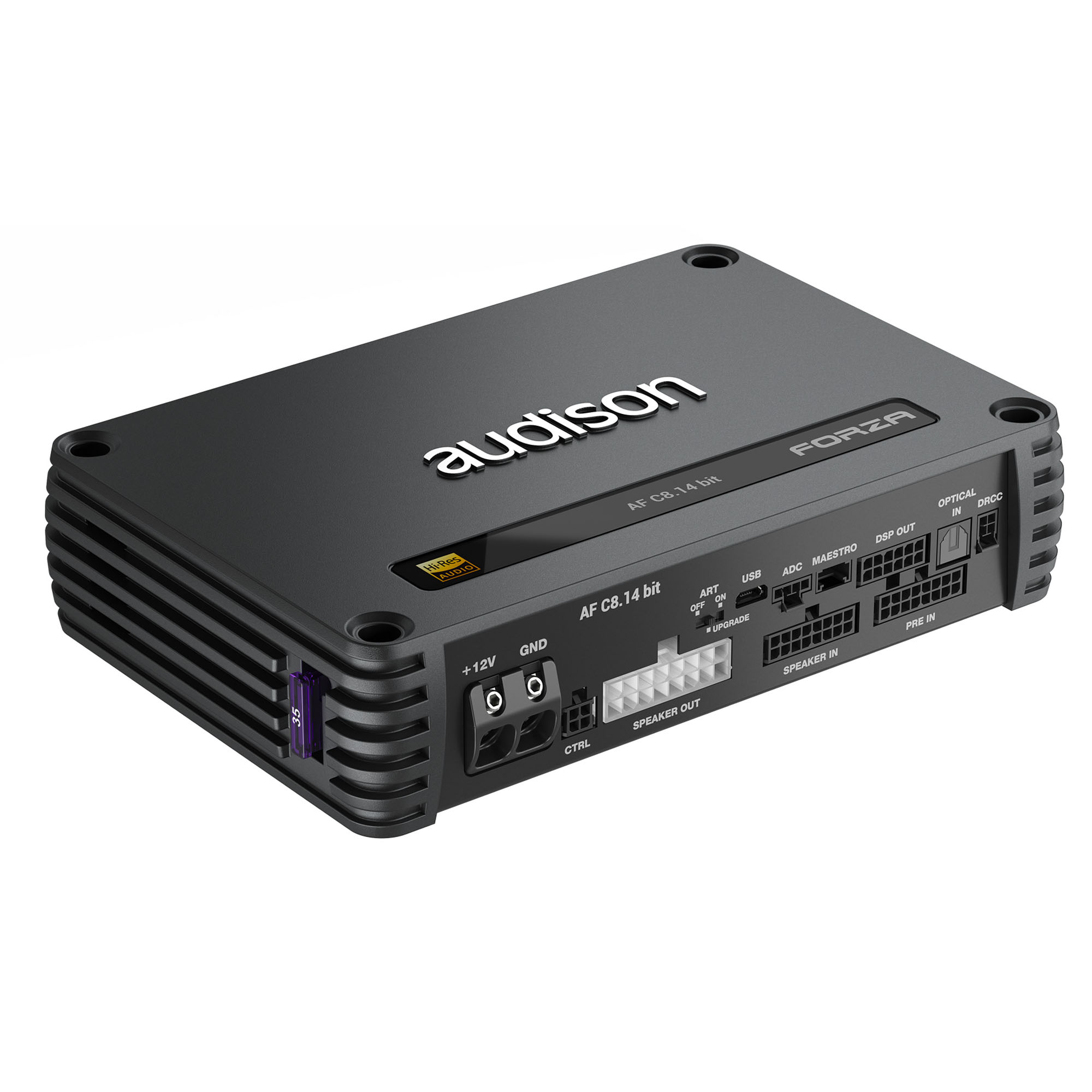

1x Audison AF-C8.14-bit 8-Channel Amplifier with 14-Channels of DSP - 8 x 65W at 4Ω - (AF-C8.14-bit)

Audiophile Sound You Expect From Audison -
AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!

Next-Generation Tuning Capabilities -
Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph, and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The six processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.

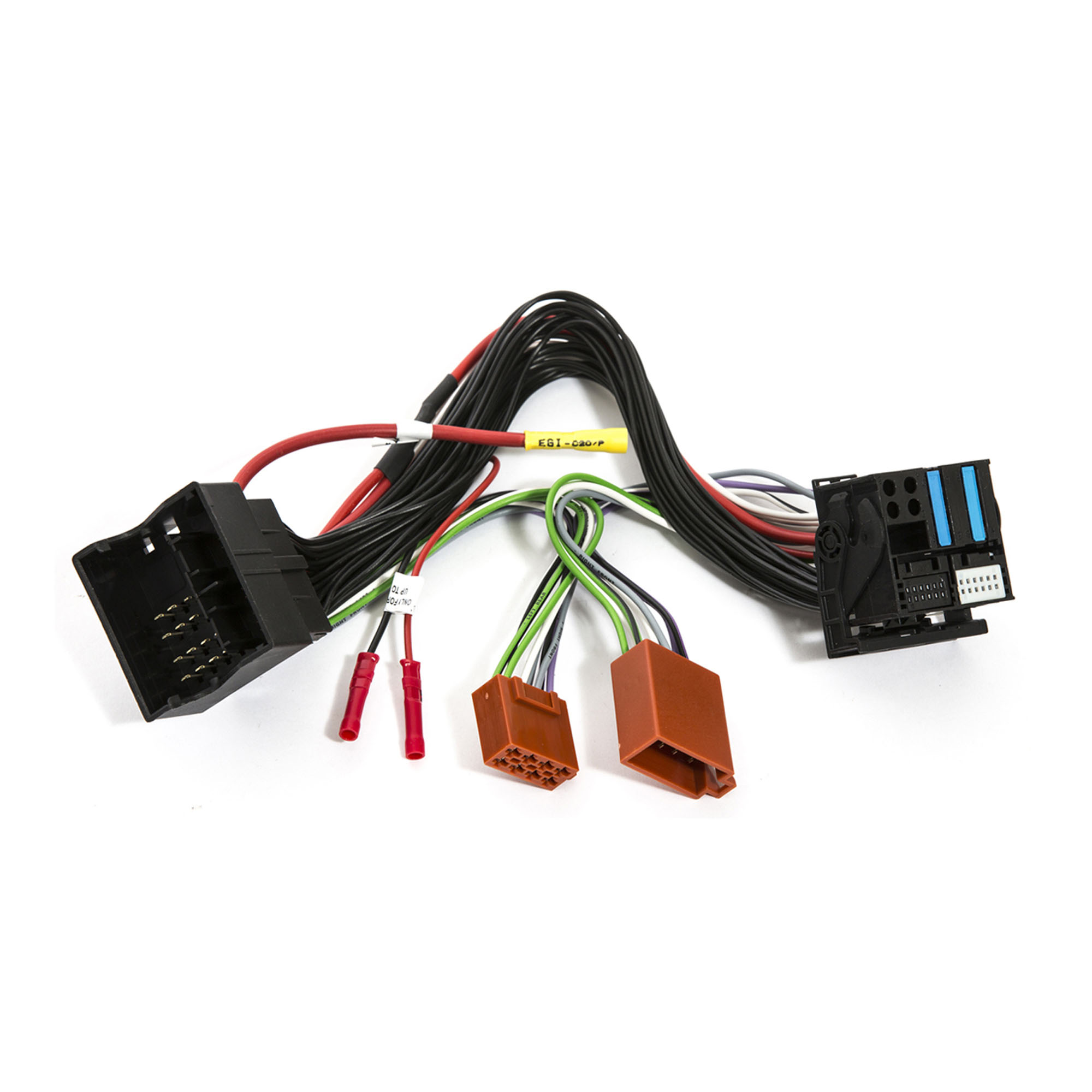

1x Audison AP T-H BMW01 Prima Series T-Harness Compatible With Select Bmw - (AP-T-H-BMW01)

AP T-H BMW01 - PRIMA T-HARNESS BMW

T-Harness “DCC” is the Plug&Play solution for BMW to integrate Audison Prima with the factory car audio system. The battery positive is taken from the head unit without the need of reaching the engine compartment thanks to the DCC* solution. The DCC solution, (Direct Cockpit Current) can be used combined with the AP bit amplifiers’ feature which controls the amplifier absorption peaks, protecting the car power supply system.

Features -
• Designed specifically for your vehicle for maximum OEM integration.
• Connection to the AP Extension cable through ISO connectors
• Possibility to supply power to the amplifier via the direct cockpit current system without the need of routing the cable through the engine compartment (with Audison Prima DCC solution).
• ACC wire to re-launch ignition key signal to turn on / off an external device in those vehicles featuring ignition key connection wire (ACC wire), see compatibility list

1x Audison AP 560P&P I/O Prima Series Iso Extention In/Out 560cm/220" - (AP-560P-P-I/O)

AP 560P&P I/O - ISO EXTENTION IN/OUT 560CM/220"

Prima extension cable with Plug&Play connections allows total freedom in positioning the AP bit amplifiers. Two extension typologies are available: input only, to only send the audio signal coming from the head unit to the AP bit amplifiers, or input/output, transmit also the AP bit amplifiers’ output signal to the factory audio system. To do so, the AP Extension Cables IN/OUT needs to be installed together with the AP Speakers Output Cables (see following paragraph). By use of the input/output extension, the installer is free to choose which configuration to adopt. Actually, thanks to the AP Extension cables, each single channel of the AP bit amplifier is sent to any of the speakers in the car, so the installer is free to carry out the desired configuration. For example: standard front (2ch TW+WF), multi-amplified front (2ch TW + 2ch WF), multi-amplified front with 4 bridged channels (130W @ 4ohm) for the woofers (2ch TW + 4ch bridge WF) and all the other possible combinations.

Features -
• Built with twisted cables for effective elimination of disturbances.
• Three different lengths (1,6 mt, 2,6 mt and 5,6 mt) suitable for any vehicle.
• Cut-proof protective shield
• High flexibility for maximum ease of installation.
• In/Out double connector to also receive the amplified signal of the AP bit amplifiers.

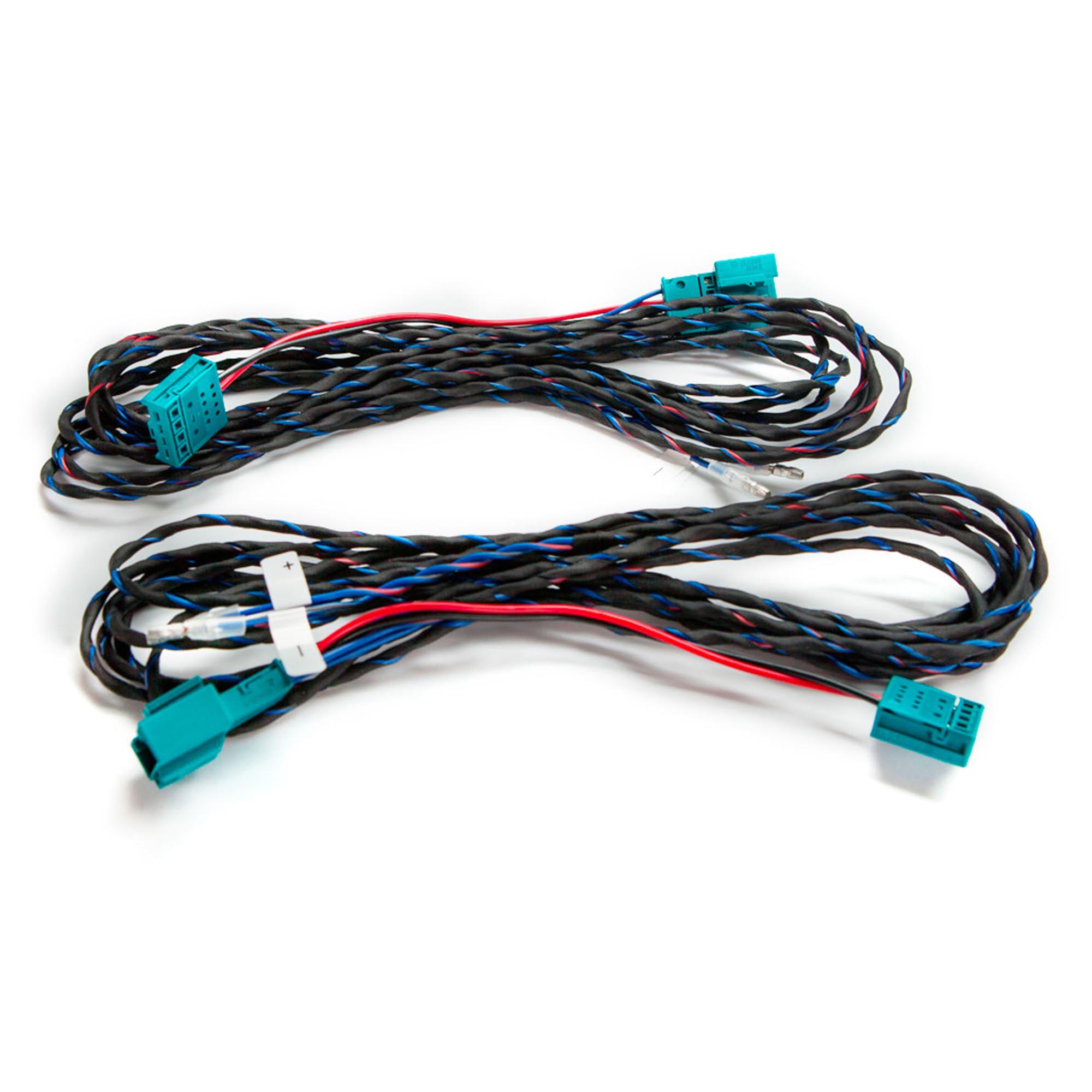

1x Audison AP BMW BIAMP 1 Prima Series Underseat T-H set 450CM/177" 2PCS (Pair) - (APBMW-BIAMP-1)

APBMW BIAMP 1 - UNDERSEAT T-H SET 450CM/177" 2PCS

This Plug & Play harness provides the ability to bi-amplify the front speakers of BMW and MINI vehicles that are not provided with an OEM amplifier. The APBMW BIAMP 1 is installed under the vehicle seat and is connected to the subwoofers. The “T” connection type allows the user to separately route the signal to the front mid-woofer housed in the car door and to the sub underneath the seat, without the need to cut the OEM cables. The cable is 450 cm long to reach the vehicle boot, where the Audison Prima AP bit amplifier is installed. The package contains a pair of cables, one for the left channel and one for the right channel.

Features -
Made for BMW and Mini - Retrieve the OEM source front and rear stereo audio signal
Plug & Play - This Plug & Play harness provides the ability to bi-amplify the front speakers of BMW and MINI vehicles that are not provided with an OEM amplifier
Subwoofer connection - Take the front speaker output signal from the OEM head unit through the under-seat woofer connector and route it to the AP bit amplifier input.
T connection - The “T” connection type allows the user to separately route the signal to the front mid-woofer housed in the car door and to the sub under the seat, without the need to cut the OEM cables
450 cm long - The cable is 450 cm long to reach the vehicle boot, where the Audison Prima AP bit amplifier is installed
Sold in pairs - The package contains a pair of cables, one for the left channel and one for the right channel

2x Audison AP BMW S8-4 Prima Series 8" (200mm) Subwoofer 4Ω for BMW - (APBMW-S8-4.2)

The 200 mm (8 in.) APBMW S subwoofers allow a direct replacement of the OEM speakers underneath the front seats, making the most of the factory acoustic load and generating deep and crisp low frequencies. The Neodymium magnet allows for greater power and control than ferrite while maintaining the depth of installation unaltered.

Features
Developed with electroacoustic parameters customized for BMW-Mini to increase listening engagement, through powerful and crisp low frequencies, exploiting the acoustic load provided by the factory box.
Neodymium Magnetic group with an inverted acoustic structure featuring an internal cone, to maximize performance while minimizing bulk and weight.
38 mm voice coil wound on aluminum support for considerable power dissipation and stability even during high excursions.
Two 5 mm gaskets were provided for OEM placements.
2-ohm configuration for maximum output in combination with AP 8.9 bit in active multi-amplification.

Technical Specs
Nominal diameter: 200 mm (8 in)
Impedance: 4 Ohm
Power Handling - Peak: 300 W
Power Handling - Continuous: 150 W
Sensitivity: 88 dB
Frequency Response: 40-500 Hz
Voice Coil Ø: 50 mm
Chassis Material: PLASTIC
Magnet Material: NEODYMIUM
Magnet size D x d x h: 48x18x7 mm
Voice Coil Material: COPPER
Cone Material: PRESSED PAPER CONE
Surround Material: RUBBER
Xmax: 7 mm (0.28 in)
Xmech: 10 mm (0.39 in)
Driver Displacement Volume: 1.2 l (0.042 ft)
