Description
Included in this kit
This bundle includes an Audison AF-M5.11-bit 1200W 5-Channel Amplifier With DSP, 100W x 4 + 400W at 4-Ohms, 150W x 4 + 600W at 2-Ohms, an Audison AP T-H MBP01 Prima Series T-Harness Compatible With Select Mb-Porsche, an Audison AP 560P&P I/O Prima Series Iso Extention In/Out 560cm/220", and an Audison APBX 10DS Prima Series 10" 4Ī© DVC Sealed Subwoofer Enclosure System.
1x Audison AF-M5.11-bit 1200W 5-Channel Amplifier With DSP, 100W x 4 + 400W at 4-Ohms, 150W x 4 + 600W at 2-Ohms - (AF-M5.11-bit)
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON AF M5.11 bit boasts five high-fidelity amplified channels 100W x 4 + 400W @4Ī©*, 150WP x 4 + 600W @2Ī©* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D ā in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 2 + 400W @4Ī©*, guaranteeing flexible and powerful performance. Support for the Audison B-CONās Absolute Volume function guarantees maximum bit depth, even with wireless connections!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
POWER SUPPLY
Nominal power supply voltage / fuse: 11 Ć· 15 VDC / 2 x 30A
Pulse operating voltage: 6.5 Ć· 17.5 VDC
Idling current: 1.5 A
Standby current draw: 1.5 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 53.4 A
Remote IN: 4 Ć·15 VDC (1 mA)
Remote OUT: 6.5 Ć·15 VDC (150 mA)
ART ā Automatic Remote Turn on/off from Speaker-In 1.5V DC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ī©, All Channels: 80.5%
AMPLIFIER STAGE
Distortion ā THD+N @ 1 KHz, 4Ī©, 70% Rated Power: 0.02%
Damping factor @ 100 kHz , 4Ī©, 2 VRMS SUB Channel): 140
Damping factor @ 1 kHz , 4Ī©, 2 VRMS: 140
Bandwidth @ -3 dB: 10 Hz Ć· 42 kHz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98 dBA
S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
Minimum load impedance: 5Ch: 2Ī©, 3Ch: 4Ī© + 4Ī© + 2Ī©
Output Continuous Power (RMS) @14.4 VDC, 1% THD:
ā¢ 5 Ch @ 4Ī©: 100 W x 4 + 400 W x 1
ā¢ 5 Ch @ 2Ī©: 150 W x 4 + 600 W x 1
ā¢ 3 Ch (Bridge 1/2; 3/4) @ 4Ī©: 300 W x 2 + 400 W x 1
ā¢ 3 Ch (Bridge 1/2; 3/4) @ 4Ī© / 2Ī©: 300 W x 2 + 600 W x 1

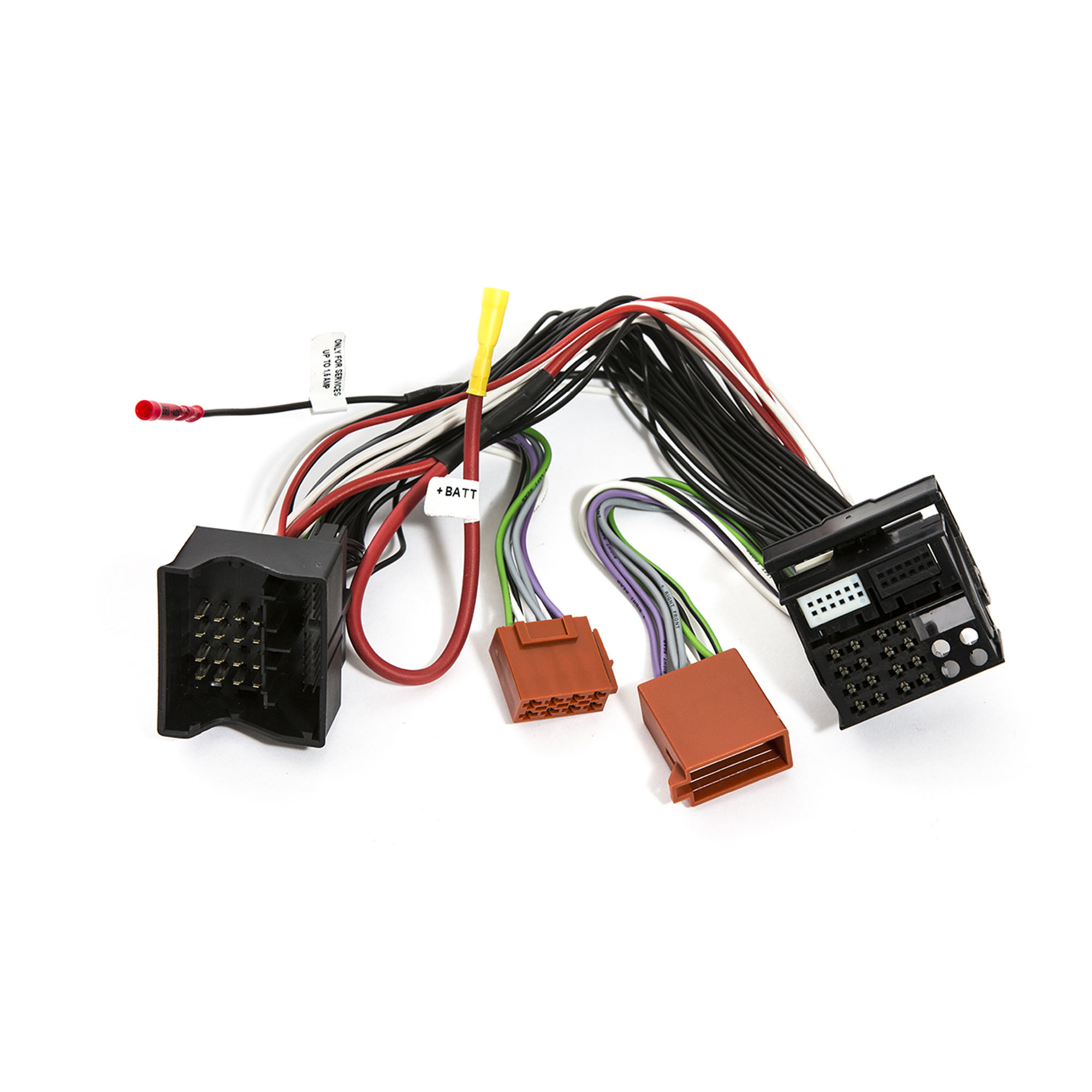

1x Audison AP T-H MBP01 Prima Series T-Harness Compatible With Select Mb-Porsche - (AP-T-H-MBP01)
AP T-H MBP01 - PRIMA T-HARNESS MB-PORSCHE
T-Harness āDCCā is the Plug&Play solution for MB-Porsche to integrate Audison Prima with the factory car audio system. The battery positive is taken from the head unit without the need of reaching the engine compartment thanks to the DCC* solution. The DCC solution, (Direct Cockpit Current) can be used combined with the AP bit amplifiersā feature which controls the amplifier absorption peaks, protecting the car power supply system.
Features -
ā¢ Designed specifically for your vehicle for maximum OEM integration.
ā¢ Connection to the AP Extension cable through ISO connectors
ā¢ Possibility to supply power to the amplifier via the direct cockpit current system without the need of routing the cable through the engine compartment (with Audison Prima DCC solution).
ā¢ ACC wire to re-launch ignition key signal to turn on / off an external device in those vehicles featuring ignition key connection wire (ACC wire), see compatibility list
1x Audison AP 560P&P I/O Prima Series Iso Extention In/Out 560cm/220" - (AP-560P-P-I/O)
AP 560P&P I/O - ISO EXTENTION IN/OUT 560CM/220"
Prima extension cable with Plug&Play connections allows total freedom in positioning the AP bit amplifiers. Two extension typologies are available: input only, to only send the audio signal coming from the head unit to the AP bit amplifiers, or input/output, transmit also the AP bit amplifiersā output signal to the factory audio system. To do so, the AP Extension Cables IN/OUT needs to be installed together with the AP Speakers Output Cables (see following paragraph). By use of the input/output extension, the installer is free to choose which configuration to adopt. Actually, thanks to the AP Extension cables, each single channel of the AP bit amplifier is sent to any of the speakers in the car, so the installer is free to carry out the desired configuration. For example: standard front (2ch TW+WF), multi-amplified front (2ch TW + 2ch WF), multi-amplified front with 4 bridged channels (130W @ 4ohm) for the woofers (2ch TW + 4ch bridge WF) and all the other possible combinations.
Features -
ā¢ Built with twisted cables for effective elimination of disturbances.
ā¢ Three different lengths (1,6 mt, 2,6 mt and 5,6 mt) suitable for any vehicle.
ā¢ Cut-proof protective shield
ā¢ High flexibility for maximum ease of installation.
ā¢ In/Out double connector to also receive the amplified signal of the AP bit amplifiers.

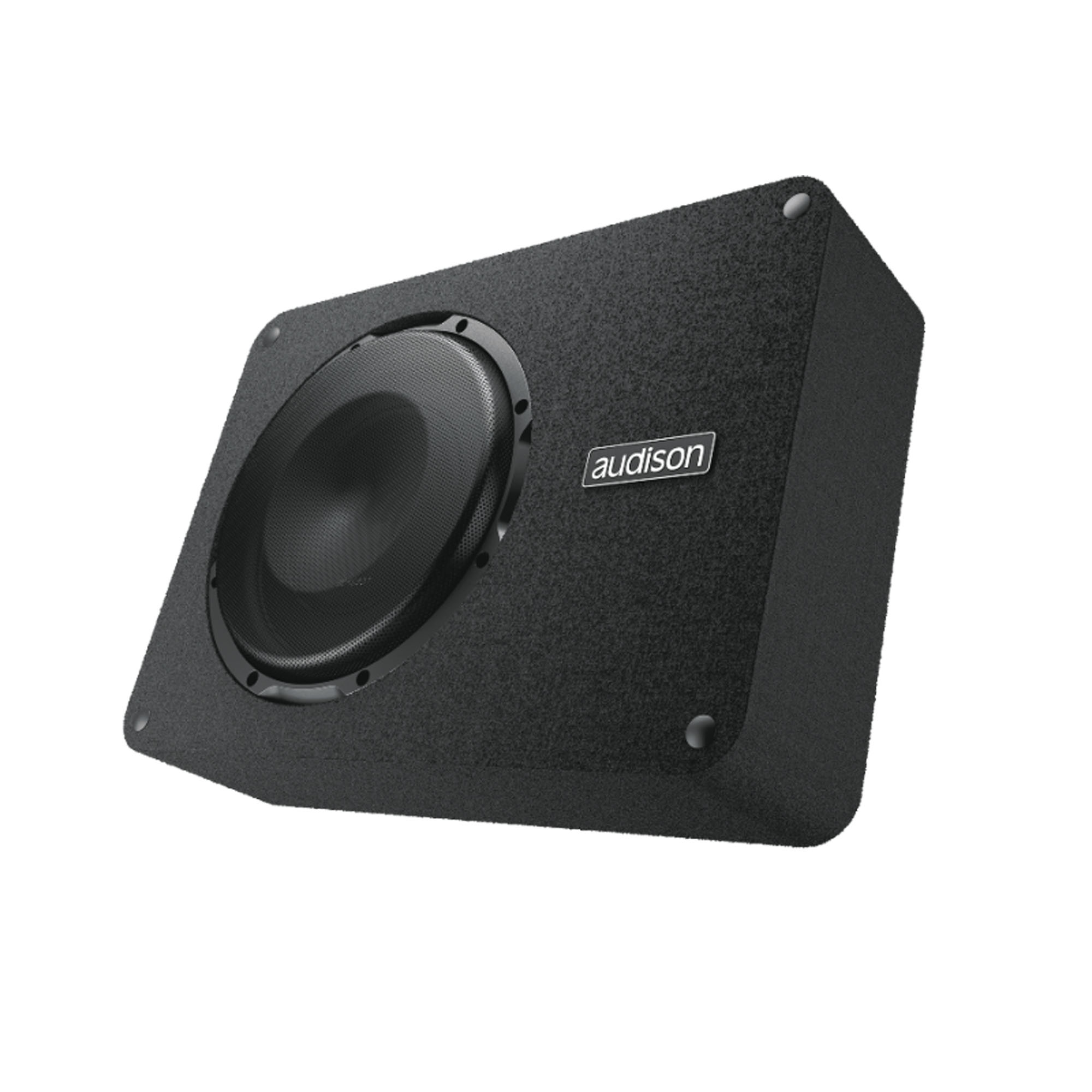

1x Audison APBX 10DS Prima Series 10" 4Ī© DVC Sealed Subwoofer Enclosure System - (APBX-10DS)
APBX 10 DS - SUB BOX SEALED 250mm 4+4Ohm
The APBX 10 DS, a 10ā subwoofer loaded in a 12-litres sealed enclosure, is the lineās āflagshipā. It is dedicated to the highest performing Prima systems, using the AP1 D amplifier for the sub section. The speakerās mechanical excursion of more than 18 mm provides for incredible authority, while the refined Thiele&Small parameters set-up provides the ideal balance for all music genres.
Features -
ā¢ Ultra-low profile (5.6 in. / 142 mm) box with sealed design perfectly tuned to fully exploit the APS 10 D driver.
ā¢ 2SĀ² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
ā¢ Leveling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
ā¢ SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
ā¢ Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
ā¢ Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way).
ā¢ Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
ā¢ Water-repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
ā¢ Specifically developed to be combined with either the AP8.9 bit (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D (2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
