Audison TOY-DSP-AF-01 4 Ch 600W DSP Amplifier for OEM Speakers with Plug-N-Play Integration Harnesses compatible with 01-18 Toyota Highlander

Included in this kit

---

This bundle includes an Audison AP 560P&P I/O Prima Series Iso Extention In/Out 560cm/220", an Audison Forza AF C4.10 bit 4 CH Amplifier With 10 Channels DSP - 4 x 90W at 4Ω, and an Audison AP T-H TOL01 Prima Series T-Harness Compatible With Select Toyota-Lexus.

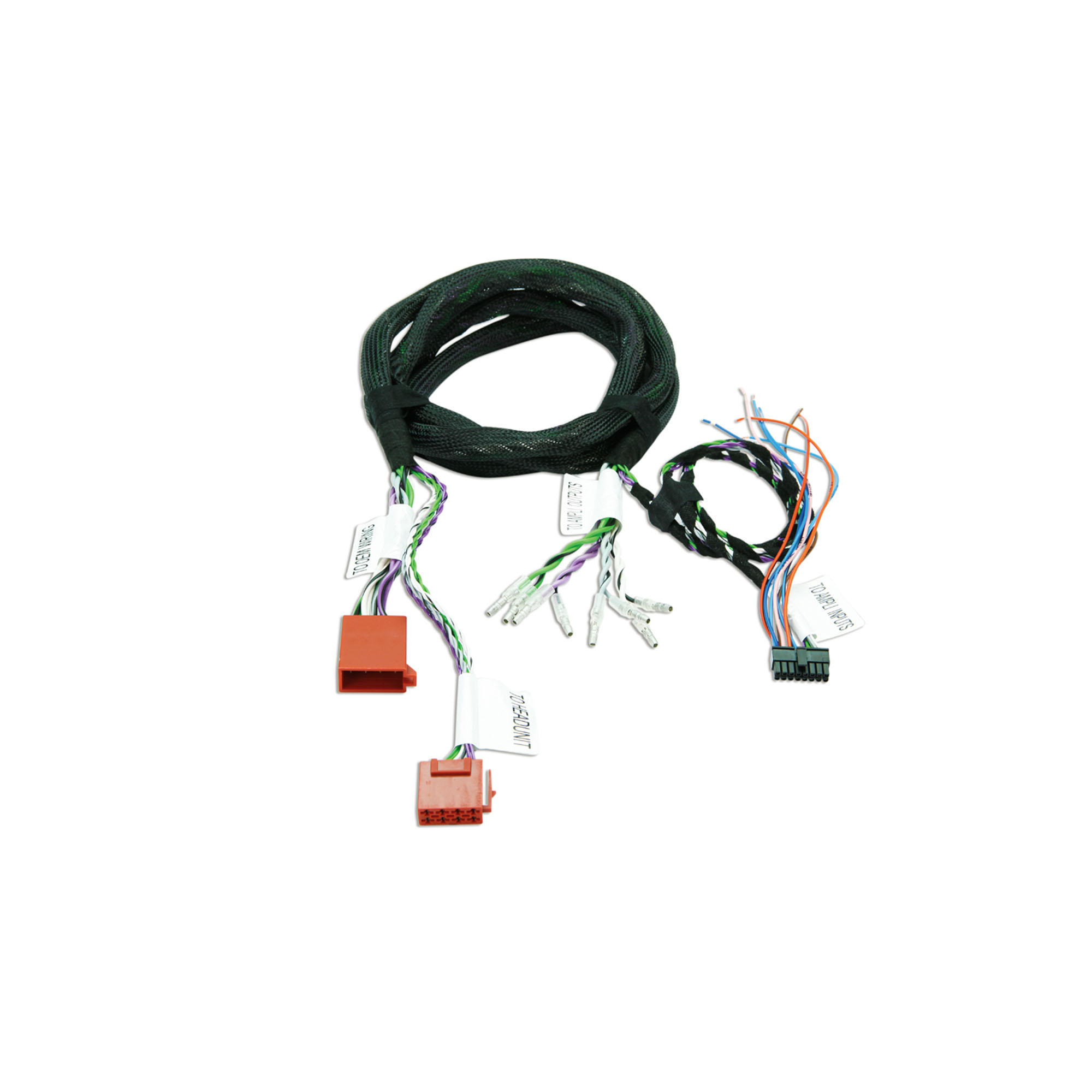

1x Audison AP 560P&P I/O Prima Series Iso Extention In/Out 560cm/220" - (AP-560P-P-I/O)

AP 560P&P I/O - ISO EXTENTION IN/OUT 560CM/220"

Prima extension cable with Plug&Play connections allows total freedom in positioning the AP bit amplifiers. Two extension typologies are available: input only, to only send the audio signal coming from the head unit to the AP bit amplifiers, or input/output, transmit also the AP bit amplifiers’ output signal to the factory audio system. To do so, the AP Extension Cables IN/OUT needs to be installed together with the AP Speakers Output Cables (see following paragraph). By use of the input/output extension, the installer is free to choose which configuration to adopt. Actually, thanks to the AP Extension cables, each single channel of the AP bit amplifier is sent to any of the speakers in the car, so the installer is free to carry out the desired configuration. For example: standard front (2ch TW+WF), multi-amplified front (2ch TW + 2ch WF), multi-amplified front with 4 bridged channels (130W @ 4ohm) for the woofers (2ch TW + 4ch bridge WF) and all the other possible combinations.

Features -
• Built with twisted cables for effective elimination of disturbances.
• Three different lengths (1,6 mt, 2,6 mt and 5,6 mt) suitable for any vehicle.
• Cut-proof protective shield
• High flexibility for maximum ease of installation.
• In/Out double connector to also receive the amplified signal of the AP bit amplifiers.

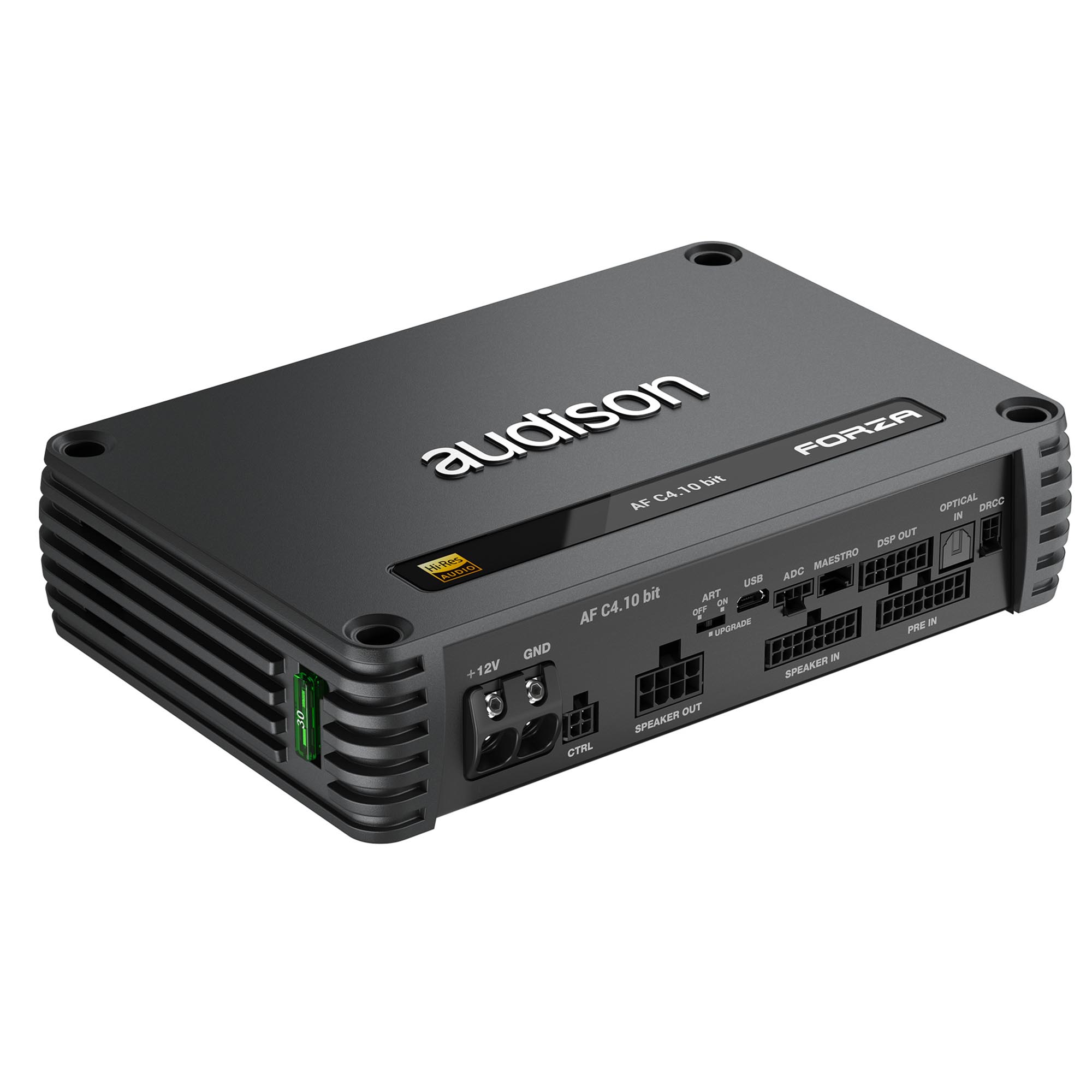

1x Audison Forza AF C4.10 bit 4 CH Amplifier With 10 Channels DSP - 4 x 90W at 4Ω - (AF-C4.10-bit)

AF C4.10 bit boasts four high-fidelity amplified channels 90W x 4 @4Ω*, 150W x 4 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 300 x 2 @4Ω, guaranteeing flexible and powerful performance. Support for the Audison B-Con’s Absolute Volume function guarantees maximum bit depth, even with wireless connections! *Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

Specifications:
AMPLIFIER TECH DATA
Channels: 4
Class: D
Power supply voltage / fuse: 11 ÷ 15 VDC / 1 x 30A
Operating power supply voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.04 A
Standby Current Draw: 1.4 A
Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 29 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: 1.5 VDC
AST - Automatic Signal Turn on/off (Selectable): 1.5 VDC
Efficiency Rated Power: 81%

AMPLIFIER STAGE
Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.03%
Bandwidth @ -1.5 dB: 10 Hz ÷ 42 kHz
Damping factor @ 1 kHz, 4Ω, 2 VRMS: 95
S/N ratio (A weighted @ 1 V Input) Master Input: 98 dBA
S/N ratio (A weighted @ 1 V Input) Optical Input: 105
Input sensitivity Pre-In: 0.6 ÷ 6 VRMS (15 kΩ Imp.)

DIGITAL SIGNAL PROCESSOR
Audio DSP Converter: Analog Devices ADAU1467 automotive qualified audio processor.
Filter type: Full / High-Pass / Low-Pass / Band-Pass
Crossover frequency: 20 Hz ÷ 20 kHz
Phase control: 0° / 180°, All-Pass filters

GENERAL REQUIREMENTS
PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/PC requirements: Windows 10, Windows 11
Video Resolution with screen resize: (min. res. 1024 x 768)
Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
Weight: 1.38 kg

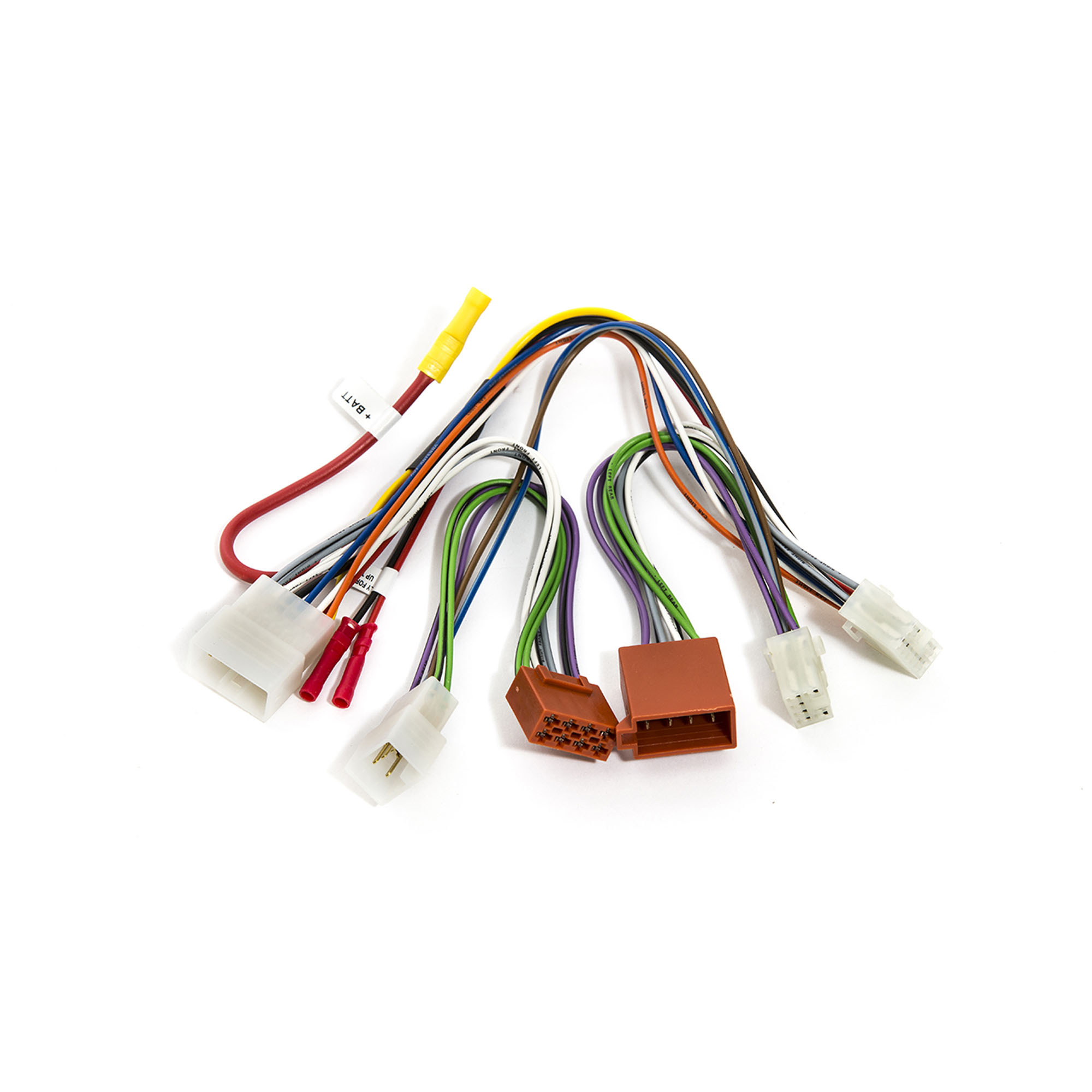

1x Audison AP T-H TOL01 Prima Series T-Harness Compatible With Select Toyota-Lexus - (AP-T-H-TOL01)

AP T-H TOL01 - PRIMA T-HARNESS TOYOTA-LEXUS

T-Harness “DCC” is the Plug&Play solution for Toyota/Lexus to integrate Audison Prima with the factory car audio system. The battery positive is taken from the head unit without the need of reaching the engine compartment thanks to the DCC* solution. The DCC solution, (Direct Cockpit Current) can be used combined with the AP bit amplifiers’ feature which controls the amplifier absorption peaks, protecting the car power supply system.

Features -
• Designed specifically for your vehicle for maximum OEM integration.
• Connection to the AP Extension cable through ISO connectors
• Possibility to supply power to the amplifier via the direct cockpit current system without the need of routing the cable through the engine compartment (with Audison Prima DCC solution).
• ACC wire to re-launch ignition key signal to turn on / off an external device in those vehicles featuring ignition key connection wire (ACC wire), see compatibility list
