Description
Included in this kit
This bundle includes a Cerwin-Vega XED693 - XED 6X9" 3-Way Coaxial Speaker Set - 350W Max, and a Cerwin-Vega XED650C - XED 6.5" 2-Way Component Speaker Set - 300W Max.
1x Cerwin-Vega XED693 - XED 6X9" 3-Way Coaxial Speaker Set - 350W Max (XED693)
The Cerwin-Vega XED693 is a 6x9-inch 3-way coaxial speaker designed to deliver full-range sound reproduction in standard automotive speaker locations. As part of the XED Series, these speakers combine multiple driver elements into a single assembly for simplified installation and balanced frequency output.
The polypropylene cone woofer with a treated foam surround supports controlled midbass response, while integrated aluminum dome drivers handle midrange and high-frequency output. An internal crossover network manages frequency distribution between drivers without the need for external components. A stamped steel basket provides structural support and durability for in-vehicle use.
With a 4-ohm impedance and moderate power handling, the XED693 speakers are compatible with factory head units or aftermarket amplifiers. Included grilles and standard mounting dimensions support installation in a wide range of vehicles.
Technical Specifications
• Speaker Type: 3-Way Coaxial Speaker System
• Speaker Size: 6 x 9 inches
• Impedance: 4 Ohms
• RMS / Max Power Handling: 45W / 350W
• Frequency Response: 50Hz – 20kHz
• Woofer Cone Material: Polypropylene
• Midrange / Tweeter Material: Aluminum
• Surround Material: Treated Foam
• Basket Material: Stamped Steel
• Magnet Type: Ferrite (Ceramic)
• Voice Coil Diameter: 1 inch
• Crossover: Internal
• Mounting Depth: 3.4 inches (87.5mm)
• Mounting Dimensions: 5.94” x 7.04” (151 x 179mm)
• Grilles: Included

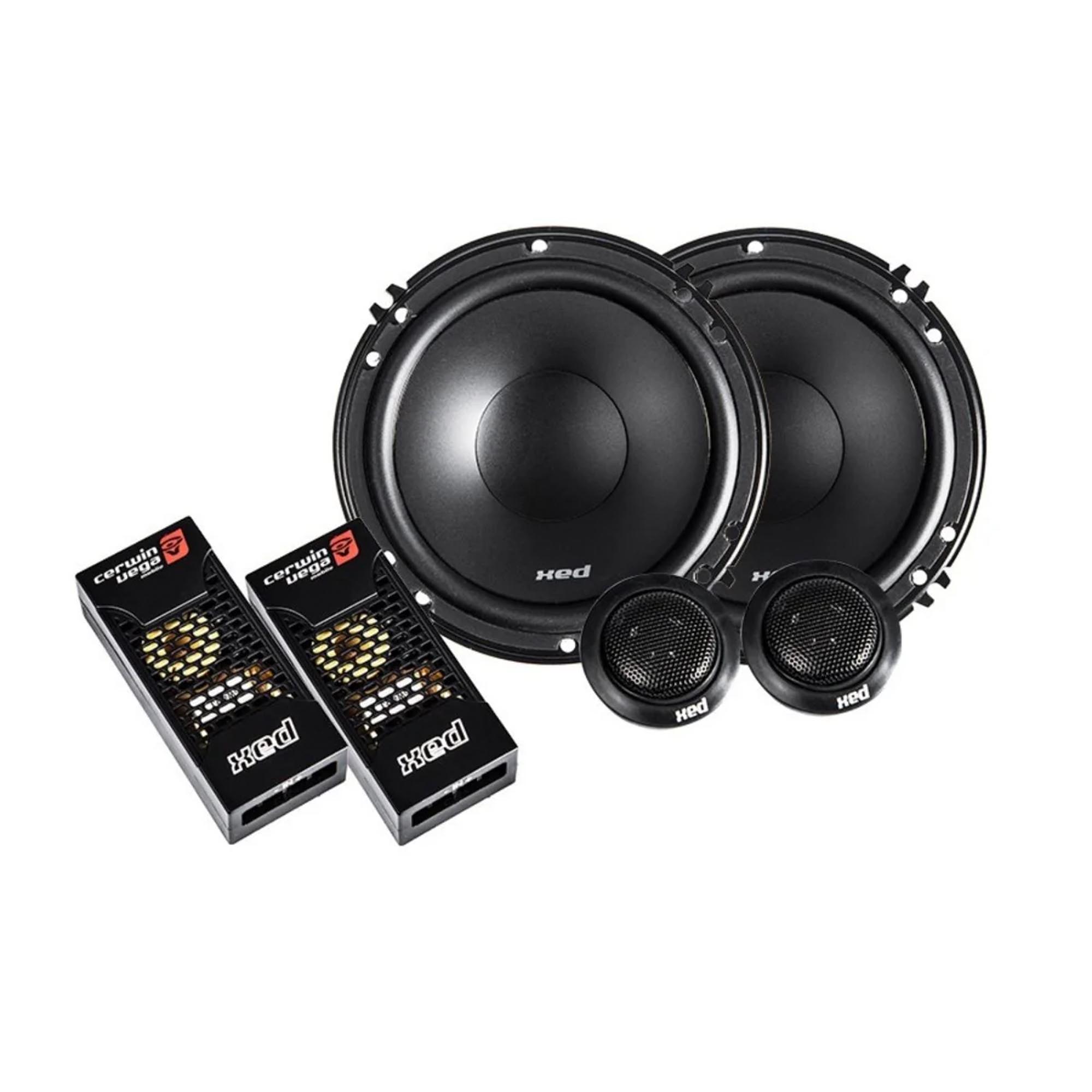

1x Cerwin-Vega XED650C - XED 6.5" 2-Way Component Speaker Set - 300W Max (XED650C)
The Cerwin-Vega XED650C is a 6.5-inch 2-way component speaker system designed for balanced full-range sound reproduction in car audio applications. This set includes separate woofers and tweeters with an external crossover, allowing flexible placement and improved frequency distribution compared to coaxial speaker designs.
The polypropylene cone woofer is paired with a treated foam surround to support controlled midbass response, while the titanium dome tweeter provides high-frequency detail. A stamped steel basket supports durability and consistent performance in standard factory or aftermarket speaker locations.
With a compact mounting depth and included grilles, the XED650C component set is suitable for door or panel installations in a wide range of vehicles. The 4-ohm impedance and moderate power handling make it compatible with factory head units or aftermarket amplifiers.
Technical Specifications
• Speaker Type: 2-Way Component System
• Speaker Size: 6.5 inches
• Impedance: 4 Ohms
• RMS / Max Power Handling: 35W / 150W
• Frequency Response: 50Hz – 20kHz
• Woofer Cone Material: Polypropylene
• Tweeter Dome Material: Titanium
• Surround Material: Treated Foam
• Basket Material: Stamped Steel
• Magnet Type: Ferrite (Woofer) / Neodymium (Tweeter)
• Voice Coil Diameter: 1 inch
• Mounting Depth: 2.2 inches (55.8mm)
• Mounting Diameter: 4.96 inches (126mm)
• External Crossover: Included
• Grilles: Included
