Description
Included in this kit
This bundle includes a Cerwin-Vega XED6004D - XED 6-Channel / 80X4@4Ω Rms / 600W Max, a Cerwin-Vega XED650C - XED 6.5" 2-Way Component Speaker Set - 300W Max, a Cerwin-Vega XED693 - XED 6X9" 3-Way Coaxial Speaker Set - 350W Max, and a Cerwin Vega CAK84 8GA COMPLETE 4-CH AMP KIT, GEN2.

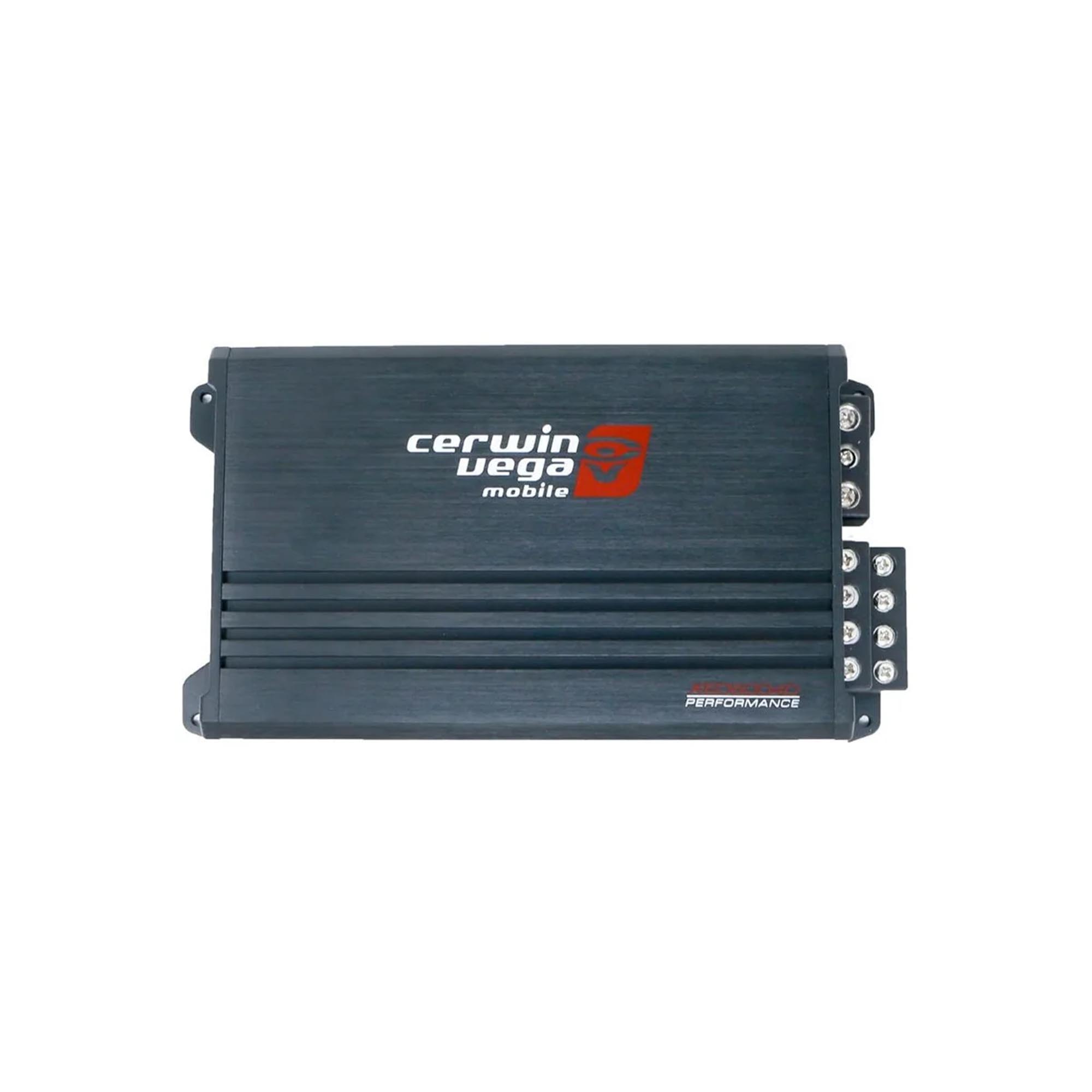

1x Cerwin-Vega XED6004D - XED 6-Channel / 80X4@4Ω Rms / 600W Max (XED6004D)
The Cerwin-Vega XED6004D is a 4-channel full-range Class-D amplifier designed to power front and rear speakers or compact multi-speaker systems in car audio applications. As part of the XED Series, this amplifier emphasizes efficient power delivery, compact size, and system flexibility for a wide range of installations.
The Class-D output stage and full PWM power supply provide stable power output while minimizing heat generation. An aluminum chassis supports effective thermal management and durability, allowing installation in space-limited environments such as under seats or factory mounting locations.
Selectable crossover modes allow each channel pair to be configured for high-pass, low-pass, or full-range operation. This flexibility supports use with coaxial speakers, component systems, or midbass drivers. The amplifier accepts both low-level RCA and high-level speaker inputs for compatibility with factory or aftermarket head units. LED power and protection indicators provide system status visibility.
Technical Specifications
• Channels: 4 (Full Range)
• RMS Power: 80W x 4 @ 4Ω / 120W x 4 @ 2Ω
• Frequency Response / Bandwidth: 10Hz–3kHz (-3dB), 35Hz–350Hz (Rated)
• THD (1kHz @ 4Ω): ≤0.1%
• Signal-to-Noise Ratio: -85dBA (1W) / -101.1dBA (Full Power)
• Input Sensitivity: 250mV–10V (RCA) / 1.3V–20V (Speaker Level)
• Crossovers: Selectable High-Pass / Full Range / Low-Pass (35Hz–250Hz)
• Fuse Rating: 25A x 2 (Internal)
• Operating Voltage: 10.0V–16.0V DC
• Dimensions (L x W x H): 7.1” x 4.7” x 1.8”
• Manufacturer Part Number: XED6004D
1x Cerwin-Vega XED650C - XED 6.5" 2-Way Component Speaker Set - 300W Max (XED650C)
The Cerwin-Vega XED650C is a 6.5-inch 2-way component speaker system designed for balanced full-range sound reproduction in car audio applications. This set includes separate woofers and tweeters with an external crossover, allowing flexible placement and improved frequency distribution compared to coaxial speaker designs.
The polypropylene cone woofer is paired with a treated foam surround to support controlled midbass response, while the titanium dome tweeter provides high-frequency detail. A stamped steel basket supports durability and consistent performance in standard factory or aftermarket speaker locations.
With a compact mounting depth and included grilles, the XED650C component set is suitable for door or panel installations in a wide range of vehicles. The 4-ohm impedance and moderate power handling make it compatible with factory head units or aftermarket amplifiers.
Technical Specifications
• Speaker Type: 2-Way Component System
• Speaker Size: 6.5 inches
• Impedance: 4 Ohms
• RMS / Max Power Handling: 35W / 150W
• Frequency Response: 50Hz – 20kHz
• Woofer Cone Material: Polypropylene
• Tweeter Dome Material: Titanium
• Surround Material: Treated Foam
• Basket Material: Stamped Steel
• Magnet Type: Ferrite (Woofer) / Neodymium (Tweeter)
• Voice Coil Diameter: 1 inch
• Mounting Depth: 2.2 inches (55.8mm)
• Mounting Diameter: 4.96 inches (126mm)
• External Crossover: Included
• Grilles: Included
1x Cerwin-Vega XED693 - XED 6X9" 3-Way Coaxial Speaker Set - 350W Max (XED693)
The Cerwin-Vega XED693 is a 6x9-inch 3-way coaxial speaker designed to deliver full-range sound reproduction in standard automotive speaker locations. As part of the XED Series, these speakers combine multiple driver elements into a single assembly for simplified installation and balanced frequency output.
The polypropylene cone woofer with a treated foam surround supports controlled midbass response, while integrated aluminum dome drivers handle midrange and high-frequency output. An internal crossover network manages frequency distribution between drivers without the need for external components. A stamped steel basket provides structural support and durability for in-vehicle use.
With a 4-ohm impedance and moderate power handling, the XED693 speakers are compatible with factory head units or aftermarket amplifiers. Included grilles and standard mounting dimensions support installation in a wide range of vehicles.
Technical Specifications
• Speaker Type: 3-Way Coaxial Speaker System
• Speaker Size: 6 x 9 inches
• Impedance: 4 Ohms
• RMS / Max Power Handling: 45W / 350W
• Frequency Response: 50Hz – 20kHz
• Woofer Cone Material: Polypropylene
• Midrange / Tweeter Material: Aluminum
• Surround Material: Treated Foam
• Basket Material: Stamped Steel
• Magnet Type: Ferrite (Ceramic)
• Voice Coil Diameter: 1 inch
• Crossover: Internal
• Mounting Depth: 3.4 inches (87.5mm)
• Mounting Dimensions: 5.94” x 7.04” (151 x 179mm)
• Grilles: Included

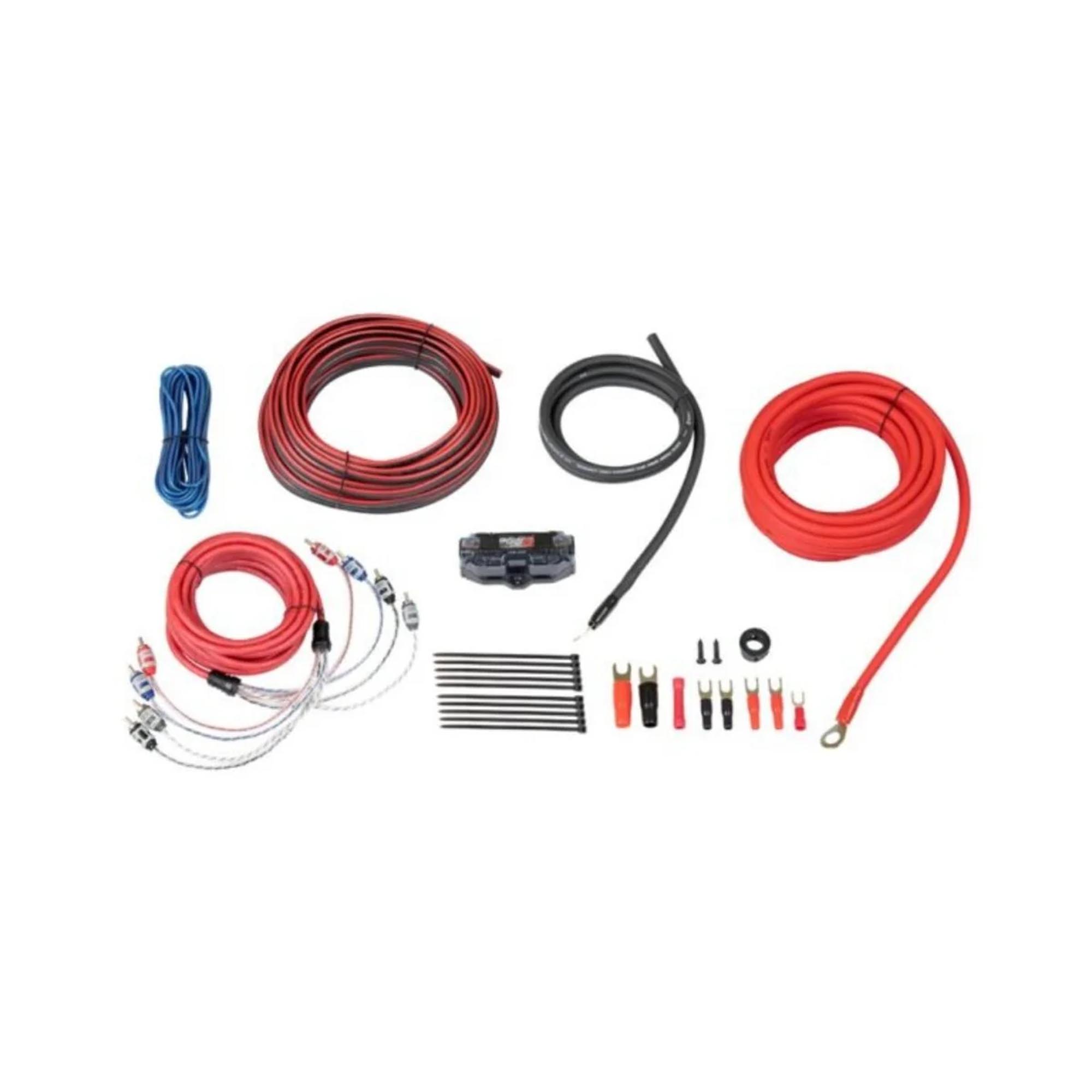

1x Cerwin Vega CAK84 8GA COMPLETE 4-CH AMP KIT, GEN2 (CAK84)
Description:
Designed Specifically for high output car audio system. 8 Gauge 4-Channel Amplifier Connection Kits. 17ft, 8 Gauge Matte Red Power Wire with ring terminated. 3ft, 8 Gauge Matte Black Ground Wire with ring terminated. 17ft, 18 Gauge Remote Turn-on wire. 20ft, 16 Gauge Speaker Wire. 17ft, 4-Ch. Vega series RCA interconnect. AGU fuse holder with 60A fuse. All Hardware included. OFC. US Spec.
Specifications
8 Gauge 4-Channel Amplifier Connection Kits
17ft. 8 Gauge Matte Red Power Wire with ring terminated
3ft. 8 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge Remote Turn-on wire
30ft. 16 Gauge Speaker Wire
17ft. 4-Ch. Vega series RCA interconnect
AGU fuse holder with 60A fuse
All Hardware Include
OFC
US Spec
