Description
Included in this kit
This bundle includes a Cerwin-Vega XED650C - XED 6.5" 2-Way Component Speaker Set - 300W Max, a Cerwin-Vega XED693 - XED 6X9" 3-Way Coaxial Speaker Set - 350W Max, a Cerwin-Vega XED8005D - XED 8-Channel / 80Wx4+200Wx1@4Ω Rms / 800W Max, a Cerwin-Vega XED12V2 - XED 1000W Max 12" Svc 4Ω, and a Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS.
1x Cerwin-Vega XED650C - XED 6.5" 2-Way Component Speaker Set - 300W Max (XED650C)
The Cerwin-Vega XED650C is a 6.5-inch 2-way component speaker system designed for balanced full-range sound reproduction in car audio applications. This set includes separate woofers and tweeters with an external crossover, allowing flexible placement and improved frequency distribution compared to coaxial speaker designs.
The polypropylene cone woofer is paired with a treated foam surround to support controlled midbass response, while the titanium dome tweeter provides high-frequency detail. A stamped steel basket supports durability and consistent performance in standard factory or aftermarket speaker locations.
With a compact mounting depth and included grilles, the XED650C component set is suitable for door or panel installations in a wide range of vehicles. The 4-ohm impedance and moderate power handling make it compatible with factory head units or aftermarket amplifiers.
Technical Specifications
• Speaker Type: 2-Way Component System
• Speaker Size: 6.5 inches
• Impedance: 4 Ohms
• RMS / Max Power Handling: 35W / 150W
• Frequency Response: 50Hz – 20kHz
• Woofer Cone Material: Polypropylene
• Tweeter Dome Material: Titanium
• Surround Material: Treated Foam
• Basket Material: Stamped Steel
• Magnet Type: Ferrite (Woofer) / Neodymium (Tweeter)
• Voice Coil Diameter: 1 inch
• Mounting Depth: 2.2 inches (55.8mm)
• Mounting Diameter: 4.96 inches (126mm)
• External Crossover: Included
• Grilles: Included
1x Cerwin-Vega XED693 - XED 6X9" 3-Way Coaxial Speaker Set - 350W Max (XED693)
The Cerwin-Vega XED693 is a 6x9-inch 3-way coaxial speaker designed to deliver full-range sound reproduction in standard automotive speaker locations. As part of the XED Series, these speakers combine multiple driver elements into a single assembly for simplified installation and balanced frequency output.
The polypropylene cone woofer with a treated foam surround supports controlled midbass response, while integrated aluminum dome drivers handle midrange and high-frequency output. An internal crossover network manages frequency distribution between drivers without the need for external components. A stamped steel basket provides structural support and durability for in-vehicle use.
With a 4-ohm impedance and moderate power handling, the XED693 speakers are compatible with factory head units or aftermarket amplifiers. Included grilles and standard mounting dimensions support installation in a wide range of vehicles.
Technical Specifications
• Speaker Type: 3-Way Coaxial Speaker System
• Speaker Size: 6 x 9 inches
• Impedance: 4 Ohms
• RMS / Max Power Handling: 45W / 350W
• Frequency Response: 50Hz – 20kHz
• Woofer Cone Material: Polypropylene
• Midrange / Tweeter Material: Aluminum
• Surround Material: Treated Foam
• Basket Material: Stamped Steel
• Magnet Type: Ferrite (Ceramic)
• Voice Coil Diameter: 1 inch
• Crossover: Internal
• Mounting Depth: 3.4 inches (87.5mm)
• Mounting Dimensions: 5.94” x 7.04” (151 x 179mm)
• Grilles: Included

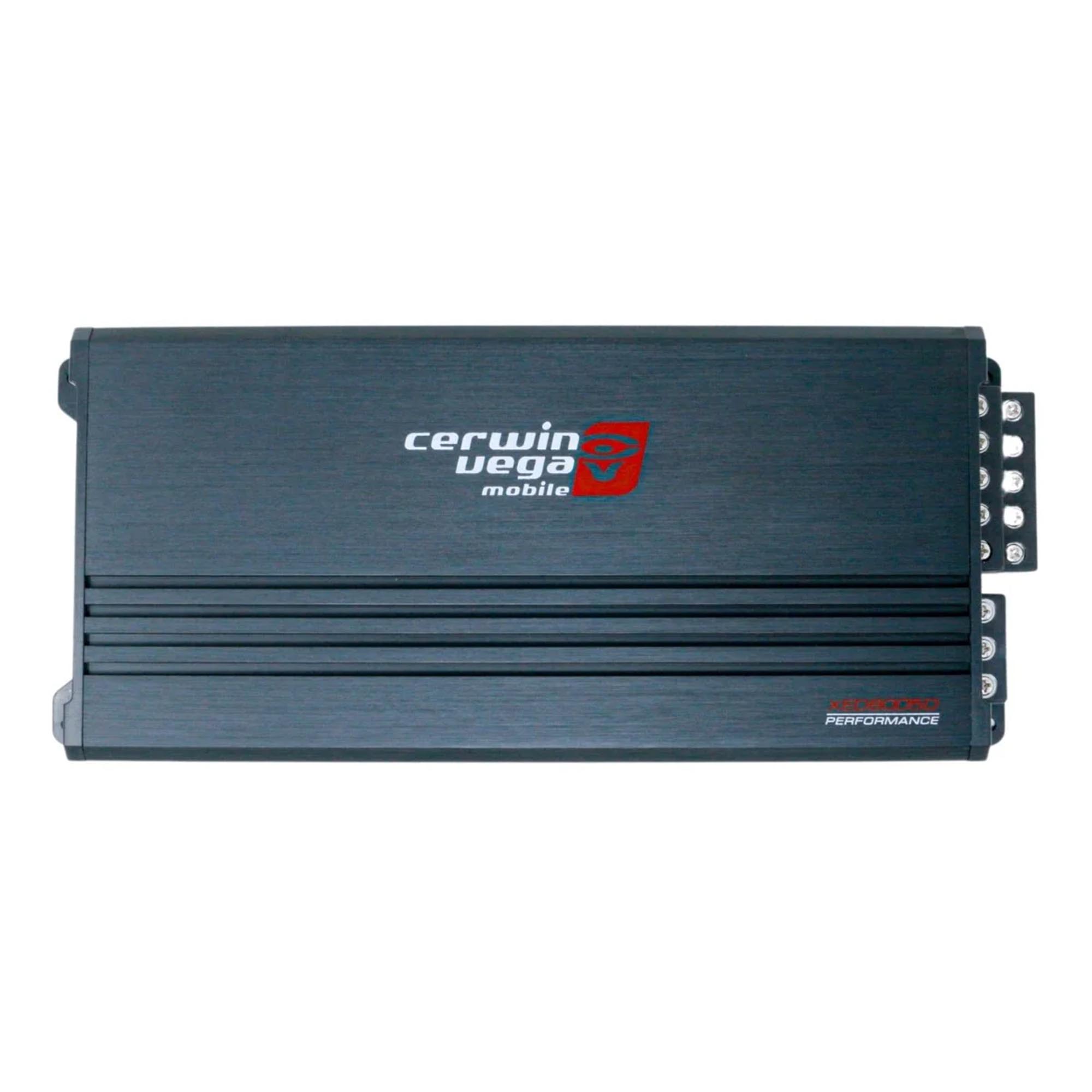

1x Cerwin-Vega XED8005D - XED 8-Channel / 80Wx4+200Wx1@4Ω Rms / 800W Max (XED8005D)
The Cerwin-Vega XED8005D is a 5-channel Class-D amplifier designed to power a complete car audio system from a single chassis. It provides four full-range channels for speakers and a dedicated mono channel for a subwoofer, making it suitable for compact full-system installations. As part of the XED Series, this amplifier focuses on efficient power delivery, space-saving design, and flexible system integration.
A Class-D output stage combined with a full PWM power supply allows the XED8005D to deliver stable output while minimizing heat generation. The aluminum chassis supports effective thermal management and durability, allowing installation in space-limited locations such as under seats or factory mounting areas.
Selectable crossovers on the front and rear channels support high-pass or full-range operation, while the dedicated subwoofer channel includes adjustable low-pass and subsonic filtering. The amplifier supports both low-level RCA and speaker-level inputs for compatibility with factory or aftermarket head units. A wired remote bass control is included for convenient subwoofer level adjustment, and LED power and protection indicators provide clear system status feedback.
Technical Specifications
• Channels: 5 (4 Full Range + 1 Mono Subwoofer)
• RMS Power: 65W x 4 + 200W x 1 @ 4Ω / 90W x 4 + 300W x 1 @ 2Ω
• Frequency Response / Bandwidth: 10Hz–30kHz (Full Range), 10Hz–250Hz (Subwoofer)
• THD (100Hz @ 4Ω): ≤0.1%
• Signal-to-Noise Ratio: -85dBA (1W) / -101.1dBA (Full Power)
• Input Sensitivity: 500mV–12V (RCA) / Speaker Level Supported
• Crossovers: Front/Rear Selectable Flat or High-Pass (35Hz–250Hz), Subwoofer Low-Pass (35Hz–250Hz)
• Bass Boost: 0–12dB (Subwoofer Channel)
• Fuse Rating: 25A x 2 (Internal ATC)
• Operating Voltage: 10.0V–16.0V DC
• Dimensions (L x W x H): 10.3” x 4.7” x 1.8”
• Manufacturer Part Number: XED8005D
1x Cerwin-Vega XED12V2 - XED 1000W Max 12" Svc 4Ω (XED12V2)
The Cerwin-Vega XED12V2 is a 12-inch single voice coil subwoofer designed to deliver controlled low-frequency output in car audio systems. As part of the XED Series, this subwoofer focuses on durability, efficient power handling, and compatibility with a wide range of mono amplifiers.
A polypropylene cone paired with a treated foam surround supports stable cone movement and consistent bass response. The stamped steel basket provides structural support during operation, while the ferrite magnet motor structure is designed for reliable performance in daily-use and entry-level high-output applications.
With a single 4-ohm voice coil configuration, the XED12V2 allows for straightforward wiring and amplifier matching. Its mounting dimensions support installation in sealed or vented enclosures where space, efficiency, and reliability are important considerations.
Technical Specifications
• Speaker Type: Subwoofer
• Speaker Size: 12 inches
• Voice Coil Configuration: Single Voice Coil (SVC)
• Impedance: 4 Ohms
• RMS / Max Power Handling: 150W / 1000W
• Sensitivity (1W/1m): 85.5 dB
• Cone Material: Polypropylene
• Surround Material: Treated Foam
• Basket Material: Stamped Steel
• Magnet Type: Ferrite (Ceramic)
• Voice Coil Diameter: 2 inches
• Xmax: 17.8 mm
• Vas: 103.2 L
• Mounting Diameter: 10.82 inches (275mm)

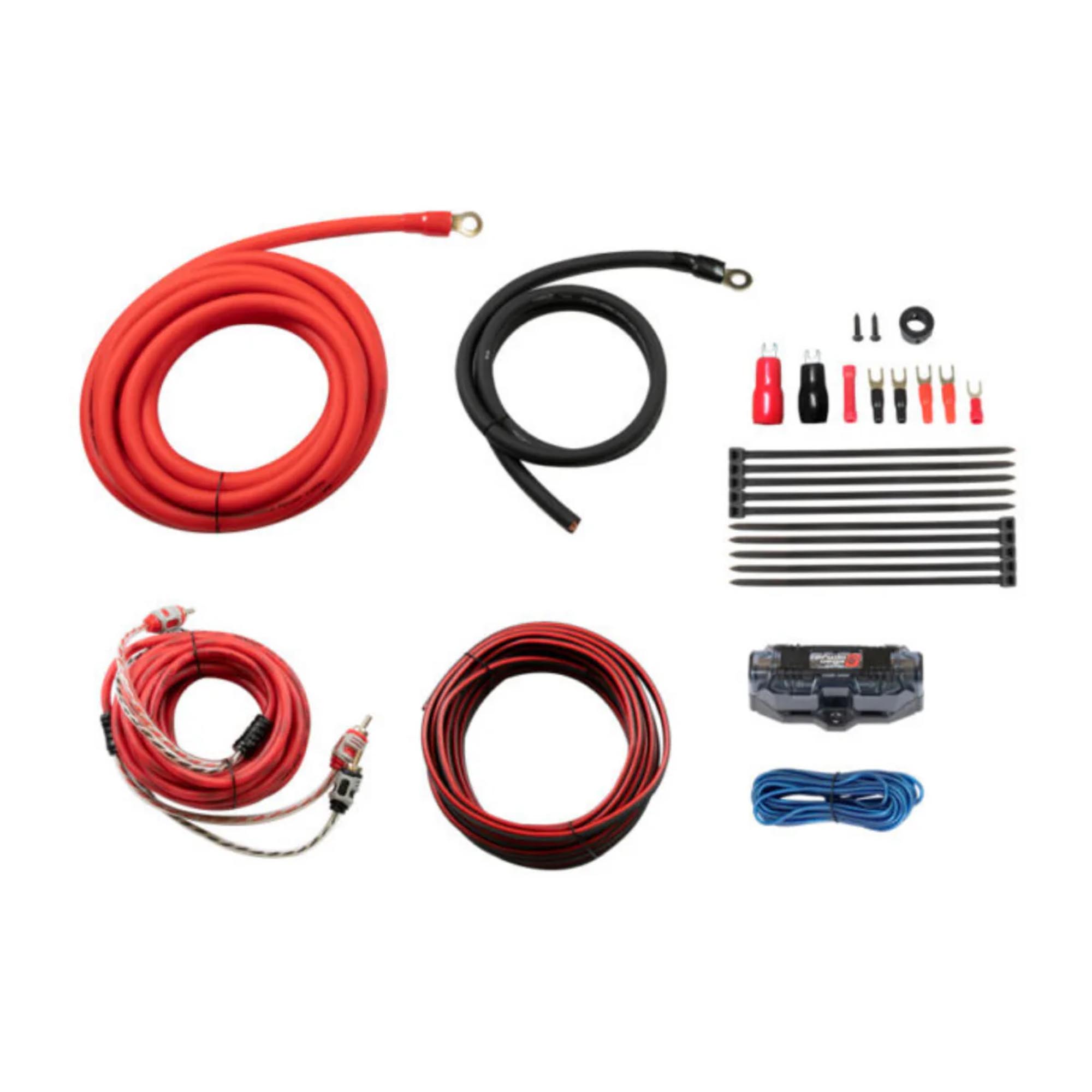

1x Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS (CAK42)
Designed Specifically for Car Audio System up to 1200W. 4 Gauge 2-Channel Amplifier Connection Kits. 17ft, 4 Gauge Matte Red Power Wire with ring terminated. 3ft, 4 Gauge Matte Black Ground Wire with ring terminated. 17ft, 18 Gauge Remote Turn-on wire. 20ft, 16 Gauge Speaker Wire. 17ft, 2-Ch. Vega series RCA interconnect. AGU fuse holder with 100A fuse. All Hardware included. OFC. US Spec.
Specifications
4 Gauge 2-Channel Amplifier Connection Kits
17ft. 4 Gauge Matte Red Power Wire with ring terminated
3ft. 4 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 2-Ch. Vega series RCA interconnect
ANL fuse holder with 100A fuse
All Hardware Include
OFC
