Description
Included in this kit
This bundle includes a Cerwin-Vega XED42 - XED 4" 2-Way Coaxial Speaker Set - 250W Max, and a Cerwin-Vega XED693 - XED 6X9" 3-Way Coaxial Speaker Set - 350W Max.
1x Cerwin-Vega XED42 - XED 4" 2-Way Coaxial Speaker Set - 250W Max (XED42)

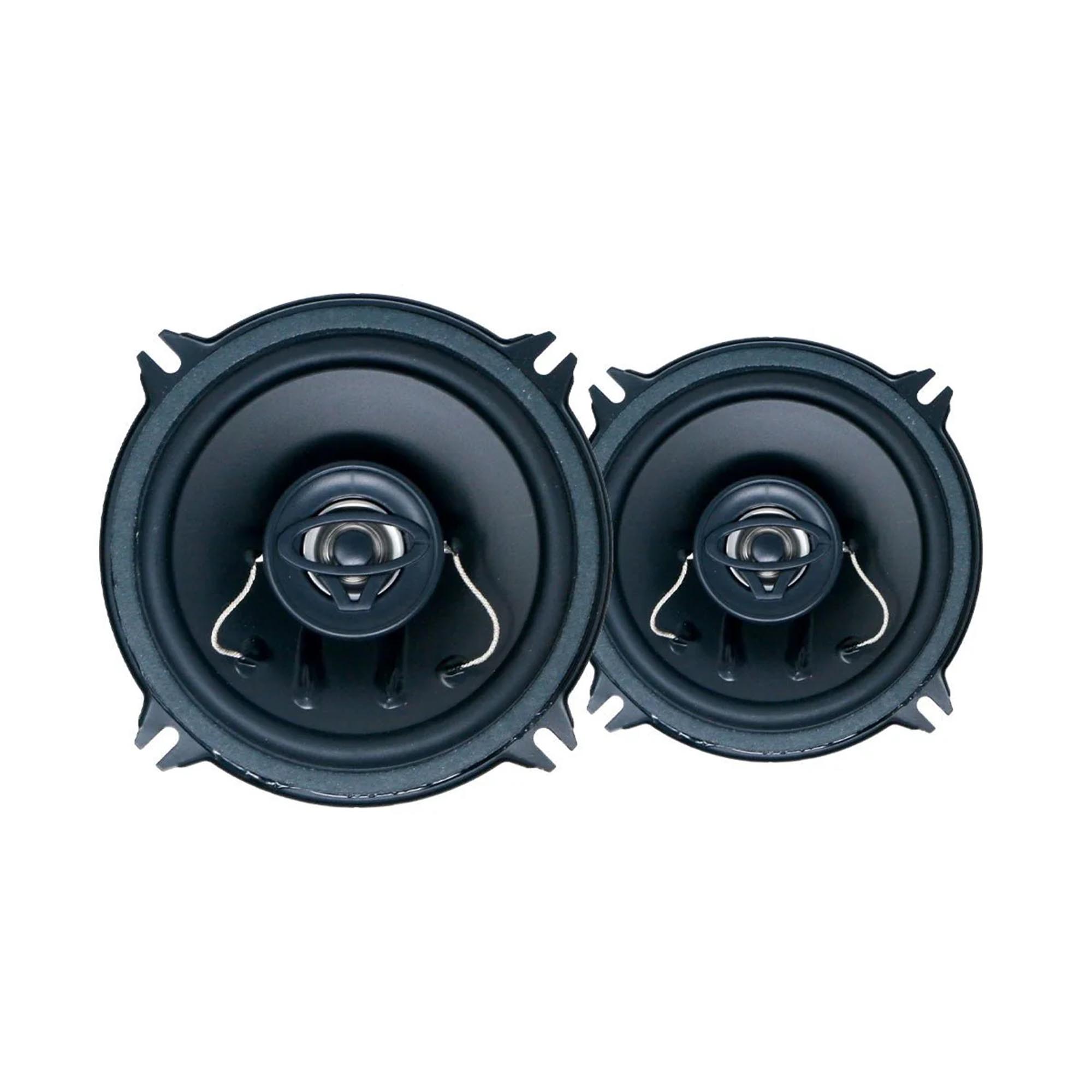

The Cerwin-Vega XED42 is a 4-inch 2-way coaxial speaker designed for full-range sound reproduction in compact automotive speaker locations. As part of the XED Series, these speakers combine a woofer and tweeter into a single assembly for straightforward installation and balanced frequency output in space-limited applications.
The polypropylene cone woofer with a treated foam surround supports controlled midrange response, while the integrated aluminum dome tweeter provides clear high-frequency detail. An internal crossover manages frequency distribution between drivers without the need for external components. A stamped steel basket provides durability and structural stability for in-vehicle use.
With a 4-ohm impedance and shallow mounting depth, the XED42 speakers are compatible with factory head units or aftermarket amplifiers. Included grilles and standard mounting dimensions support installation in dashboards, doors, or rear panel locations where space is limited.
Technical Specifications
• Speaker Type: 2-Way Coaxial Speaker System
• Speaker Size: 4 inches
• Impedance: 4 Ohms
• RMS / Max Power Handling: 20W / 150W
• Frequency Response: 70Hz – 20kHz
• Woofer Cone Material: Polypropylene
• Tweeter Dome Material: Aluminum
• Surround Material: Treated Foam
• Basket Material: Stamped Steel
• Magnet Type: Ferrite (Ceramic)
• Voice Coil Diameter: 1 inch
• Crossover: Internal
• Mounting Depth: 2.25 inches (57.3mm)
• Mounting Diameter: 3.9 inches (101mm)
• Grilles: Included
1x Cerwin-Vega XED693 - XED 6X9" 3-Way Coaxial Speaker Set - 350W Max (XED693)
The Cerwin-Vega XED693 is a 6x9-inch 3-way coaxial speaker designed to deliver full-range sound reproduction in standard automotive speaker locations. As part of the XED Series, these speakers combine multiple driver elements into a single assembly for simplified installation and balanced frequency output.
The polypropylene cone woofer with a treated foam surround supports controlled midbass response, while integrated aluminum dome drivers handle midrange and high-frequency output. An internal crossover network manages frequency distribution between drivers without the need for external components. A stamped steel basket provides structural support and durability for in-vehicle use.
With a 4-ohm impedance and moderate power handling, the XED693 speakers are compatible with factory head units or aftermarket amplifiers. Included grilles and standard mounting dimensions support installation in a wide range of vehicles.
Technical Specifications
• Speaker Type: 3-Way Coaxial Speaker System
• Speaker Size: 6 x 9 inches
• Impedance: 4 Ohms
• RMS / Max Power Handling: 45W / 350W
• Frequency Response: 50Hz – 20kHz
• Woofer Cone Material: Polypropylene
• Midrange / Tweeter Material: Aluminum
• Surround Material: Treated Foam
• Basket Material: Stamped Steel
• Magnet Type: Ferrite (Ceramic)
• Voice Coil Diameter: 1 inch
• Crossover: Internal
• Mounting Depth: 3.4 inches (87.5mm)
• Mounting Dimensions: 5.94” x 7.04” (151 x 179mm)
• Grilles: Included
