Description
Included in this kit
This bundle includes a Cerwin Vega CVP3600.1 Cvp Performance 3600W Max 1-Ch Small Chassis Amplifier 580W@4Ω Rms / 900W@2Ω Rms, and a Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS.
1x Cerwin Vega CVP3600.1 Cvp Performance 3600W Max 1-Ch Small Chassis Amplifier 580W@4Ω Rms / 900W@2Ω Rms (CVP3600.1)

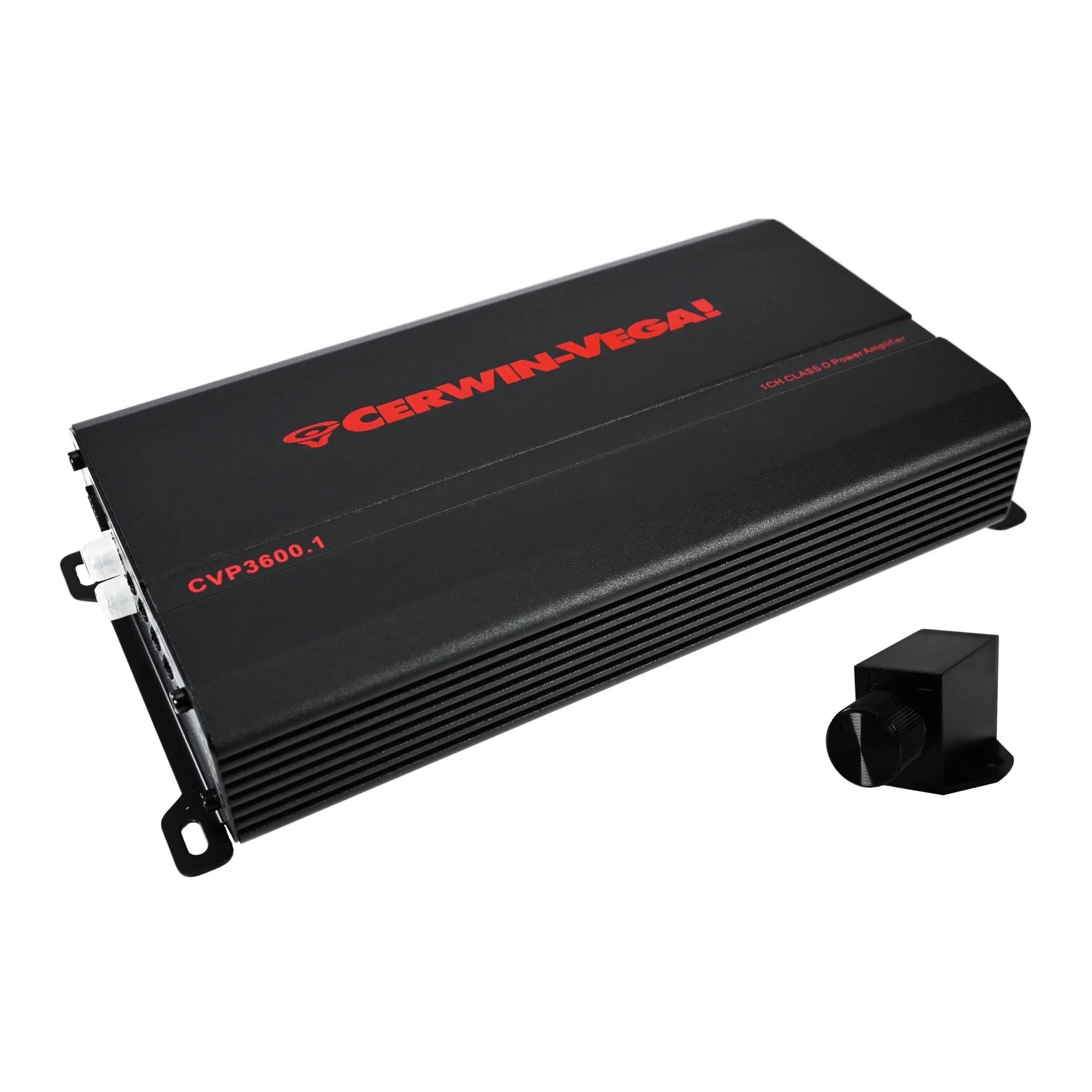

Cerwin-Vega CVP3600.1 CVP Performance 1-Channel Mono Amplifier
The Cerwin-Vega CVP3600.1 is a compact mono amplifier engineered for dedicated subwoofer applications. Designed as part of the CVP Performance Series, it delivers high-output low-frequency power in a space-efficient chassis suitable for modern vehicles.
With multiple impedance power ratings, adjustable crossover controls, and flexible input compatibility, the CVP3600.1 provides strong, controlled bass performance for factory upgrades and aftermarket builds.
Power & Performance
| RMS Power @ 4Ω | 500W x 1 |
| RMS Power @ 2Ω | 900W x 1 |
| RMS Power @ 1Ω | 1300W x 1 |
| Frequency Response (±3dB) | 10Hz – 400Hz |
| Signal-to-Noise Ratio | ≥90dB |
| Channel Separation | >60dB |
| Input Sensitivity | 250mV – 6V |
Crossover & Control Features
- Adjustable Subsonic Filter: 10Hz – 50Hz (-6dB)
- Adjustable Low-Pass Filter: 52Hz – 400Hz (-12dB)
- 12dB Bass Boost
- High-Level Inputs with Auto Turn-On (4V – 8V)
- Subwoofer Level Remote Control Included
- Power Protection Indicator
Construction & Protection
- Full MOSFET DC-DC PWM Power Supply
- Double-Sided 2-Layer PC Board
- SMD Technology
- Short Circuit Protection
- Low Impedance Protection
- Reverse Polarity Protection
- Overheating Protection
- Fuse Rating: 35A x 4
Dimensions
| Chassis Dimensions (L x W x H) | 9.65" x 4.92" x 1.93" (245mm x 125mm x 49mm) |
1x Cerwin Vega CAK42 4 Gauge OFC Amp Kit – 100% Oxygen-Free Copper Amplifier Wiring Kit with RCA Cable, Fuse Holder & Power Wire – Up to 1500W RMS (CAK42)
Designed Specifically for Car Audio System up to 1200W. 4 Gauge 2-Channel Amplifier Connection Kits. 17ft, 4 Gauge Matte Red Power Wire with ring terminated. 3ft, 4 Gauge Matte Black Ground Wire with ring terminated. 17ft, 18 Gauge Remote Turn-on wire. 20ft, 16 Gauge Speaker Wire. 17ft, 2-Ch. Vega series RCA interconnect. AGU fuse holder with 100A fuse. All Hardware included. OFC. US Spec.
Specifications
4 Gauge 2-Channel Amplifier Connection Kits
17ft. 4 Gauge Matte Red Power Wire with ring terminated
3ft. 4 Gauge Matte Black Ground Wire with ring terminated
17ft. 18 Gauge remote Turn-on wire
20ft. 16 Gauge Speaker Wire
17ft. 2-Ch. Vega series RCA interconnect
ANL fuse holder with 100A fuse
All Hardware Include
OFC
